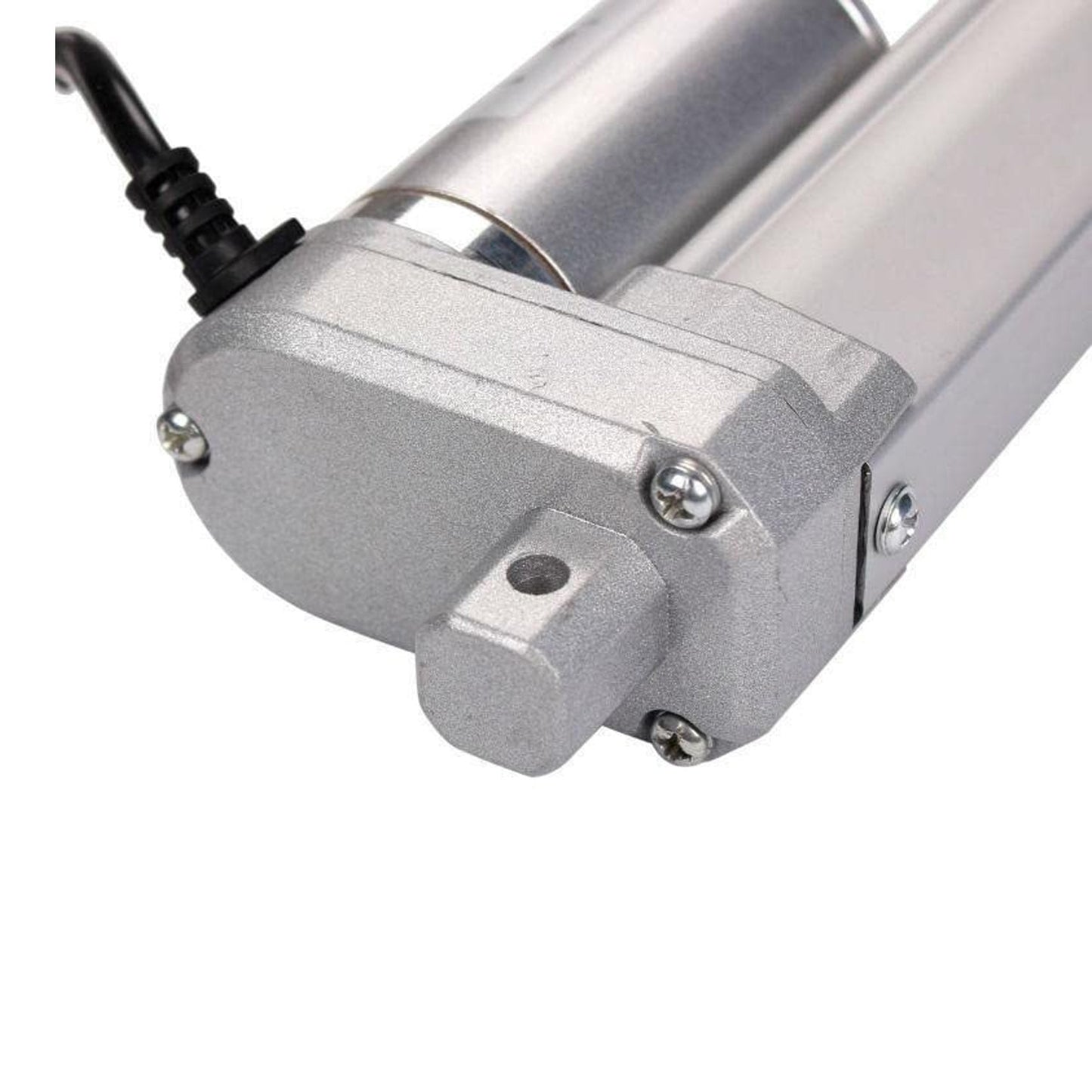

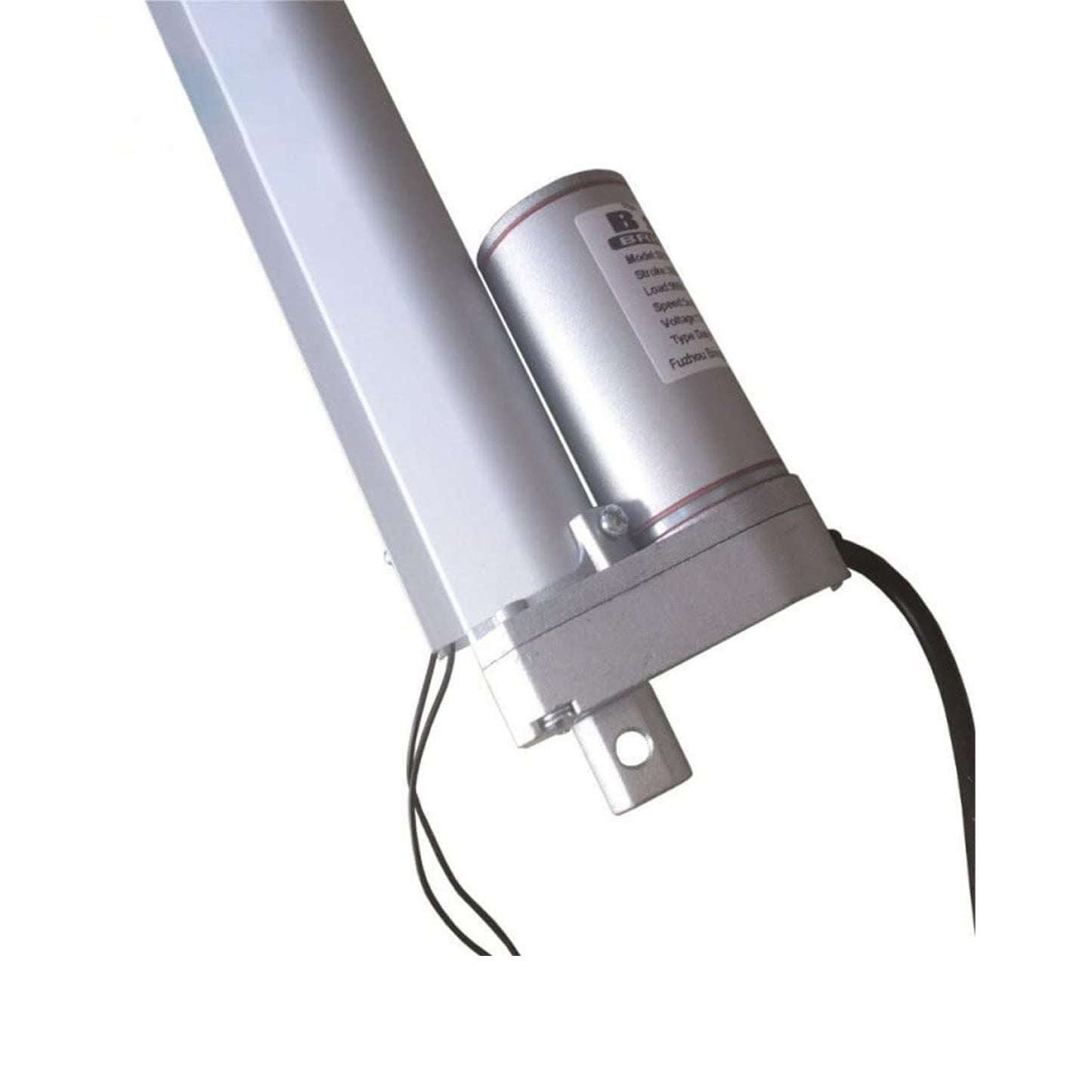

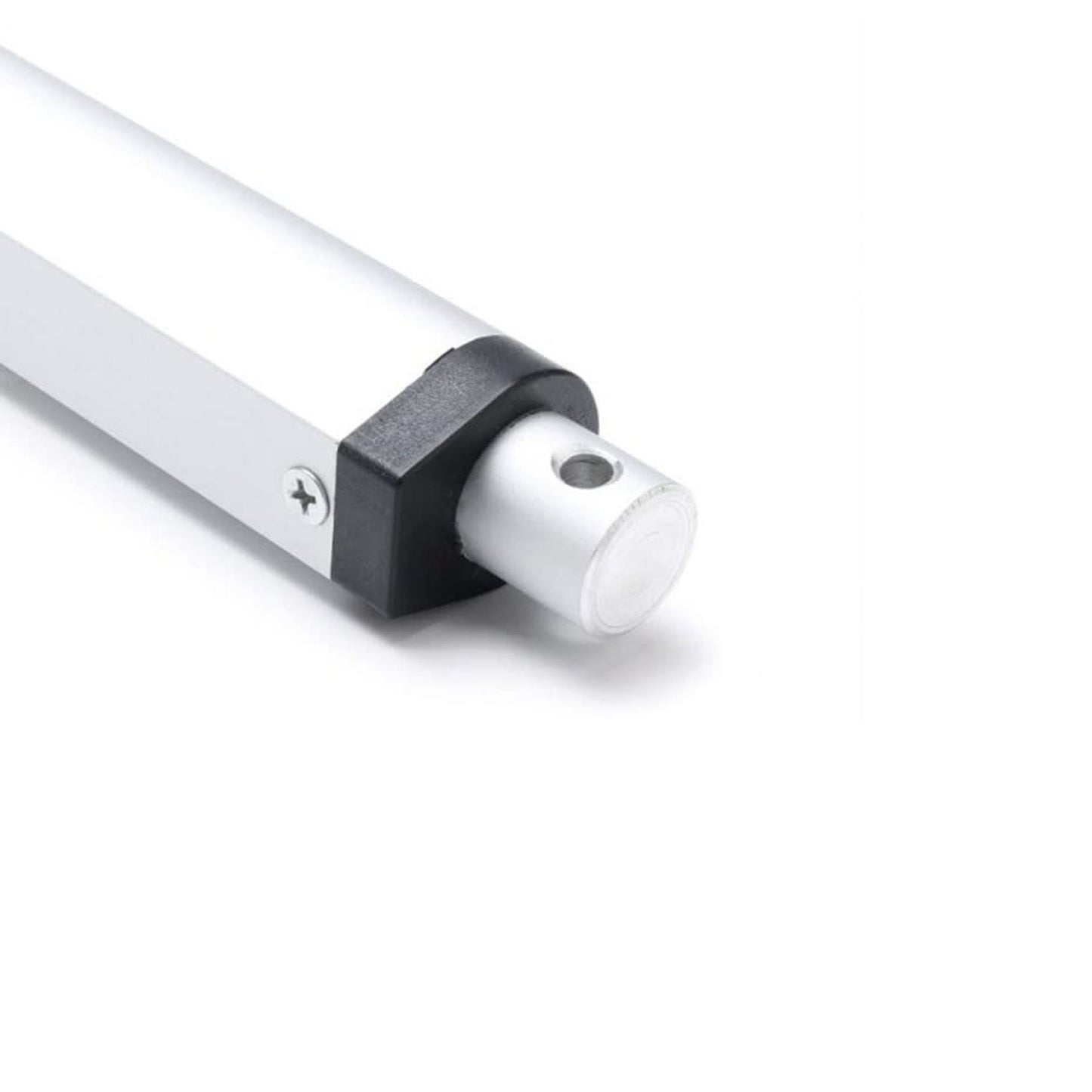

12V 100MM Linear Actuator Stroke Length Linear Actuator 7mm/S 1500N - RS3021/RS4920

12V 100MM Linear Actuator Stroke Length Linear Actuator 7mm/S 1500N - RS3021/RS4920

SKU:RS3021/RS4920

16 in stock

Regular price Rs. 2,699.00
Regular price Sale price Rs. 2,699.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This Miniature Linear Actuator Stroke Length 100MM,7mm/S,1500N,12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro motion control switch, etc.

Specifications:

  • Stroke Length: 100mm(apprx. 4inches)
  • Permanent magnet DC motor drive: Voltage 12VDC
  • Operating temperature: -20C to +63C
  • Mounting hole diameter (both ends): 1/4 (6.4mm)
  • Protection Level: IP55
  • Maximum static load: 337.2 lbs. ( 1500 Newtons )
  • Maximum current draw: 2A
  • Self Locking Force: 1500N
  • Motor Diameter: 36 mm
  • Speed at no load: 0.28in/sec (7 mm /sec)
  • Speed at full load: 22in/sec (5.5 mm /sec)
  • Noise level: 45 dB

Features:

  • Aluminium frame and extension tube
  • Compact Design
  • Built in Limit Switch
  • Low Noise
  • Moisture-proof Surface
  • Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
  • Permanent magnet DC motor drive: Voltage 12VDC
  • Self Locking Force: 1500N

Applications:

  • Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
  • The medical electric bed, surgical bed, traction bed
  • Electric equipments: Electric sofa, electric lifting lever, electric booth, electric sunroof, etc;
  • Chair for medical use: Electric wheelchair, massage chair, dental chair.
  • Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.

    Package Included:

    1 x 12V 100MM Linear Actuator Stroke Length Linear Actuator 7mm/S 1500N
