Description:

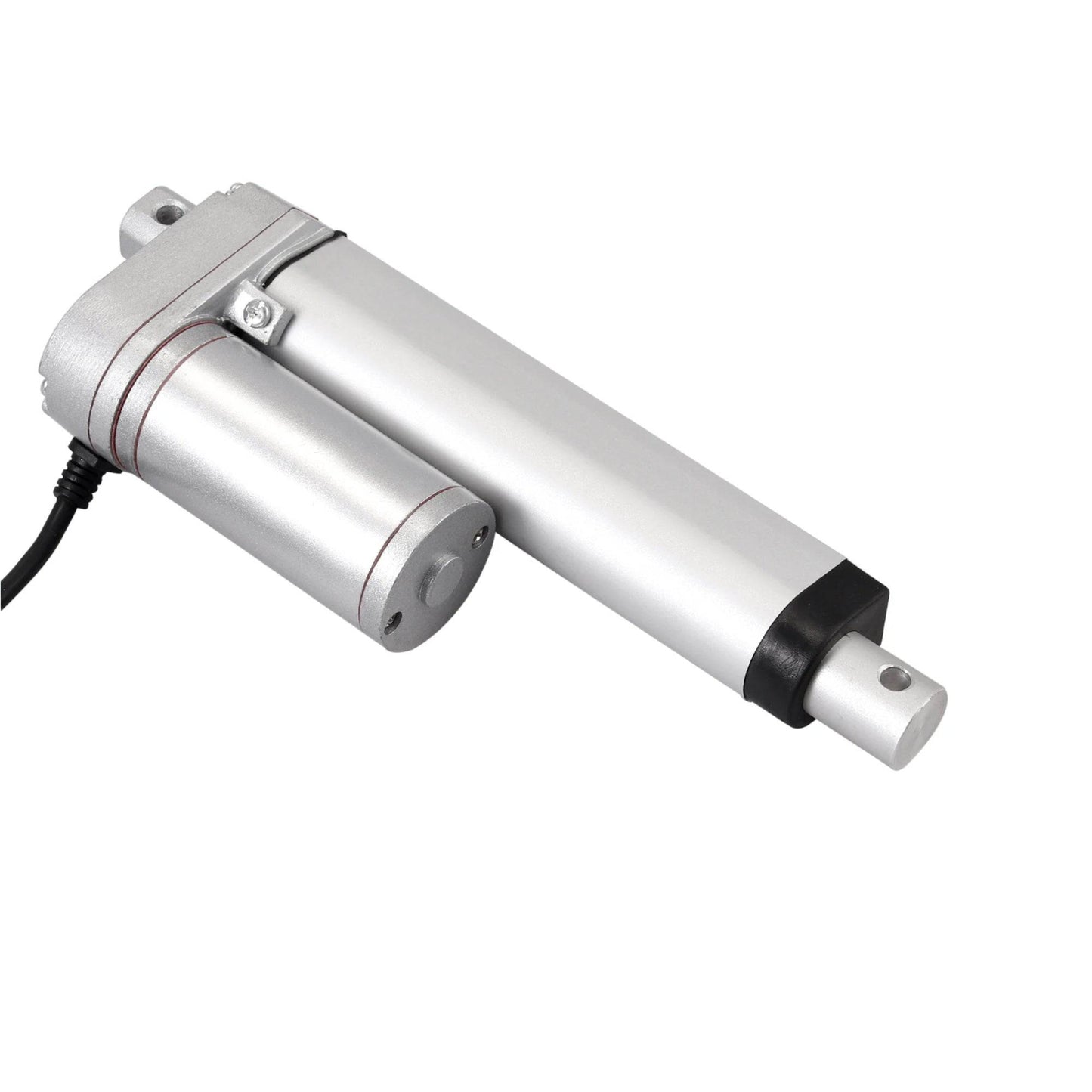

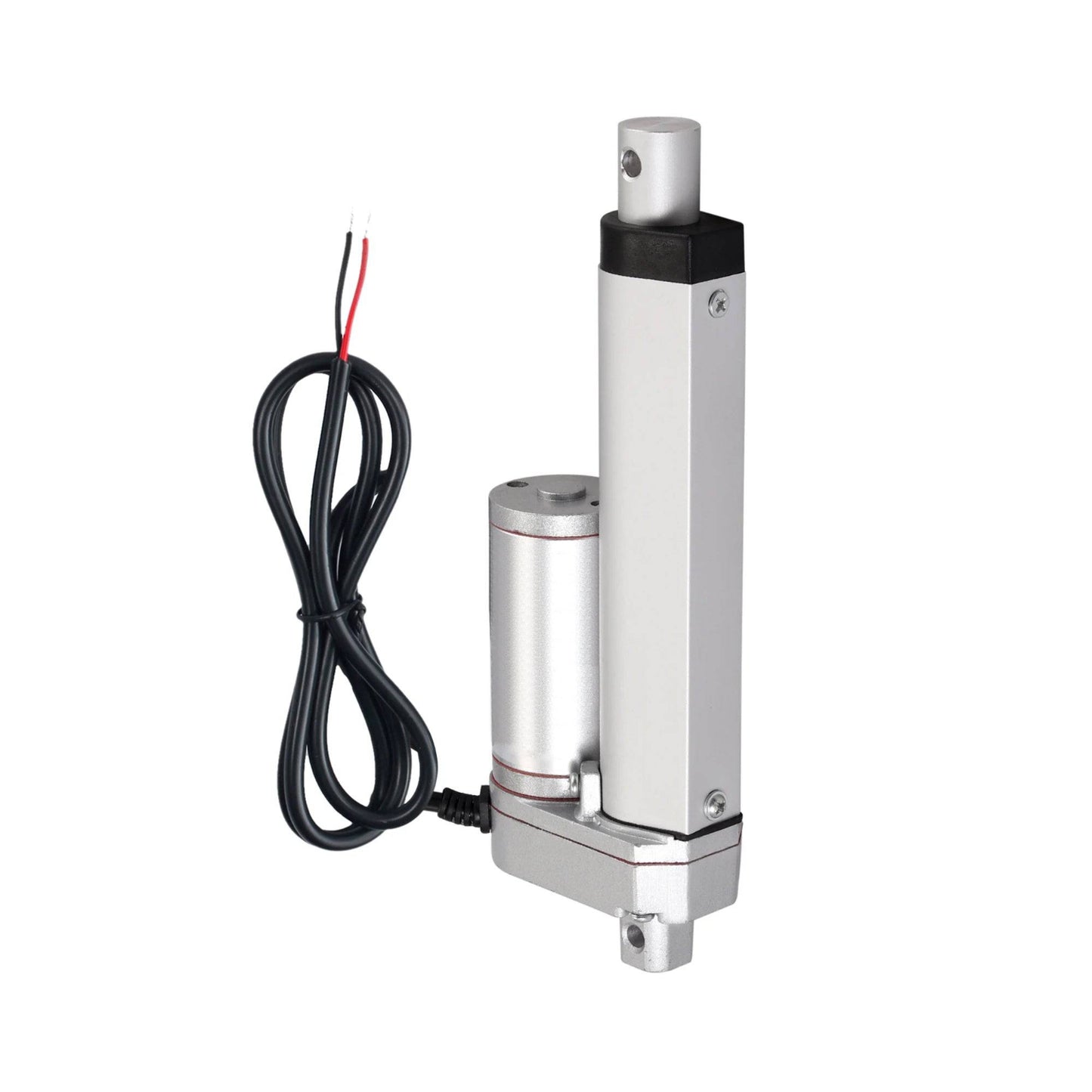

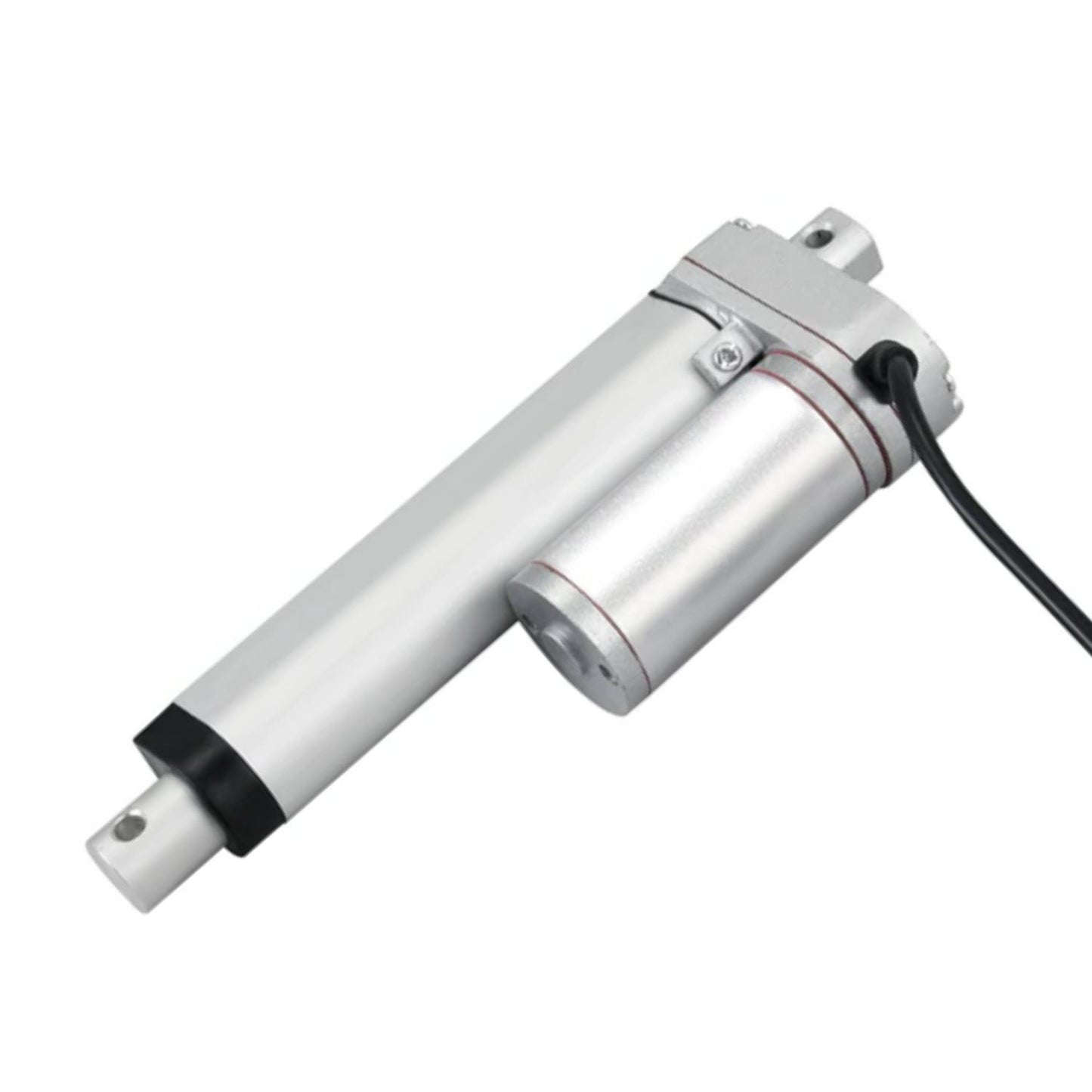

This 12V 100MM Linear Actuator with Stroke Lengths 100MM, 50mm/S, 180N, and 12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This 12V 100MM Linear Actuator is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The 12V 100MM Linear Actuator is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.
Specifications:
- Stroke Length: 100mm(approx. 4inches)
- Permanent magnet DC motor drive: Voltage 12VDC
- Self-Locking Force: 180N
- Operating Temperature: -20C to +63C
- Maximum static load: 39 lbs. ( 180 Newtons )
- Body Material: Aluminium Alloy
- Noise Level: <40dB
Features:
- 12V 100MM Linear Actuator has compact Design and built-in limit switch.
- Aluminium frame and extension tube.
- 12V 100MM Linear Actuator has a low noise, moisture-proof surface.
- The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
Package Included:
1 x 12V 100MM Linear Actuator 12V 100MM Stroke Length Linear Actuator 50MM/S 180N
