Description:
Introducing the Versatile 12V One Channel RF Wireless Relay Module – a convenient and reliable solution for remote control applications. This latching relay module offers passive output, enabling you to control various household appliances with ease.
Powered by a 12V supply, the module operates at 433 MHz and comes with a dedicated 2-button RF wireless controller for intuitive operation. Simply power on the module, and you can effortlessly control its output using the included remote.
Designed for versatility, this module can drive a wide range of household appliances, thanks to its high-current relay. Clear indicator LEDs on the module provide visual feedback on power and output status.
Experience the freedom of remote control with this user-friendly and reliable 12V Channel RF Wireless Relay Module.
Specifications:
| Voltage Rating (V): |
5 to 12 |
|---|---|
| Rated Voltage: |
5 to 12V |
| Max. Voltage (V): |
12 |
| Supply Current (A): |
0.07 |
| Operating Temperature (°C): |
-40 to 90 |
| Operating Distance (M): |
15 ~ 30 |
| Storage Temperature (°C): |
-40 to 80 |
Features:
- Work status: Self-locking
- The work instructions LED: LED1(power), LED2(relay)
- Dedicated remote.
- Indicator LEDs.
- Ideal for home automation.
Package Included:

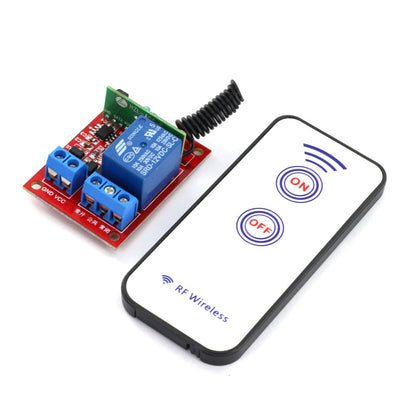

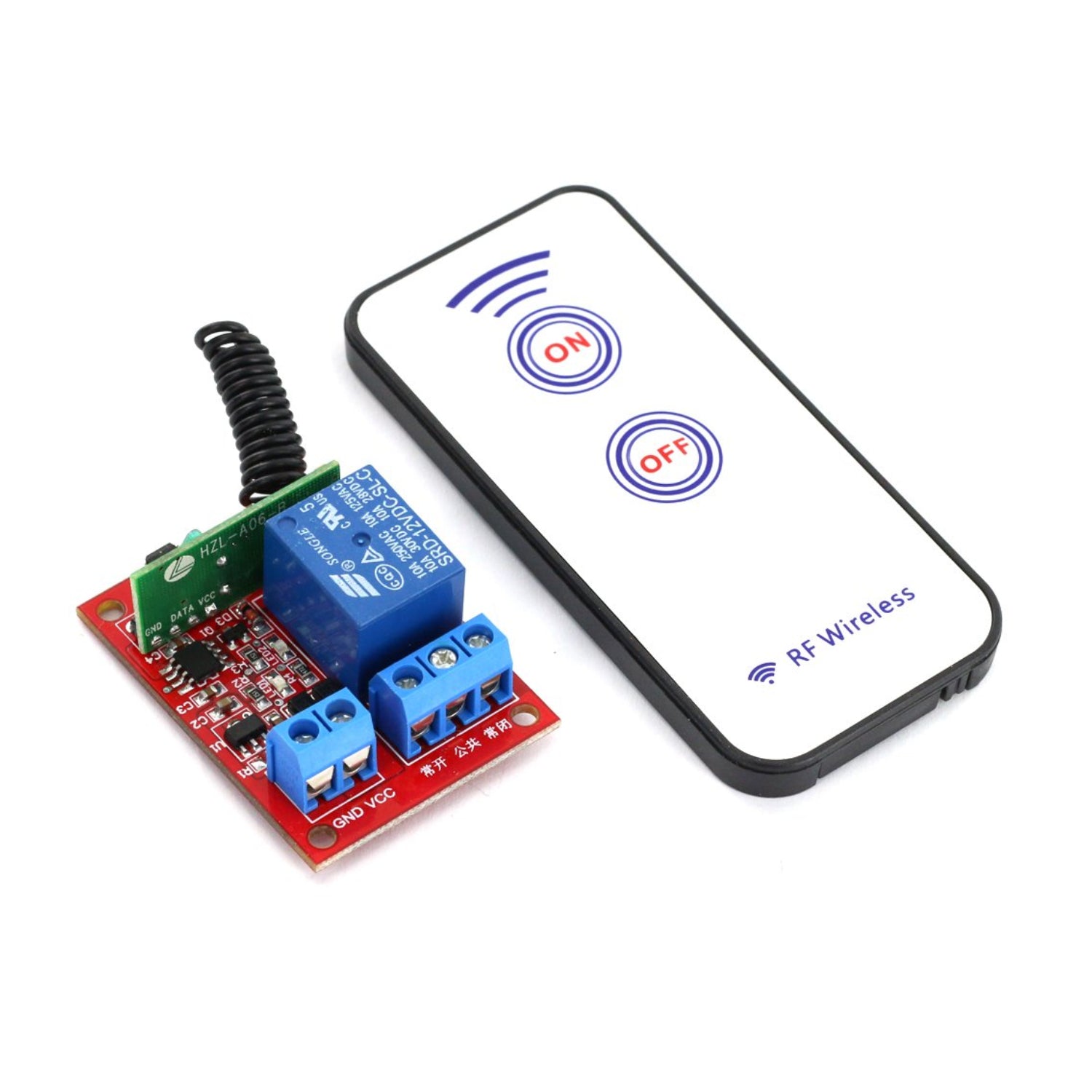

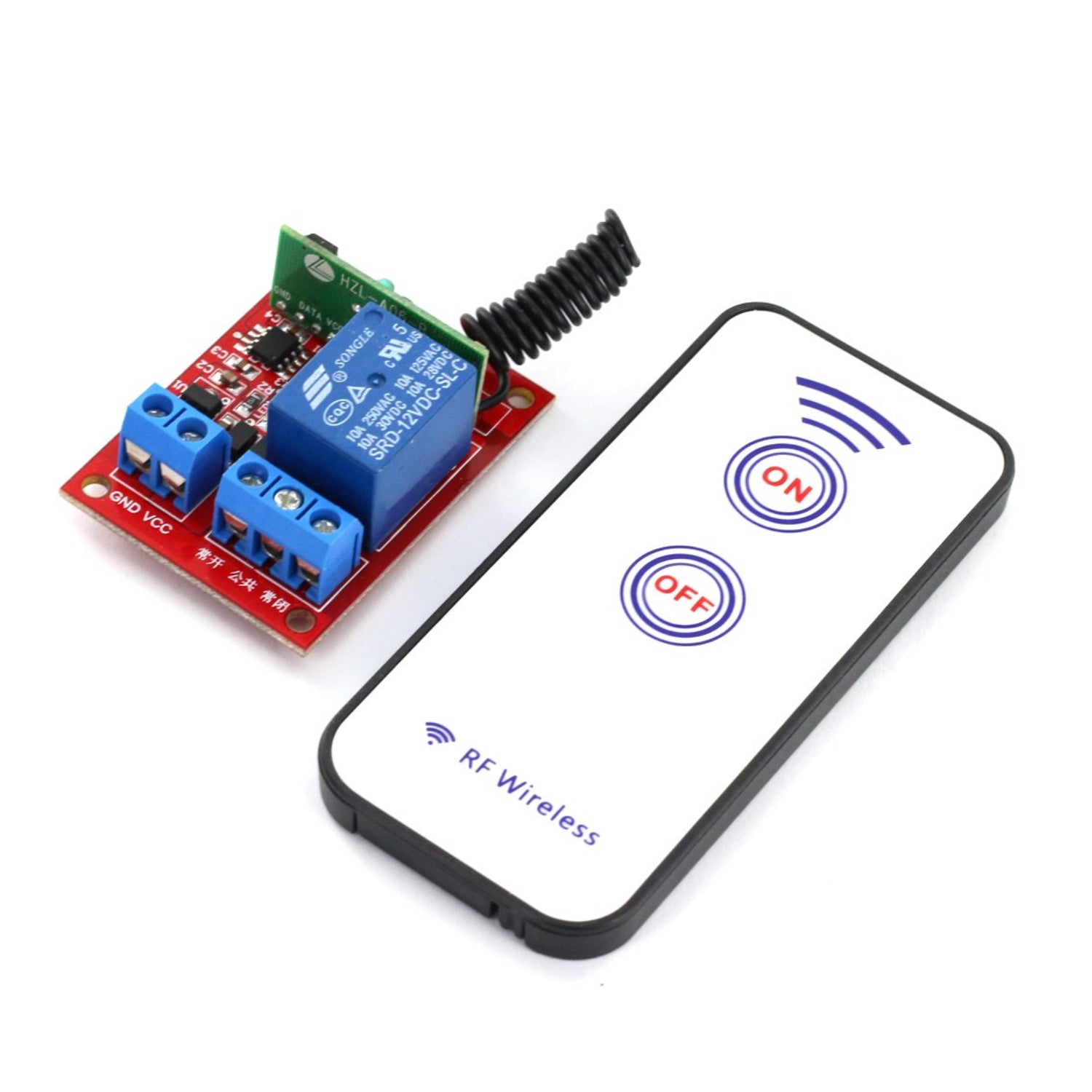

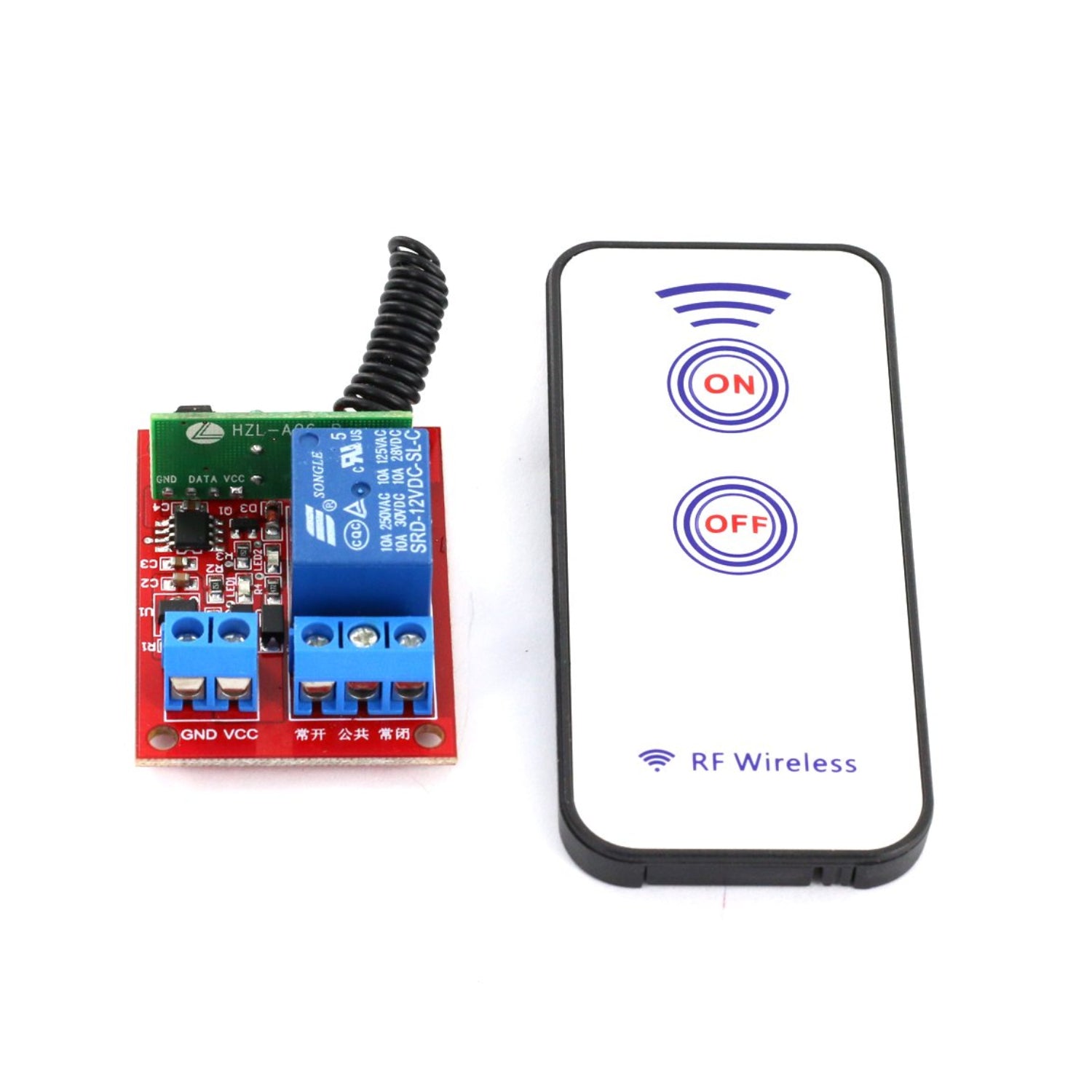

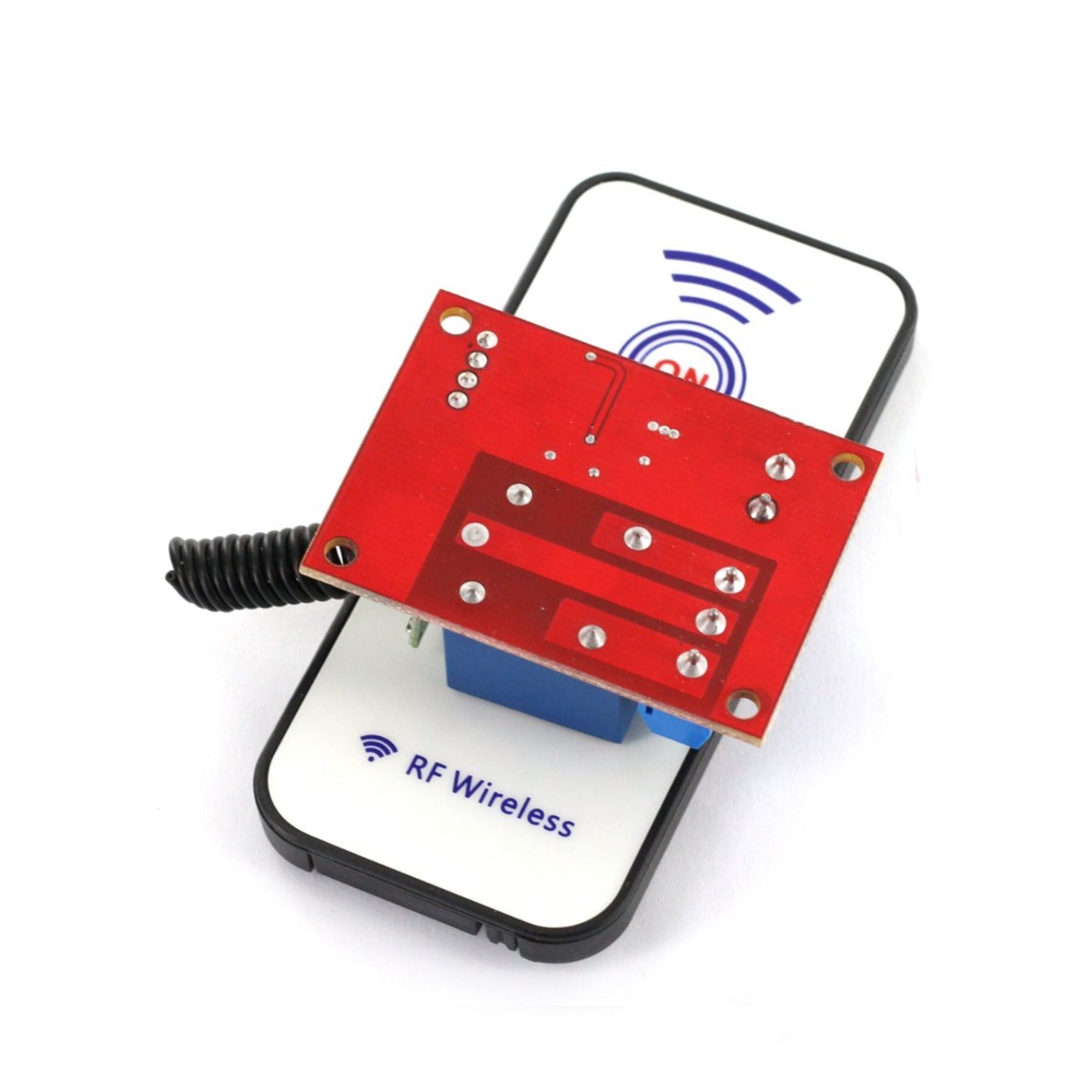

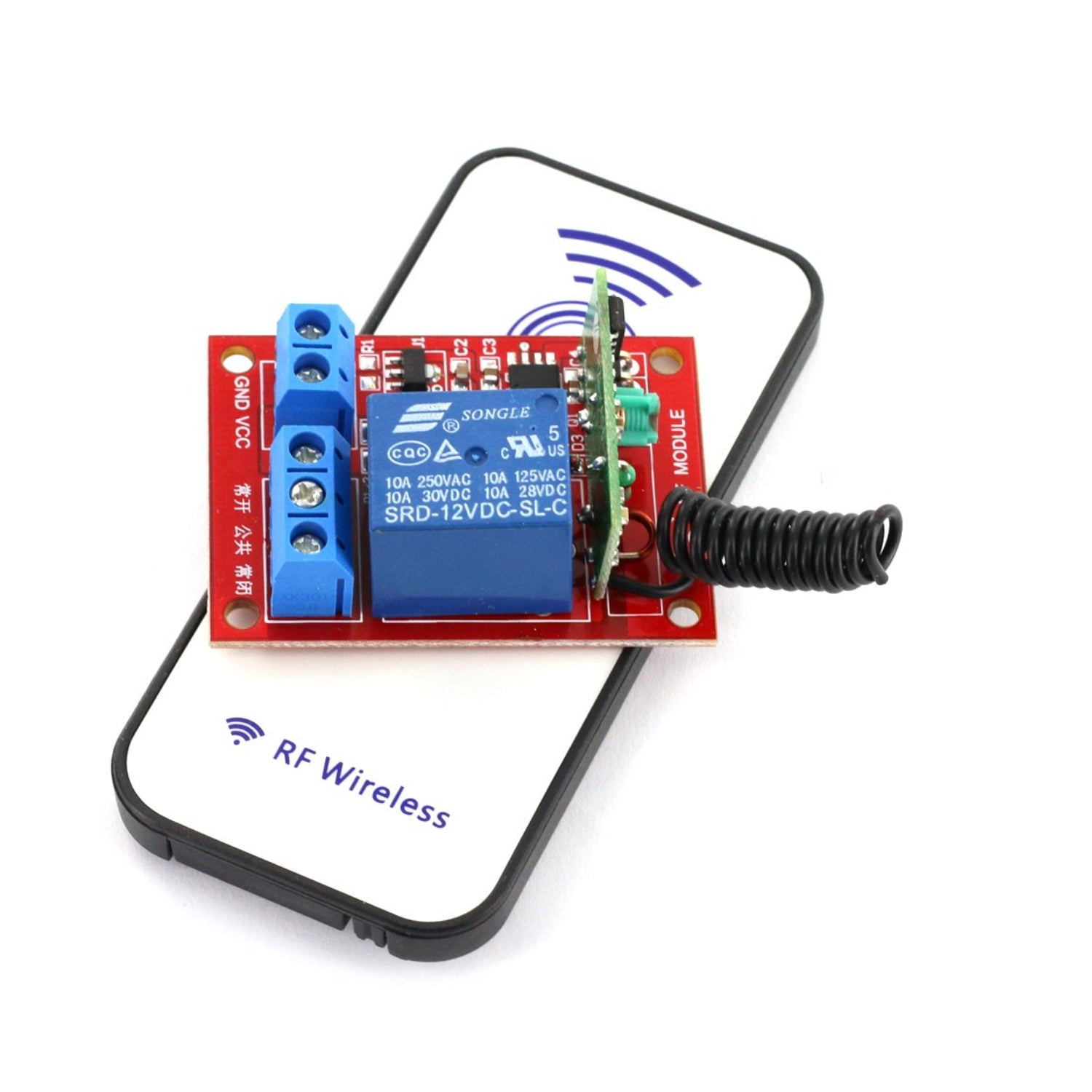

1 x 12V One Channel RF Wireless Relay Module with Remote Control
