- Maximum Switching Voltage: 250VAC/30VDC
- Control signal: Logic Low, 0V, or Open Drain, NPN output
- Contact Capacity (Res. Load): 10A 125VAC
- Max. switching current: 10A
Description:

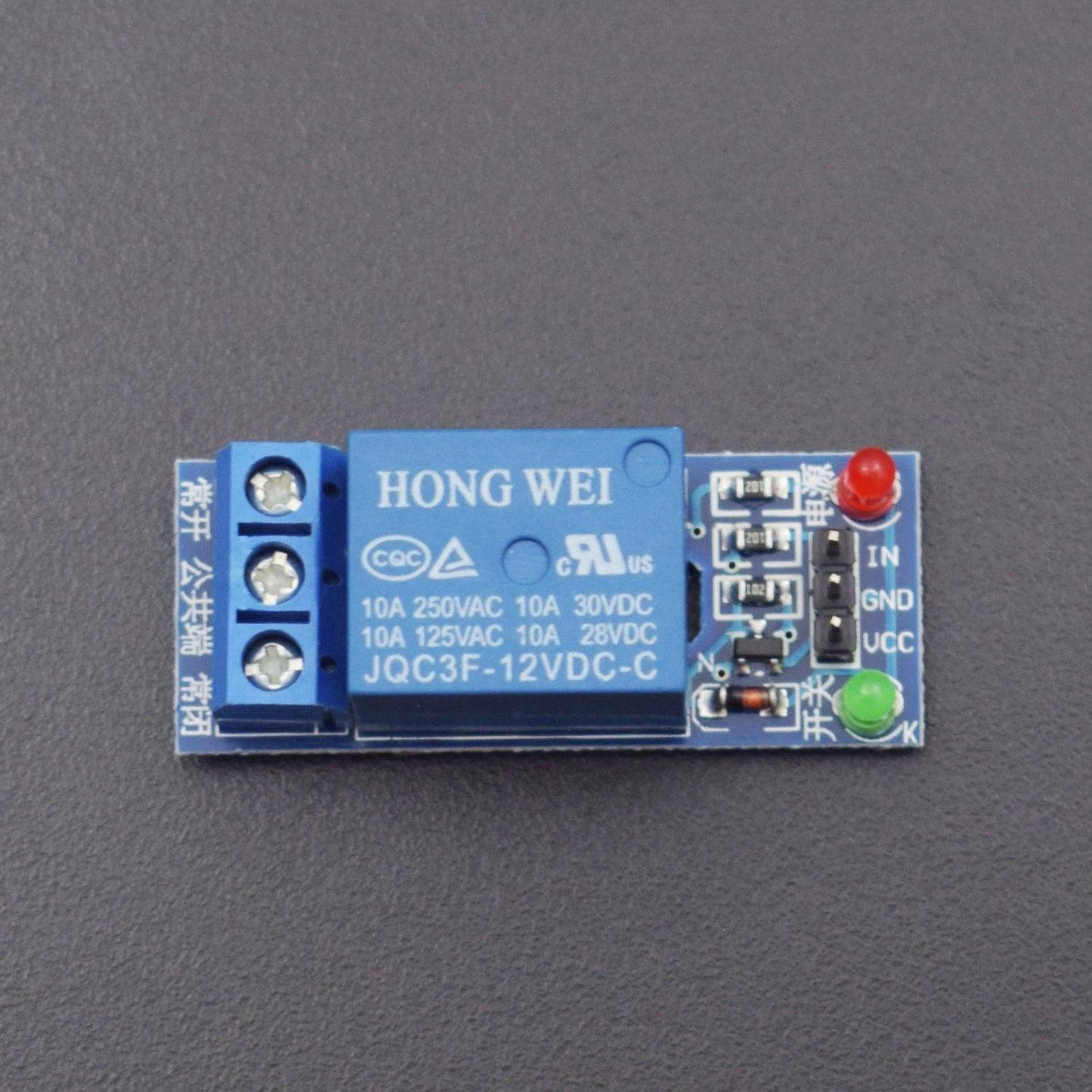

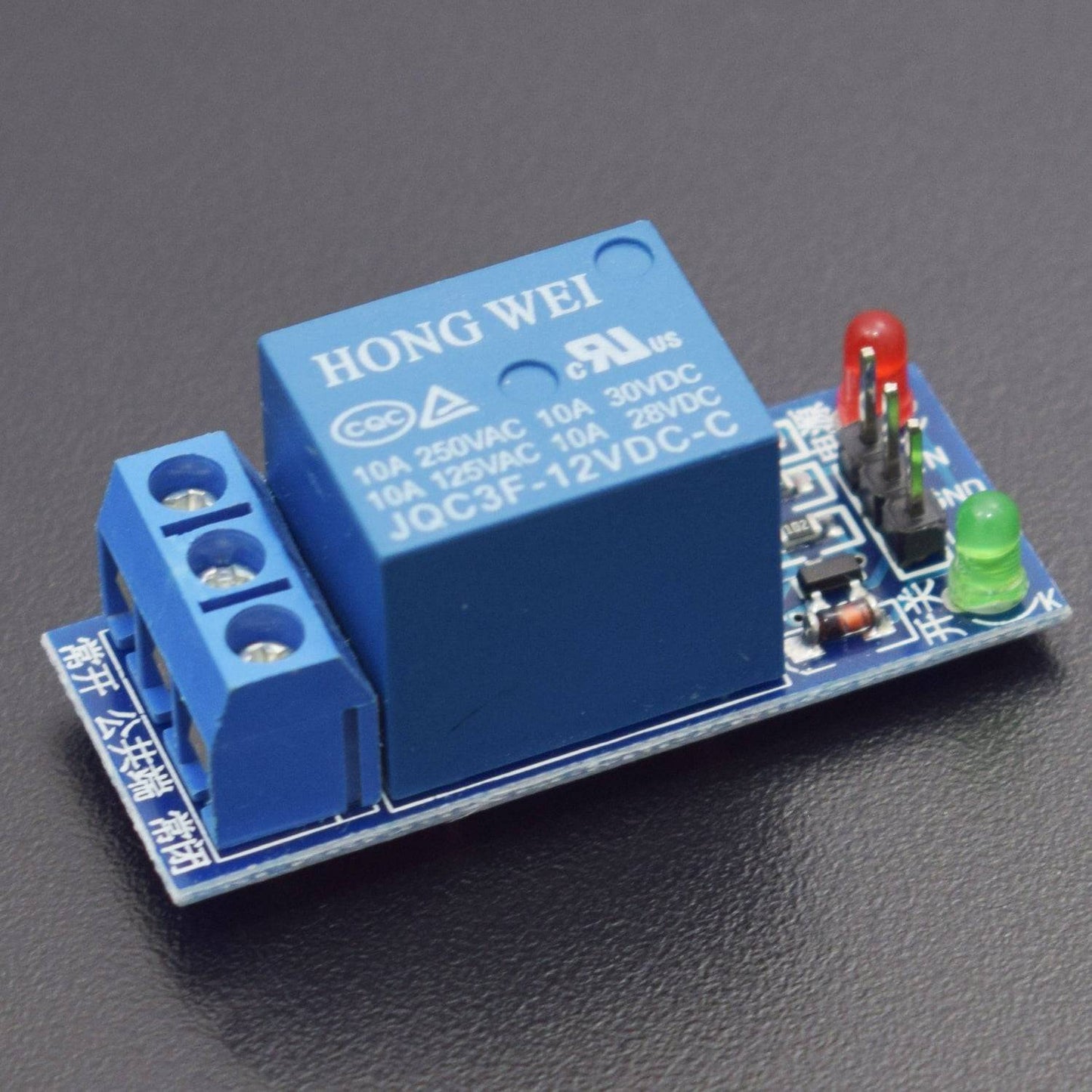

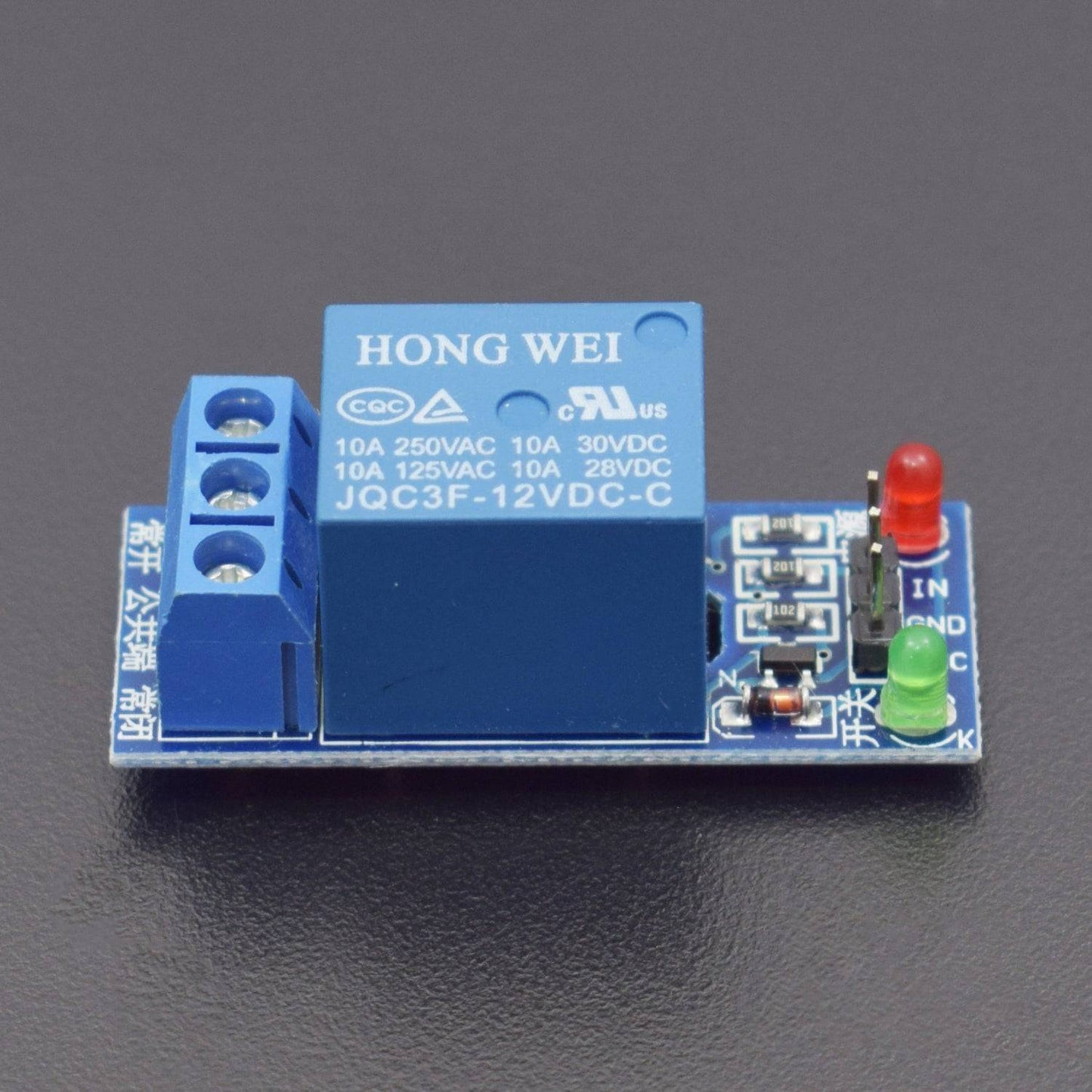

1-Channel 12V Relay Module is a 12V 1-channel relay interface board with a screw terminal, it can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and so on. The board has a high-quality relay, which can handle a maximum of 10A @ 125V or 10AA @ 250V AC. Relay has three connections - Common - C, Normally Open-NO, and Normally Closed-NC brought out to 3 pin screw terminals which makes it easy to make and remove connections. The board has a power indication and a relay status LED to ease debugging. Power input and relay control signals are brought to header pins on the board. Hence, the board can be easily interfaced with our development boards using our jumper wires.
Specification:
- Two LEDs to indicate status:
- Red for VCC power (12V)
- Green for Relay status, light up when the relay activated
- Maximum Switching Voltage: 250VAC/30VDC
- Control Signal: Logic Low, 0V, or Open Drain, NPN output
- Contact Capacity (Res. Load): 10A 125VAC
- Maximum Switching Current: 10A
Features:
- Isolation groove between the control area and the load area
- Has the power and relay action instructions, pull bright, disconnect does not shine
- If the input has a signal, the beginning of the common and often will have conduction
- Can be used as a microcontroller development board
- Can be used as a home appliance control
Application:
- Automotive electronics
- Motor
- LED
- Smart Home
- Emergency lighting
Package Included:
1 x 12V 1-Channel Relay 1 Channel 12V Relay Module Without Optocoupler
