Description:

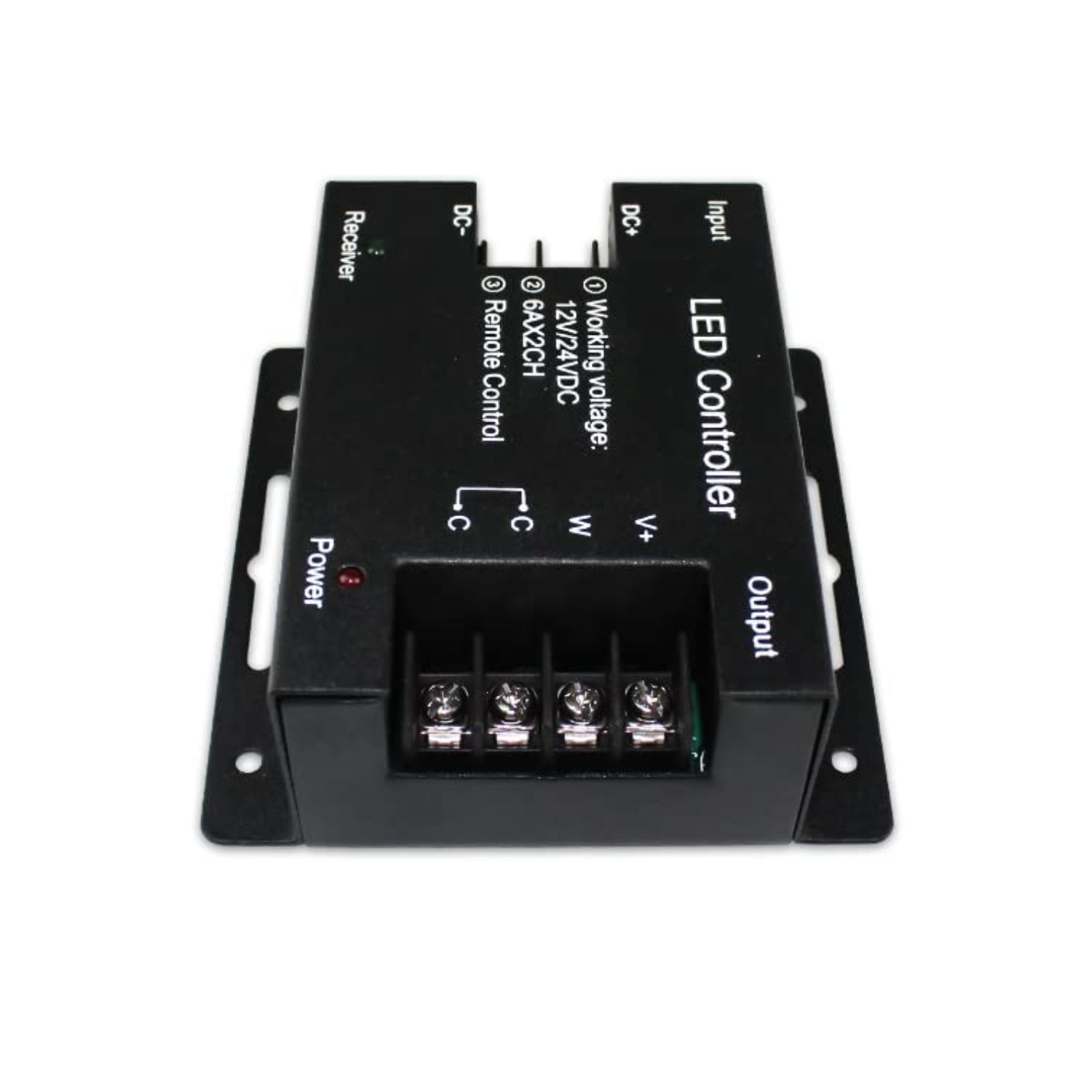

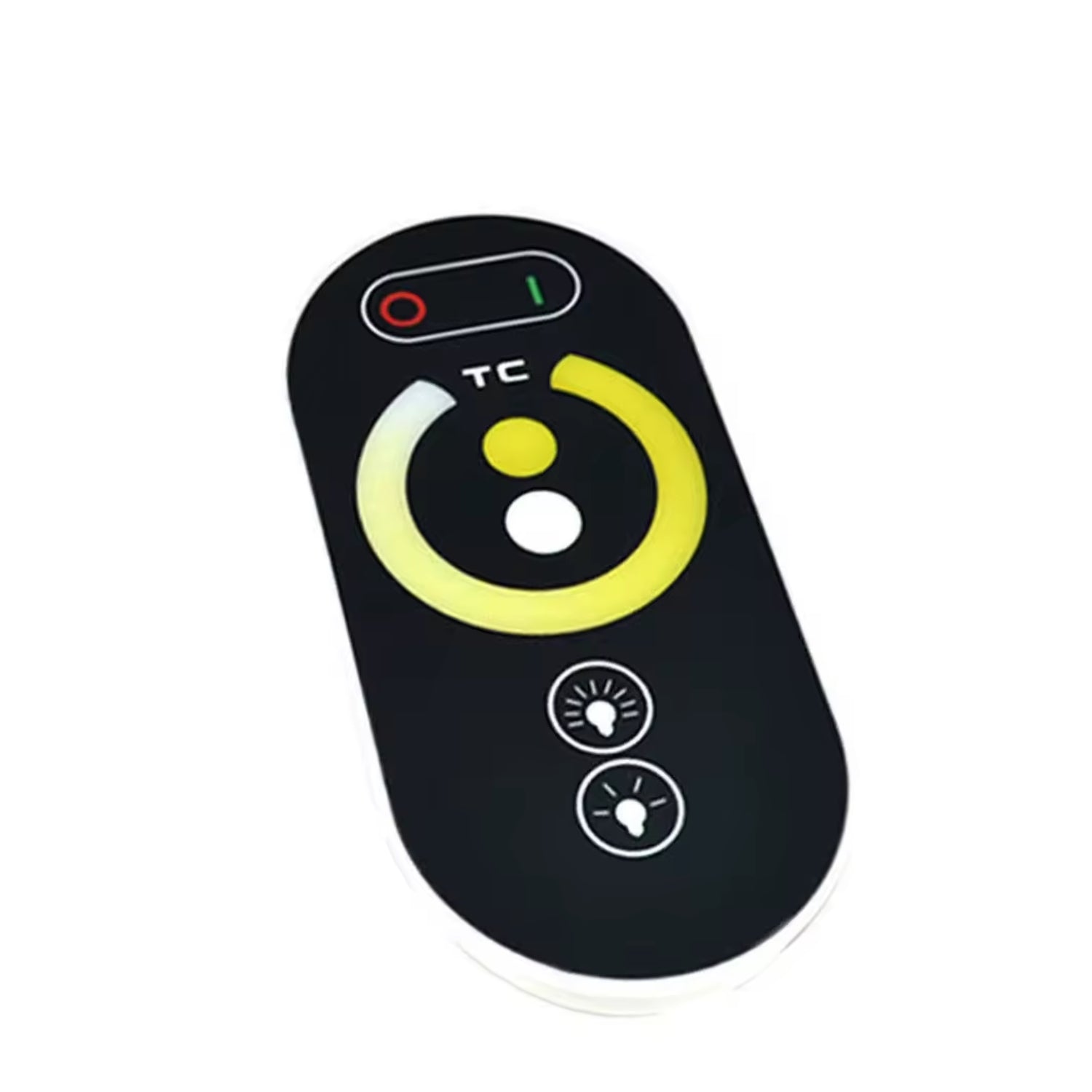

This RF touch remote controller adopted advanced touch technology, mainly used to control all kinds of constant voltage Tunable LED products, such as LED sources, flexible strips, wall washers, glass curtain wall lights, and so on. User can choose different changing modes, adjust the speed and brightness, and turn on/off the remote control according to their preference.
6A each channel, total:12A (The touching ring is sensitive, the wheel is very intuitive and appears in the touch ring, users can choose the color they prefer from cold white to warm white.) 3x AAA Battery (Not included), This remote can touch a single point or touch continually to realize choosing the color. (Remote distance Max 20m in open area)
Common Anode (+Ve of the strip will remain in the same terminal and -Ve will be different terminals), This controller has with power off memory function, the next time to use it, will start with the model it saves.
Specifications:
- Input voltage: DC12-24V
- Output channel: 2 channels
- Output current: 6A*2
- Connect method: Common anode

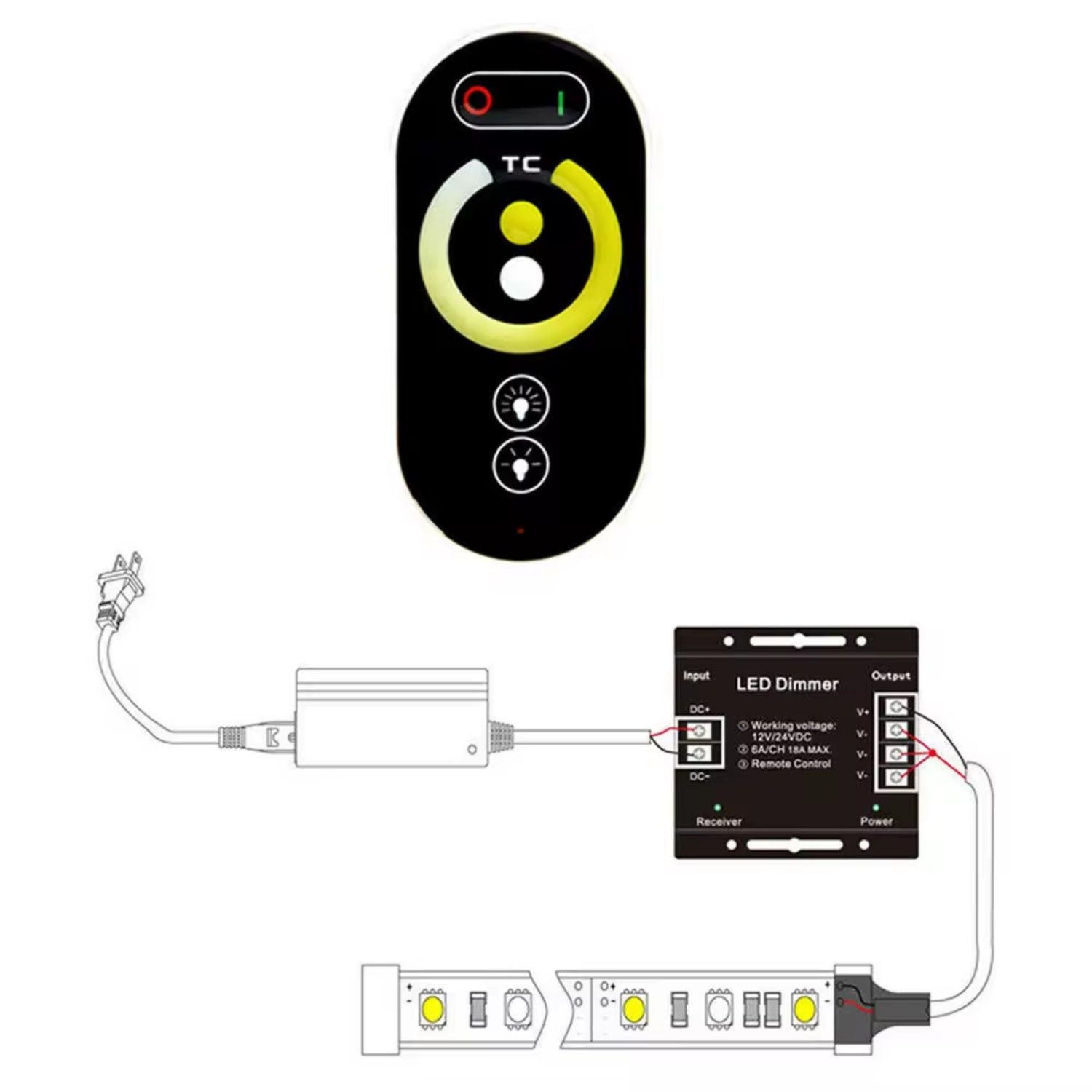

- Connect way: V+,W,C,C for LED light, DC+,DC- for power supply
- Color: Black
- Remote control distance: about 20m

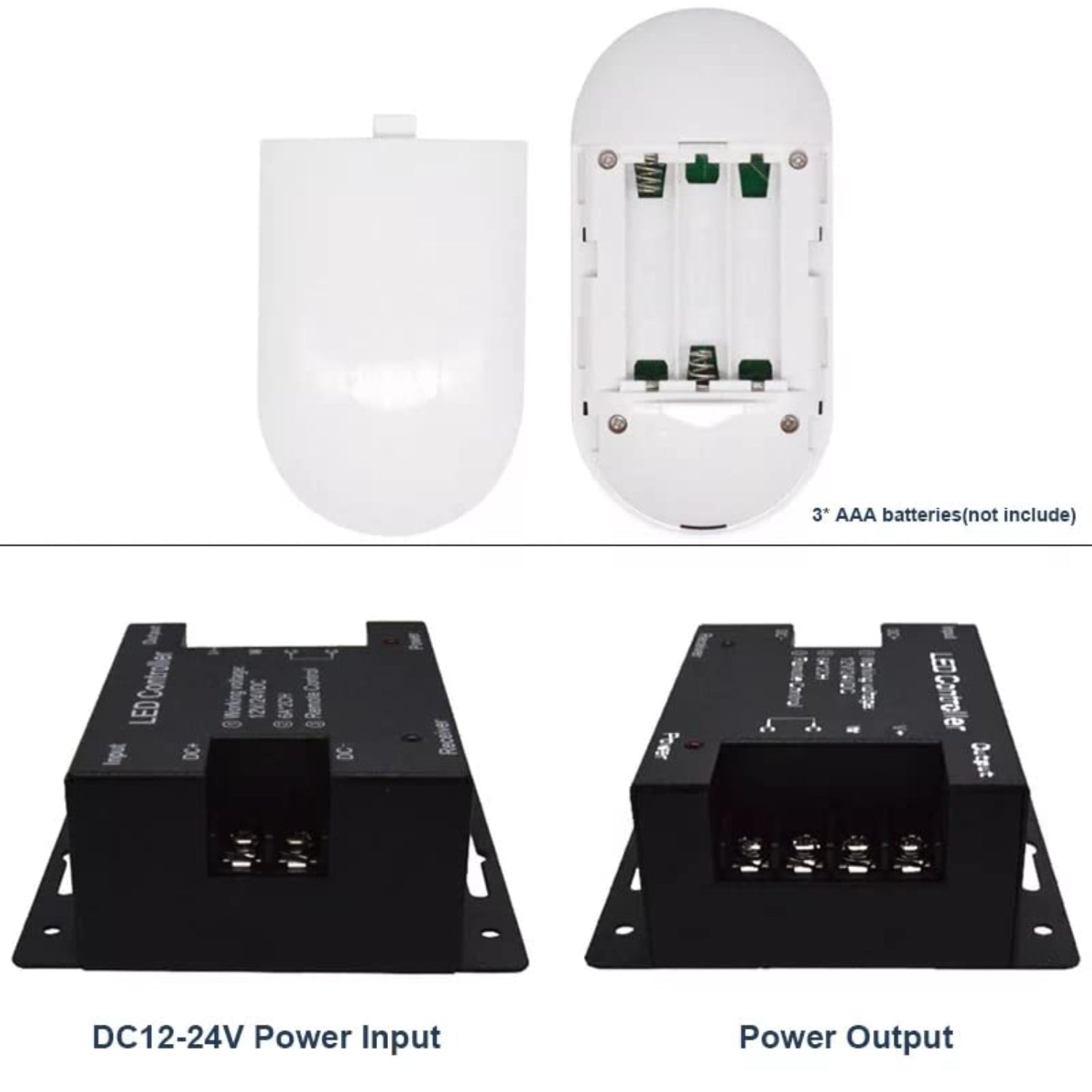

- Remote input: AAA battery*3pcs (Do not include).
Feature:
- The remote looks fashionable and elegant
- The capacitive touchscreen design makes the remote easy to use
- Color changing and brightness dimming
- Touch color ring, temperature adjustable
- With PWM technology, changing of lights is smooth
- Power off memory function
- Easy connection and simplicity of use
- DC12V-24V wide working voltage, preventing reverse connection of power supply
- Used for double color LED light temperature adjustable, which is 12-24V
Package Included:

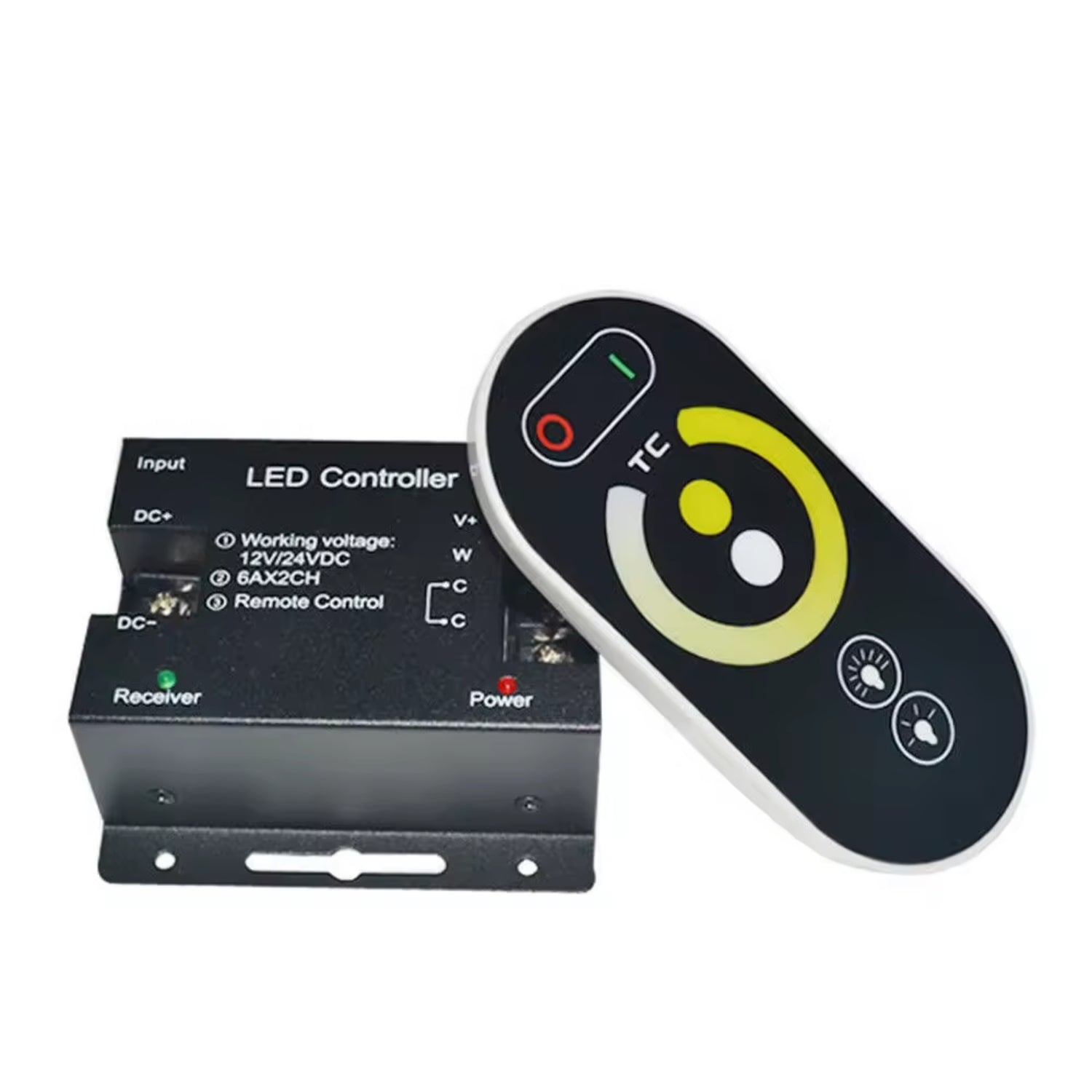

1 x 12A RF LED Touch Controller Wireless CCT Touch Controller Infinite Dimmer LED Touch Controller- RS5325
