Description:

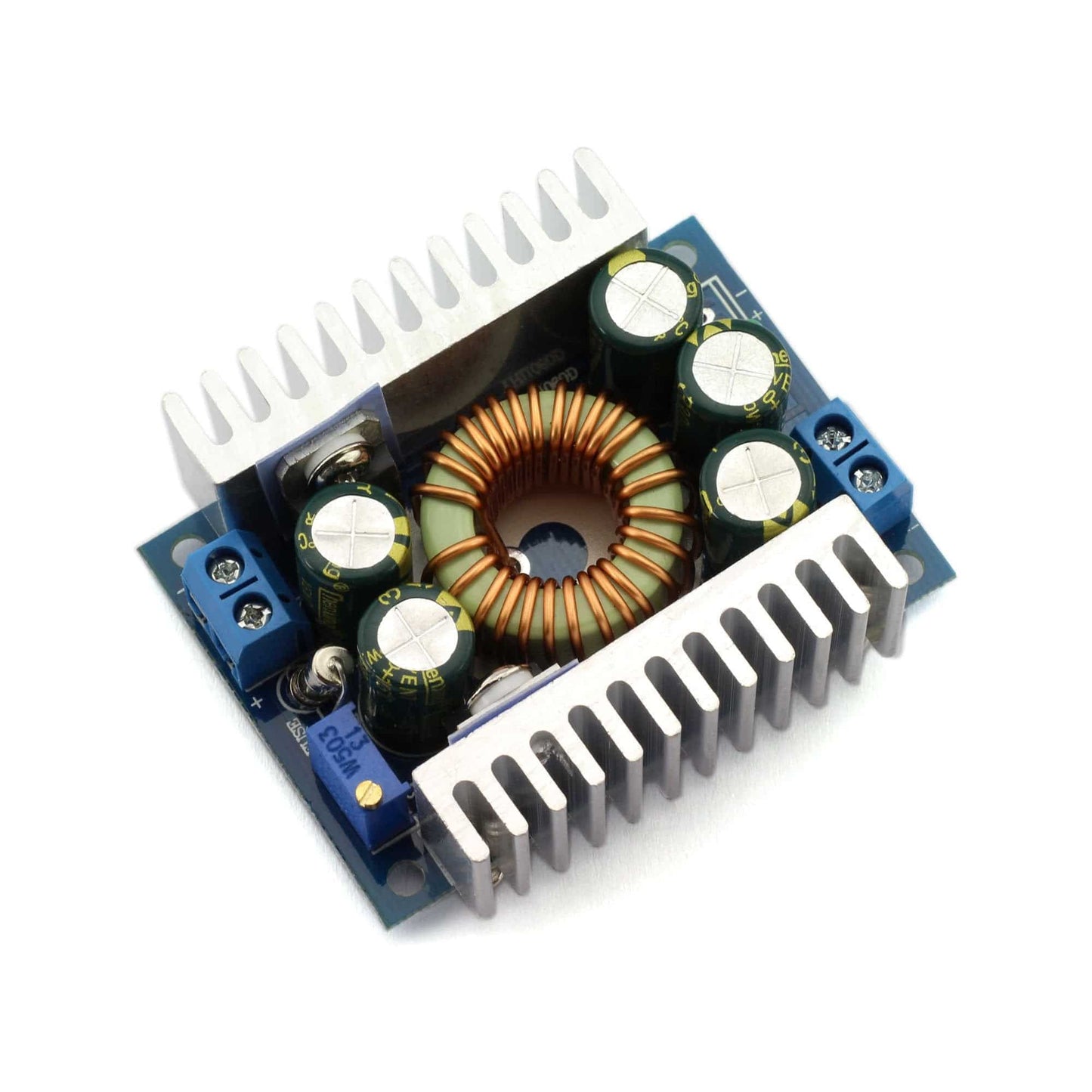

12A DC-DC Buck Converter comes with an enhanced aluminium radiator making the work temperature lower and more stable. 50V/MLCC chip capacitor, combined with a high-frequency low resistance electrolytic condenser, makes the output ripple lower. 12A DC-DC Buck Converter has short-circuit protection (14A MAX) combined with over-temperature protection.
Specifications:
- Module Type: Non-isolated step-down module
- Input Voltage: 4.5V-30V
- Output Voltage: 0.8V-30V ( continuously adjustable )
- Output Current: 0A-12A 100W ( Can be up to 200W if enhance heat dissipation )
- Work Temperature: -40 to +80℃
- Switching Frequency: 300KHz
- Transfer Efficiency: 95% (MAX)
- Short-circuit Protection: Yes (Limited current 14A)
- Over-temperature Protection: Yes (Automatically shut off the output once over temperature)
- Reverse Voltage Protection: NO ( If needed, please add a large current tube.)
- Connection Mode: Terminals or solder terminals. V-IN for input, V-OUT for output.
Features:
- 12A DC-DC Buck Converter has short-circuit protection (14A MAX) combined with over-temperature protection (Automatically shuts off the output once over temperature), which is safe and reliable.
- 12A DC-DC Buck Converter coming with an enhanced aluminium radiator makes the working temperature lower and more stable. 50V/MLCC chip capacitor, combined with a high-frequency low resistance electrolytic condenser, makes the output ripple lower.
- TVS tube can effectively prevent surge breakdown voltage, and make the work safer and more reliable.
Transfer Efficiency Data Test:
- Input 12V, Output 5V/10A, Efficiency 81%
- Input 12V, Output 5V/6A, Efficiency 86%
- Input 24V, Output 12V/8A, Efficiency 91%
- Input 24V, Output 19V/6A, Efficiency 94%
Package Included:
1 x 12A DC-DC Buck Converter 12A DC-DC Step Down Buck Converter Low Ripple with Heat Sink 4.5V-30V to 0.8V-30V Vehicular Voltage Regulator
