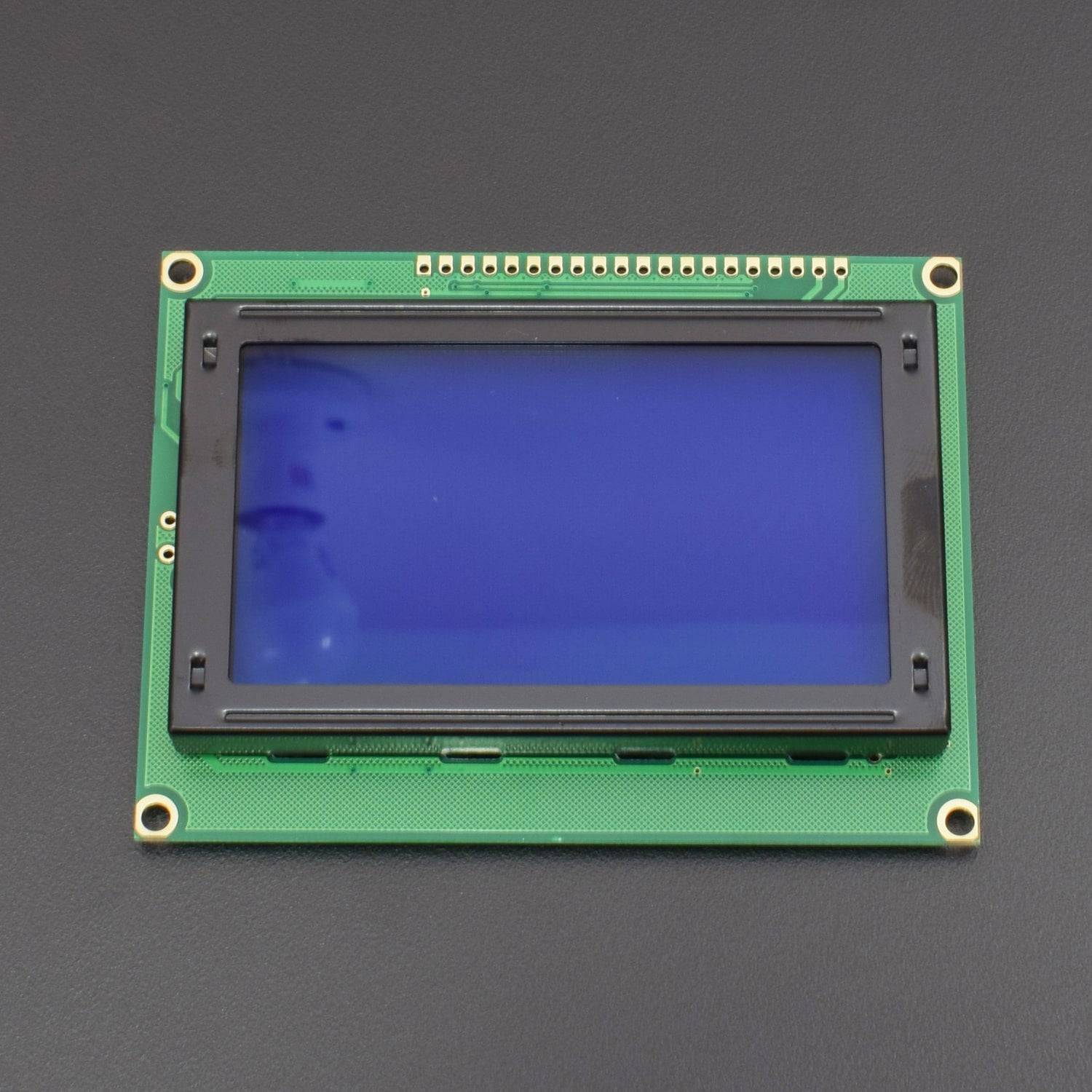

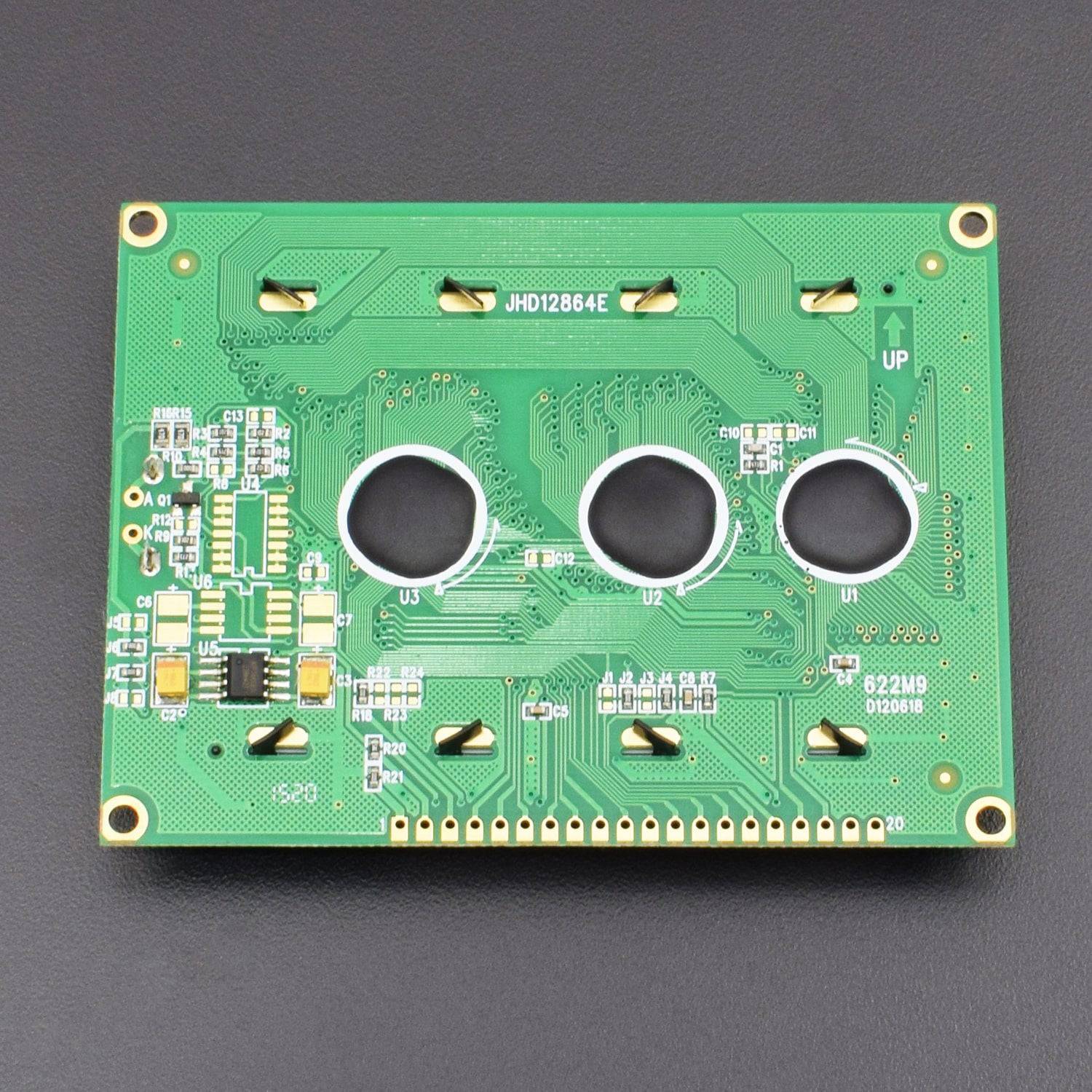

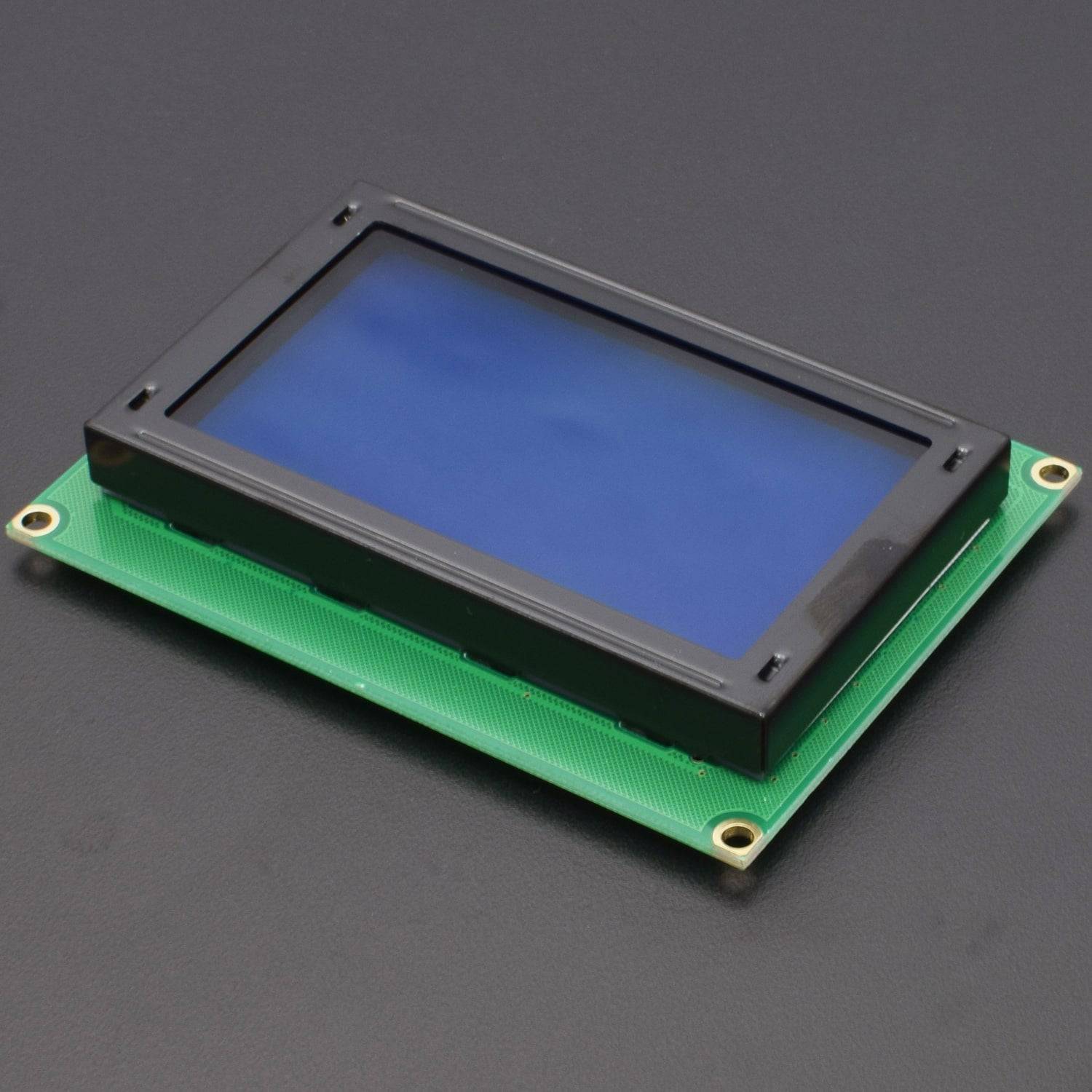

128 x 64 Graphic For Symbol Font LCD Display Module Blue Backlight For Arduino - NA021

128 x 64 Graphic For Symbol Font LCD Display Module Blue Backlight For Arduino - NA021

SKU:NA021

36 in stock

Regular price Rs. 630.00
Regular price Sale price Rs. 630.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

This is a 128 x 64 Graphic For Symbol Font LCD Display Module Blue Backlight For Arduino. With this 128 x 64 LCD Display Module, you can customize graphics, symbols, and fonts by yourself. Automatic power-on reset.

Specifications:

  • VDD: ±3.0V ~ 5.5V
  • Clock rate: 2MHz
  • LCD type: blue
  • Resolution: 128 x 64
  • Viewing angle: 6 O-Clock
  • Operating temperature: -20°C ~ +70°C
  • Storage temperature: -30°C ~ +80°C
  • View area: 70.0 x 38.8mm (L x W)
  • Dots size: 0.48 x 0.48mm (L x W)
  • Dots pitch: 0.52 x 0.52mm (L x W)

Interface Definition:

  • PIN1: VSS
  • PIN2: VDD
  • PIN3 / PIN17: Adjustment of Contrast
  • PIN4 ~ PIN6: RS, R / W, E
  • PIN7 ~ PIN14: D0 ~ D7
  • PIN15: Serial / Parallel
  • PIN16: NULL
  • PIN18: Positive Backlight
  • PIN19: Negative Backlight

Applications:

Widely used in punch card machines, Bus card machines, UnionPay machines, etc. more used in industrial equipment.

Package included:

1 x 128 x 64 Graphic For Symbol Font LCD Display Module Blue Backlight For Arduino
