Description:

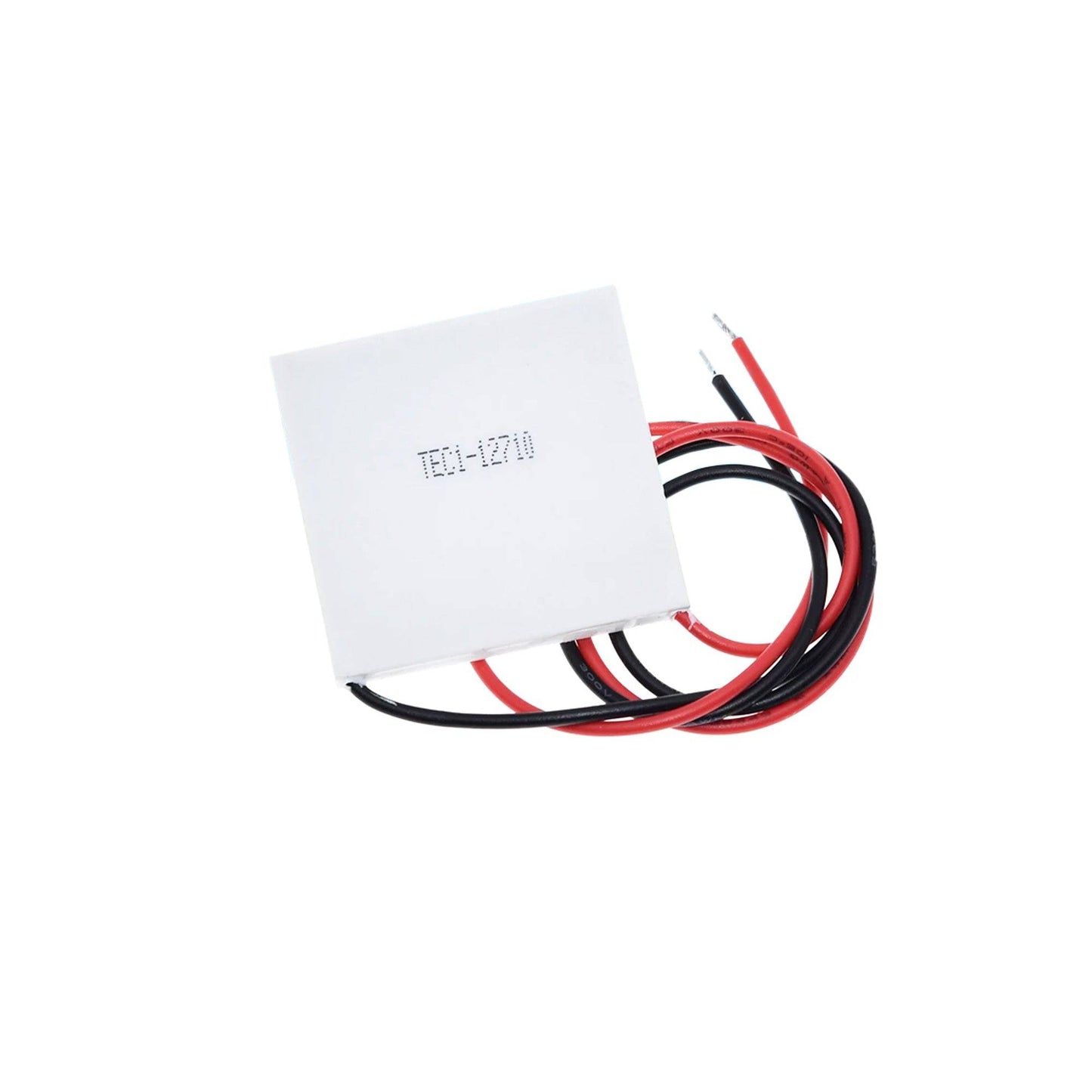

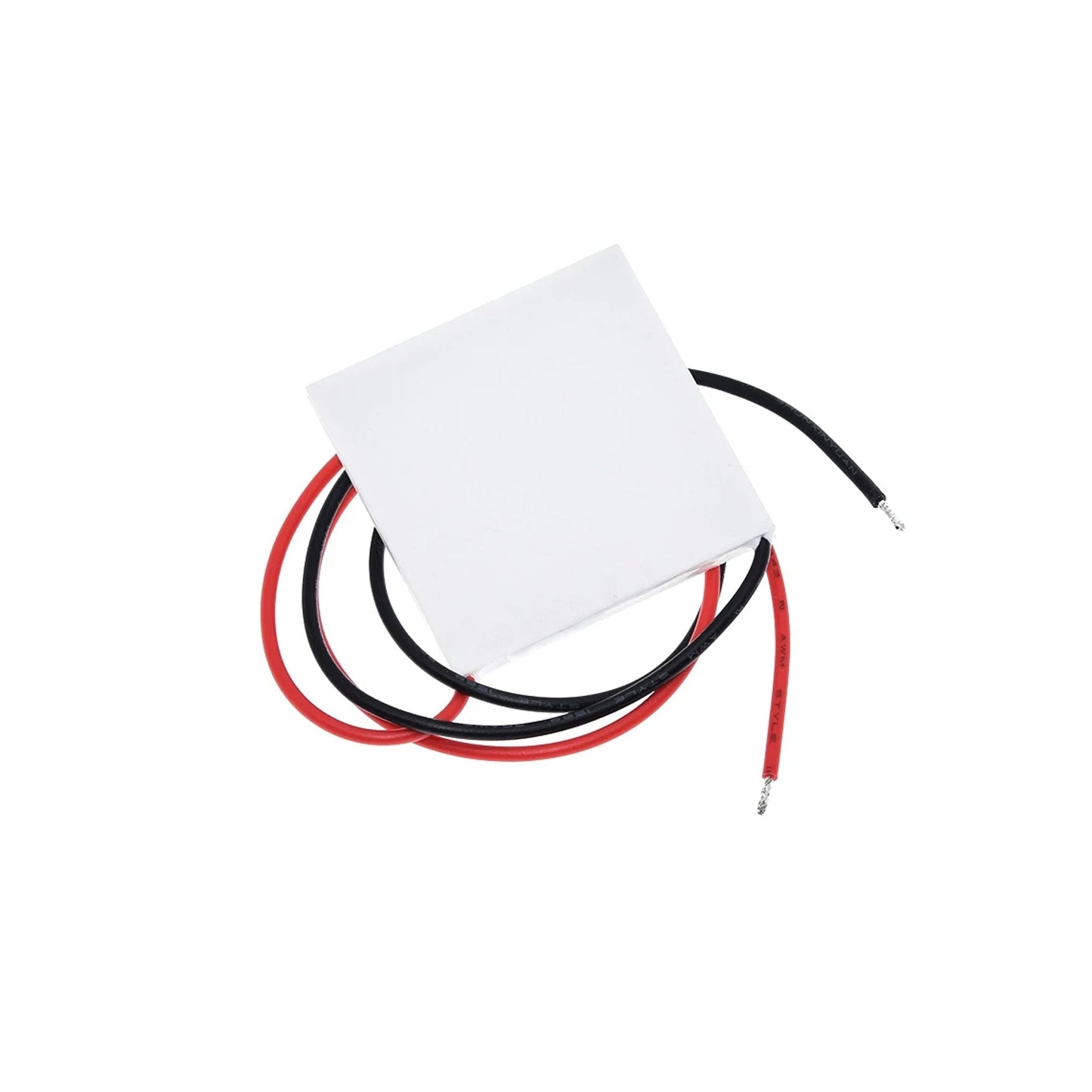

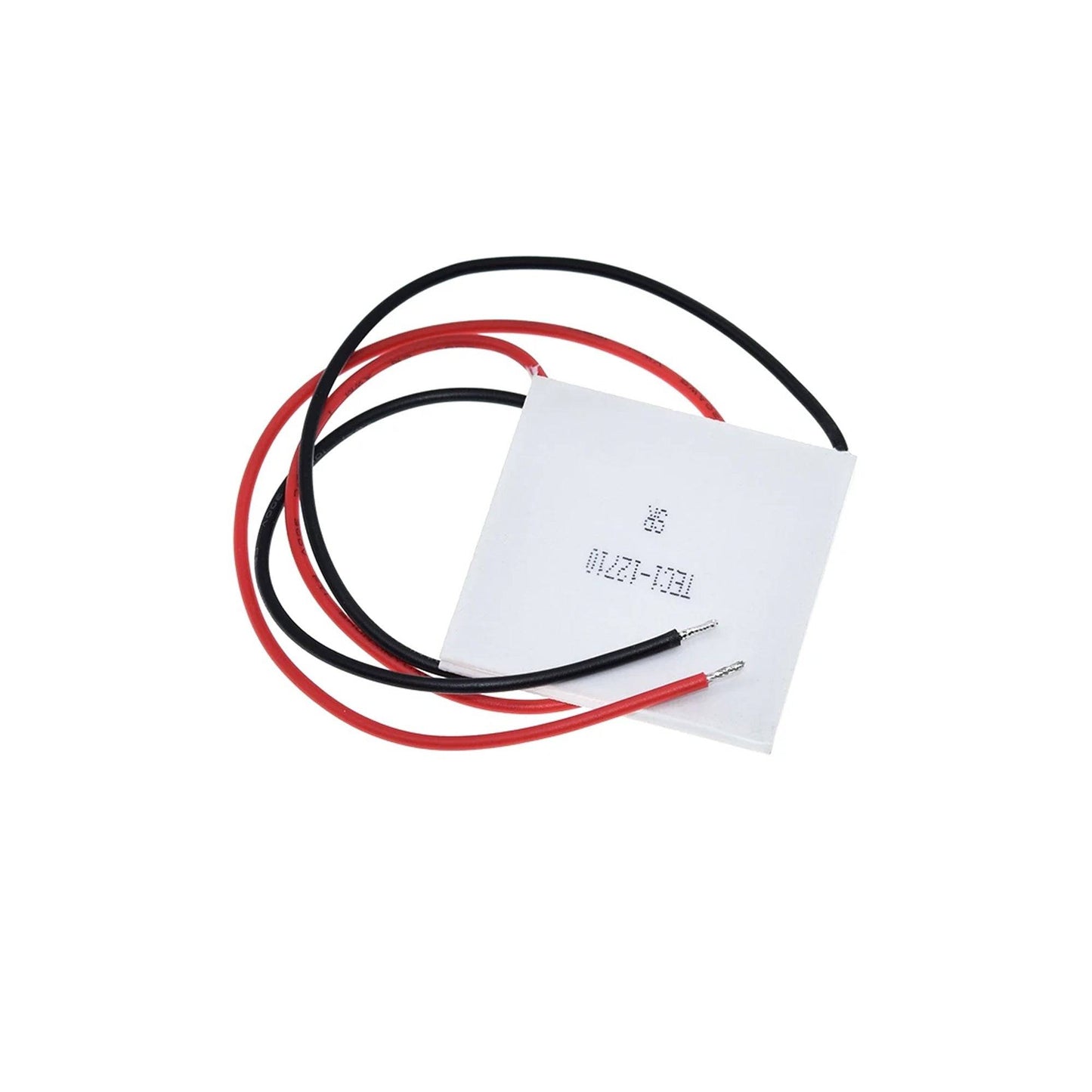

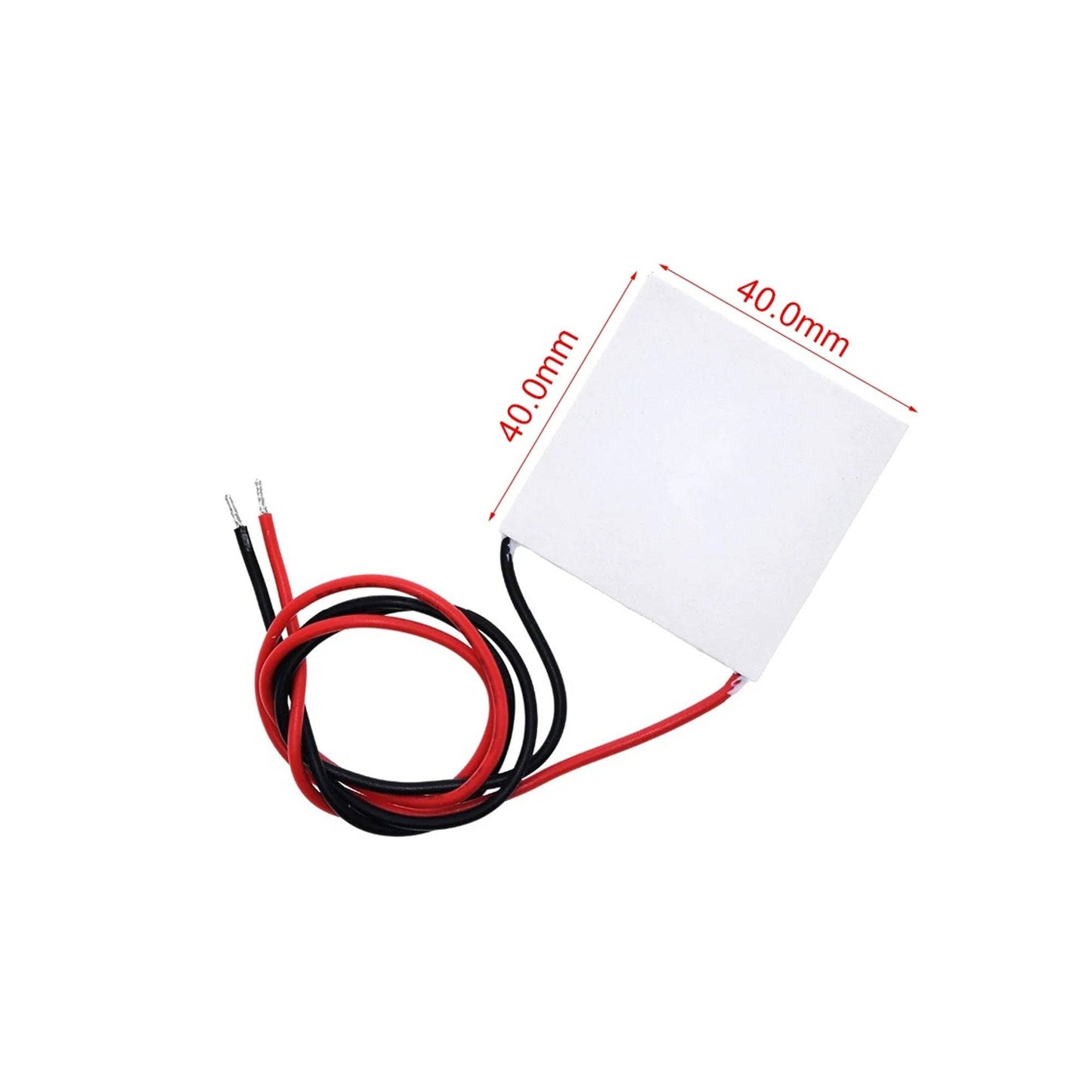

The 12710 Peltier Module 40x40mm Thermoelectric Cooler is the simple application of the Peltier Thermoelectric Effect. The 12710 Peltier Module features 127 semiconductor couples in the area of 40 x 40mm which very effectively cools and heats up to 67°C. The 12710 Peltier Module is the simple application of the Peltier Thermoelectric Effect.
This 12710 Peltier Module works very well as long as you remove the heat from the hot side. After turning on the device, the hot side will heat quickly, the cold side will cool quickly. If you do not remove the heat from the hot side (with a heat sink or other device), the Peltier will quickly reach stasis and do nothing. We recommend using an old computer CPU heatsink or another block of metal to pull heat from the hot side. We were able to use a computer power supply and CPU heatsink to make the cold side so uncomfortable we could not hold our finger to it.
Specifications:
- Model: TEC1-12710
- Maximum Voltage: 15
- Operating Voltage: 12VDC
- Maximum Operating Current: 10A
- Maximum Power: 120W
- Internal Resistance: 1.2 to 1.5Ω
- Operates from -50 °C to +100 °C
Features:
- Quality-tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use it with a heat sink.
Package Included:
1 x 12710 Peltier Module TEC1-12710 Heatsink Thermoelectric Peltier Cooler Cooling Module 40mm x 40mm
