Description:

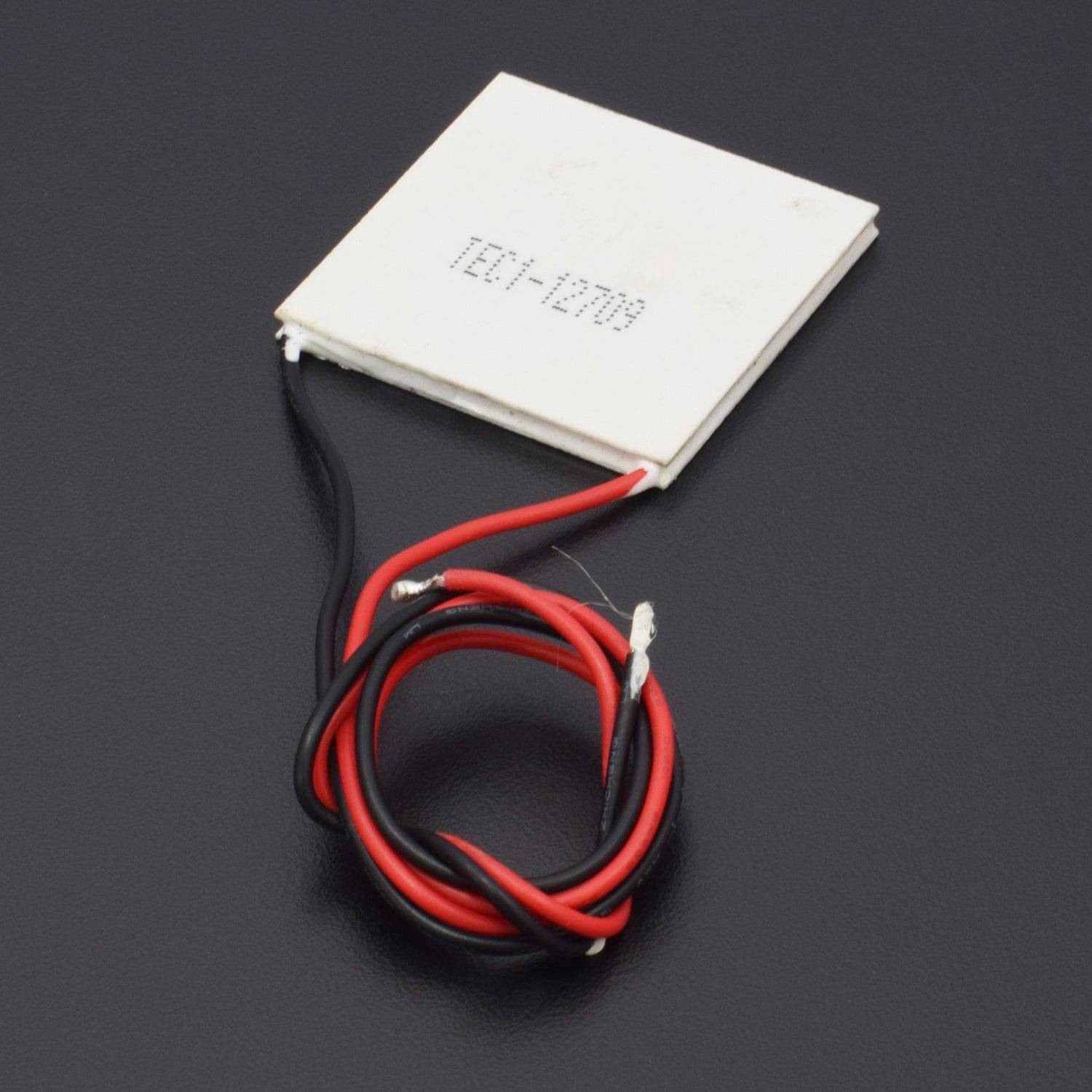

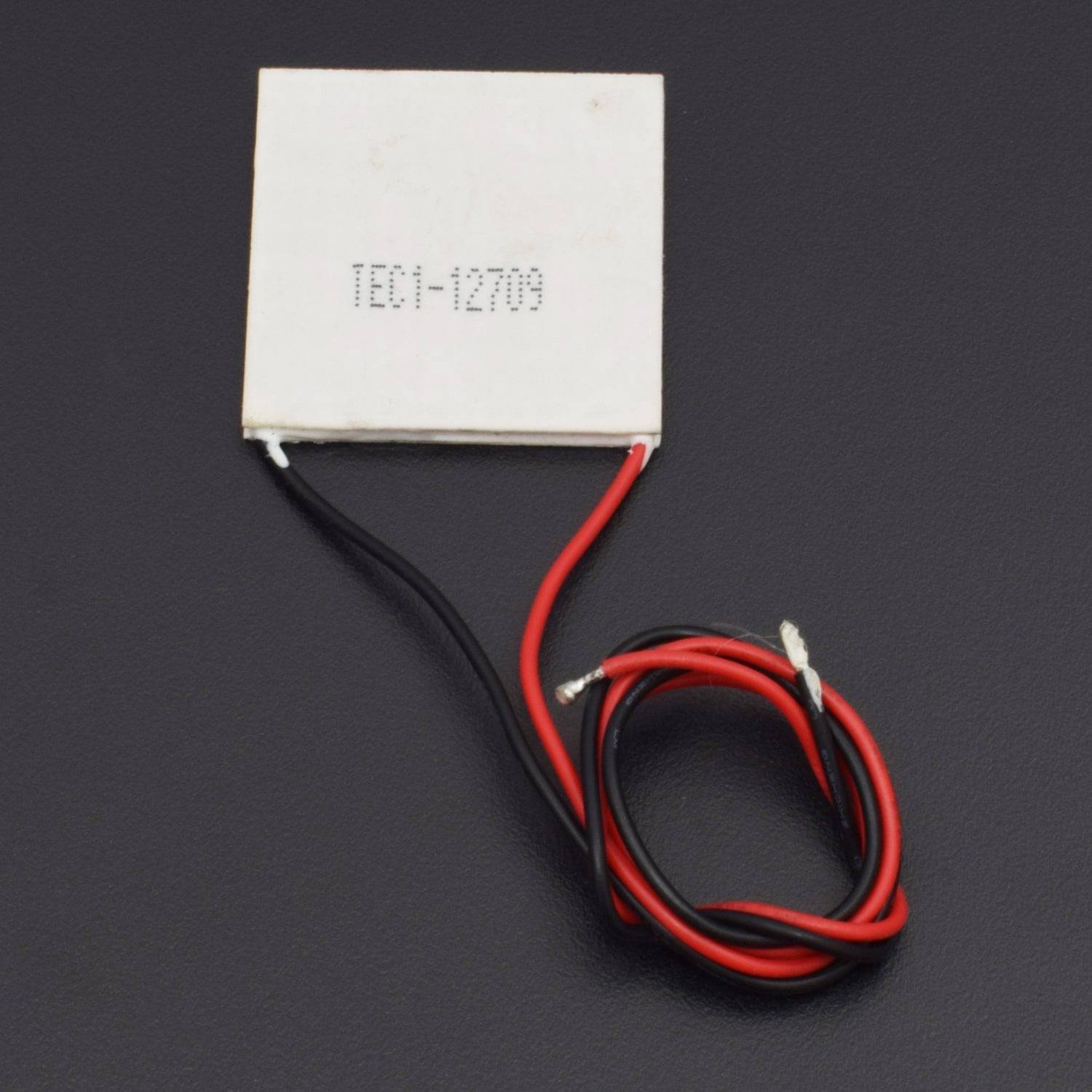

Experience the power of thermoelectric cooling with the TEC1-12709 40x40mm Peltier Module. This compact yet powerful module leverages the Peltier effect to create a significant temperature difference between its two sides.
Featuring 127 semiconductor couples within its 40x40mm footprint, the TEC1-12709 enables efficient heat transfer. When a DC current is applied, one side of the module cools down significantly, while the other side heats up. This versatile functionality allows you to both cool and heat objects, depending on your application needs.
Important Note!! Heat side requires heat sink all the time. “ Do not run this device with a power supply more than a few seconds without a heatsink mounted to the device! ”
Specifications:
- Chip Model: tec1-12709
- Overall dimensions: 40 * 40 * 3.5mm component logarithm 127 pairs
- Wire specification: long lead 300 ± 8mm RV standard conductor single head 5mm tin plating
- Internal resistance: 1.4 ~ 1.5 (ambient temperature 23 ± 1 ℃, 1 kHz AC test)
- Maximum temperature difference: 62 ℃
- Working current: imax = 7.1a (maximum voltage 5 V start 9A)
- Nominal voltage: $ literal (maximum voltage: 5 V)
- Cooling power: 86 W (the high cooling surface temperature will reduce the cooling power)
- Mounting pressure: 85n / cm2
- Working environment: Temperature range-55 ℃ ~ 83 ℃ (high ambient temperature will directly affect the cooling efficiency)
- Packaging process: environmental standard 704 silicone rubber seal
- Packaging standards: foam box packaging, storage conditions Ambient temperature-10 ℃ ~ 40 ℃
- Storage conditions: -40 ~ 60 ℃
- Power requirements: single voltage 12 V, current 9a above the work power supply (series and parallel use)
- Device features: Positive Red line, negative black line (there is literally cooling surface, no literal heat dissipation surface)
Features:
- Small module.
- Easy transition between the hot side to the cool side and vice-versa just by reversing the polarity of the supply.
- Quality-tested cooling cells.
- Solid-state, vibration-free, noise-free.
- Simple to install and operate.
- Should use it with a heat sink.
Package Included:
1 x 12709 40*40mm 12V 9A 82W Thermoelectric Cooler Peltier Cooling Peltier Plate Module
