Description:

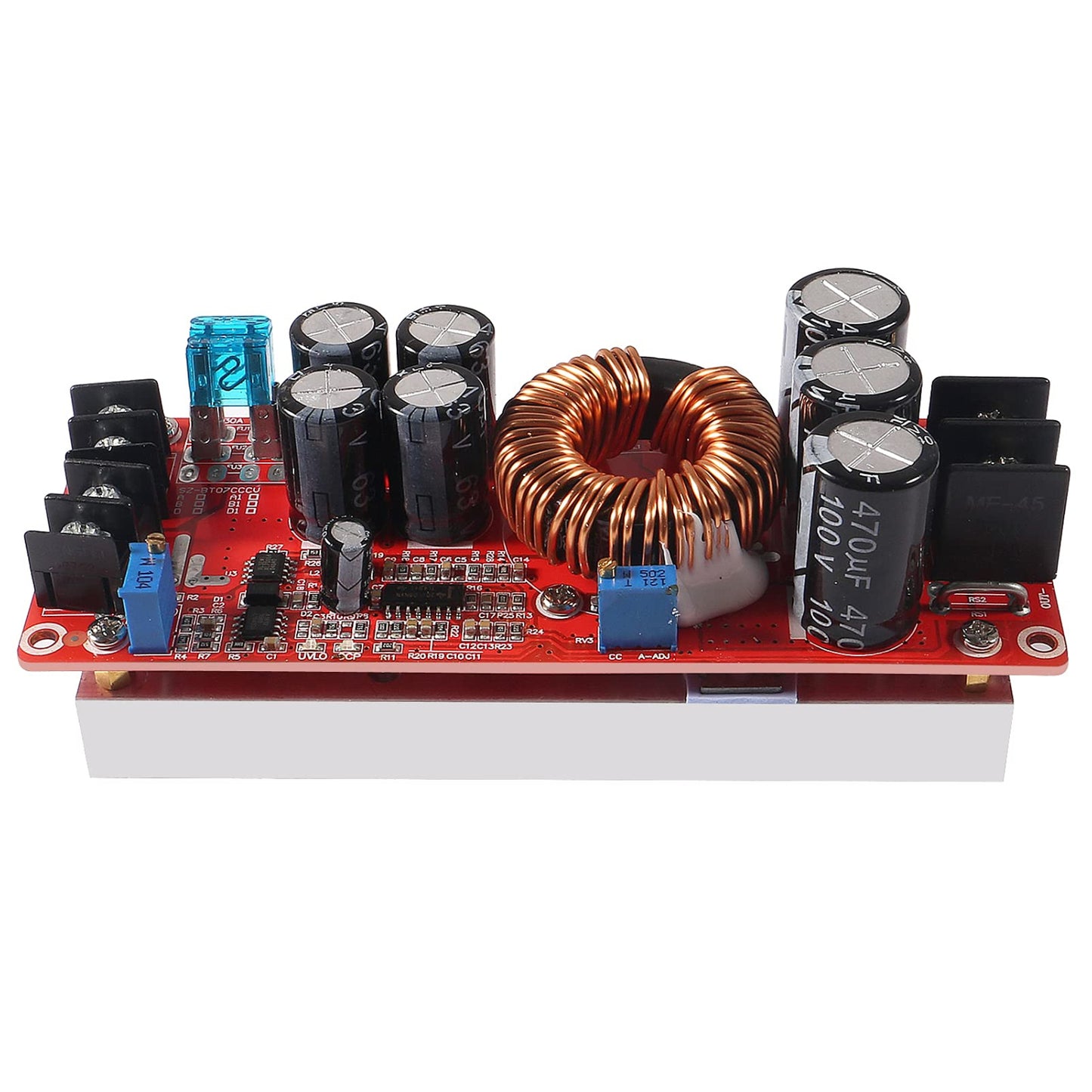

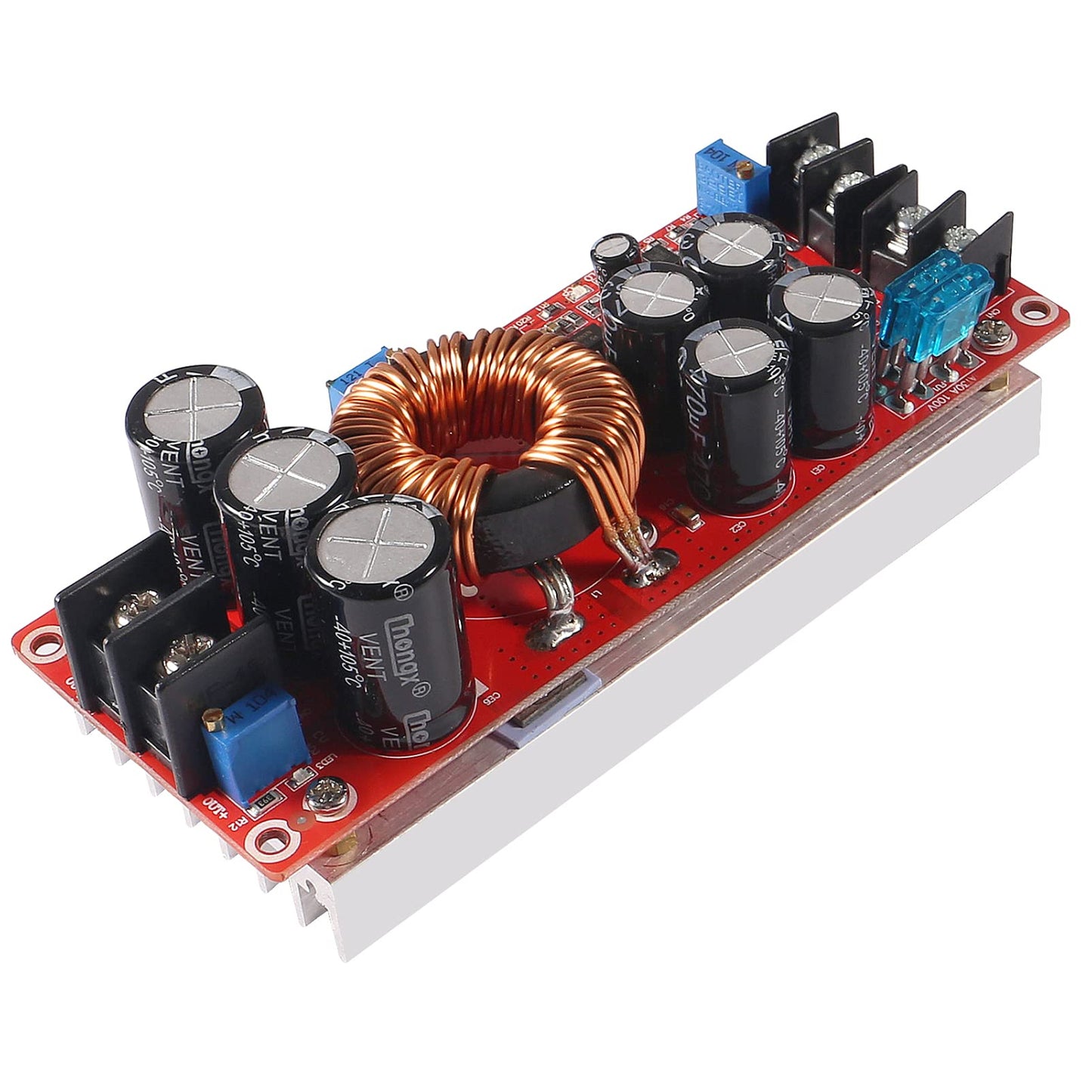

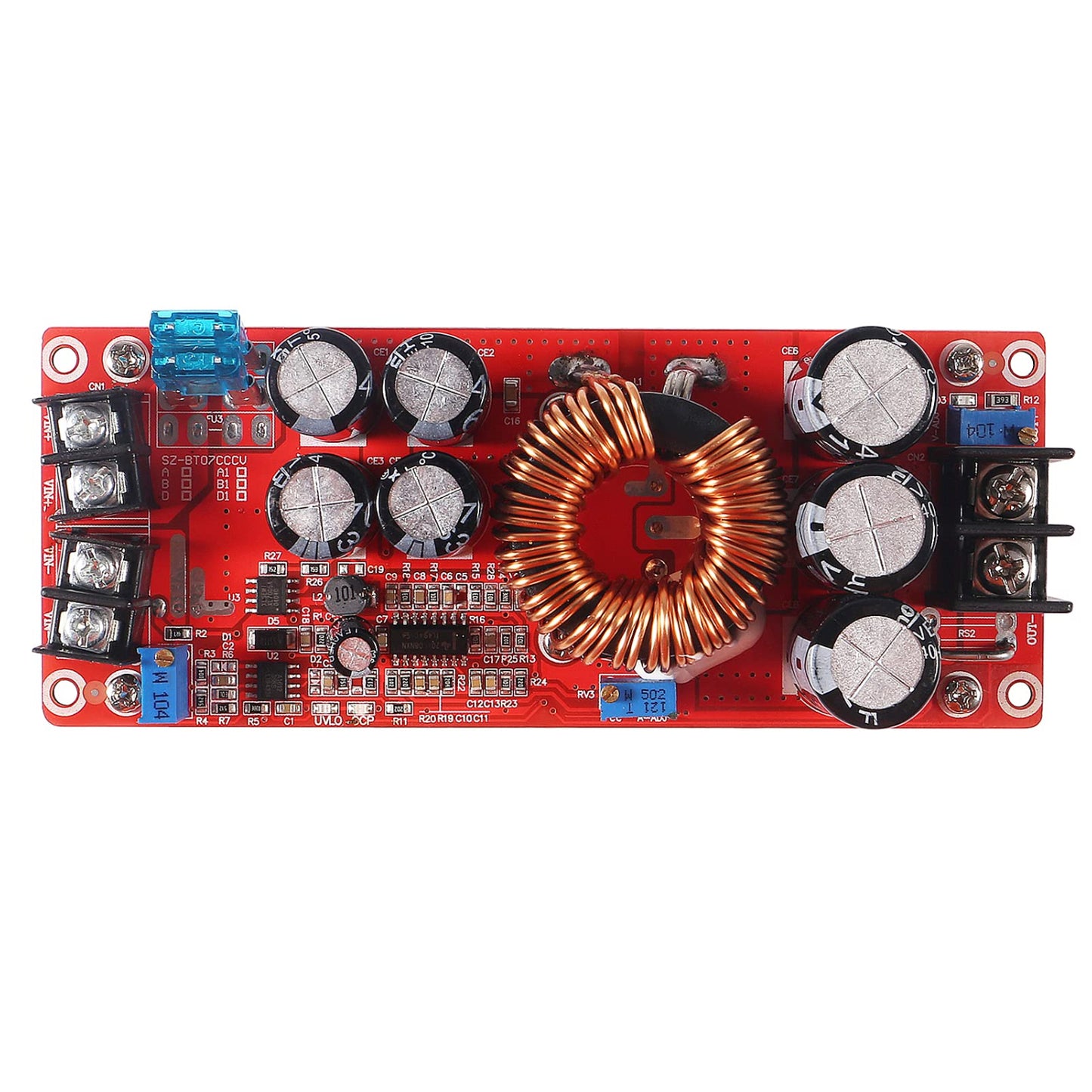

DC-DC 1200W 20A Step-Up Converter with Heat Sink Input 8-60V Output 12-83V Adjustable for Bicycle Electric Bikes Car Solar Panel Regulator Rechargeable Lithium Batteries. 20A 1200W DC Converter Boost Step-up Power Supply Module 8-60V to 12-83V.
Specifications:
- Input Voltage: DC10V to 60V
- Max. Input Current: 30A(input voltage 10V to 30V) or 25A(input voltage 31V to 60V)
- Quiescent Current: 15mA(will increase when convert 12V to 20V)
- Output Voltage: 12V to 90V (adjustable, default is 19V) Max. Output Current: 20A (related to the input and output voltage difference, the greater voltage difference is, the smaller output current will be. please enhance heat dissipation when current is over 15A)
- Constant Current Range: 0.8A to 20A(+/-0.3A)
- Reverse Input Protection: Yes (150A MOS)
- Lower Voltage Protection: Yes (V8 to 50V adjustable, self-recovery)
- Operating Temperature: - 40℃ to +85 ℃(if temperature is too high, please enhance heat dissipation)
- Frequency: 150KHz
- Conversion Efficiency: 92% to 97%
- Input Over-current Protection: Yes (automatically protect when input is more than 35A, and power supply voltage will not increase)
- Short Circuit Protection: Yes(input 30A fuse)
- Wiring Method: Terminals(please use large current copper wire)
-
Max. Output Power = Input Voltage*Max Current (If input 12V, the max output power=12V*30A = 360W)
Features:
- Overcurrent protection: there is a certain range of error in the input over 30A, automatically reducing the output voltage.
- Short circuit protection: there is (input 40A fuse) double short circuit protection, use it more securely.

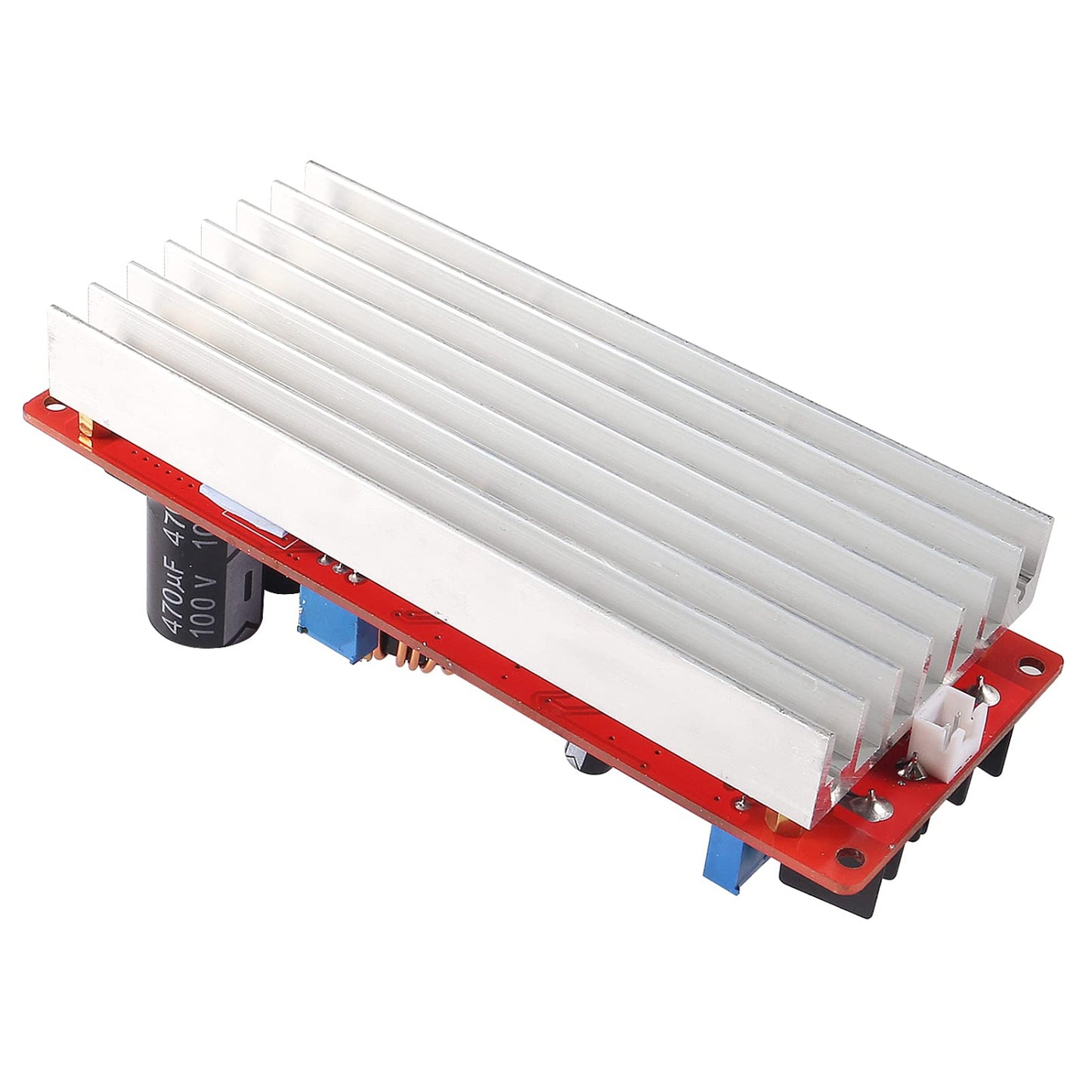

- Has a big heat sink to dissipate heat properly but can add an external fan to the module.
Pin Description:
Package Included:
1 x DC-DC 1200W 20A Step-Up Converter 8-60V To 12-83V Boost Converter 20A Boost Converter Module Efficient DC-DC Boost Converter For High-Power Applications
