Description:

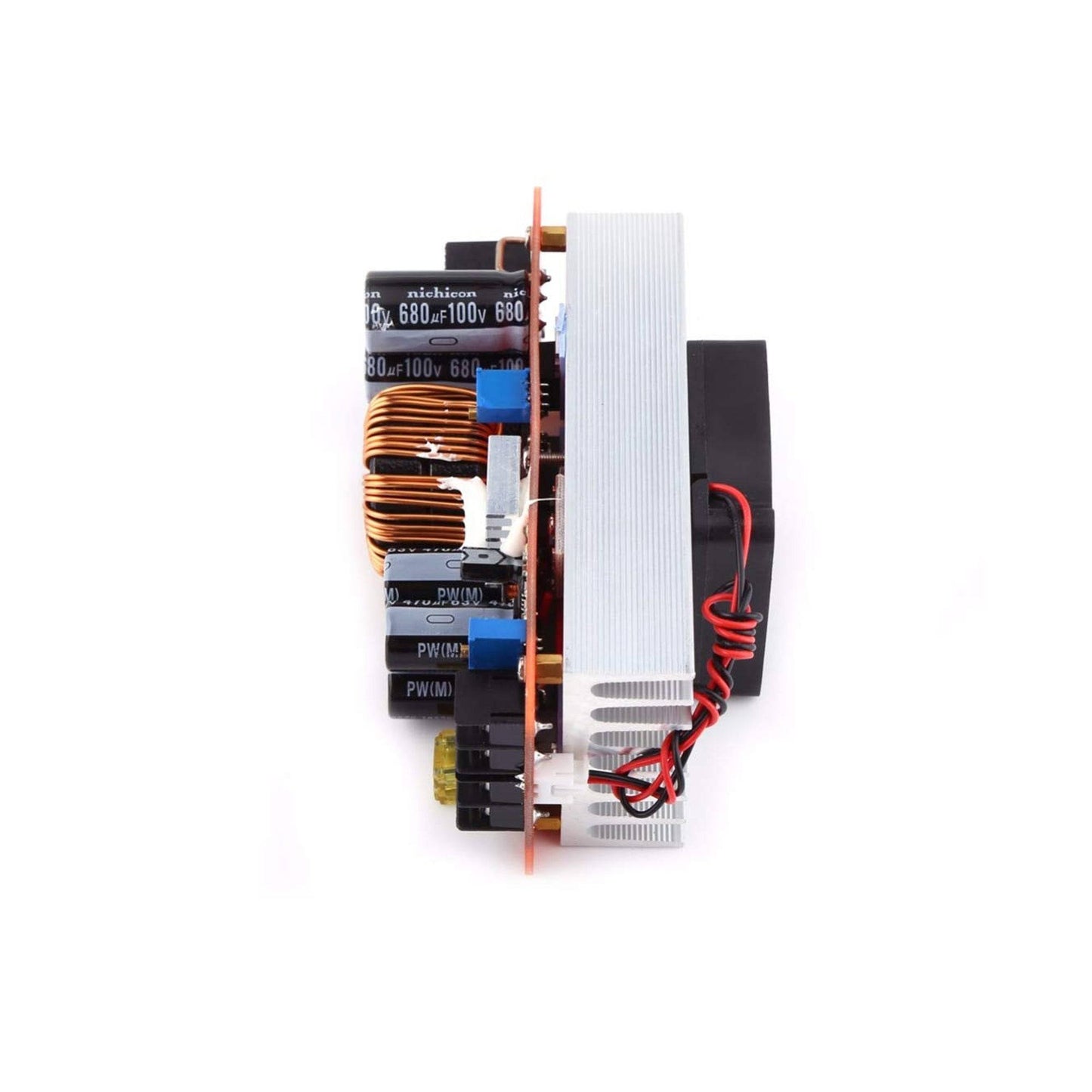

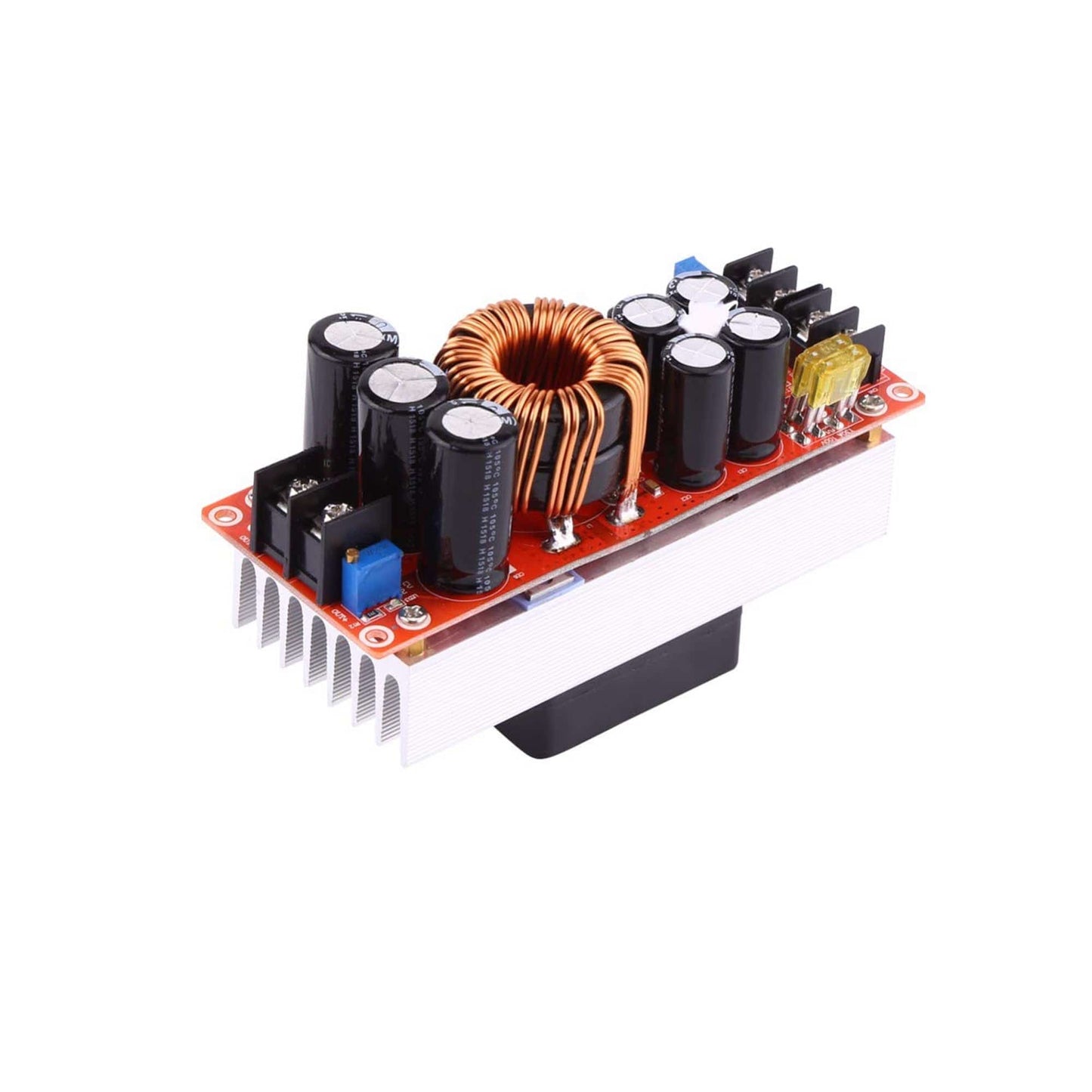

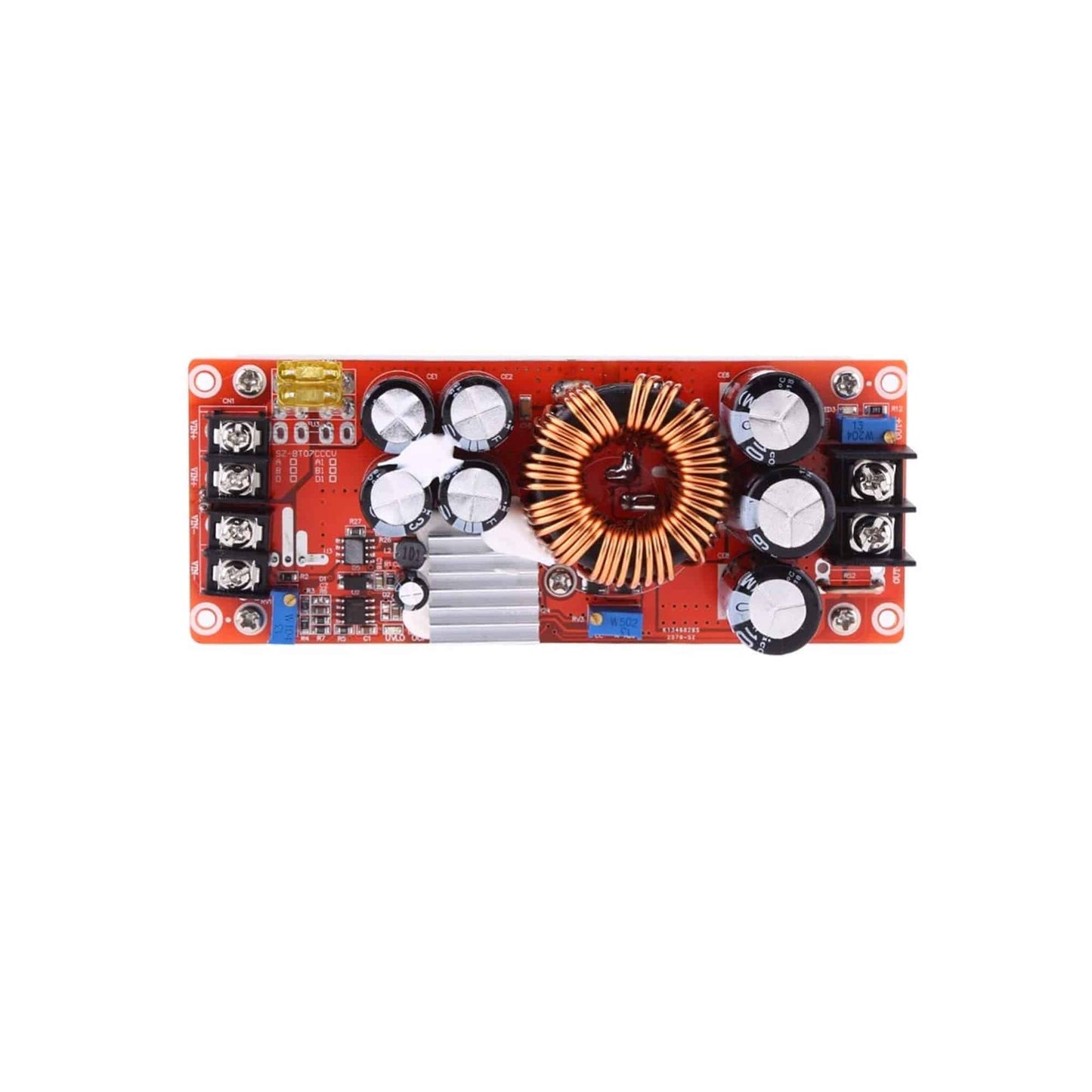

This is a 1200W 20A DC Boost Converter power supply module with DC 10-60V voltage input and DC 12V-83V output voltage. The input and output of the module are designed with screw terminals for convenient wire connection or disconnection. Besides, the 1200W 20A DC Boost Converter is equipped with a big heat sink and cooling fan for better dissipation which can help your project a lot. You can also use the module as a driver for high-power LED lights or a voltage regulator for solar panels. The 1200W 20A DC Boost Converter has two multiturn 3296 potentiometers one to adjust the output voltage and one to adjust the output current.
Specifications:
- Module Properties: Non-isolated Step-up Module (BOOST)
- Input Voltage: DC 10V~60V
- Maximum Current: 20A
- Quiescent Current: 15 mA (12V litre 20V, the output voltage, the higher the current will increase too quiet)
- Output Voltage: 12~83V Continuously Adjustable
- Constant Range: 0.5~18A(±0.3A）
- Output Current: MAX 18A over 10A, please strengthen the cooling
- Temperature: -40~ + 85℃(ambient temperature is too high, please enhance heat dissipation)
- Operating Frequency: 150 kHz
- Conversion Efficiency: 92% ~ 97%
- Low Battery Protection: yes
- Input Reverse Polarity Protection: yes
- Enter the Anti-reverse Protection: yes
- Short Circuit Protection: yes
Features:
- Input and output are designed with screw terminals for convenient wire connection and disconnection.
- 1200W 20A DC Boost Converter has high efficiency, the maximum conversion efficiency can be 97% and efficiency is related to input/output voltage, current and voltage difference.

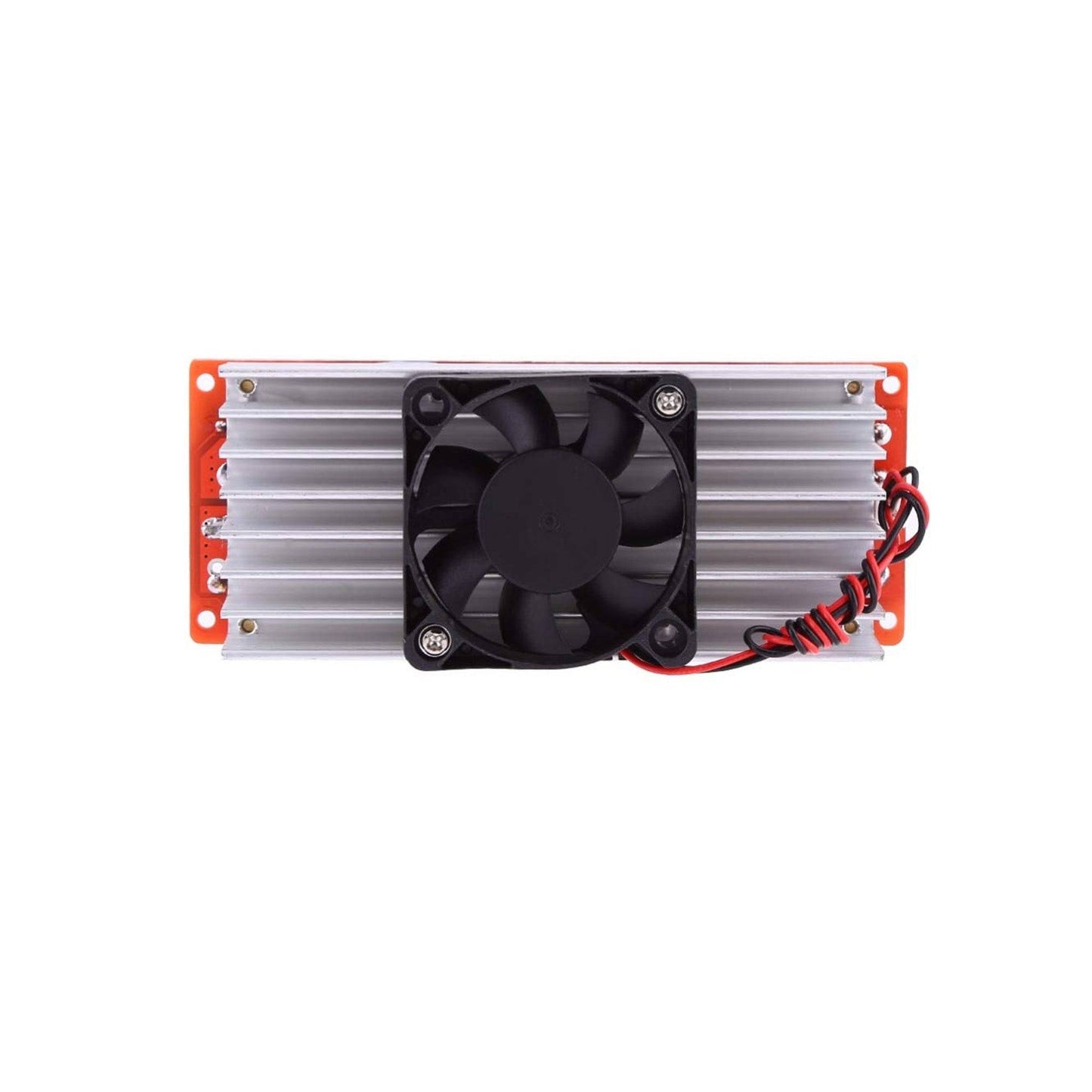

- 1200W 20A DC Boost Converter has a big heat sink and a cooling fan that would ensure better heat dissipation.
- 1200W 20A DC Boost Converter can also be used as a driver for high-power LED lights or a voltage regulator for solar panels.
Package Included:
1 x 1200W 20A DC Converter Boost Step-up Power Supply Module in 8 60V Out 12 83V Constant Current Module with Cooling Fan
