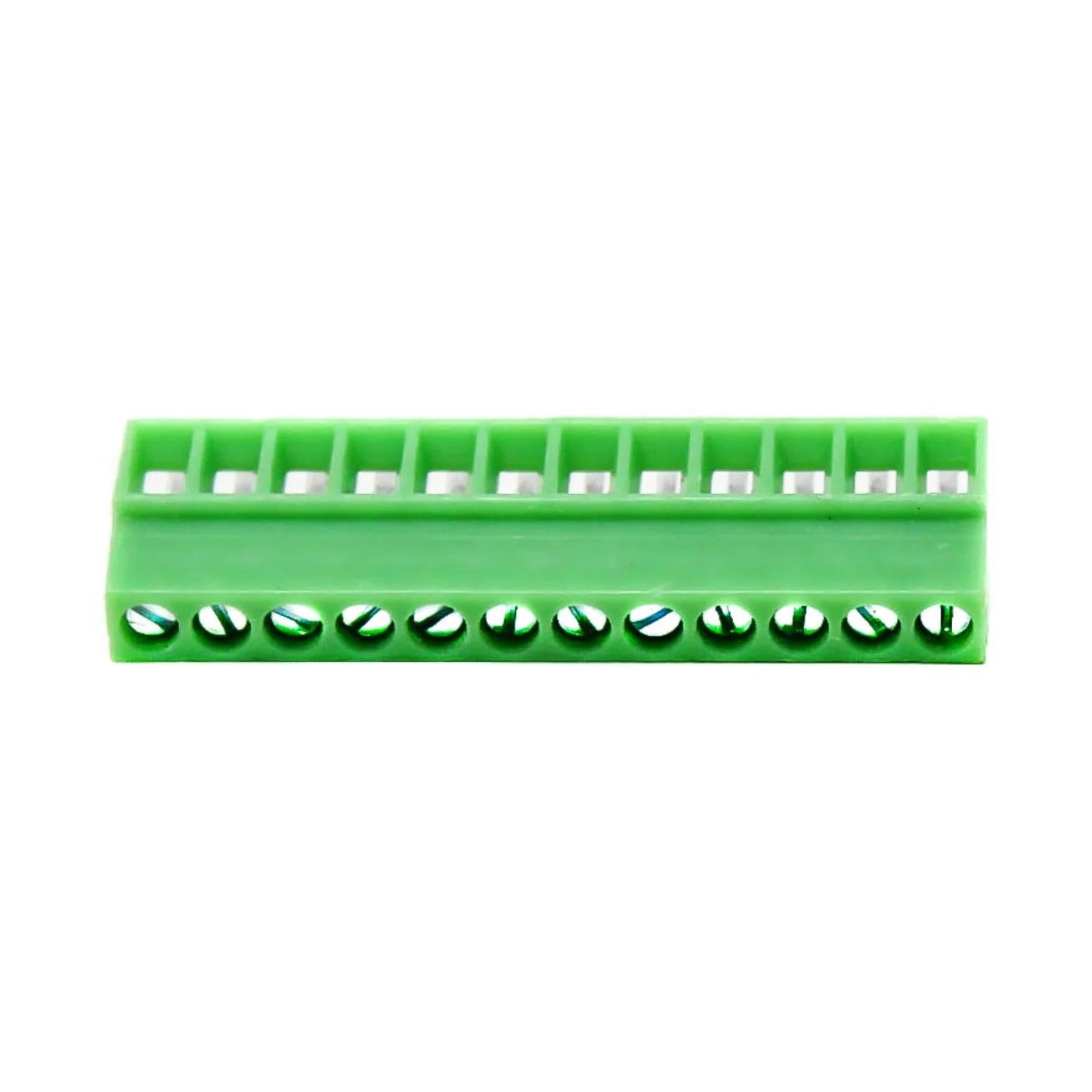

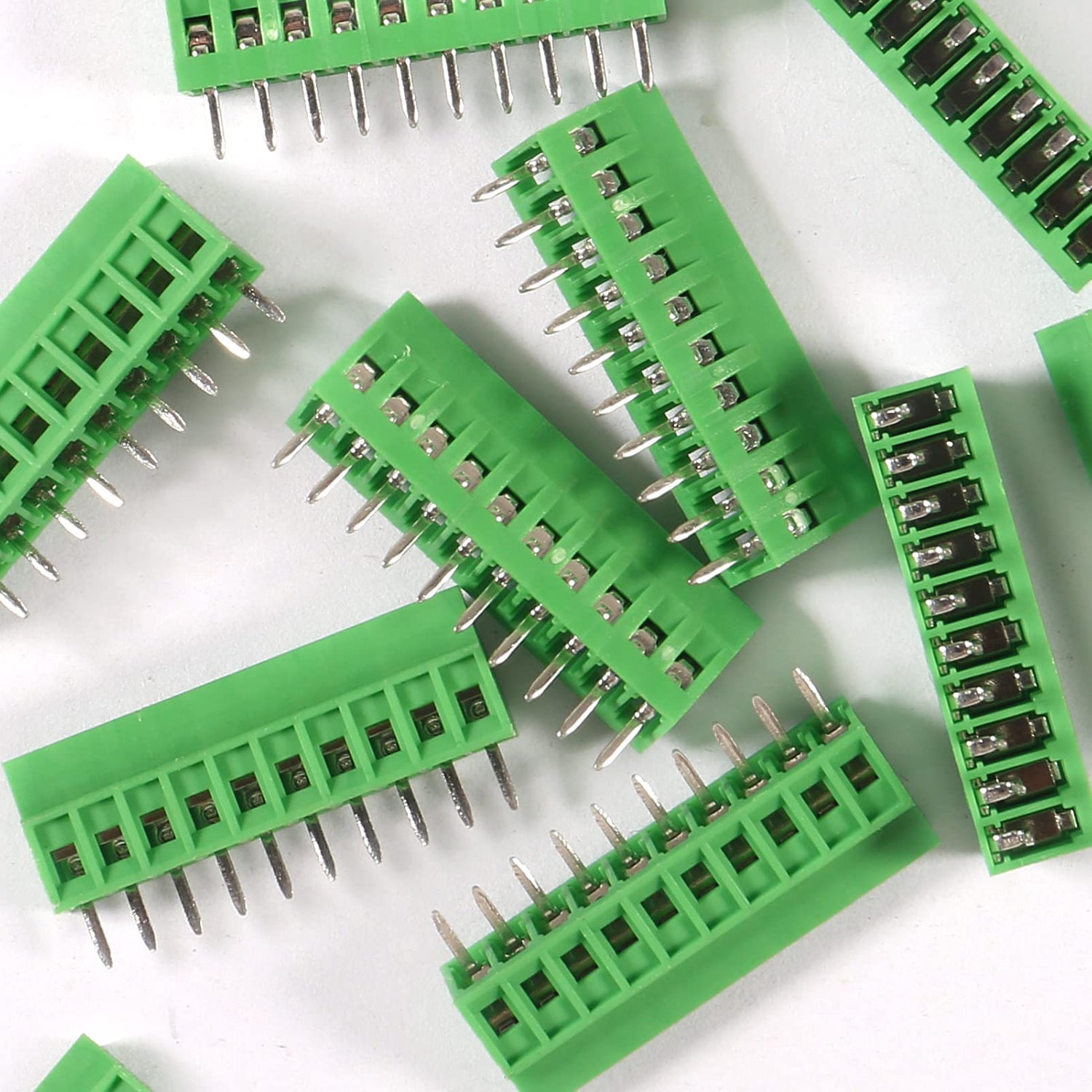

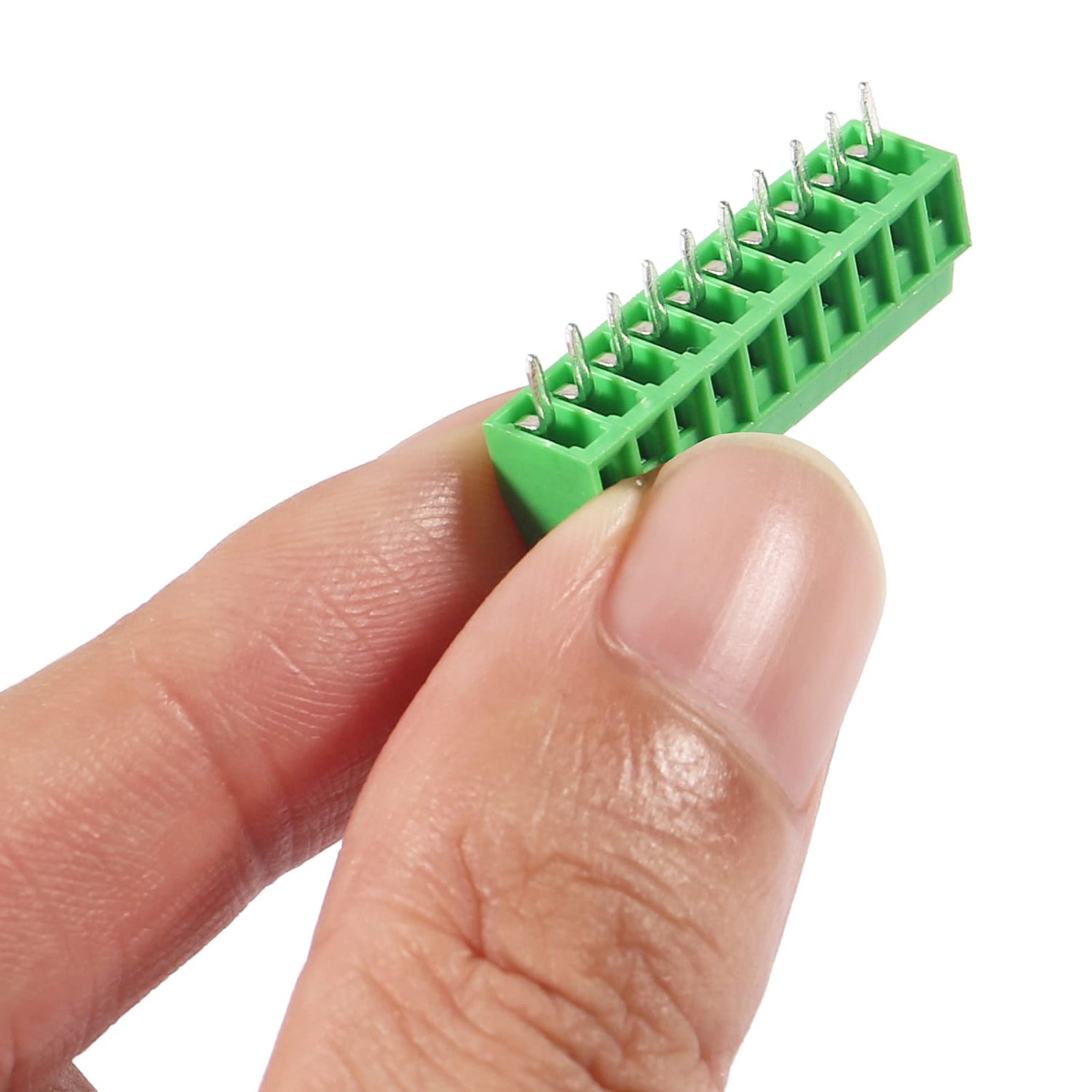

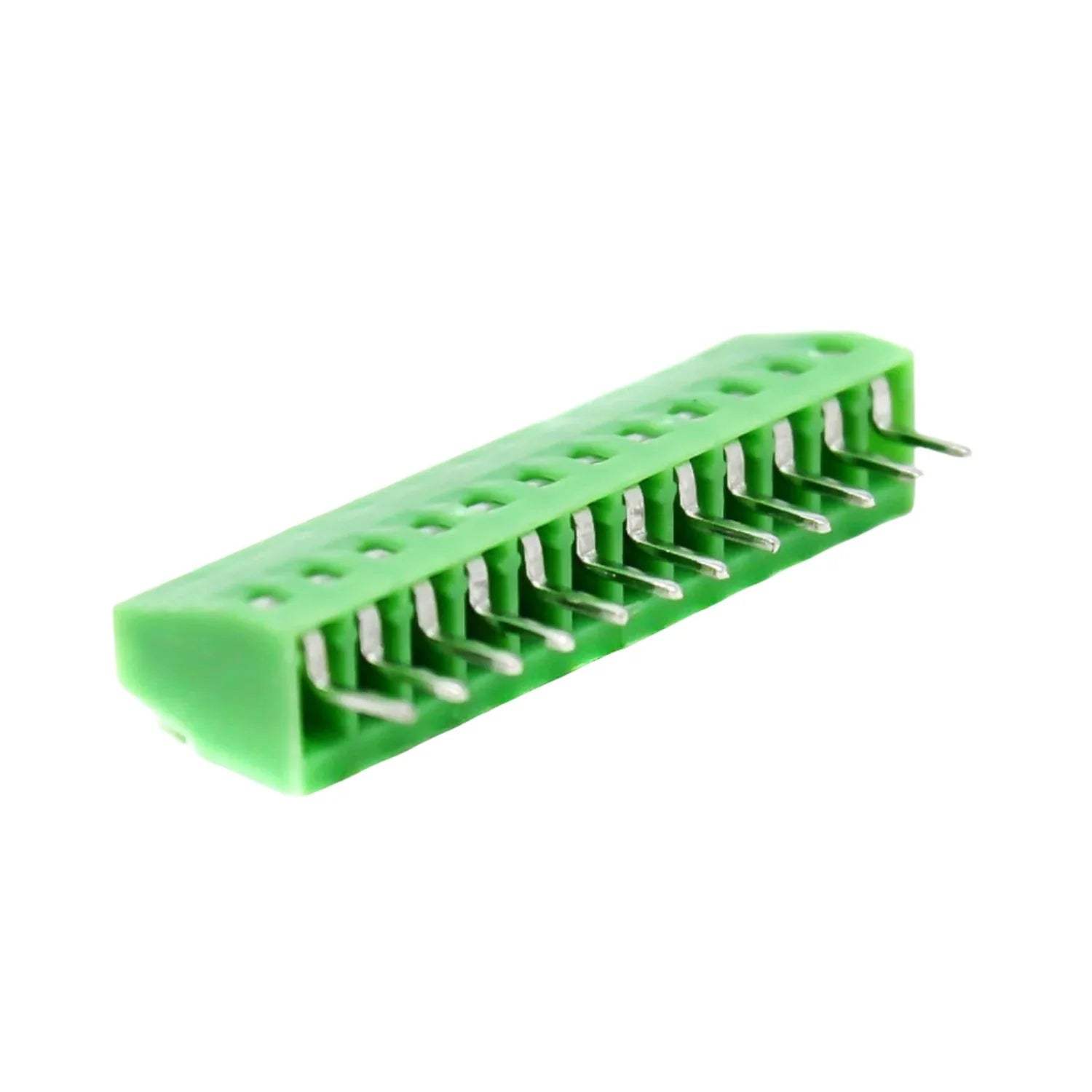

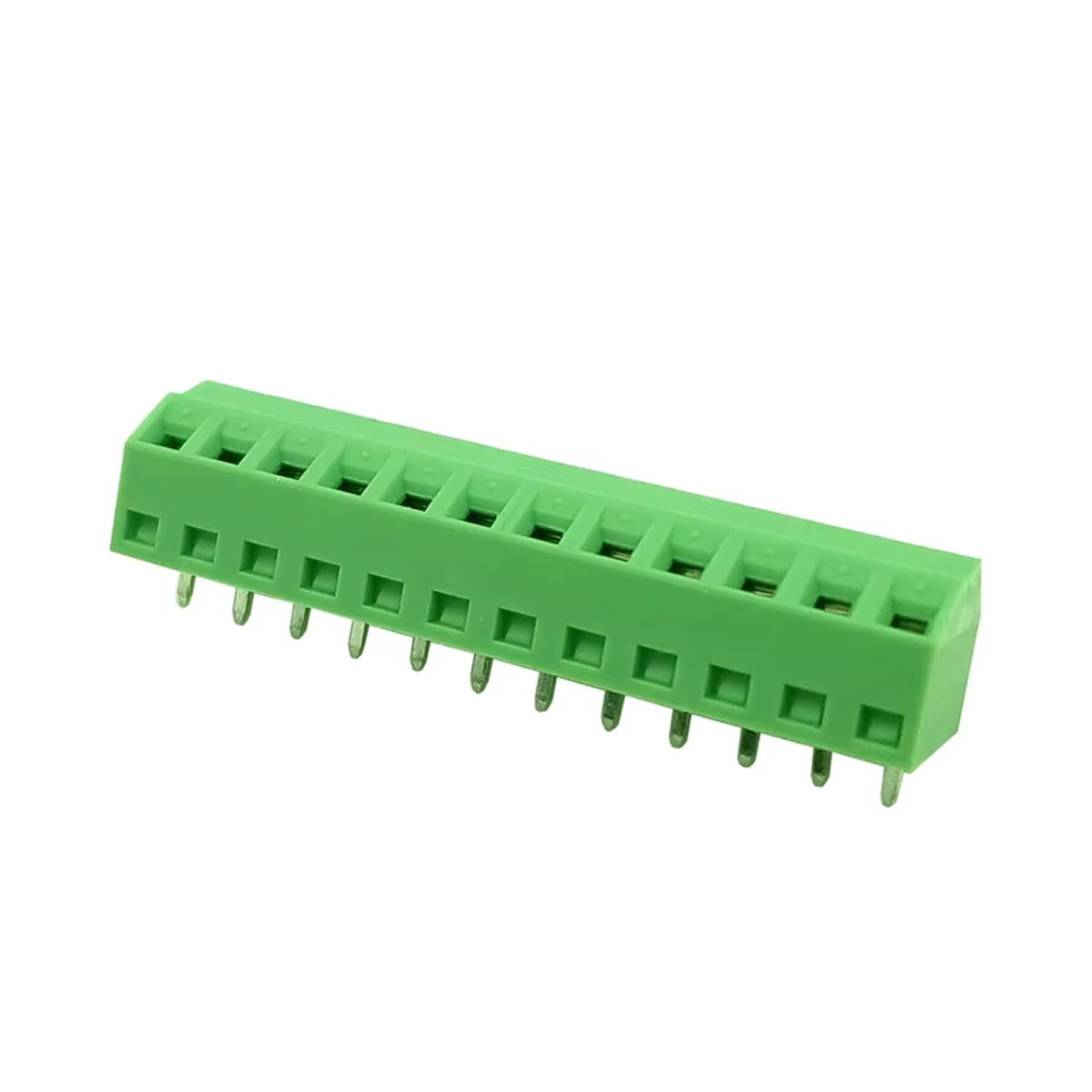

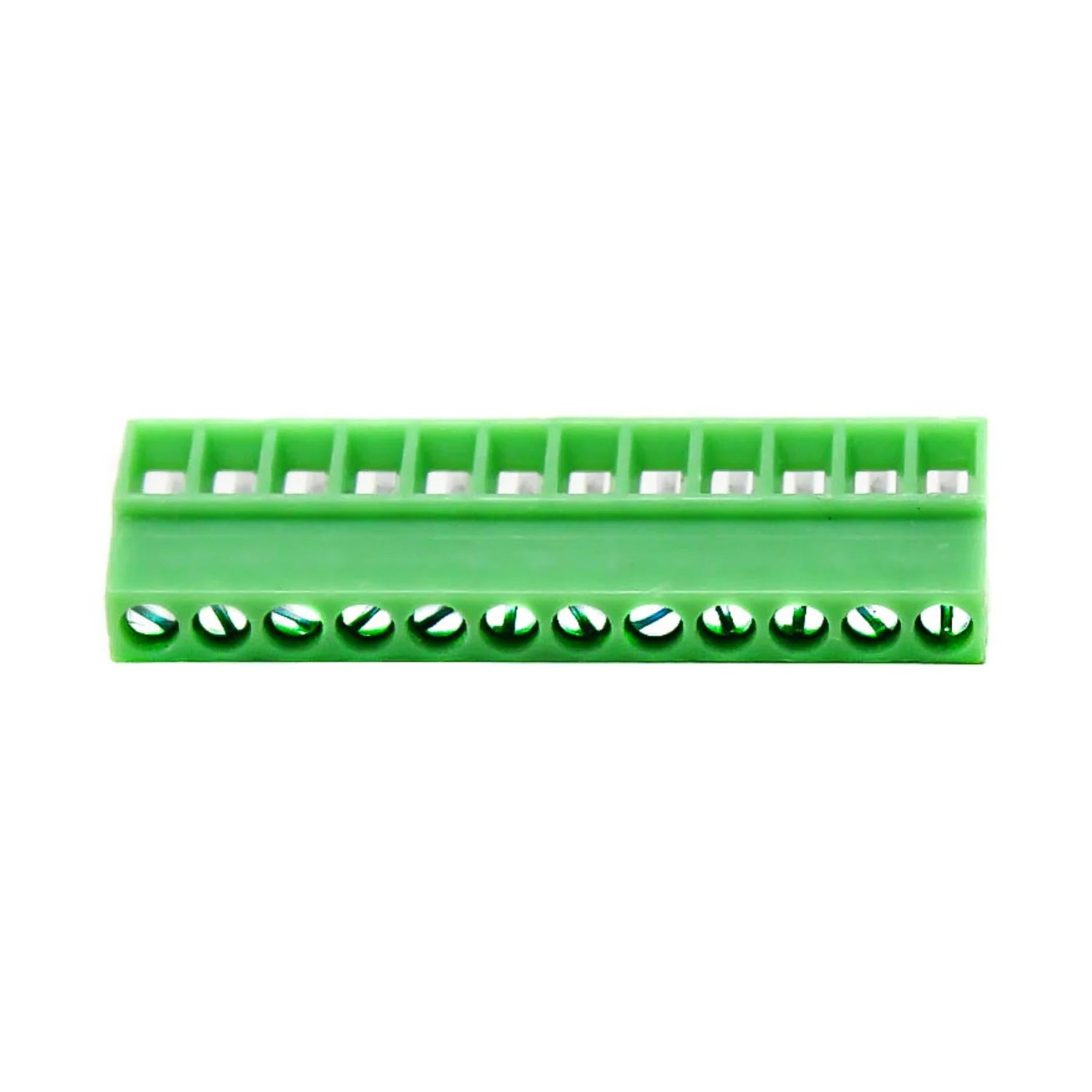

12-Pin 5.08mm Pitch Terminal Block 12-Position Screw Terminal Block Pluggable 12 Pin Terminal Block High-Quality 12-Pin Terminal Block For Easy Wiring And Maintenance - RS4117

12-Pin 5.08mm Pitch Terminal Block 12-Position Screw Terminal Block Pluggable 12 Pin Terminal Block High-Quality 12-Pin Terminal Block For Easy Wiring And Maintenance - RS4117

SKU:RS4117

25 in stock

Regular price Rs. 56.00
Regular price Sale price Rs. 56.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Descriptions:

12-Pin 5.08mm Pitch Terminal Block connector is Close Type straight pluggable screw Terminal connector. It’s a suitable connector for the Board Wire connectors in various industrial as well as other electronics products. It is suitable for use where the PCB placement is inside an enclosure, and connections should be accessible from outside.

12-Position Screw Terminal Block also provides an easy way to plug the connections, without removing any wires from the connector. As the wires are secured with screws in the female connector.

Specifications:

  • Item Type: PCB Block
  • Wire Cage: Brass, Nickel Plated
  • Solder Pin: Brass, Tin Plated
  • Operating temperature: -40 ~ 105°C
  • Rated Current: 6A
  • Voltage Rating: 300V
  • Allowed Wire Size: 22-12AWG
  • Spatial Orientation: Straight (Close Type)
  • No. of Contacts: 12
  • Connector: Socket
  • Mounting Type: Through Hole

Features:

  • Single-row Type with Horizontal Connection Direction
  • Use in Miniature Modules with High Contact Density

Package Included:

1 x 12-Pin 5.08mm Pitch Terminal Block 12-Position Screw Terminal Block Pluggable 12 Pin Terminal Block High-Quality 12-Pin Terminal Block For Easy Wiring And Maintenance
