Description:

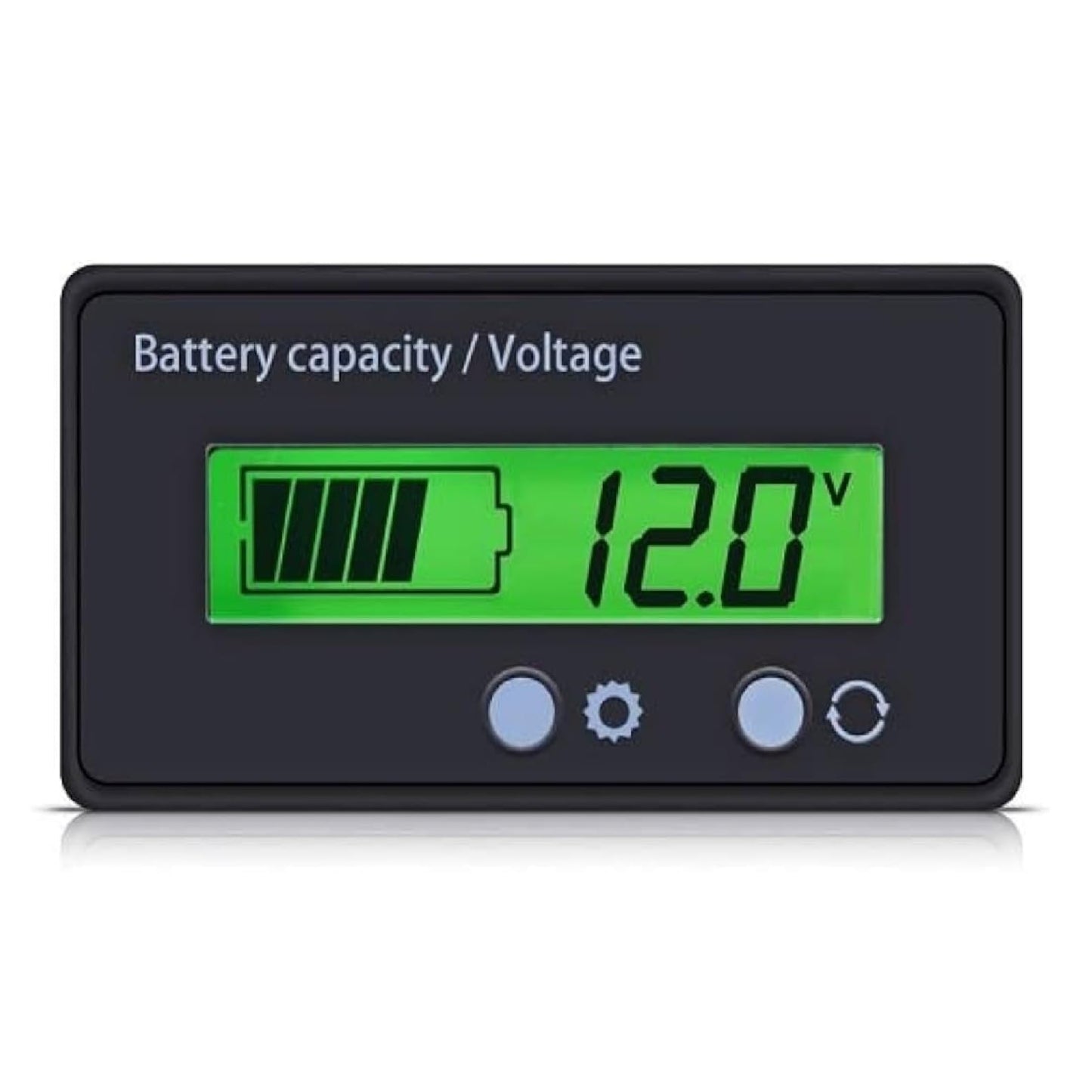

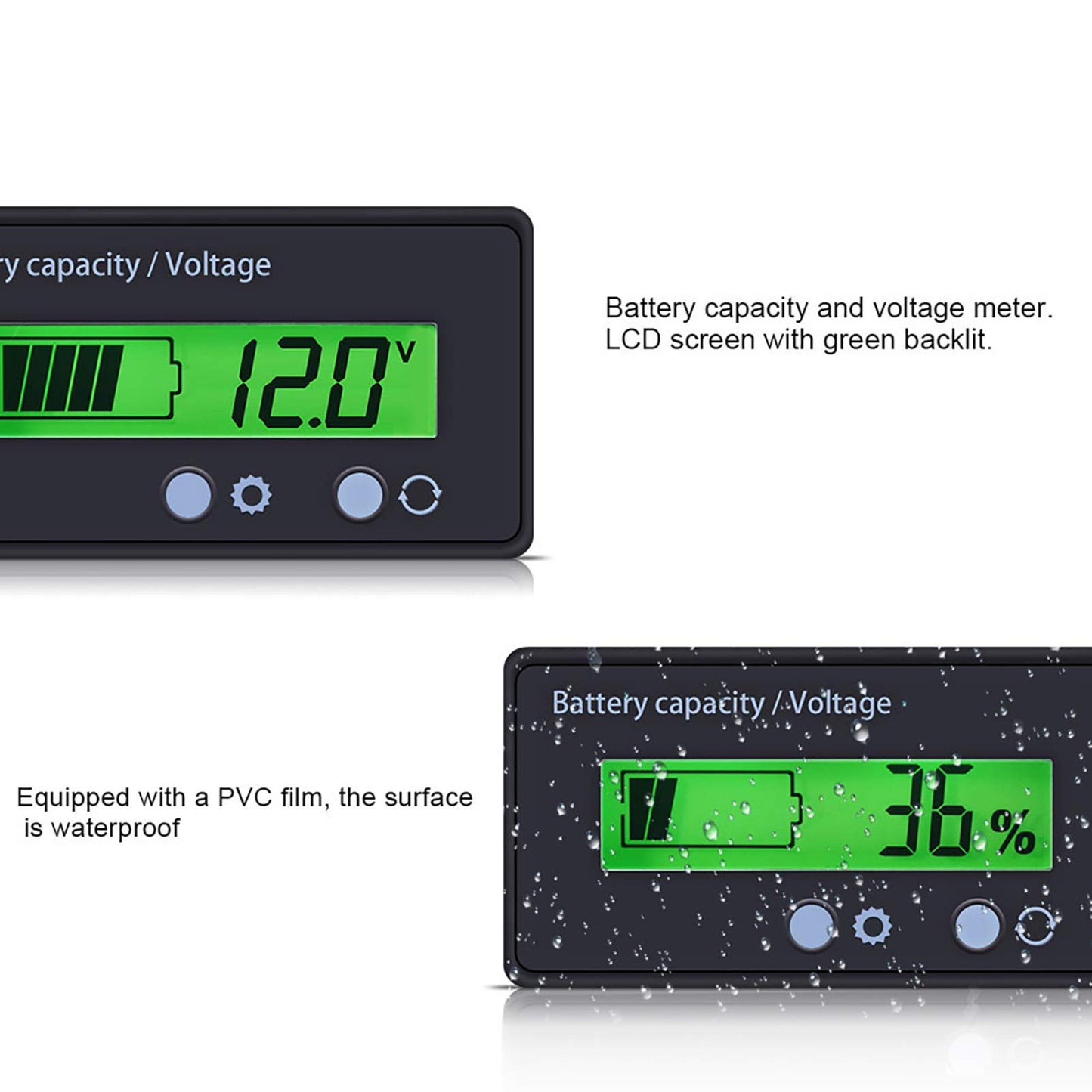

This 12-84V Battery Power Display Meter is used to check battery voltage and charge percentage. If you have an electric vehicle then you definitely require this product. Large display with green back-lit ensures reading visibility in dark surroundings. Through settings, you can keep back-lit off or on as per your requirement.
Keep track of lead acid battery voltage and charge percentage. E-rickshaws, e-scooters, e-bikes, inverter batteries, etc. To enter setting mode hold the setting button and then connect the cable to the battery. The display starts to blink and now you have to set the battery type. Select P for Lead Acid Battery and select the battery voltage accordingly i.e. 1 for 12V, 2 for 24V, and so on.
The S1 setting will help you select if you want to see both charge percentage and voltage or anyone. The S2 setting will turn off the backlit after every 10 sec of usage. S3 is a backlit setting to keep the backlit on or off.
Specifications:
| P3D Material |
PCB/HTN |
|---|---|
| Pack Volt. Display (V): |
8-100V |
| Color: |
Green |
| Compatibility: |
acid battery, lithium battery, iron lithium battery (can be set by yourself.) |
| Display |
LCD |
| Operating Voltage (V) |
12-84V |
Features:
- Equipped with a switch, you can turn off the power, no power consumption after turning it off.
- Accurately display the battery power percentage, and voltage, and intuitively grasp the battery usage status.
- When the power value is lower than or equal to 20%, the backlight flashes an alarm.
- Compatible with acid battery, lithium battery, and iron lithium battery which can be set by yourself.
- Double button design, easy to set up, can be set in just a few seconds.
- Manually switch battery percentage/voltage/power off
- Automatic recycling display battery capacity/voltage per 2 seconds (Settable)
- 10s delay auto-off (Settable)
- Double discharge curve selection (Settable)
Note:
- It cannot be used for Lithium Iron Phosphate batteries, 1-2 Li batteries in series, and over 15 Li batteries in series.
Setting Instruction:
- Long press the Set key, power supply to the product, enter the setup interface
- Press the Set key to select the battery specification (Lead-acid battery(P), Lithium battery (L), Fe battery(F))
- Short press the Function key to select the number of battery strings (increasing for the set button, decreasing for function button)
- Long press the Function key to set s mode.
Package Included:

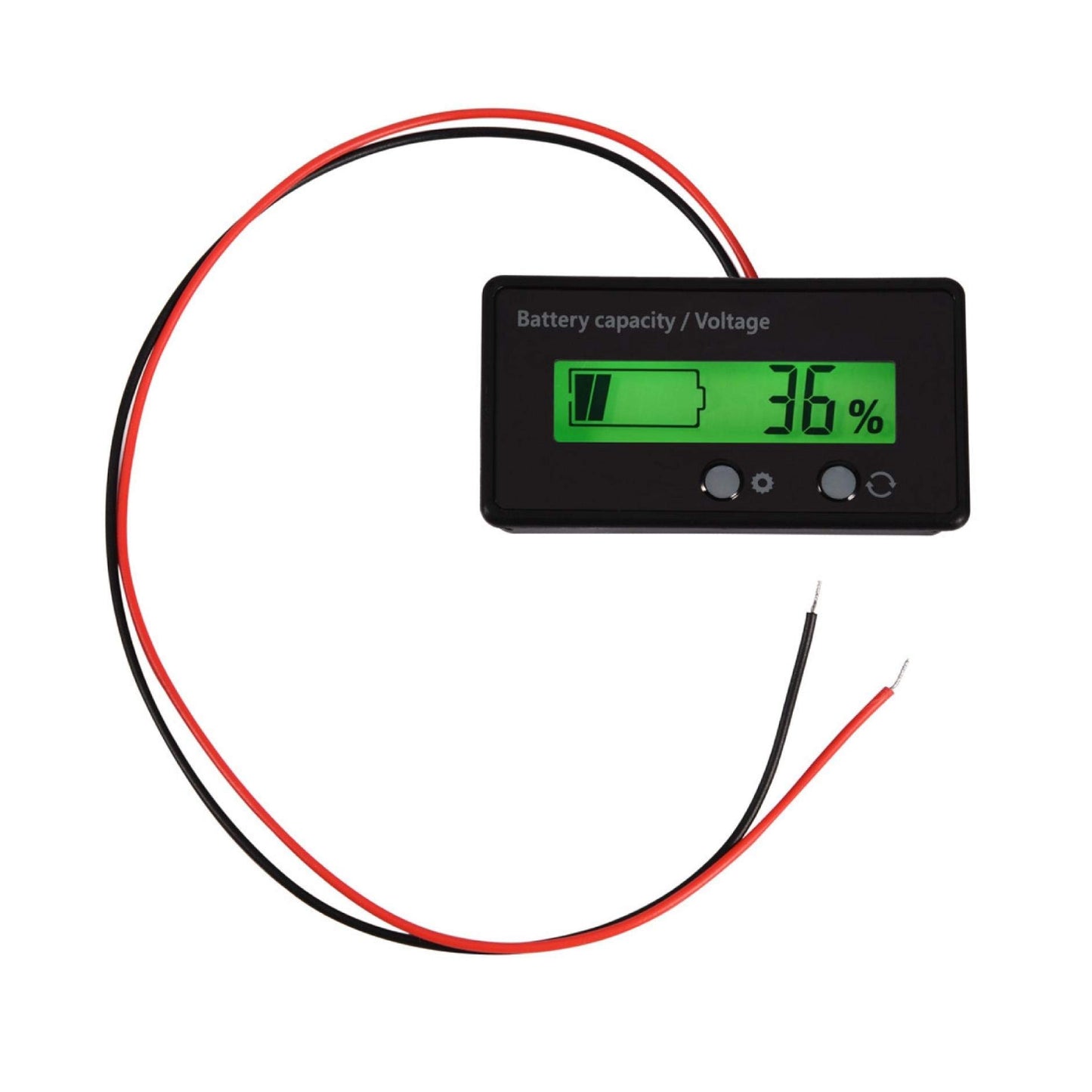

1 x 12-84V Battery Power Display Meter
