Description:
MCR-30 DC Motor Speed Controller can achieve simple automatic functions. It can adapt to a wide DC low voltage operating range and it’s suitable for SCM, PLC and other upper control. It owns powerful function, stable performance and beautiful appearance.
Specification:
- Input Voltage: DC 12-30V.
- Power: max 250W cont. for 12V max 350W cont. for 24V
- DC power supply=1.3 times of the motor power
- Max Output Current: 30A (Equipped with 30A fuse)
- Power LED: System starts normally, the two LEDs flash at the same time.
- When the motor is in stop status, the LED D3 flashes once per second.
- Direction LED: In operation, push Key 1 or Key 2 of remote control (control direction of motor), the LED D4 or D3 lights up.
- Potentiometer: 10K/100k
Features:
- Provides variable speed capability for DC motor
- Provides limit function
- Achieves start, stop, speed up and down, positive and reverse rotation RC controlled
- Connect mechanical stroke switch (micro switch) to achieve limit function
Remote Control Key Function:
- Key 1: Positive
- Key 2:Reverse
- Key 3:Stop
- Key 4:Speed Up
- Key 6:Speed Down
Operating Instruction:
- An appropriately rated fuse (rated a little higher than the maximum current you expect to draw) is recommended to ensure safe operation.
- Before you attempting to wire the controller, make sure power is off.
Indicator Light:
- System starts normally, the two LEDs flash at the same time.
- When the motor is in a state, the LED D3 flash once per second.
- In operation, push Key 1 or Key 2 of remote control (control direction of motor), the LED D4 or D3 lights up.
Package Included:

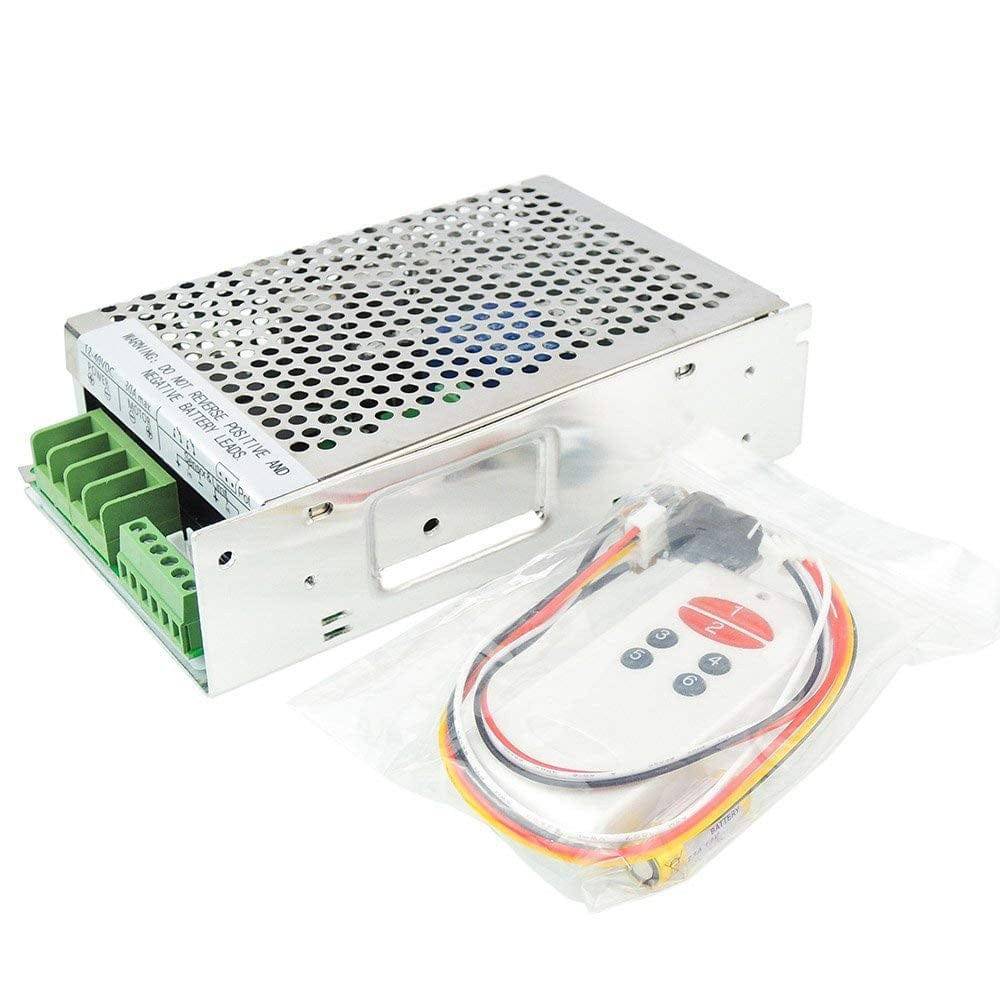

1 x 12-30V 24V 30A MAX DC Motor Speed Control With Wireless Remote Controller Adjustable Switch Reversing Regulator
