- Polymer Battery Rated Voltage: 10.8V
- Rated Voltage of 18650 or 3.7V Lithium Battery: 11.1V
- After the lithium battery is fully charged, the voltage is 12.6V
- Maximum Discharge Current Limit: 10A
- Overcharge Voltage Range: 4.25-4.35v±0.05V
Description:
This 3 cell lithium ion battery protection board is equipped with Japan battery control IC and 9622A MOSFET protection IC with over charging, over discharging, over current and short circuit protection. It is perfect for li-ion lipo battery cell pack such as 18650,18550, 14500 avoiding the damage during charging or discharge then prolong their lifetime. This lithium-ion BMS is compact, economical, and ensures the safe operation of low voltage lithium-ion battery packs. This standalone BMS controller was designed specifically for consumer electronics, to automotive standards. No additional equipment is needed for the safe operation of lithium-ion battery packs. It ensures that battery pack safety is always maintained and cell lifetime is maximized by avoiding high temperature events that deteriorate cell performance. The BMS passively balances the charge between all cells in the battery pack which maximizes the runtime of the battery pack and extends its life.
Specification:
- Polymer Battery Rated Voltage: 10.8V
- Rated Voltage of 18650 or 3.7V Lithium Battery: 11.1V
- After the lithium battery is fully charged, the voltage is 12.6V
- Maximum Discharge Current Limit: 10A
- Overcharge Voltage Range: 4.25-4.35v±0.05V
- Over-discharge Voltage Range: 2.3-3.0v±0.05V
- Maximum Working Current: 5-8A
- Maximum Instantaneous Current: 9-10
- Quiescent Current: less than 6uA
- Internal Resistance: less than 60mΩ
- Working Temperature: -40 ~ +50°C
- Storage Conditions: -40 ~ +80°C
- Effective Life: more than 30,000 hours
Features:
- Three series of lithium battery protection board.
- Automatically cancel protection after protection conditions restore.
- With the function of overcharge protection, over discharge protection, short circuit protection, over-current protection.
- Suitable for lithium battery pack of 11.1V, 12V, 12.6V.
Note:
- The selected protection board current should not be less than the controller current limit of the product you are using.
- Lithium battery should be charged with lithium battery special charger, do not use lead-acid battery charger, lead-acid charging may have high voltage breakdown protection board MOS tube, resulting in protection board overcharge is not protected.
Package Included:

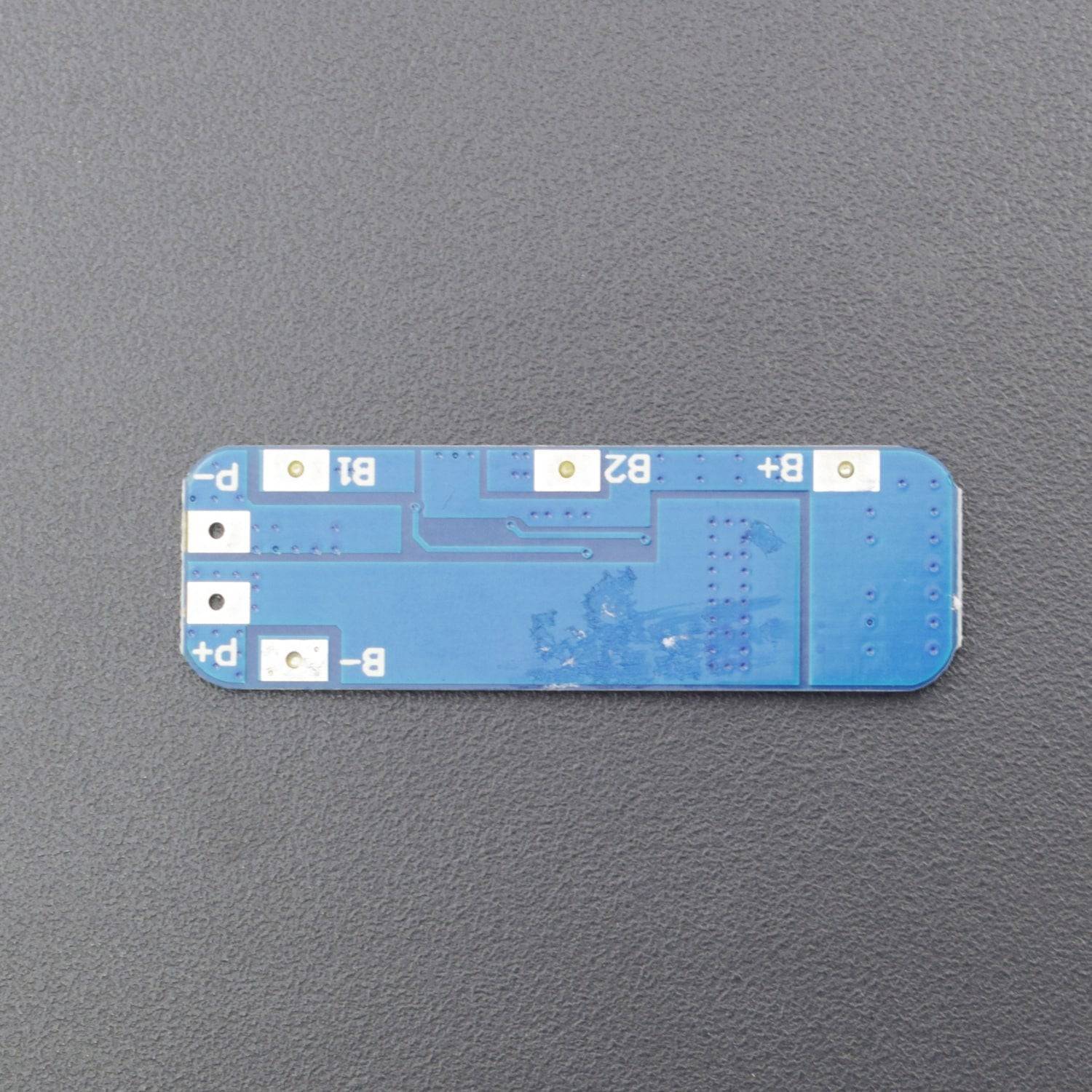

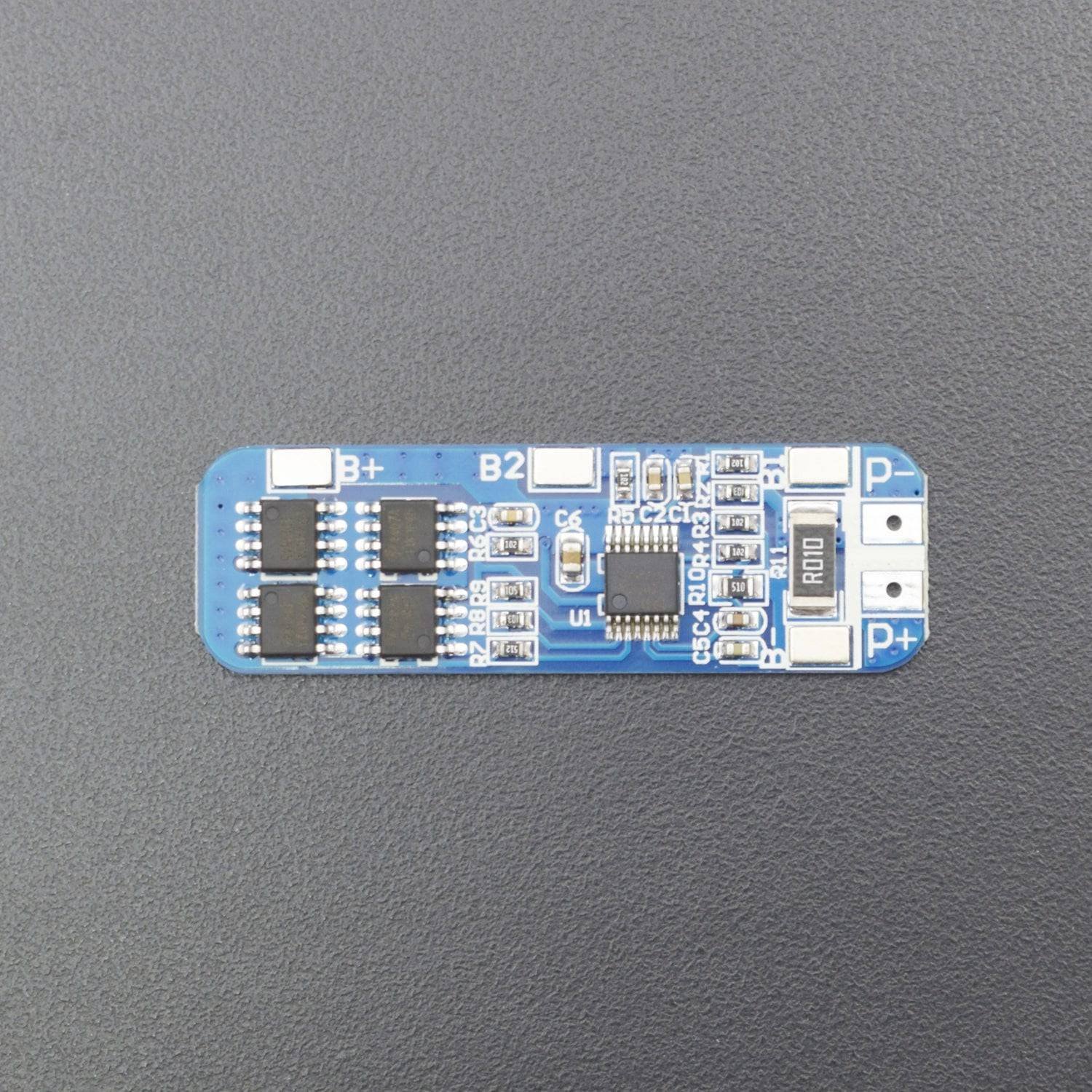

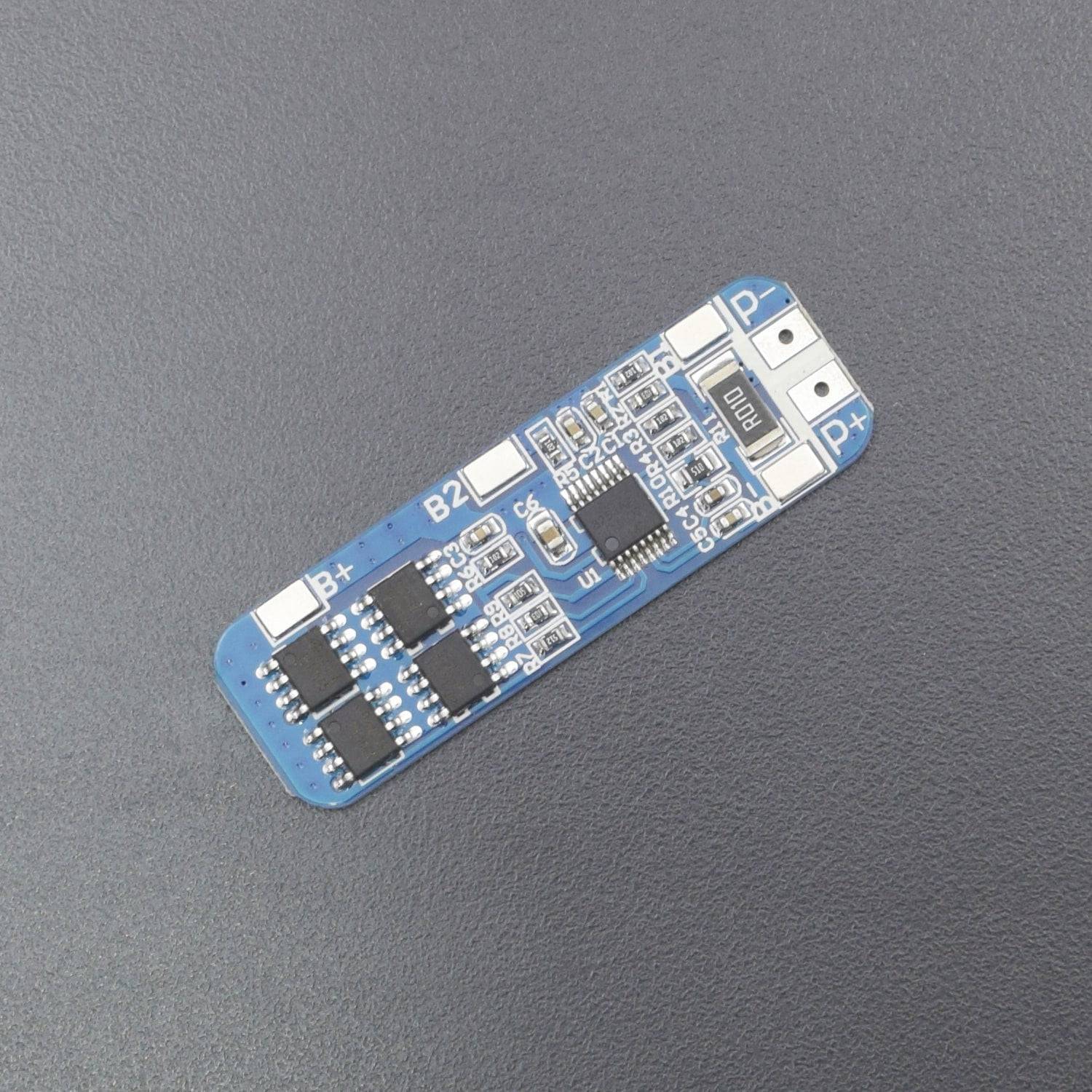

1 x 11.1V 12.6V 8A 3S Lithium Battery Protection PCB BMS Board for 18650 18550 Li-ion Lipo Battery Cell Pack
