Description:

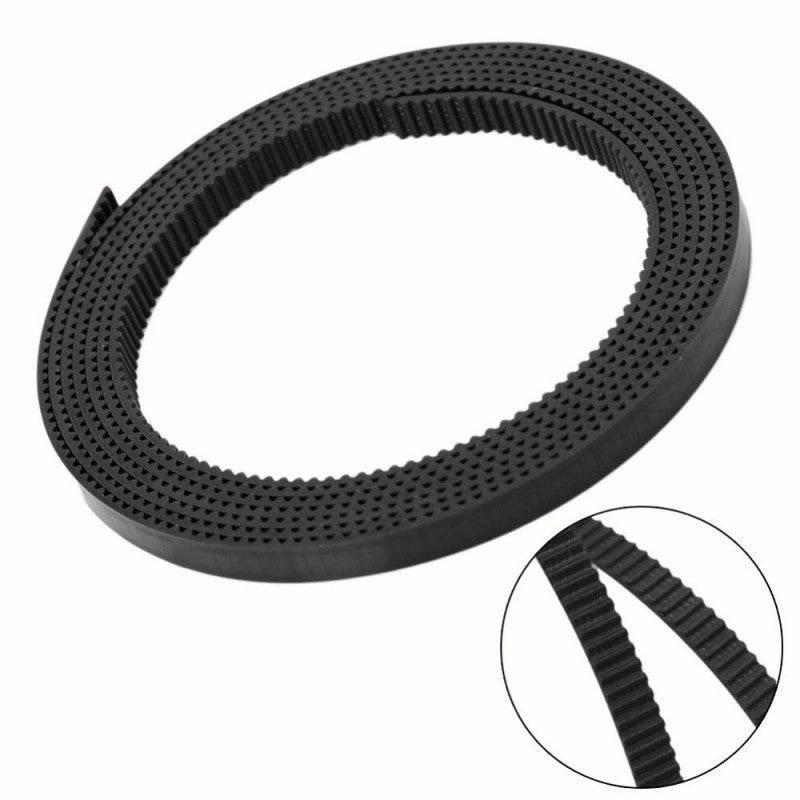

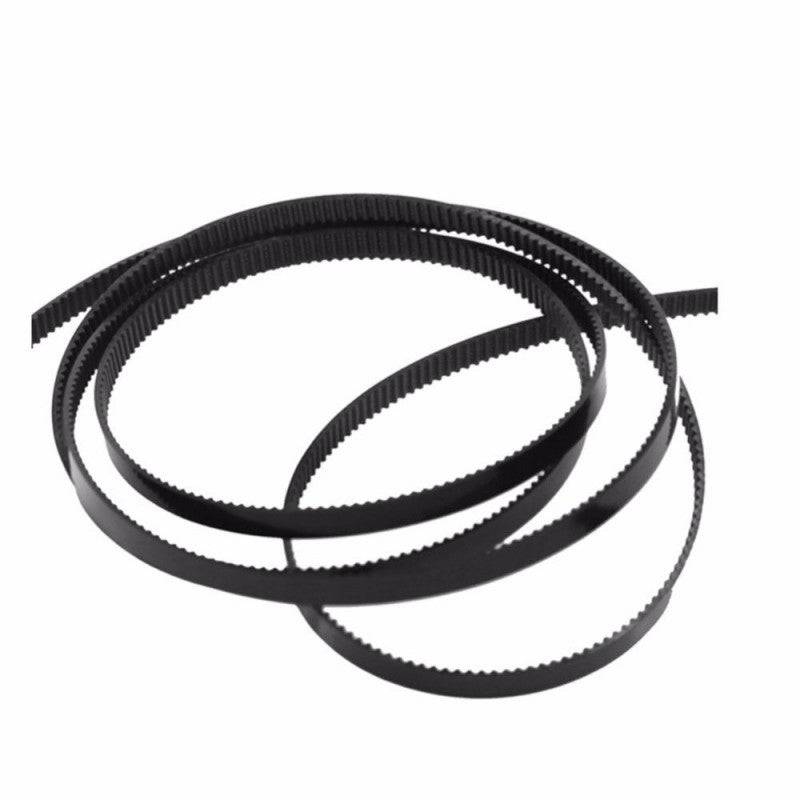

This is GT2 Timing Belt Rubber With Fiberglass Reinforced 6mm Width and 1m Length. It is, made from Neoprene – Synthetic Rubber reinforced with fiberglass cords for superior strength. the highest quality precision 1M GT2 Width 6mm Black Open Timing Belt For 3D Printer
The Timing Belt also called a synchronous belt is popularly known for its non-slipping mechanical drive belt. It is composed of a flexible belt that contains a row of teeth embedded on the inner surface of the belt. The Timing Pulley and belt work when the toothed parts become compatible with each other.
It is a belt that usually features teeth on the inside surface, while a timing chain is a roller chain. It is widely used in mechanical devices like Printers/Photocopiers, 3D Printers, Robotics, Automation, etc.
Specifications:
- Type: Timing Belt
- Material: Neoprene Rubber With Fiberglass Core
- Shape: Open Loop
- Total Length: 10meters
- Pitch: 2mm
- Width: 6mm
- Tooth Height: 0.76mm
- Belt Height: 1.52mm
Features:
- Precision registration and timing with no loss of high torque-carrying capability
- Minimal vibration and chordal effect Positive slip-proof engagement
- Wide speed range, is especially important when the entire speed range is developed from a single source
- Virtually no elongation (stretching) due to wear
- Power transmission efficiency is not lost with the use
- A clean operation, no need for lubrication
- Reduced noise.
- Long, dependable trouble-free service.
Package Included:
1 x 10M GT2 Timing Belt GT2 6mm Open Timing Belt
