Description:

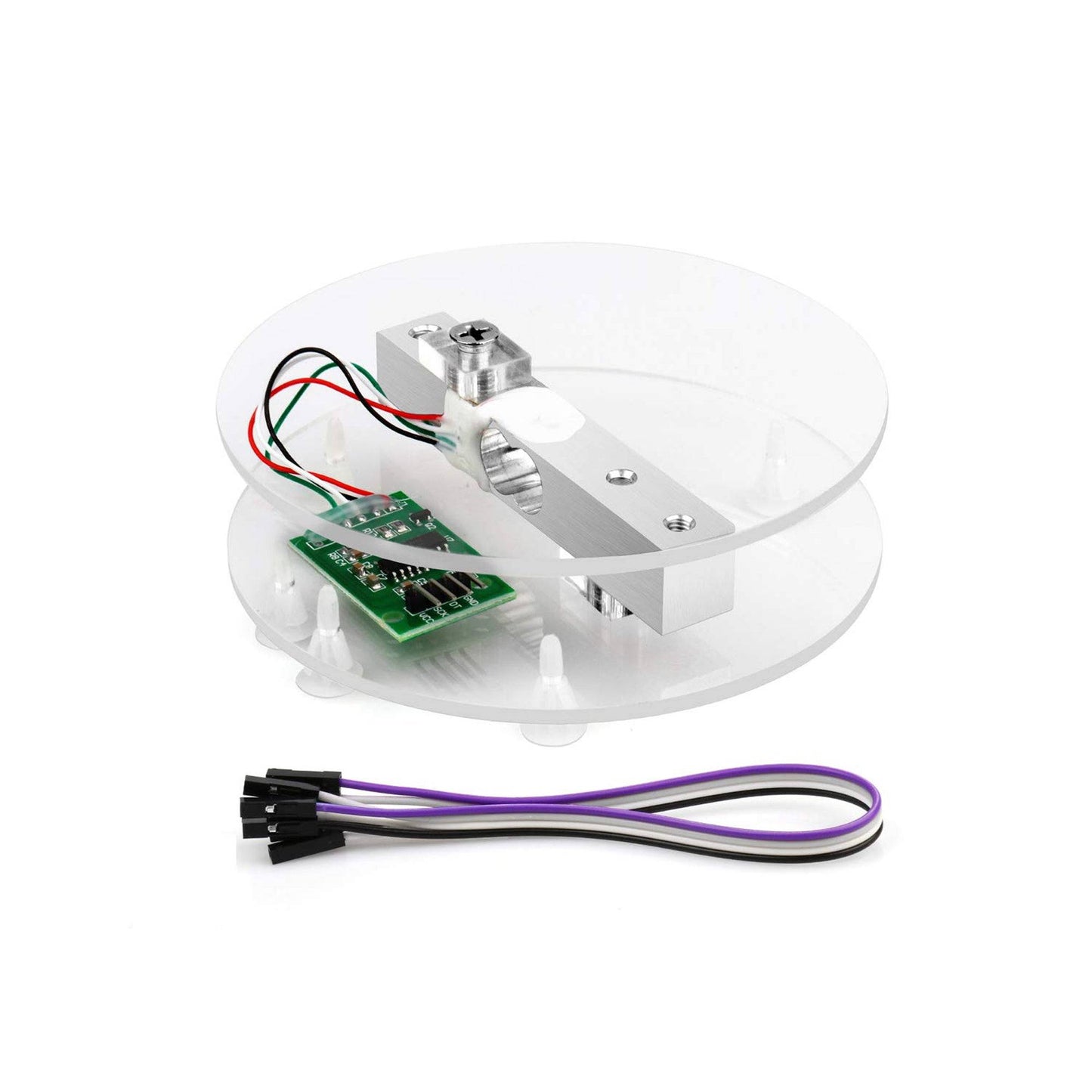

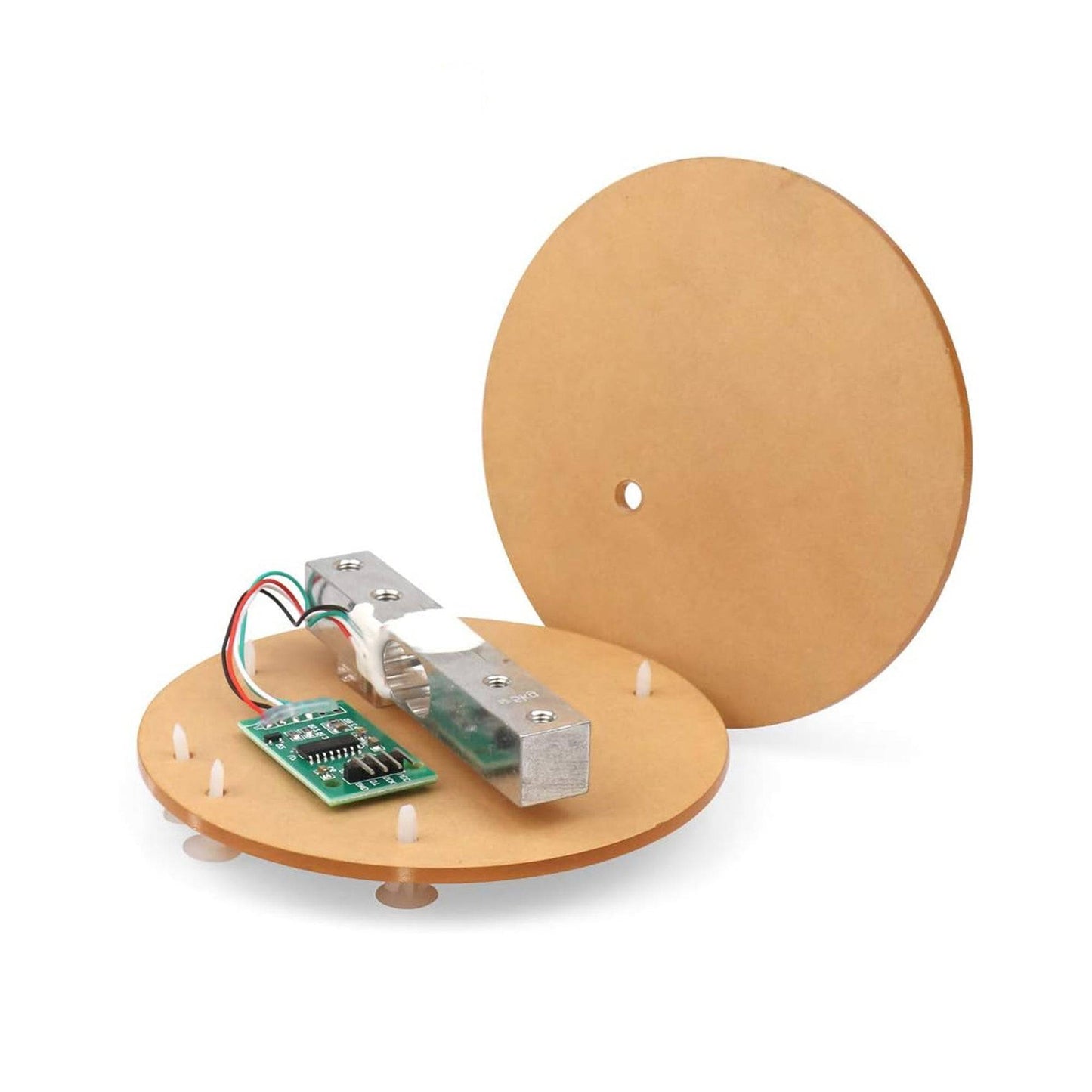

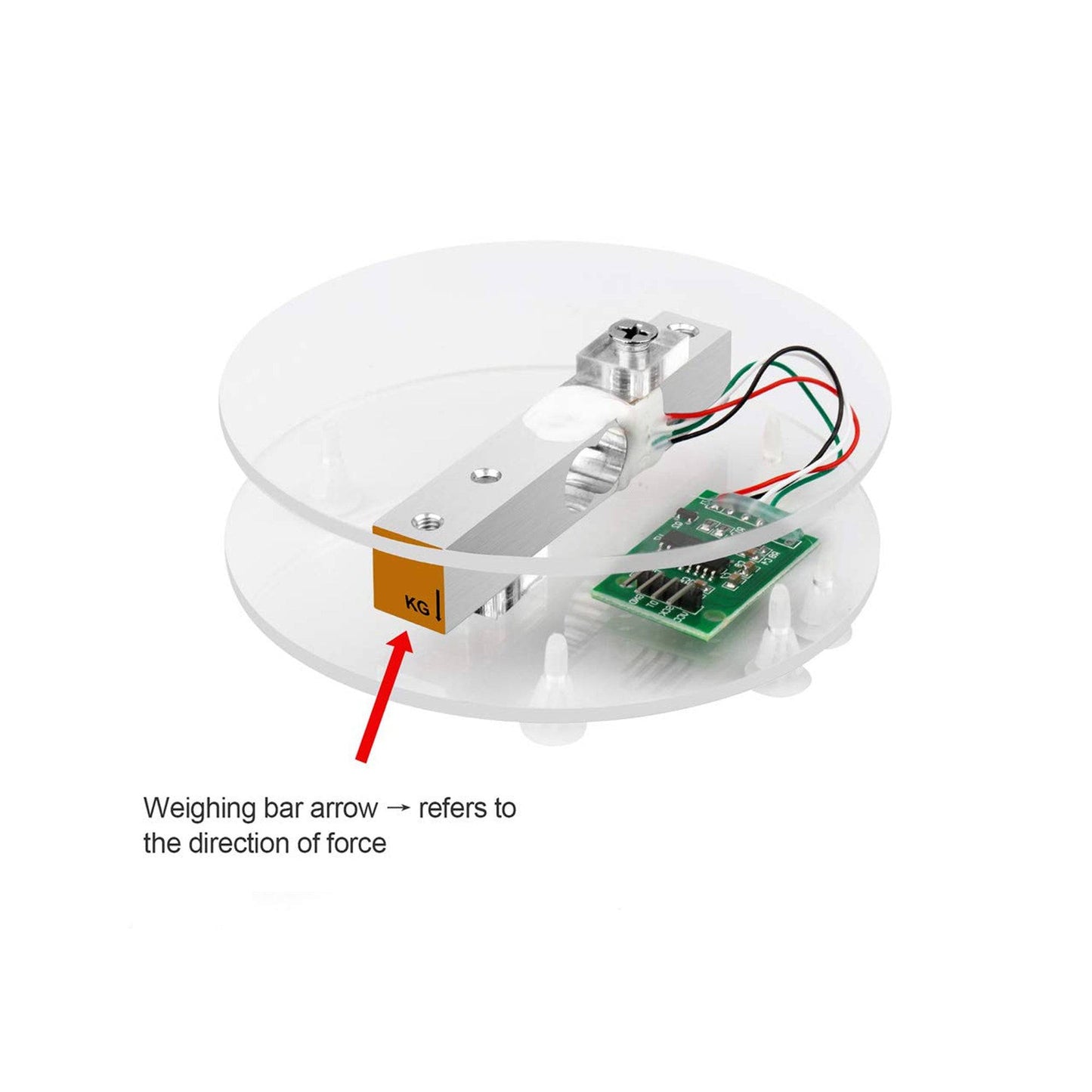

This straight bar 10kg load cell (sometimes called a strain gauge) with a complete assembly kit can translate up to 10 kg of pressure (force) into an electrical signal. Each load cell can measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. This straight bar load cell is made from an aluminium alloy and is capable of reading a capacity of 0~10KG of weight.
10Kg Weighing Sensor Kit has Four lead wires which can be connected to the HX711 A/D Pressure Sensor. 10Kg Weighing Sensor Kit is easy to use with a driving voltage of 5-10V and produces the output voltage as per the force changes over it.
Specifications:
- Weighing Range: 0~10Kg
- Impedance: 1066 10%
- Rated Output: 1.0 0.1mV / V
- Body Diameter: 100mm
Features:
- 10Kg Weighing Sensor Kit has on-chip active low noise PGA with selectable gain of 3264 and 128
- Simple digital control and serial interface: pin-driven controls programming needed
- This HX711 module uses 24 high-precision A/D converter chip hx711.
Package Included:
1 x 10Kg Weighing Sensor Kit 10 Kg Load Cell with HX711 Module Shell and 4P DuPont Wire Kit Electronic Weighing Sensor Kit
