Description:

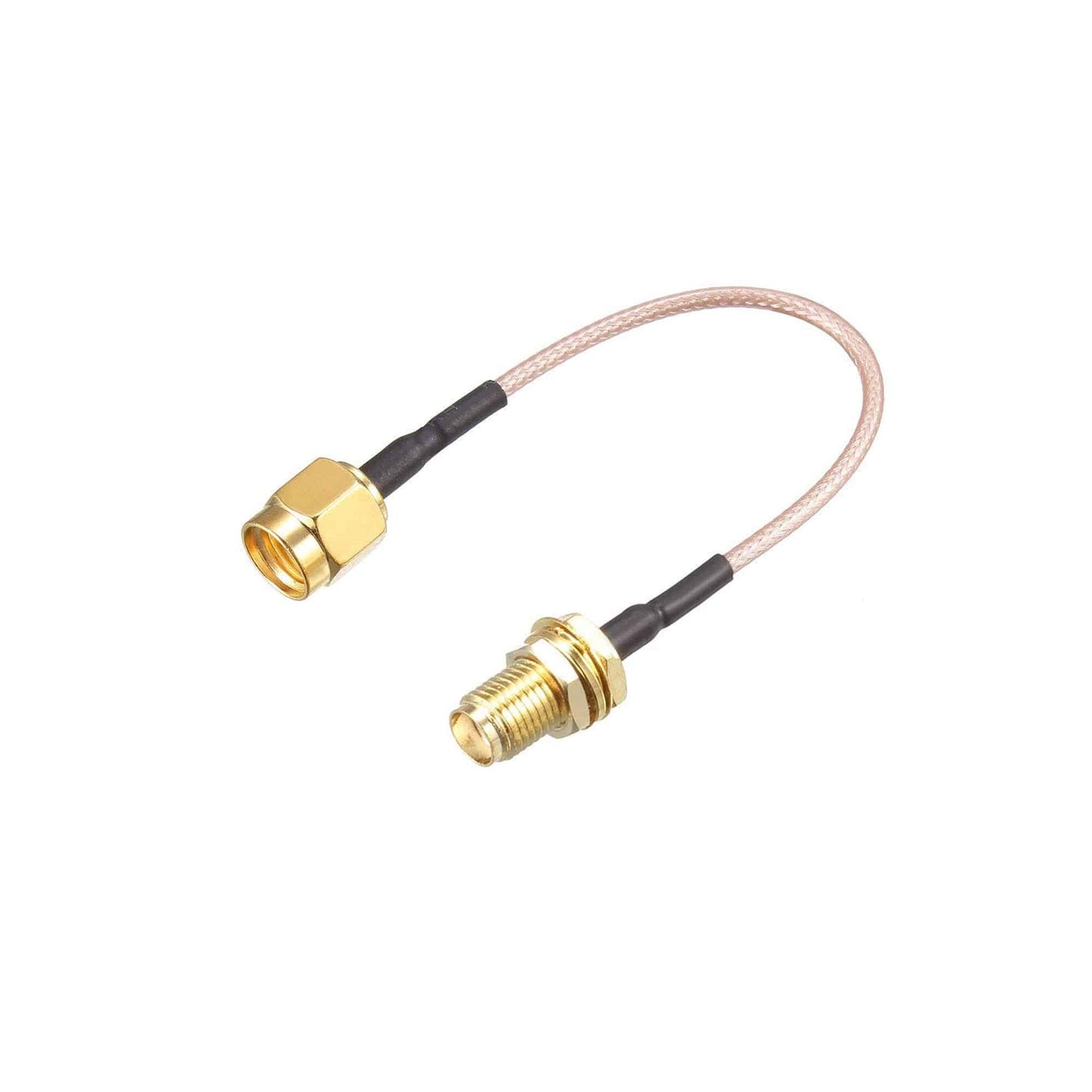

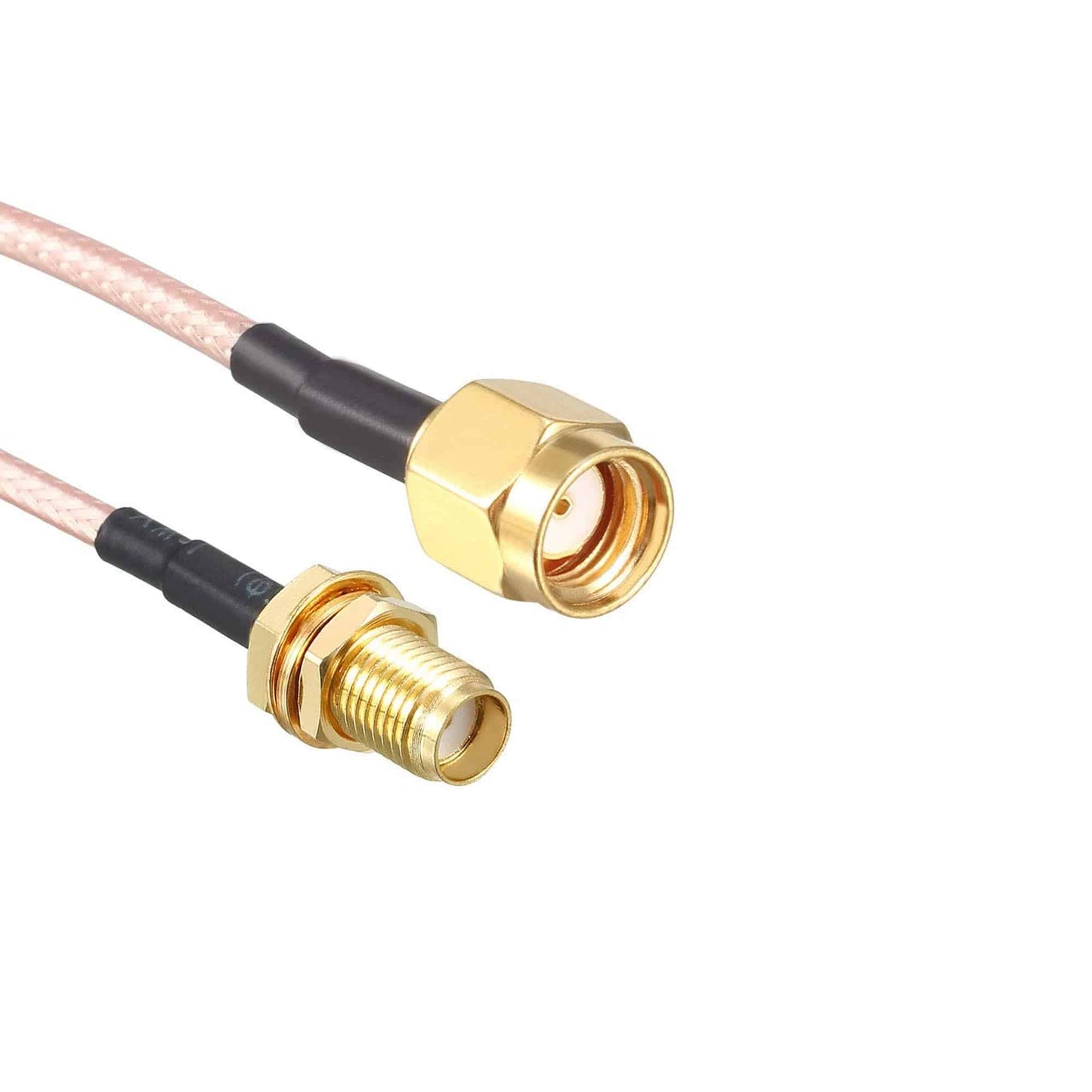

This 10cm Pigtail WLAN Network RF Antenna is used widely for router, booster, and WLAN Wi-Fi Antenna conversion. The 10cm Pigtail WLAN Network RF Antenna adapter can connect your phone to the antenna to provide better reception in no-signal areas. High-frequency low-loss antenna extension cord. RG316 military standard Teflon silver plated wire feeder with acid corrosion resistant high temperature and other characteristics.
Specifications:
- Cable length: 10cm
- Impedance: 50 Ohm
- Application: RF
- Type: SMA
- Gender: Male to Female
- Frequency Range: DC-6GHz
- VSWR: 1.5 Max
- Insertion Loss: 1.8db
- Insulation Resistance: ≧5000MΩ
- Power Handing: 2W
- Working Temperature: -40°C to +85°C
Features:
- High-Quality SMA Connectors On Both Ends
- It has high-efficiency
- Uses RG316 Coaxial Cable
Package Included:
1 x 10cm Pigtail WLAN Network RF Antenna RG316 Coaxial Cable 10cm
