Description:

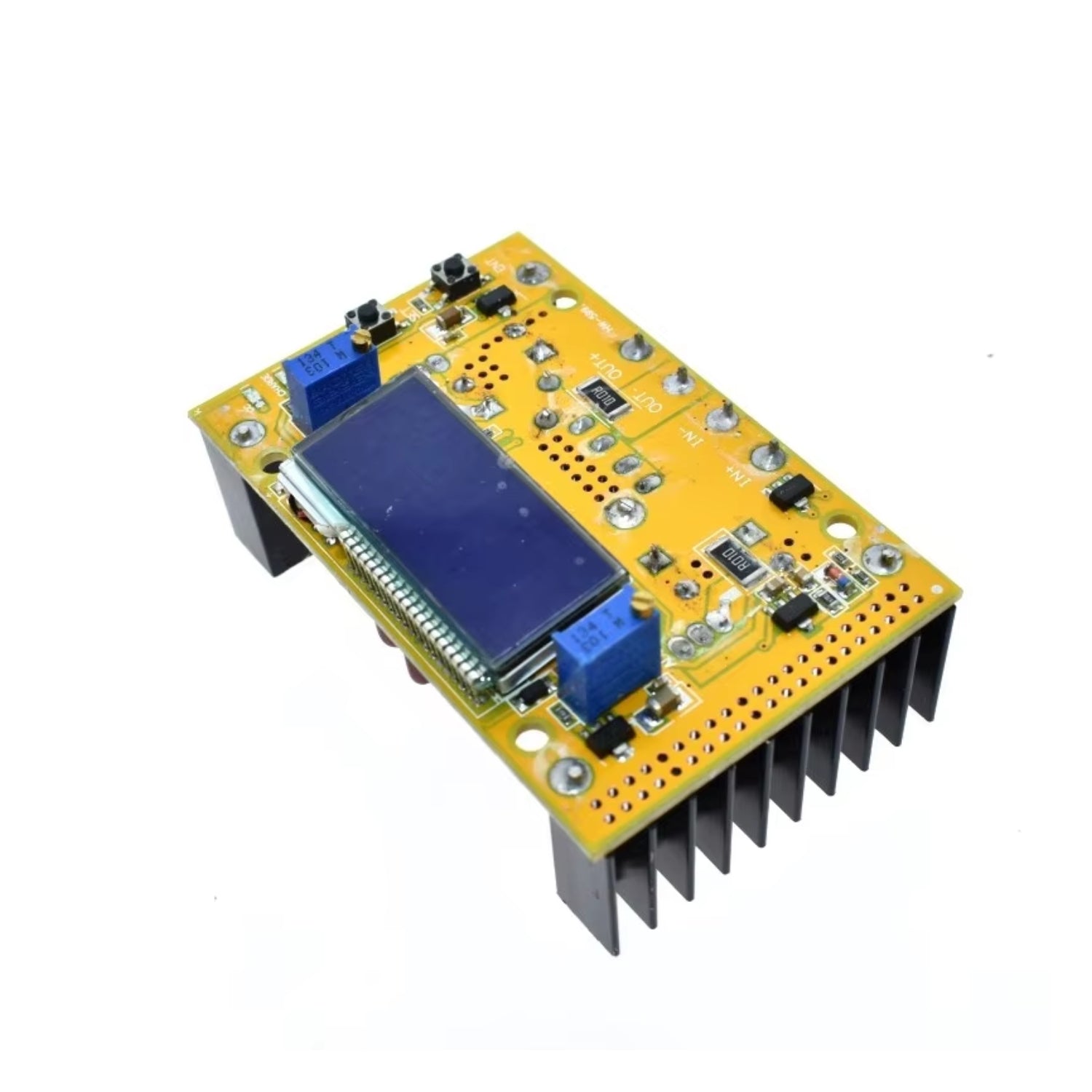

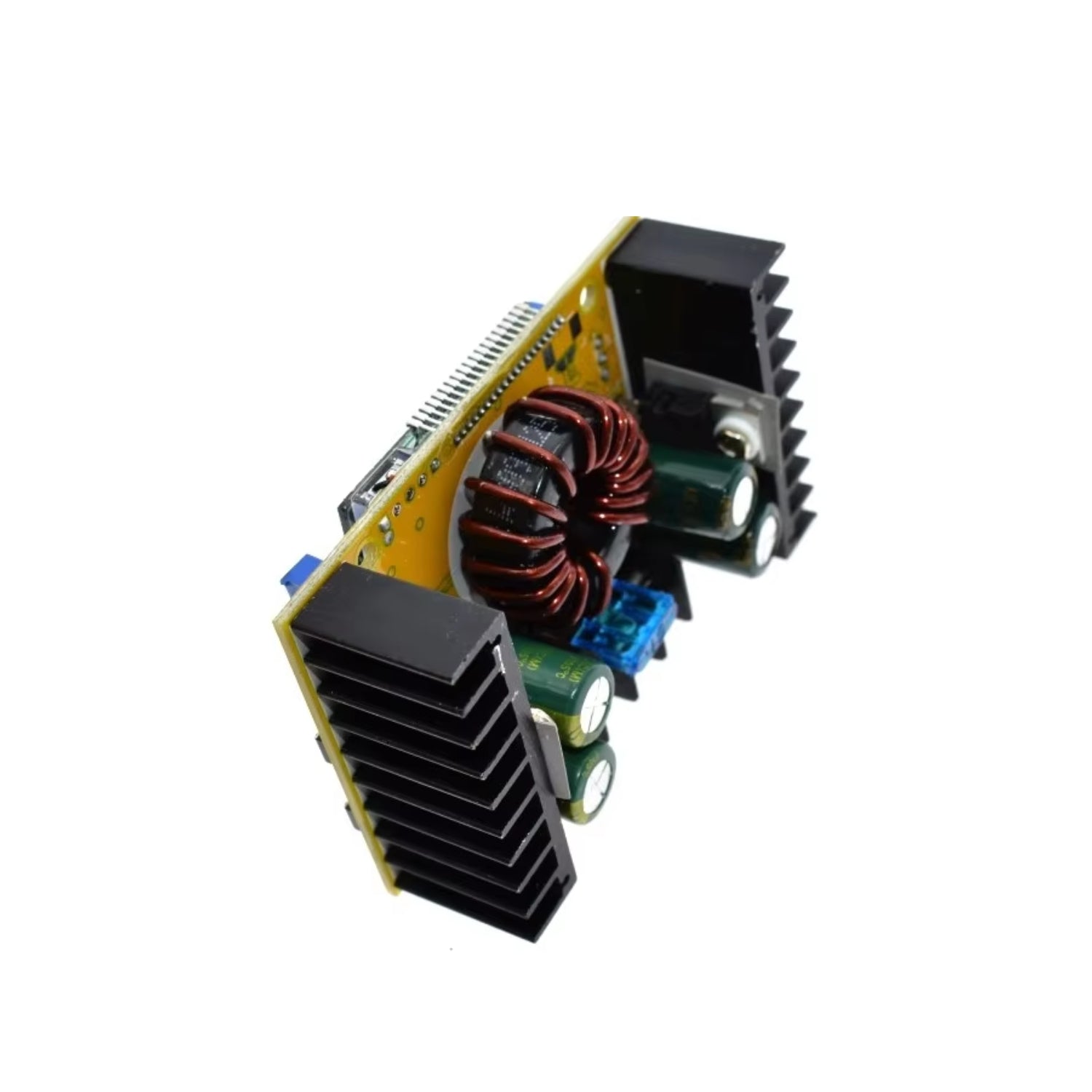

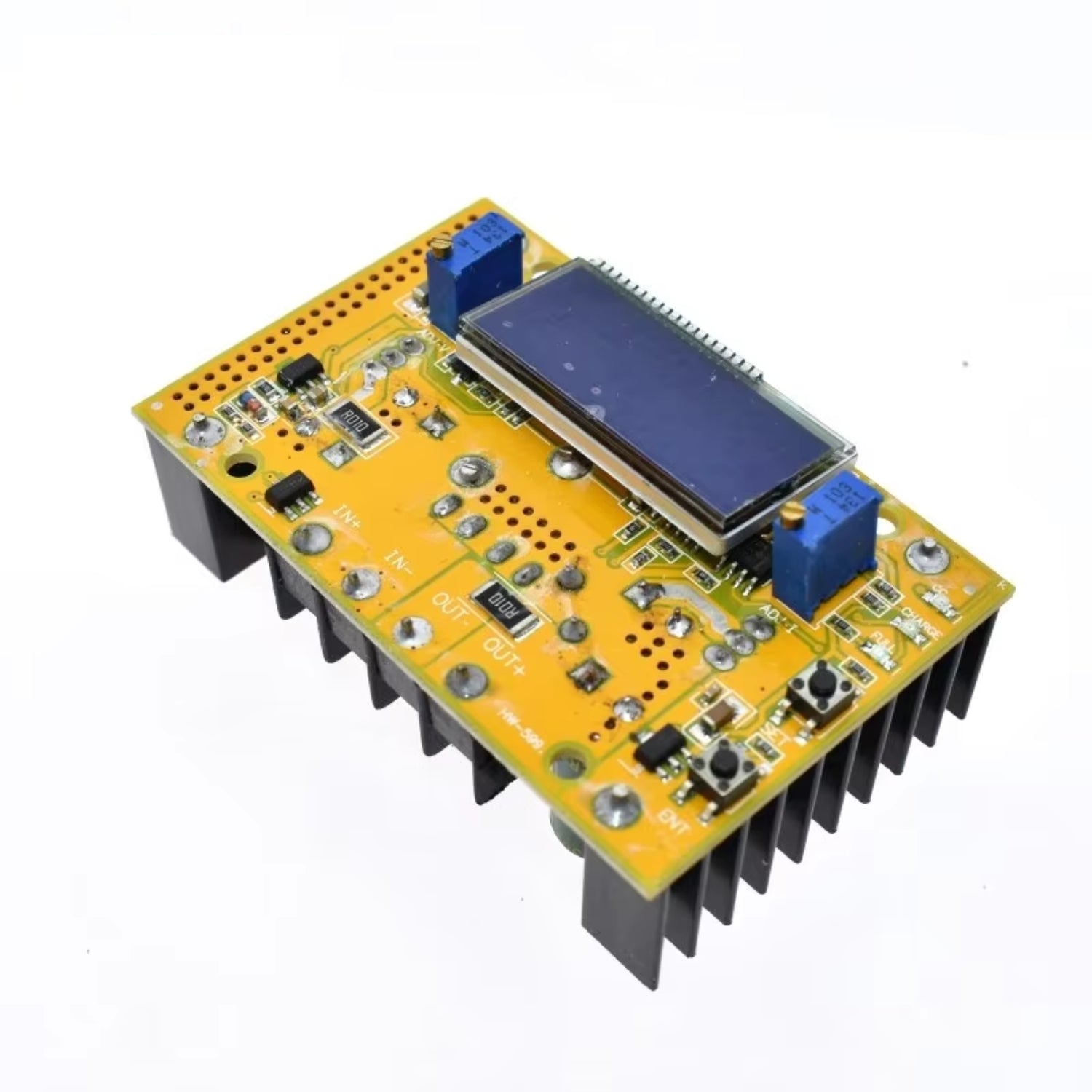

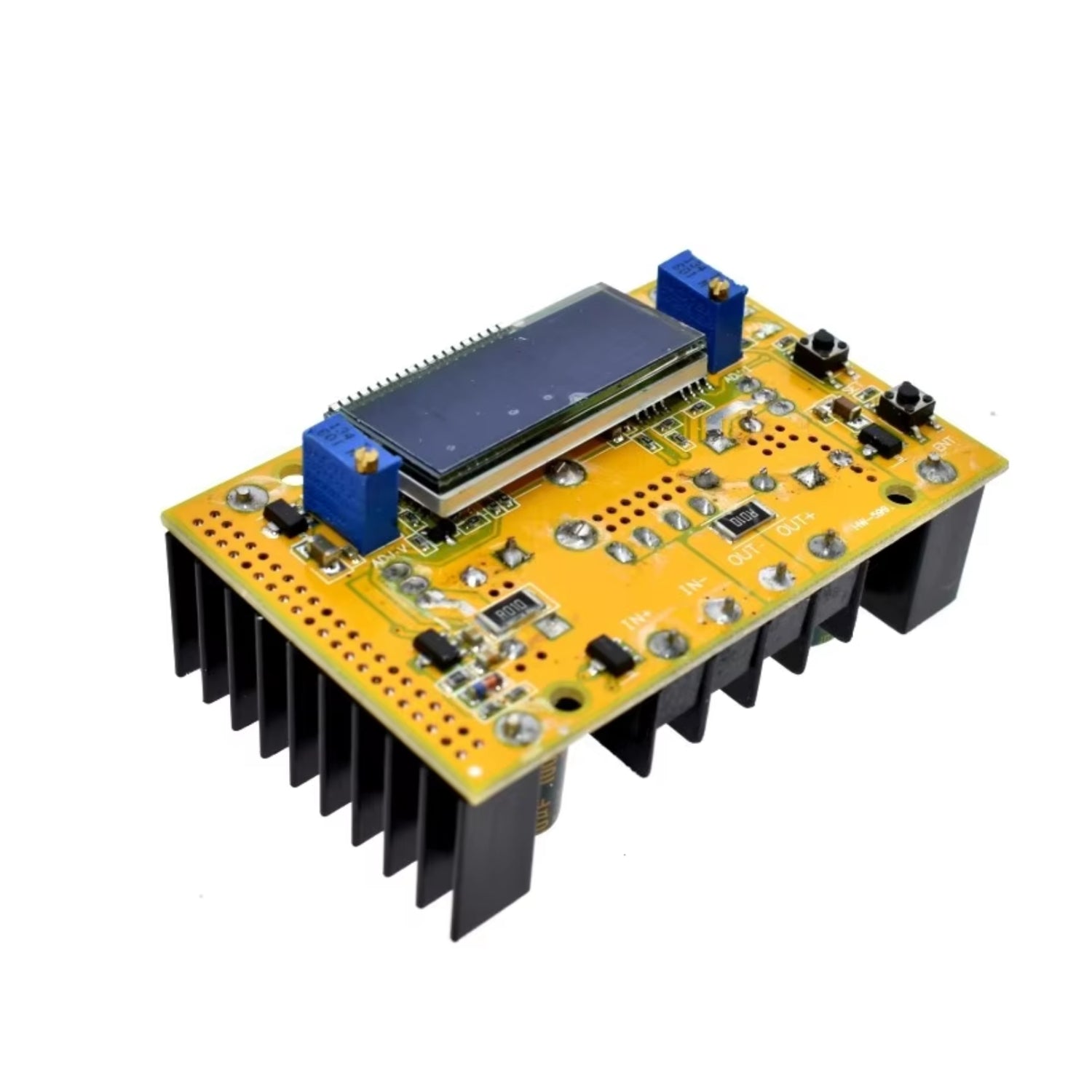

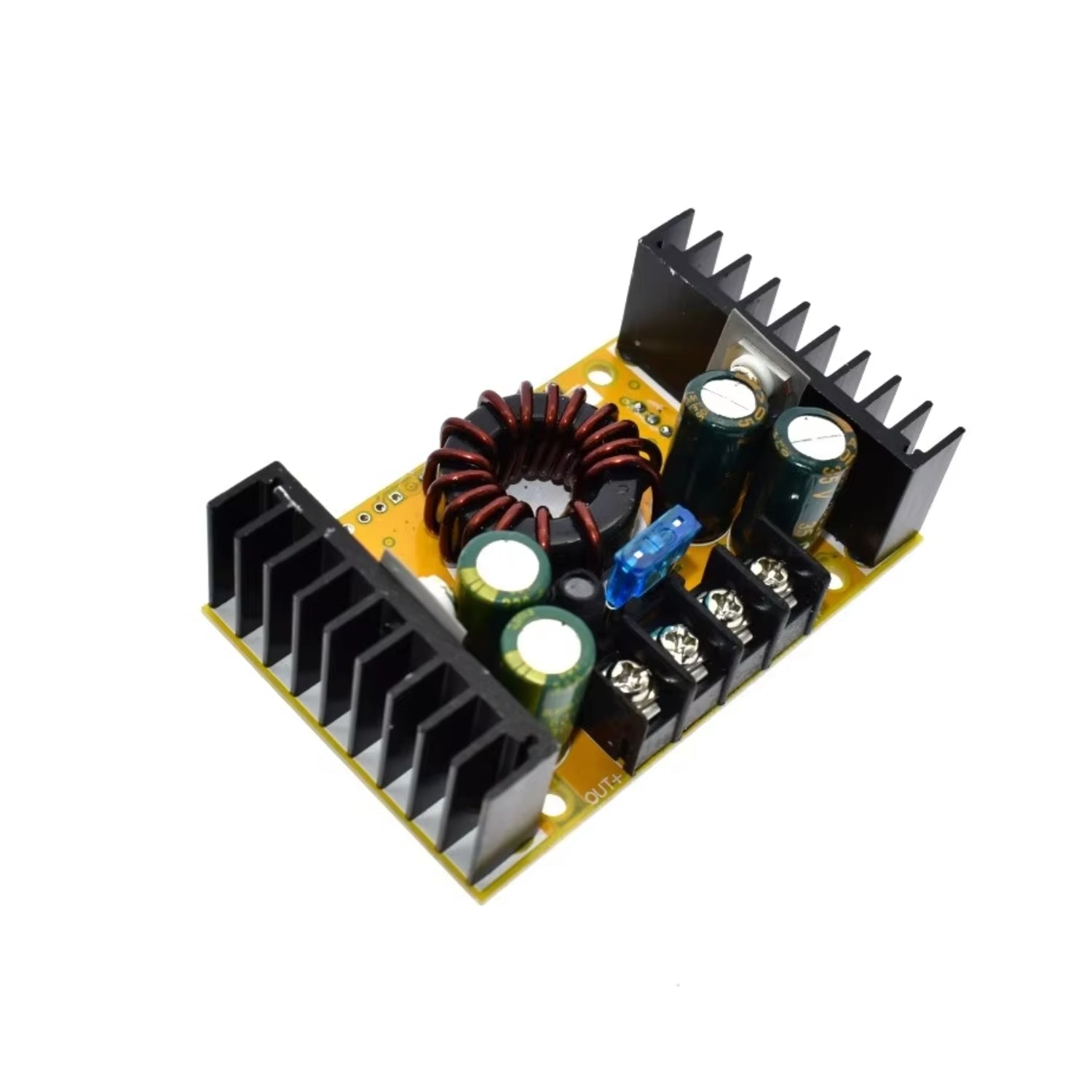

This 10A DC-DC Adjustable Power Supply Module provides precise and reliable power for a wide range of electronic projects. With a wide input voltage range and a continuously adjustable output voltage. this versatile module offers exceptional flexibility. Featuring dual LCD displays for real-time monitoring of output voltage and current, it allows for precise control and optimization of your power delivery. This compact and robust module is ideal for demanding applications requiring high current and precise voltage regulation.
Specifications:
- Model: Step-down Power Supply Module
- Input Voltage: 7V - 40V
- Output Voltage: 1.5-35V Continuously Adjustable (can only make step-Down Module USES, input must be greater than output 1.5 V above)
- Output Current: Adjustable, the biggest 10 A (recommended in 8A use)
- Output Power: max150w (suggest use within 100 w, please reduce power when it is large pressure difference)
- Working Temperature: - 20 ~ + 75 Degrees
- Working Frequency: 300 KHZ
- Conversion Efficiency: up to 95%
- Short Circuit Protection: yes
- Input Reverse Connect Protection: no
- Output Anti-Reflux: no
- Installation Method: 8pcs 3mm screw
- Connection Mode: Terminals or Welding Terminals, VIN for the input, VOUT for the output
- Module Size: Length 80mm Width 53mm; Height 35mm;
Features:
- Continuously adjustable output voltage from 1.5V to 35V, offering versatility for a wide range of applications.
- Two clear LCD displays provide real-time readings of both output voltage and current, enabling precise monitoring and control.
- Supports both Constant Current (CC) and Constant Voltage (CV) modes for precise control over output characteristics.
- Built-in protection safeguards the module and connected devices from damage caused by short circuits.
Package Included:
1 x 10A Dual LCD Display Power Supply
