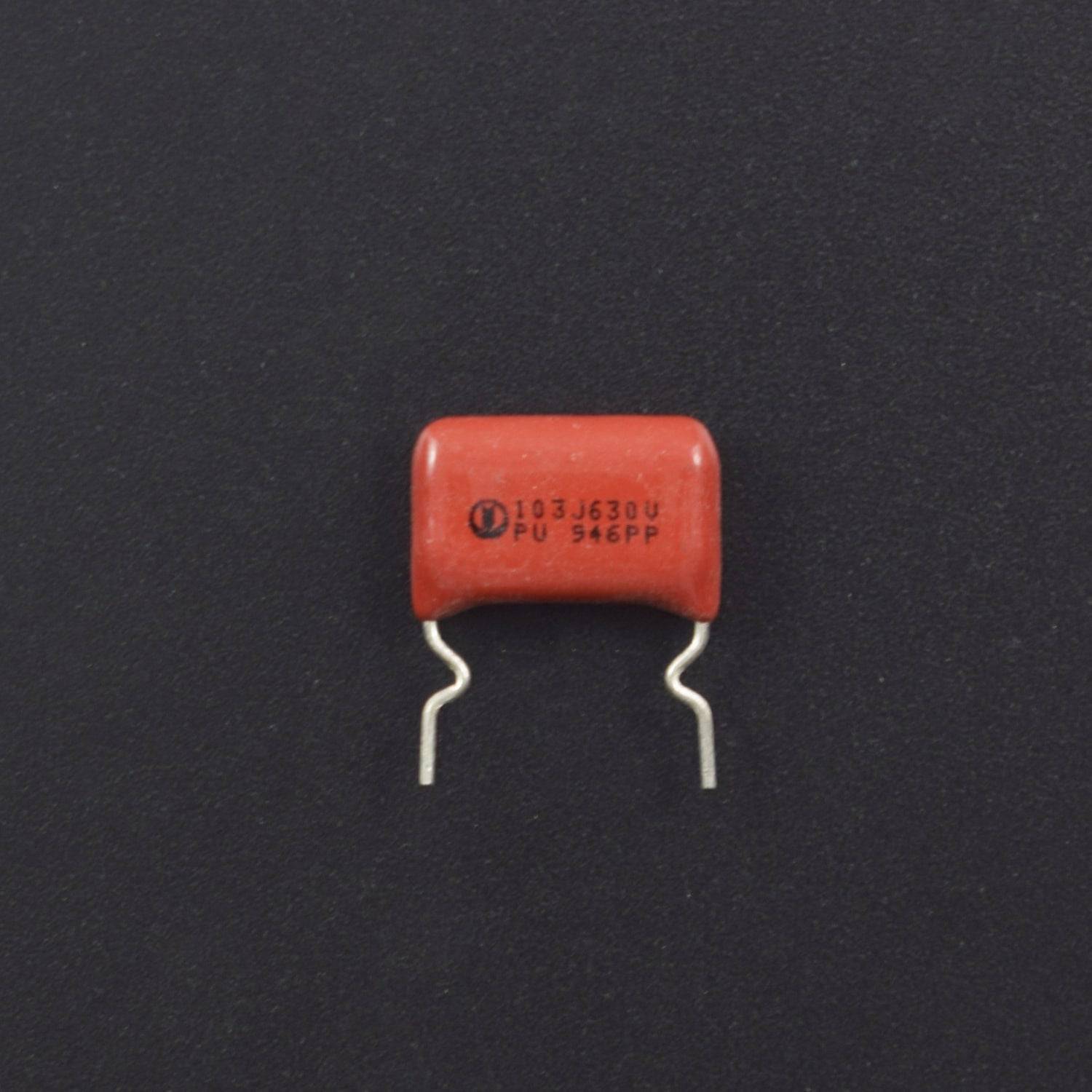

- Product Name: Metallized Polyester Film Capacitors
- Model: 103J603V
- Withstand Voltage: 603V
- Capacitance: 103k
- Capacitance Tolerance(J): ±5%(J) ±10%(K)
Description:
Polyester film capacitors are used in huge quantities, They are able to provide a larger capacitance per volume than other types of capacitor. This gives them very many uses in circuits where high currents or low frequencies are involved. Electrolytic capacitors are typically used most in applications such as audio amplifiers of all types (hi-fi to mobile phones) and in power supply circuits.Like any other capacitor, it is necessary to understand the advantages and limitations of these capacitors to enable them to be used most effectively.
Specification:
Operating Temperature |
-40°C ~ +85°C |
Rated Voltage |
100VDC, 250VDC, 400VDC, 630VDC |
Capacitance Range |
0.001~10.0μF |
Voltage Proof |
175% or rated voltage for 5sec. |
Capacitance Tolerance |
±5%(J) ±10%(K) |
Insuration Resistance |
C<0.33μF R≥30,000MΩ C>0.33μF R≥10,000MΩ/μF |
Dissipation Factor |
≤0.1%(AT 1KHz) ≤0.2%(AT 10KHz) for 0.001 to 3μF ≤0.3%(AT 10KHz) for 3 to 10μF |
Features:
- Dissipation Factor is normally low and stable against high frequency and change of temperature.
- High reliable because of its excellent Self-Healing performance.
- Small inherent temperature rise and small size.
- Epoxy resin powder coating or Epoxy DIP coating.
Application:
- Recommended for high-frequency circuits like S-curve compensating circuit.
- Widely used in high frequency, DC, AC and pulse circuits.
Package Included:

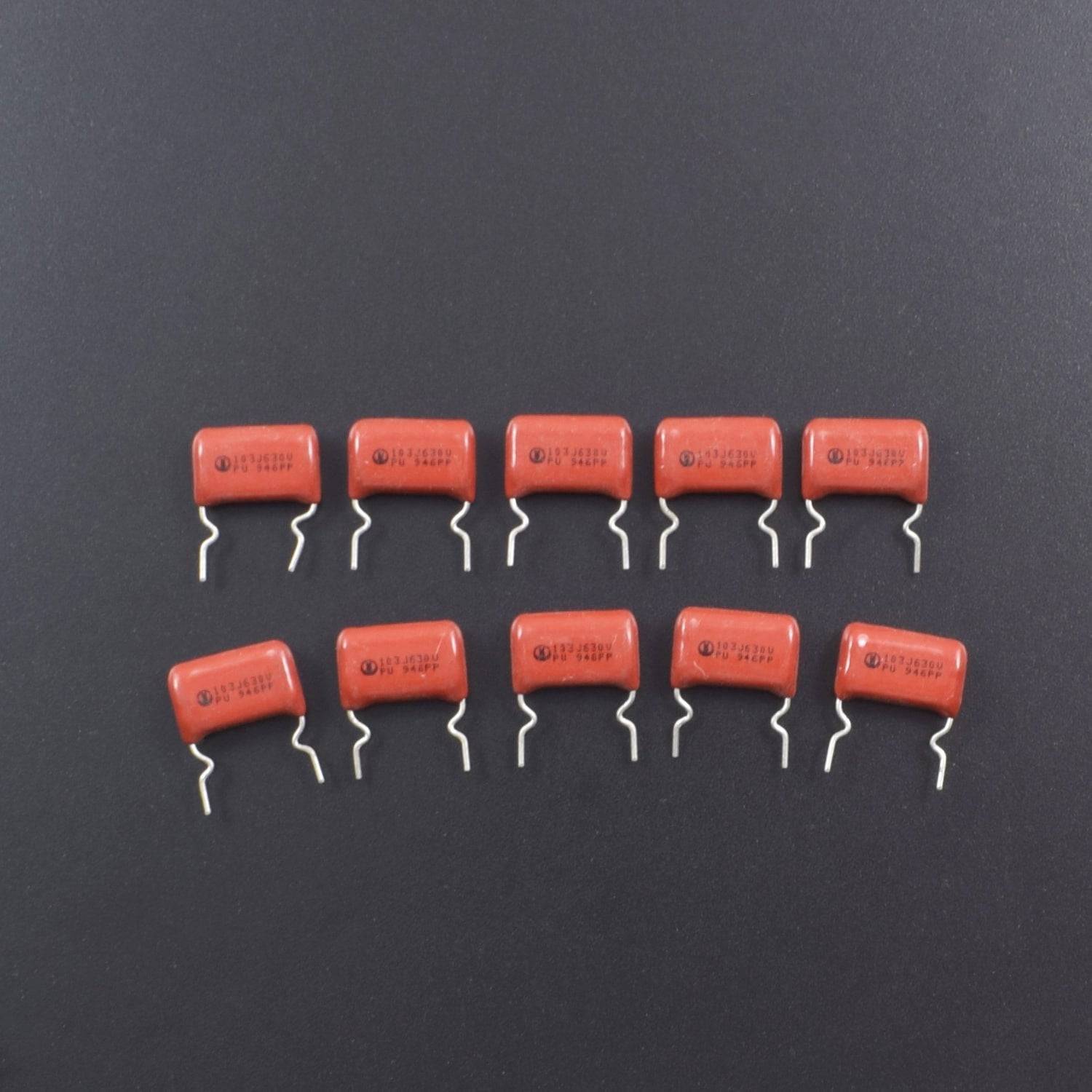

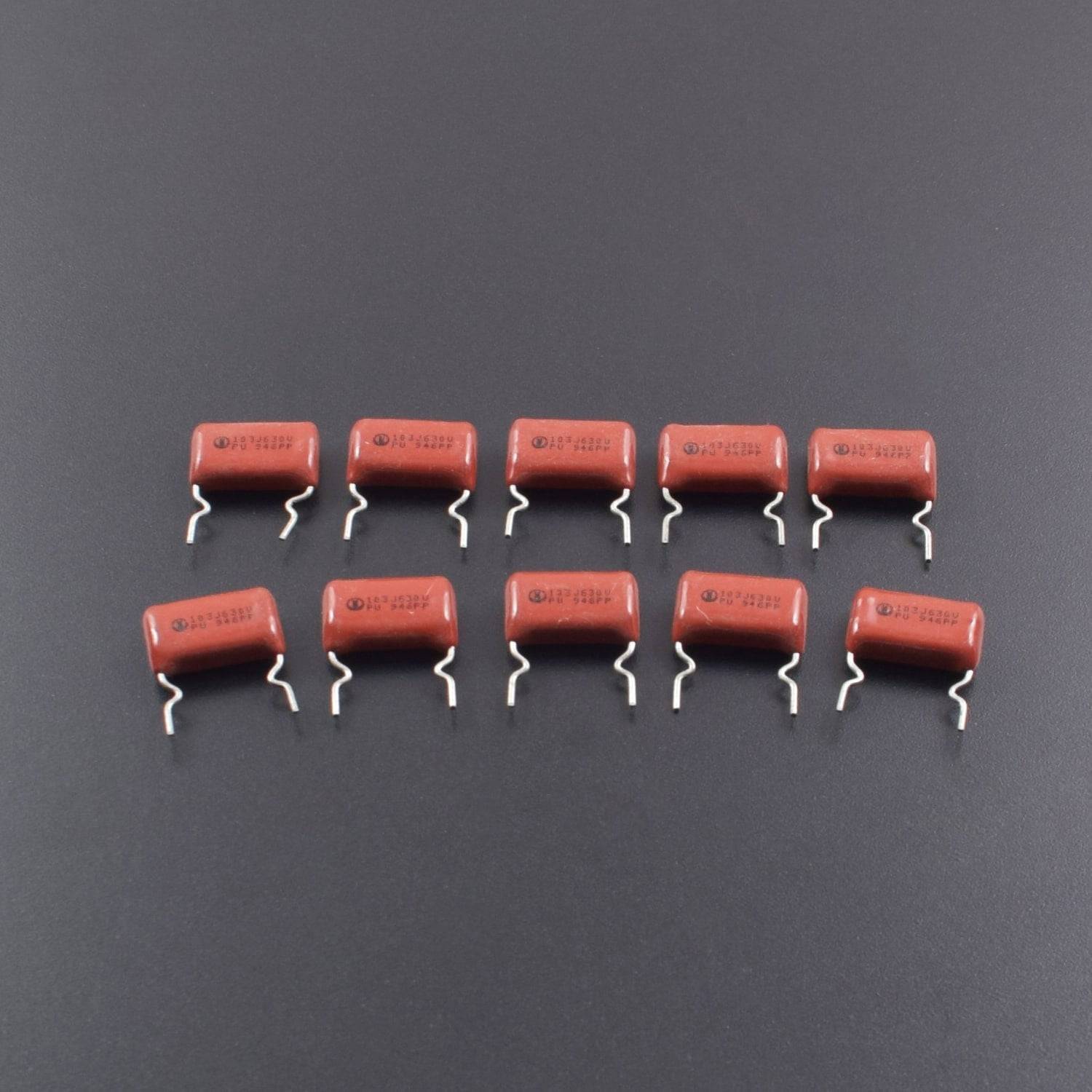

5 x 103J603V Metallized Polyester Film Capacitor
