- Capacitance: 100uF
- Voltage: 50V
- Tolerance: 20%
- Brand New & High Quality
Description:
Electrolytic capacitors are used in huge quantities, They are able to provide a larger capacitance per volume than other types of capacitor. This gives them very many uses in circuits where high currents or low frequencies are involved. Electrolytic capacitors are typically used most in applications such as audio amplifiers of all types (hi-fi to mobile phones) and in power supply circuits.Like any other capacitor, it is necessary to understand the advantages and limitations of these capacitors to enable them to be used most effectively.
Specification:
- Capacitance: 100uF
- Voltage: 50V
- Tolerance: 20%.
- Temperature: 105 Degrees C.
- Dissipation Factor (20 deg. C, 120Hz): 0.10%
- Impedance (20 deg. C, 100kHz): 0.162 Ohms
- Ripple Current (100kHz): 615mA
- Endurance: 3000 Hours
Features:
- 105 Degrees Celsius Long Life, Low impedance.
- Load Life: Degrees Celsius 4000 ~ 10000 hours.
- Low impedance at 100kHz with selected materials.
- Recommended for use in high-end audio equipment, high-frequency circuits, or switching DC to DC step-up / step-down power supply circuits.
Package Included:

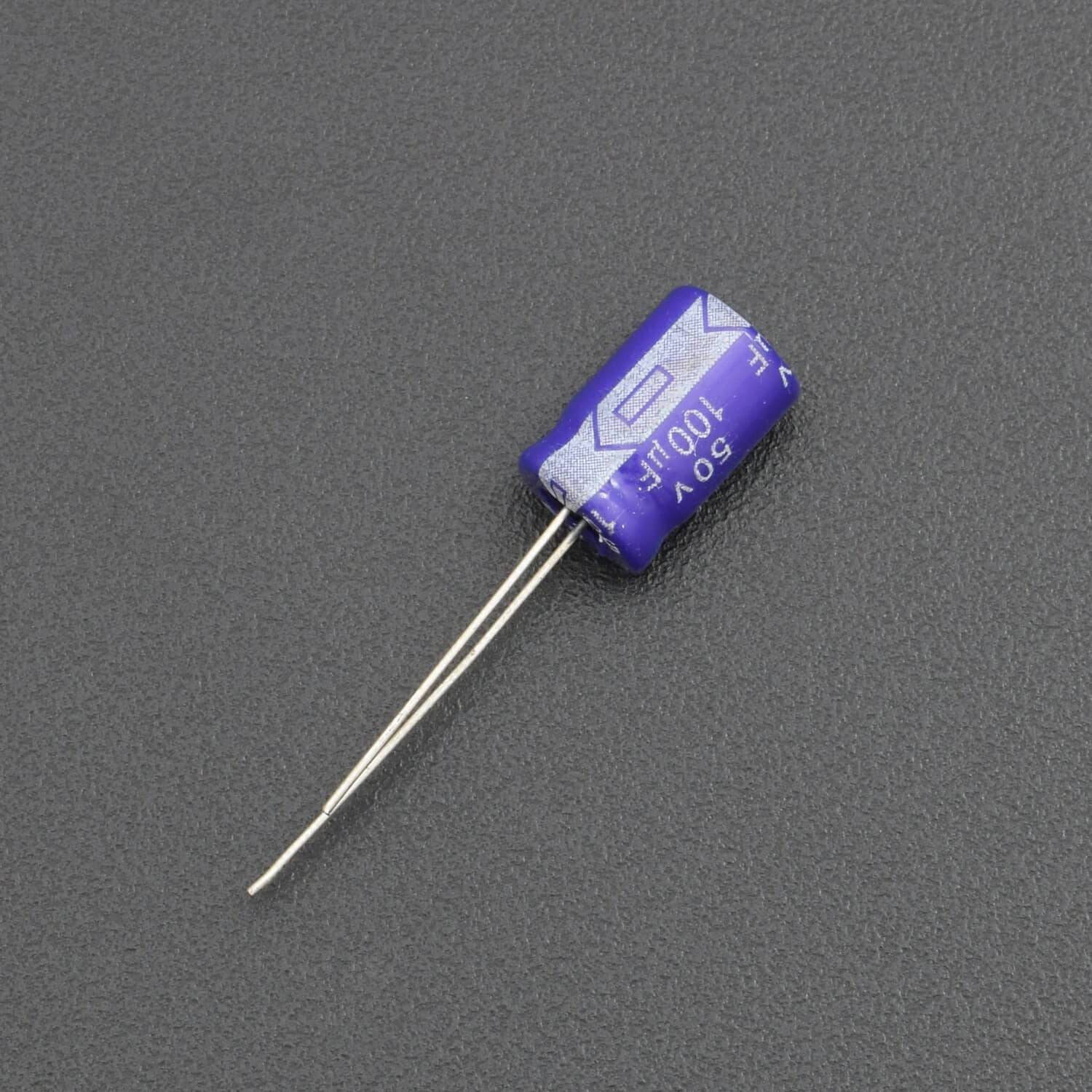

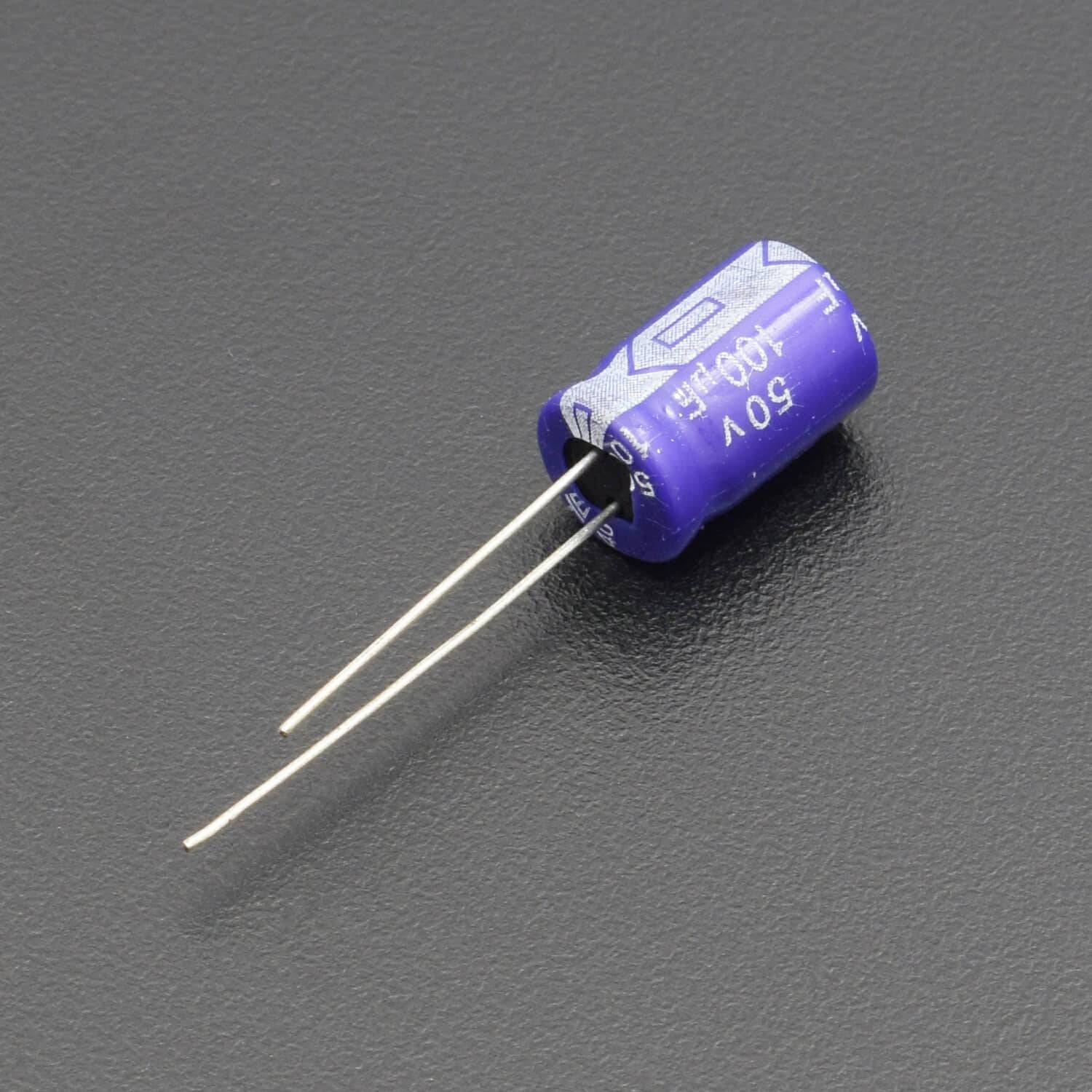

1 x 100uF 50V Electrolytic Capacitor
