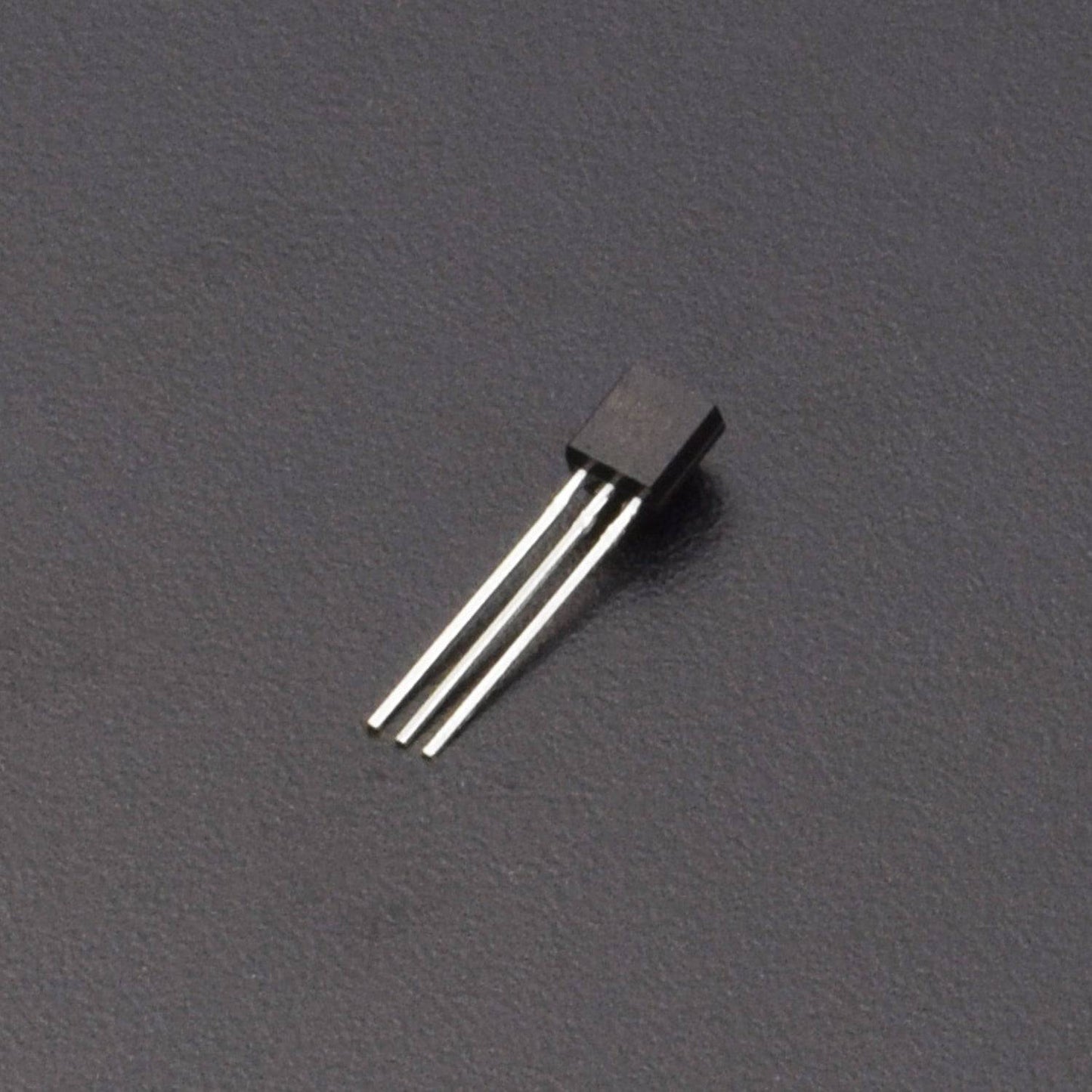

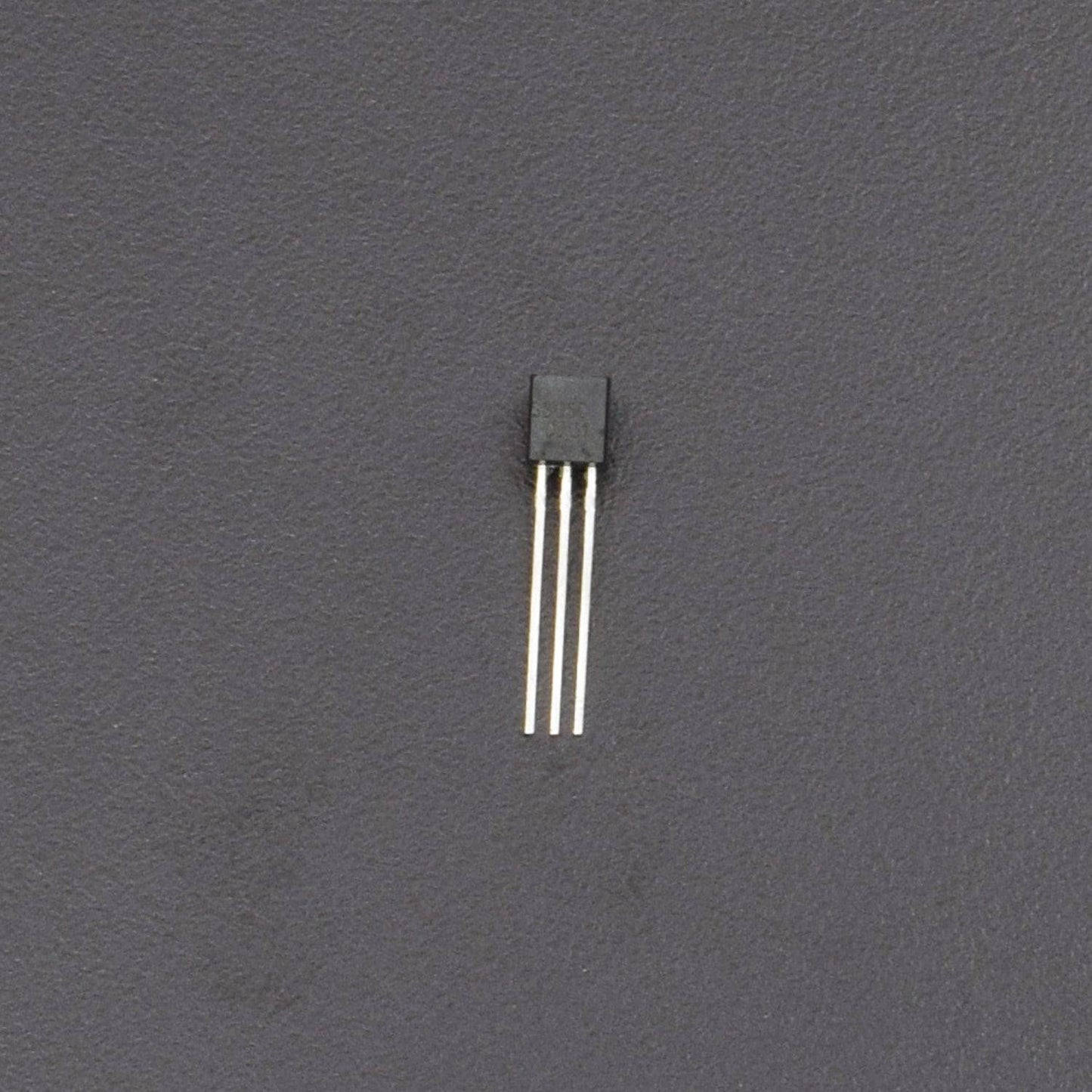

100pcs Transistor S8050 NPN Silicon Transistor Great addition to your hobby craft tool kit. - RS901

100pcs Transistor S8050 NPN Silicon Transistor Great addition to your hobby craft tool kit. - RS901

RS901

In stock

Rs. 399.00
Rs. 399.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details
  • Low Voltage, High Current NPN Transistor
  • Small Signal Transistor
  • Maximum Power: 2 Watts
  • Maximum DC Current Gain (hFE) is 400
  • Continuous Collector current (IC) is 700mA
  • Base-Emitter Voltage (VBE) is 5V
  • Collector-Emitter Voltage (VCE) is 20V
  • Collector-Base Voltage (VCB) is 30V
  • High Used in push-pull configuration doe Class B amplifiers
  • Available in To-92 Package

DESCRIPTION

S8050 is an NPN transistor

  • Hence the collector and emitter will be left open (Reverse biased) when the base pin is held at ground and will be closed (Forward biased) when a signal is provided to base pin.
  • It has a maximum gain value of 400; this value determines the amplification capacity of the transistor normally S8050.
  • Since it is very high it is normally used for amplification purposes.
  • However, at a normal operating collector current, the typical value of gain will be 110.
  • The maximum amount of current that could flow through the Collector pin is 700mA, hence we cannot drive loads that consume more than 700mA using this transistor.
  • To bias a transistor we have to supply current to base pin, this current (IB) should be limited to 5mA.
  • When this transistor is fully biased then it can allow a maximum of 700mA to flow across the collector and emitter.
  • This stage is called Saturation Region and the typical voltage allowed across the Collector-Emitter (V­CE) or Collector-Base (VCB) could be 20V and 30V respectively.
  • When base current is removed the transistor becomes fully off, this stage is called as the Cut-off Region.
