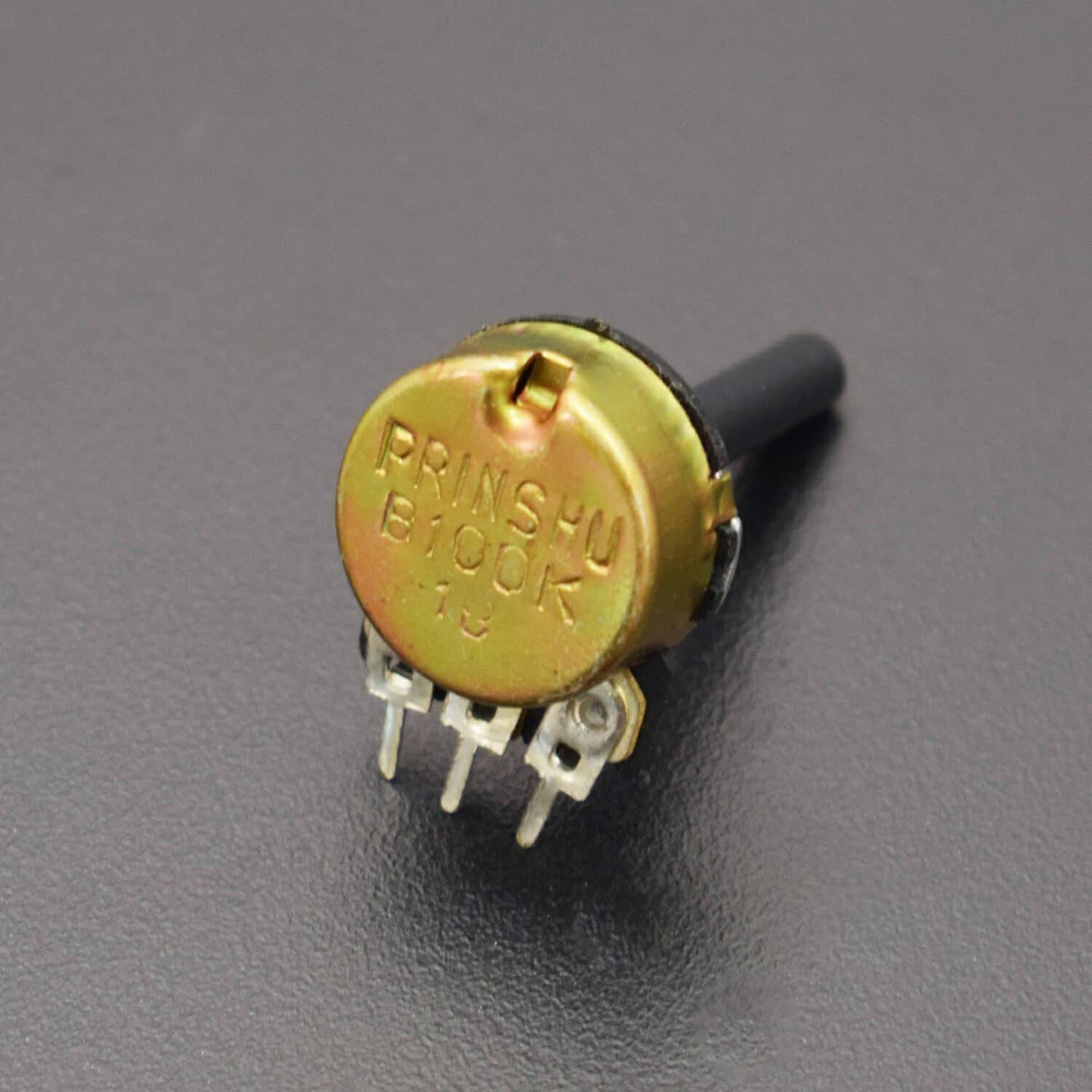

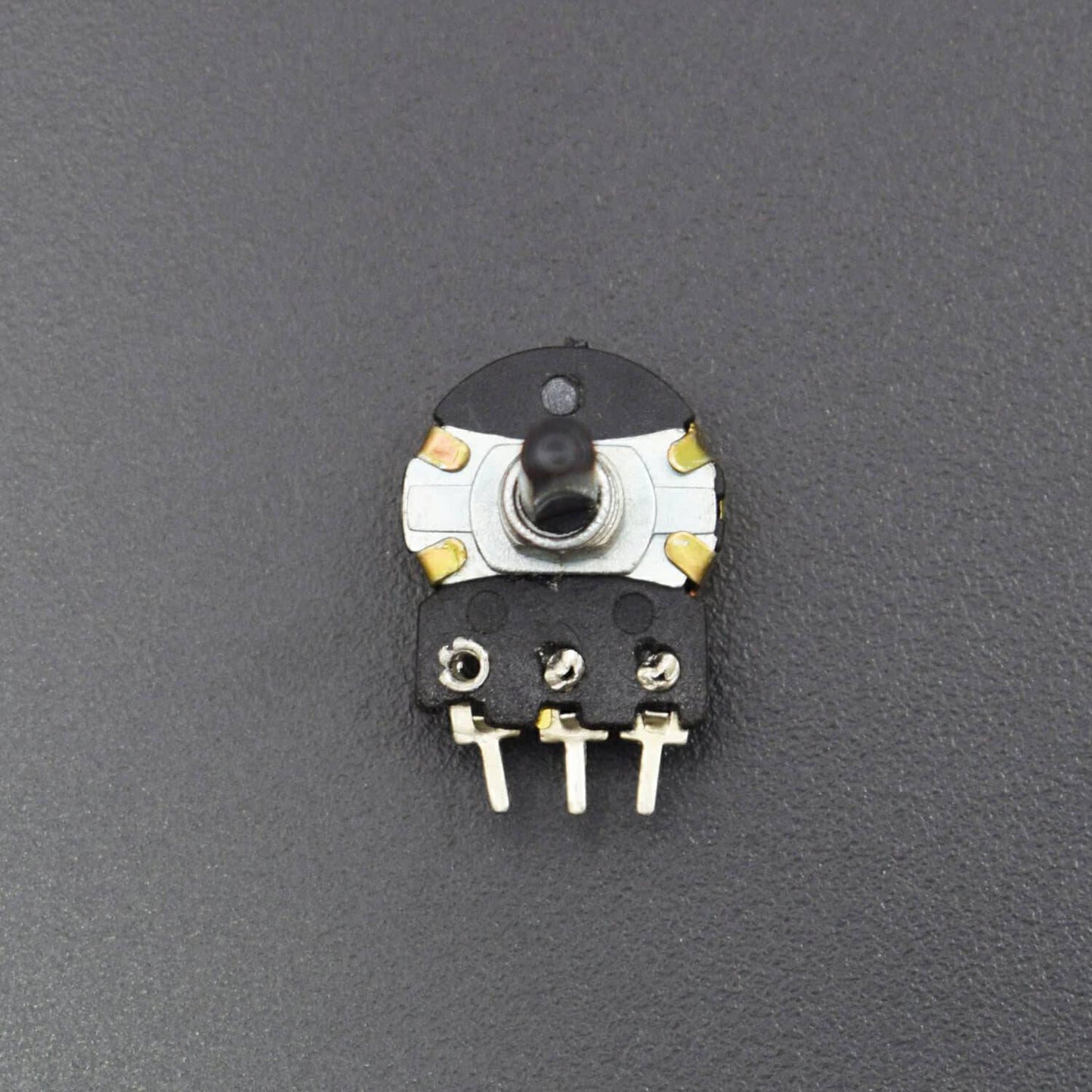

100K-Ohm Audio-Taper Potentiometer - RS1145

100K-Ohm Audio-Taper Potentiometer - RS1145

RS1145

In stock

Rs. 8.00
Rs. 8.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Dimensions:

  • Body: 16mm / 0.6"
  • Body Circumference: 50mm / 2"
  • Shaft Length: 15mm / 0.6"
  • Weight: 6g
  • 100K ohm potentiometer, linear taper
  • 100,000 Cycle Life
  • Rotational travel: 300 °
  • Static Stop Strength: 90 oz-in
  • Rotational Torque: 0.5 to 1.25 oz-in

Description:

An adjustable potentiometer can open up many interesting user interfaces. With this rotary potentiometer just turn the dial and the resistance changes. This potentiometer from Bourns has a ¼" metal knurled shaft diameter, PC pin terminals, no detents, and has a 100K logarithmic taper.

Specification:

  • Body: 16mm / 0.6"
  • Body Circumference: 50mm / 2"
  • Shaft Length: 15mm / 0.6"
  • Weight: 6g
  • 100K ohm potentiometer, linear taper
  • 100,000 Cycle Life
  • Rotational travel: 300 °
  • Static Stop Strength: 90 oz-in
  • Rotational Torque: 0.5 to 1.25 oz-in

Features:

  • With a wattage rating of 0.5W,
  • This 100K ohm audio potentiometer is perfect for use in projects or as a replacement part.
  • An included nut and washer make it easy to mount in a 5/16" diameter hole.
  • Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. Hook the center pin to an ADC on a microcontroller and get a variable input from the user!

Package Included:

1 x 100K-Ohm Audio-Taper Potentiometer
