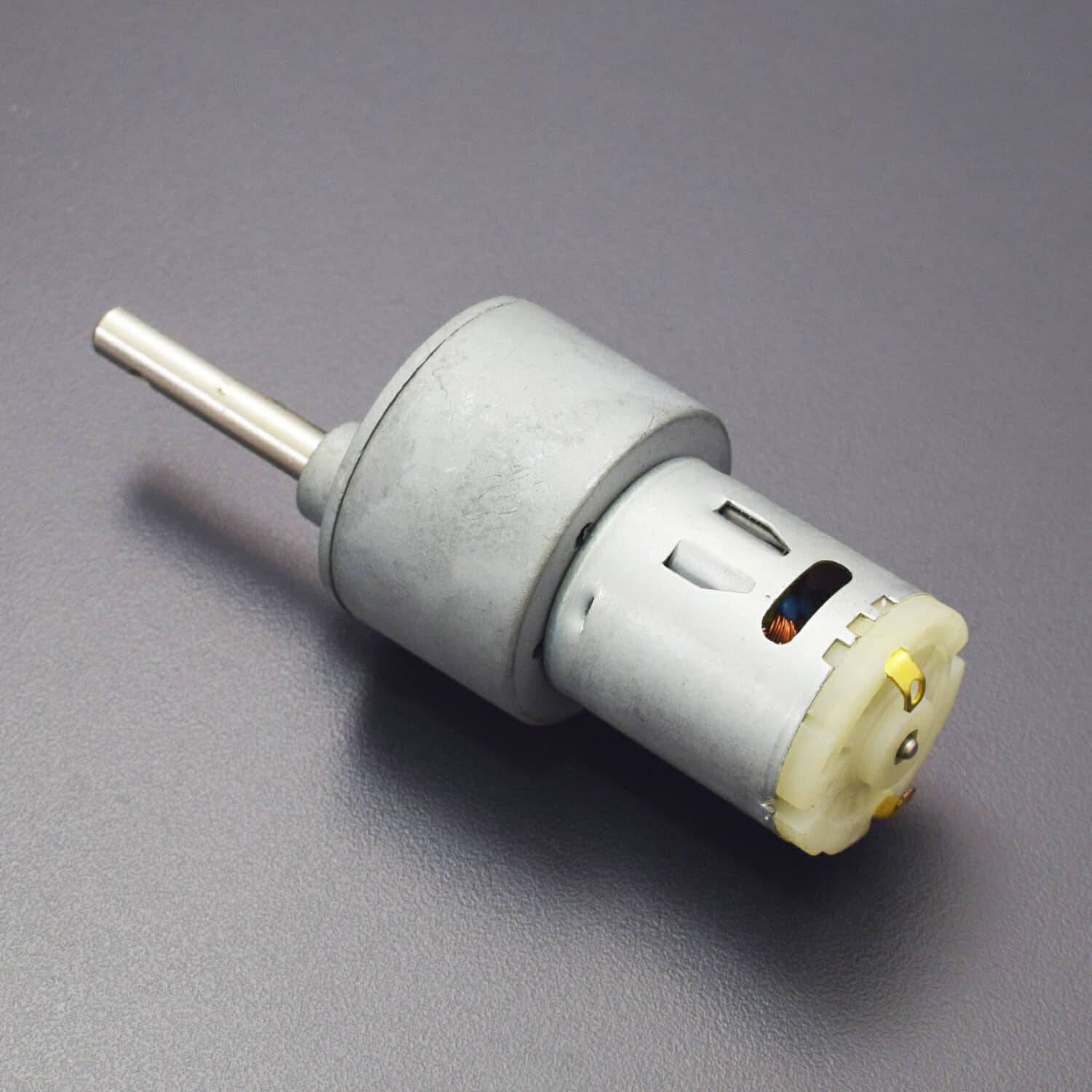

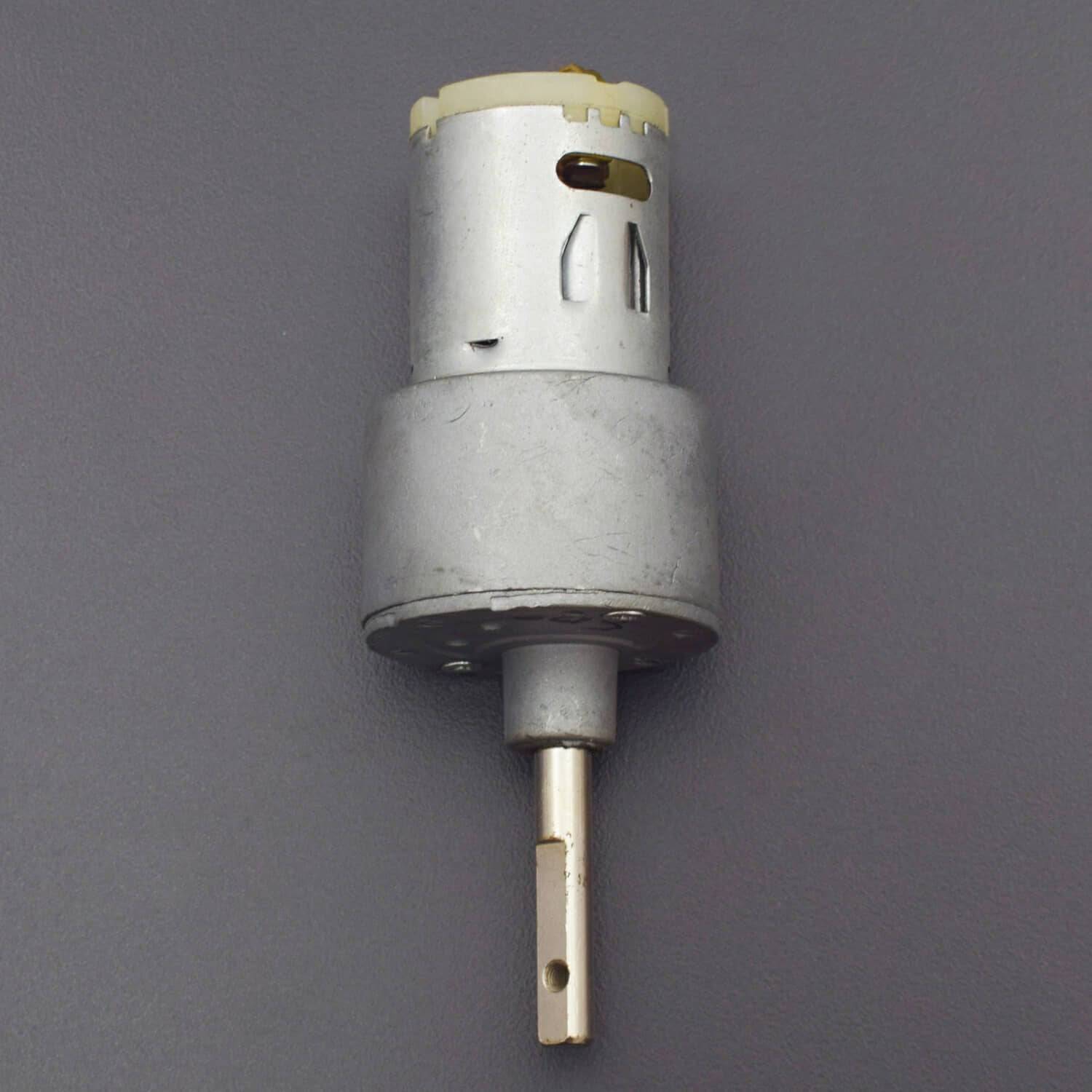

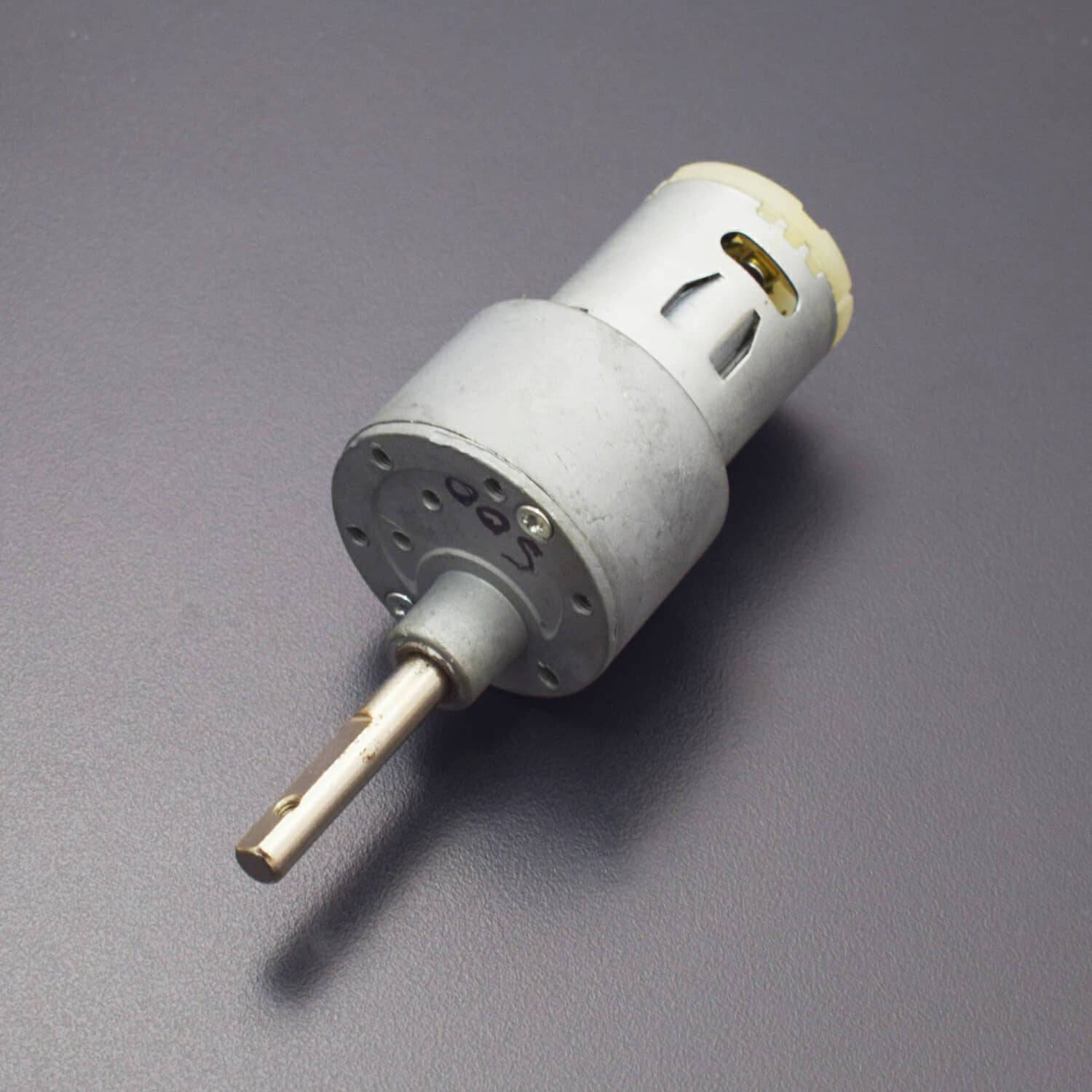

- 1000 RPM 12V DC Motor With Gear Box.
- 18006 RPM base motor
- Output torque range: 5kg-cm to 7kg-cm.
- No-load current = 800 ma(max).
Description:
It is a simple DCmotor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically commutated electric motor which is powered from DC supply. The Johnson Geared Motors are known for their compact size and massive torque-speed characteristic.Johnson geared DC motor is a very high torque motor which should be used to make big robots or robotized platform.Gear box is built to handle the stall torque produced by the motor. Shaft has a metal bushing for wear resistance.
Specification:
- 1000 RPM 12V DC Motor With Gear Box.
- 18006 RPM base motor
- Gearbox diameter : 37 mm.
- Torque : 10 kgcm
- No-load current = 800 mA(Max),
- Load current = upto 9.5 A(Max)
Features:
- The motor has sturdy construction.
- Shaft equips metal bushes for long life.
- It comes with High-Quality gears.
- The shaft has a hole for better coupling.
Package Included:
1 x 1000 RPM Johnson Gear DC Motor 12V For Arduino/Raspberry-Pi/Robotics
