DESCRIPTION

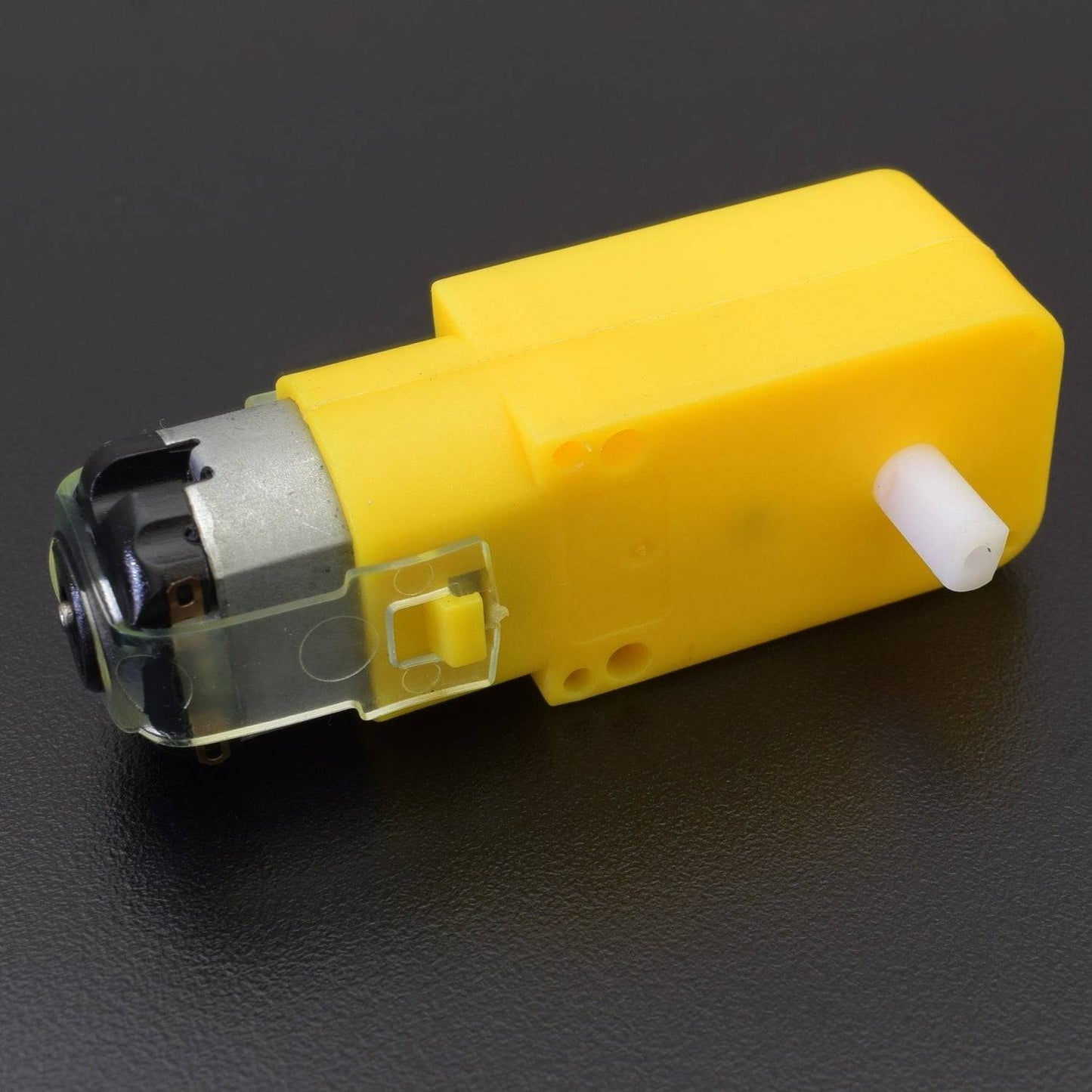

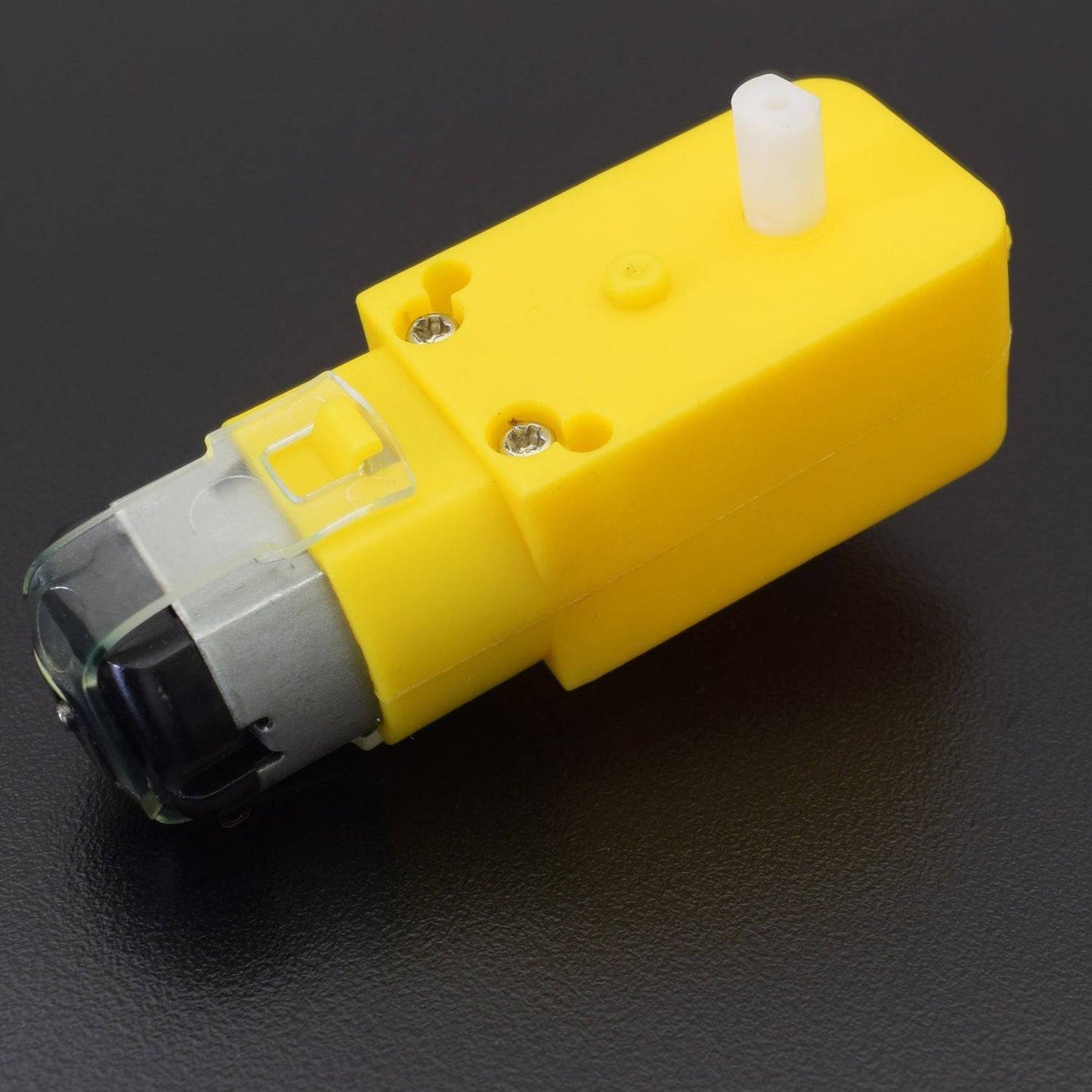

- This is a 100 RPM low-cost single shaft DC geared motor.
- It is most suitable for lightweight robot requiring small power.
- This motor can be used with 69mm Diameter Wheel for Plastic Gear Motors and 87mm Diameter Multipurpose Wheel for Plastic Gear Motors.
- Drive shaft has a clutch for non-continuous protection from overload which protects gears from the sudden overload.
- Motor runs smoothly from 2V to 12V and gives a wide range of RPM, and torque.
- The table below gives a fairly good idea of the motorâs performance in terms of RPM, no load current as a function of voltage and stall torque, stall current as a function of voltage.
Features :
- Cost-effectiveness of the injection-molding process.
- Elimination of machining operations.
- Low density: lightweight, low inertia.
- Uniformity of parts.
- Capability to absorb shock and vibration as a result of elastic compliance.
- Ability to operate with minimum or no lubrication, due to inherent lubricity.
- The relatively low coefficient of friction.
- Corrosion-resistance; elimination of plating, or protective coatings.
- The quietness of operation.
- Tolerances often less critical than for metal gears, due in part to their greater resilience.
- Consistency with the trend to greater use of plastic housings and other components.
Specification:
| Operating Voltage(VDC) |
3~12 |
| Shaft Length (mm) |
8.5 |
| Shaft Diameter (mm) |
(Double D-type) |
| No Load Current |
40-180mA. |
| Rated Speed(After Reduction) |
100 RPM |
| Rated Torque |
1KgCm |
| Weight (gm) |
30 |
| Dimensions in mm (LxWxH) |
42 x 23 x 55 |
| Gearbox Shape |
L-Shape |
Dimensions :
