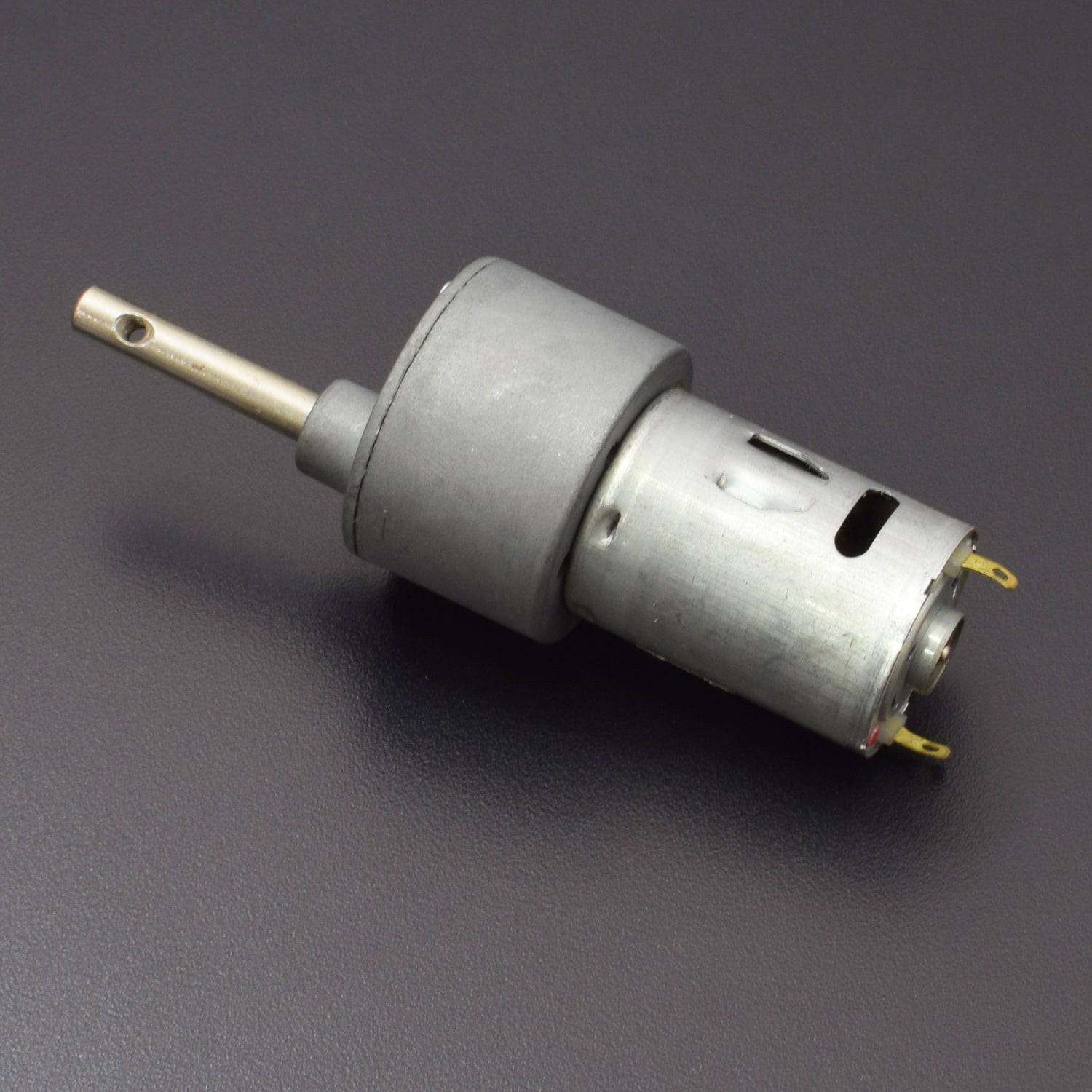

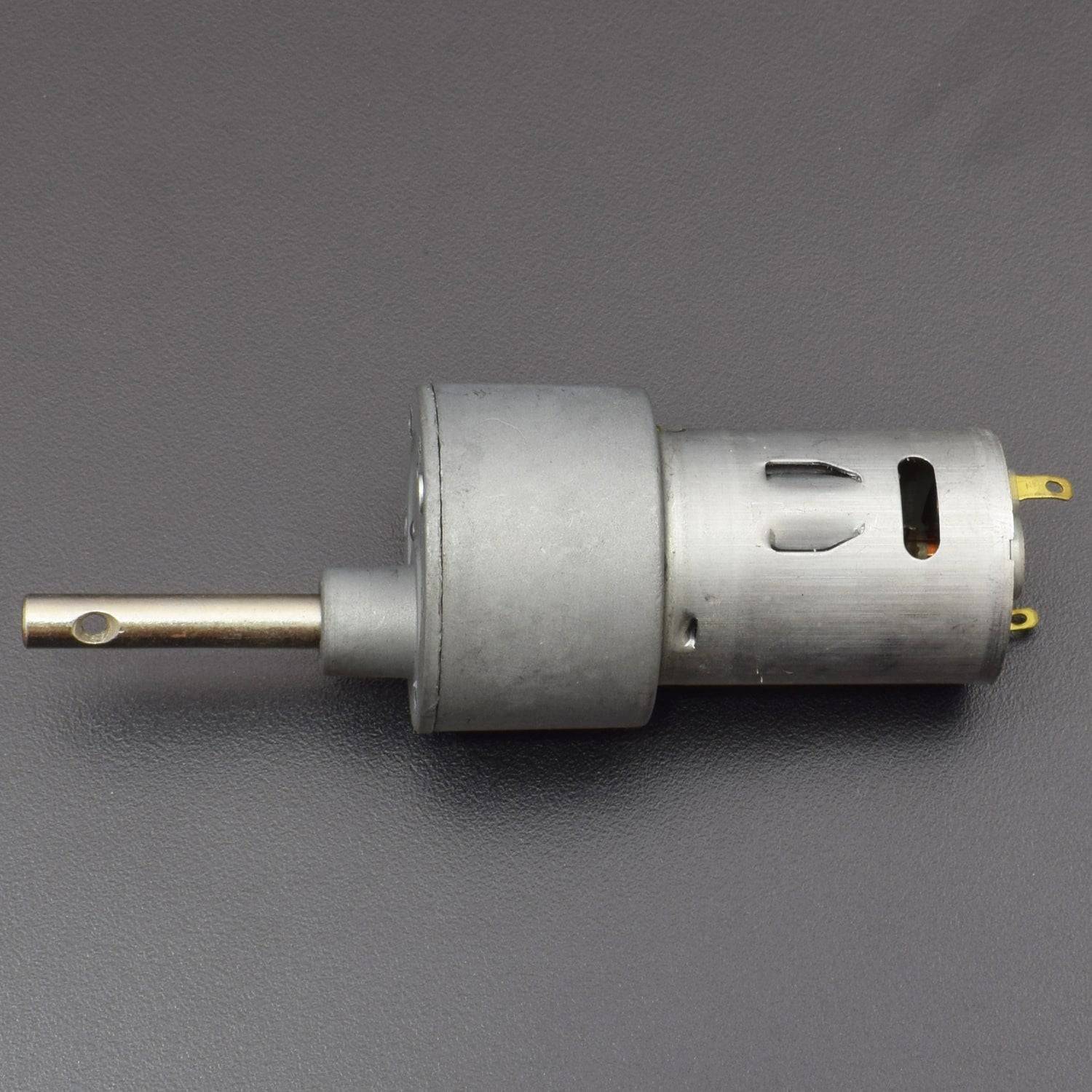

This johnson geared motor provides torque which falls intermediate to the torques by center shaft gear motors and side shaft dc gear motors, at a reasonable cost.It is a simple DC motor featuring metal gearbox for driving the shaft of the motor, so it is a mechanically commutated electric motor which is powered from DC supply. The Johnson Geared Motors are known for their compact size and massive torque-speed characteristic. The Johnson Motor comes with side shaft also known as an off-centered shaft and six M3 mounting holes. The shaft of the motor equips metal bushes which makes these DC gear motors Shaft wear resistant. The shaft of the motor has a hole for better coupling.
Specification:
| Base Motor RPM | 18000 |
| Gear Material | Metal |
| Rated RPM | 10 |
| Operating Voltage | 6 to 18V DC |
| Nominal Voltage | 12V |
| Rated Torque | 11.7 kg-cm |
| Stall Torque | 46 kg-cm |
| No-Load Current | 300 mA |
| Load Current | 900 mA |
| Shaft Diameter | 6 mm |
| Shaft Length | 25 mm |
| Gearbox Diameter | 37 mm |
| Motor Diameter | 27 mm |
| Motor Length | 68 mm |
