- Input Voltage Range: DC 10V-60V
- Output Voltage: 0-100% of the input voltage
- Control Power: 12V*10A=120W,24V*10A=240W......
- Rated Current: 10A
- Max Current: 20A
Description:

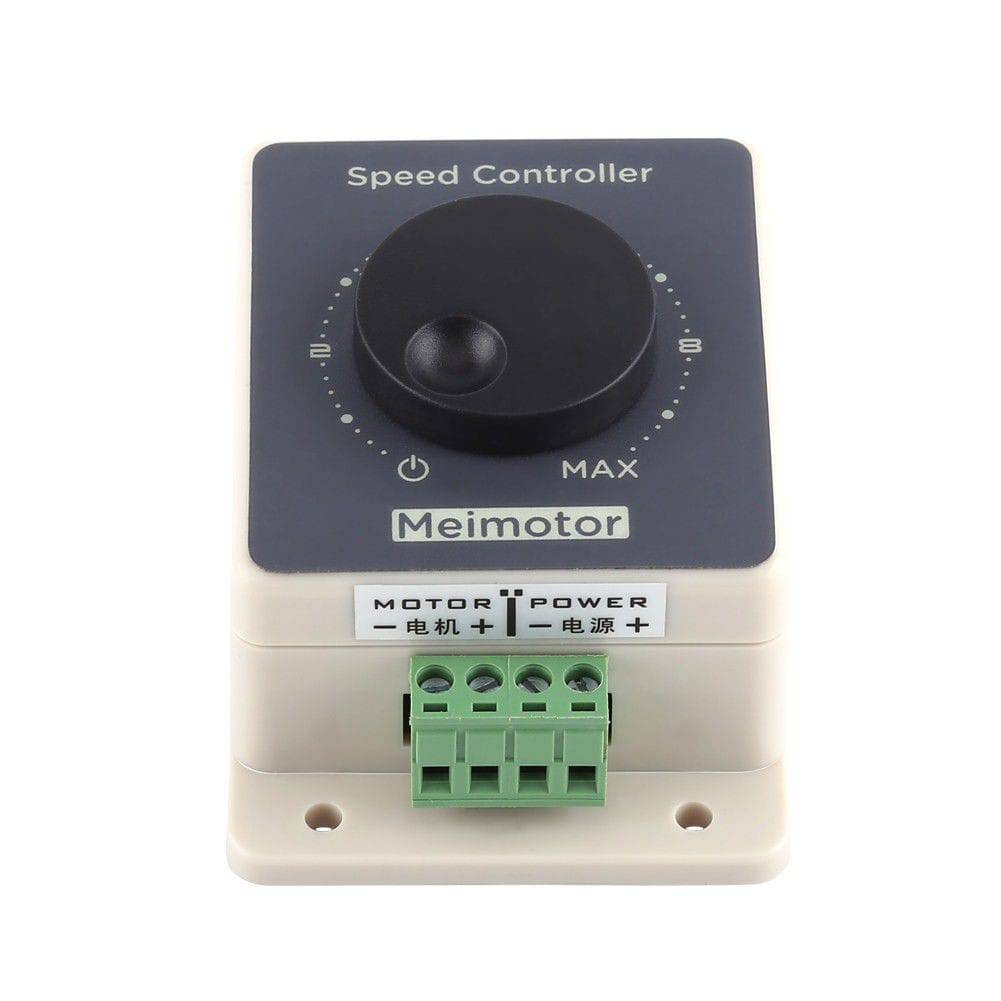

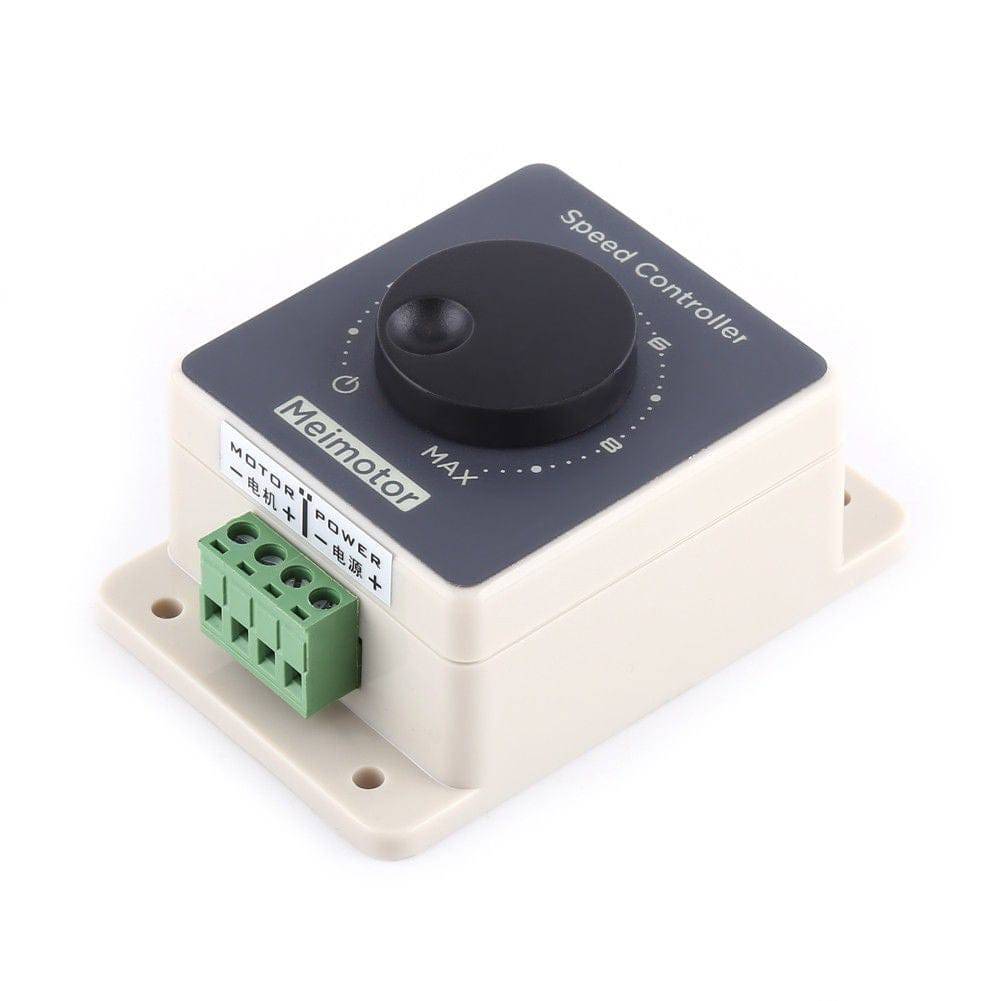

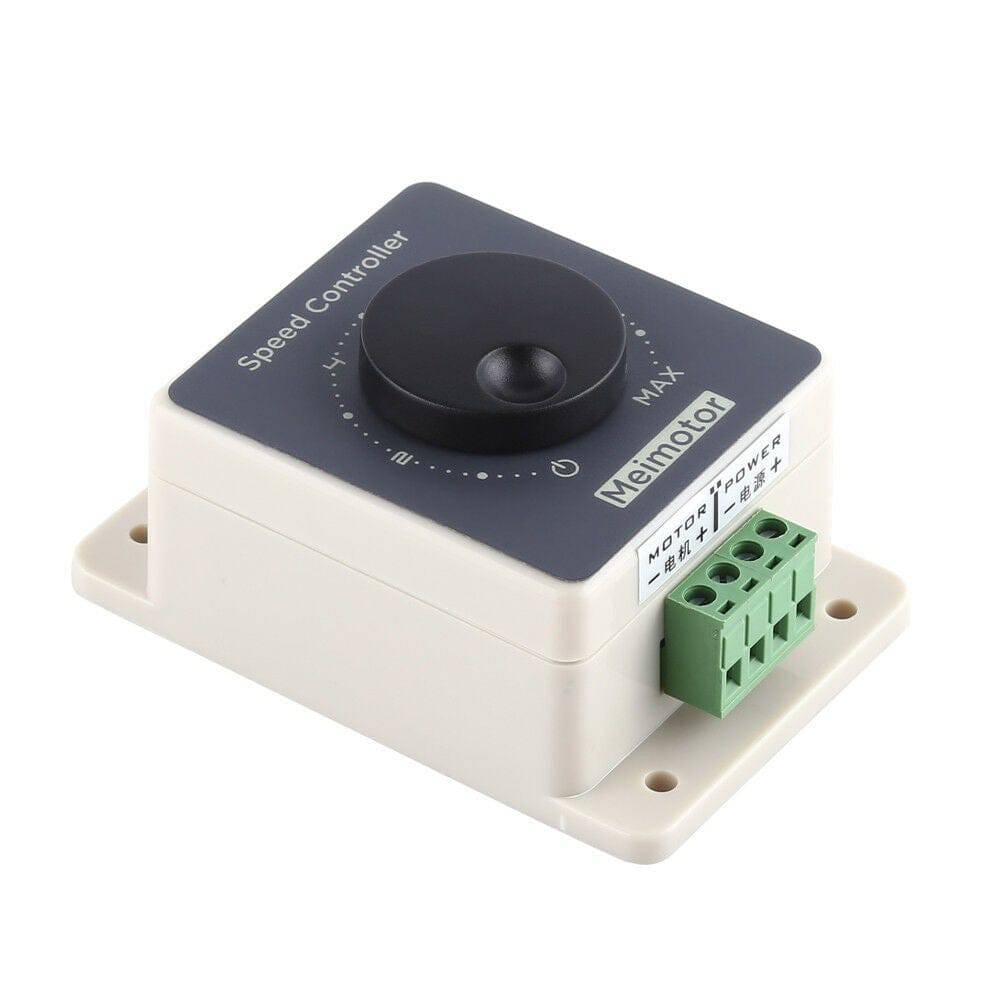

This is a simple and easy-to-use DC motor speed controller of small size, elegant appearance and stable performance. It is made with high quality circuit board which ensures a longer service life. The input voltage can be DC 10V to 60V and output voltage is 0-100% of the input voltage. This speed controller is quite convenient to set. This speed controller has a delicate and practical housing which is waterproof so you can use it out of doors.
Specification:
- Input Voltage Range: DC 10V-60V
- Output Voltage: 0-100% of the input voltage
- Control Power: 12V*10A=120W,24V*10A=240W......
- Rated Current: 10A
- Max Current: 20A
- Speed Range: 5%-100%
- PWM Frequency: 25Khz
Features:

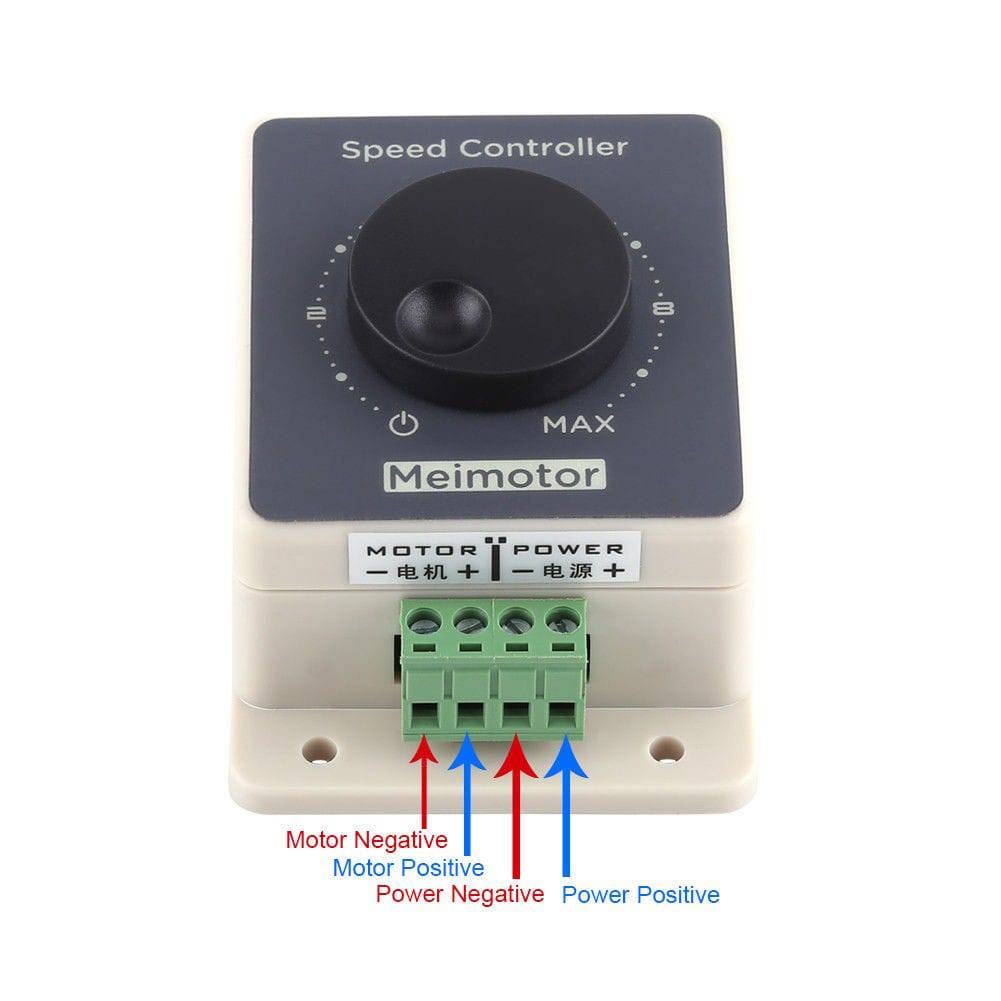

- Comes with screw terminal and a indication label of power and motor electrodes for convenient wiring.
- DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt.
- Suitable for 12 V motors with an output of less than 120 W, 24 V motors with an output of less than 240 W, etc.
Note: Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged.
Package Included:
1 x 10-60V 20A Pulse Width Modulator PWM DC Motor Speed Controller Waterproof Shell 100K ohm Regular Switch
