10.1-Inch Capacitive Touch Display 1280×800 HDMI Type-C Optical Bonded Screen

Name: 10.1-Inch Capacitive Touch Display 1280×800 HDMI Type-C Optical Bonded Screen
Brand: Waveshare
Price: 9202.00 INR
Availability: InStock

10.1-Inch Capacitive Touch Display 1280×800 HDMI Type-C Optical Bonded Screen

SKU:

In stock

Rs. 9,202.00

Sale Sold out

Shipping calculated at checkout.

Quantity

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

View full details

Description:

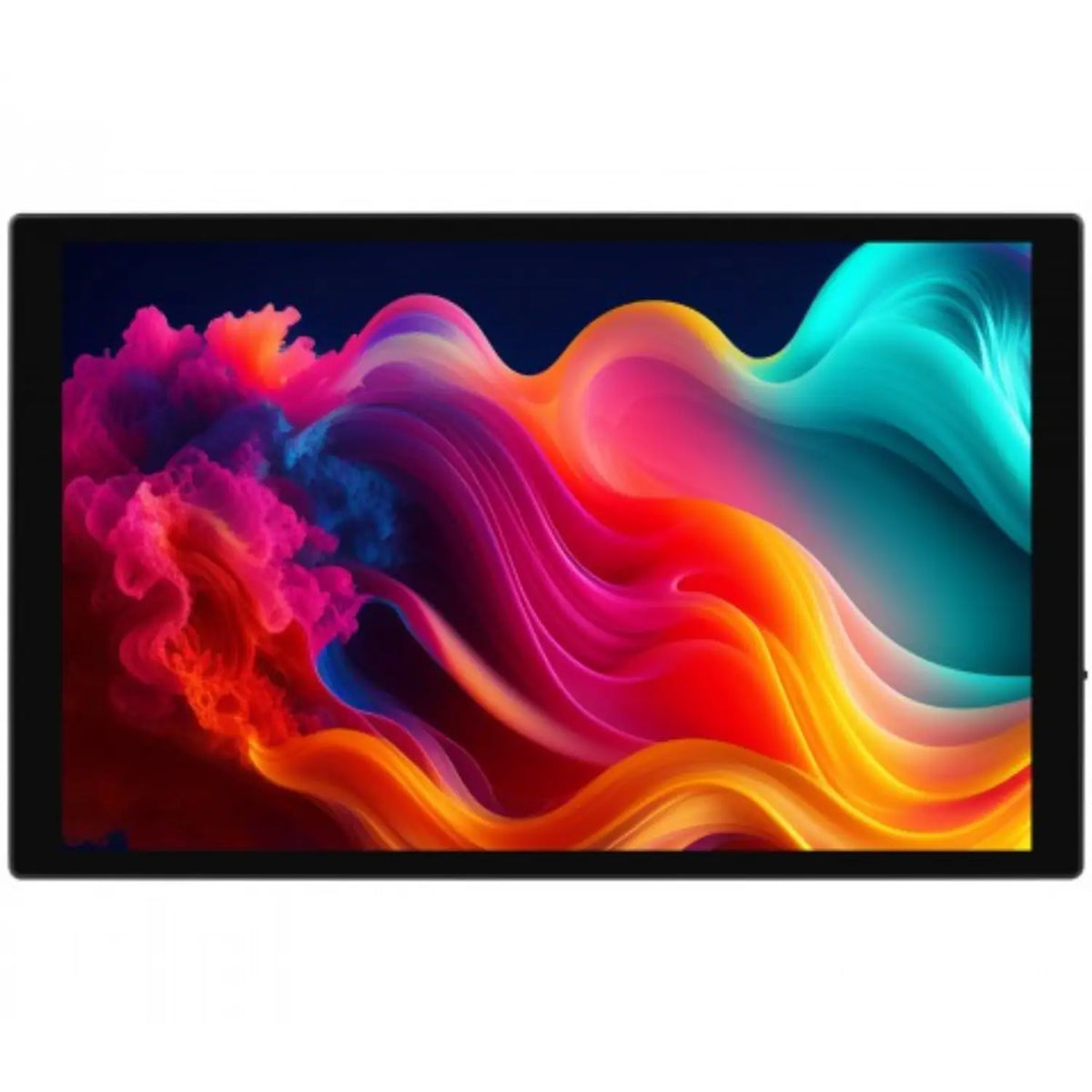

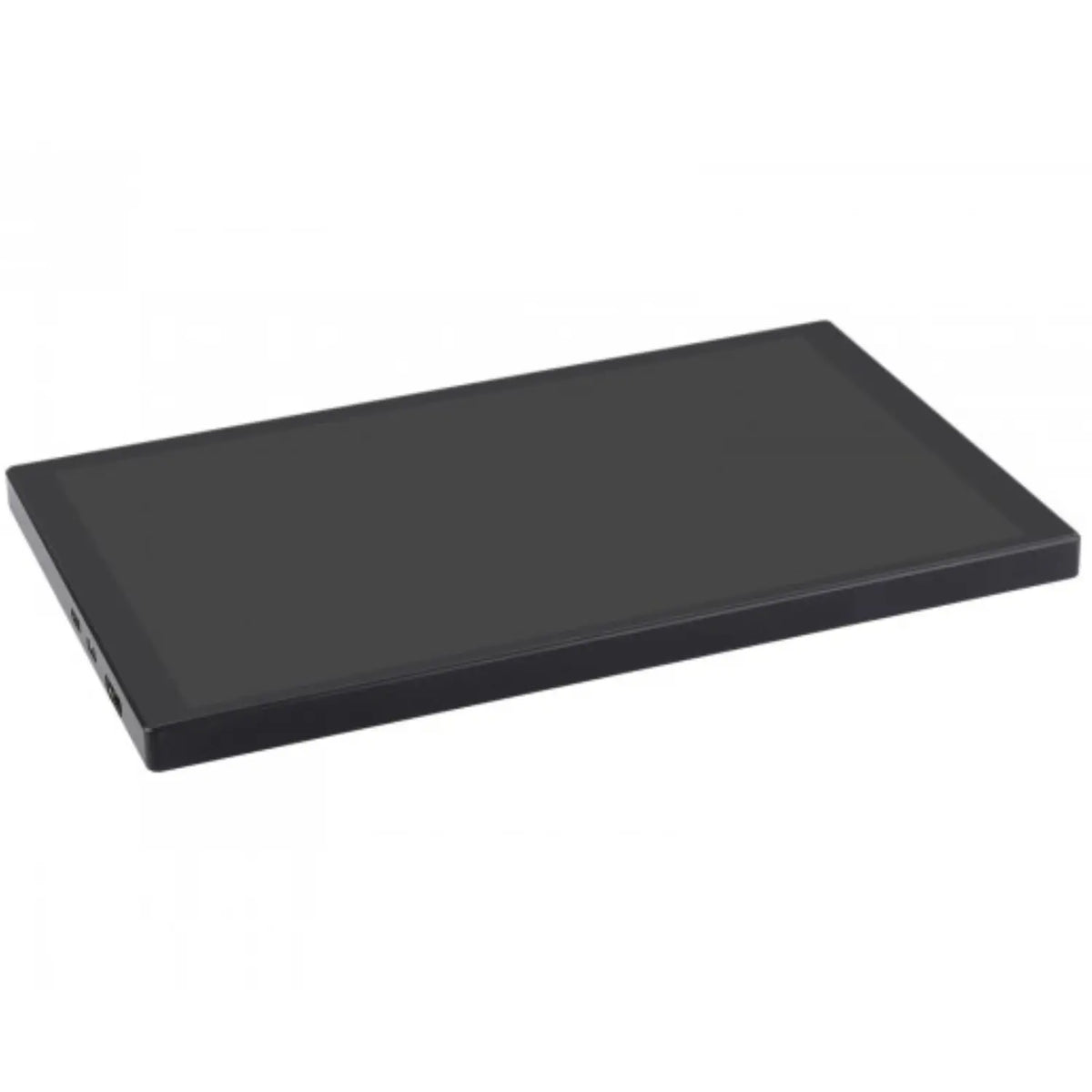

The Waveshare 10.1HP-CAPLCD is a high-performance 10.1-inch capacitive touch monitor featuring a 1280×800 HD resolution and wide color gamut for vivid, lifelike visuals. Designed for seamless compatibility with most HDMI-enabled devices, it offers a crisp display and responsive multi-touch functionality. Encased in a durable aluminum alloy frame with optical bonding toughened glass, this display ensures enhanced protection, reduced glare, and exceptional clarity. Ideal for Raspberry Pi, Jetson Nano, Windows PCs, and embedded applications requiring both elegance and reliability.

Specification:

Model Type: Display
Touch Type: Capacitive
Display Size: 10.1 Inch
Display Resolution: 1280 × 800
Model Name: 10.1HP-CAPLCD Monitor
View angle: 178 degrees
Display area: 135.36(H) × 216.58(V) mm
Pixel Pitch: 0.1175(H) x 0.1088(V) mm
LED Brightness: 350 cd/m²
Display Interfaces: Standard HDMI Interface
Power Port: 5V Type-C
Power Consumption: 4W

Features:

10.1-inch wide color gamut IPS panel, 1280 x 800 hardware resolution.
Supports standard HDMI and full-featured Type-C display signals
10-point capacitive touch toughened glass panel with 6H hardness.
Adopts the optical bonding technique for better display.
Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.
Multi-language OSD menu support (for power control, adjusting brightness/contrast, etc.)

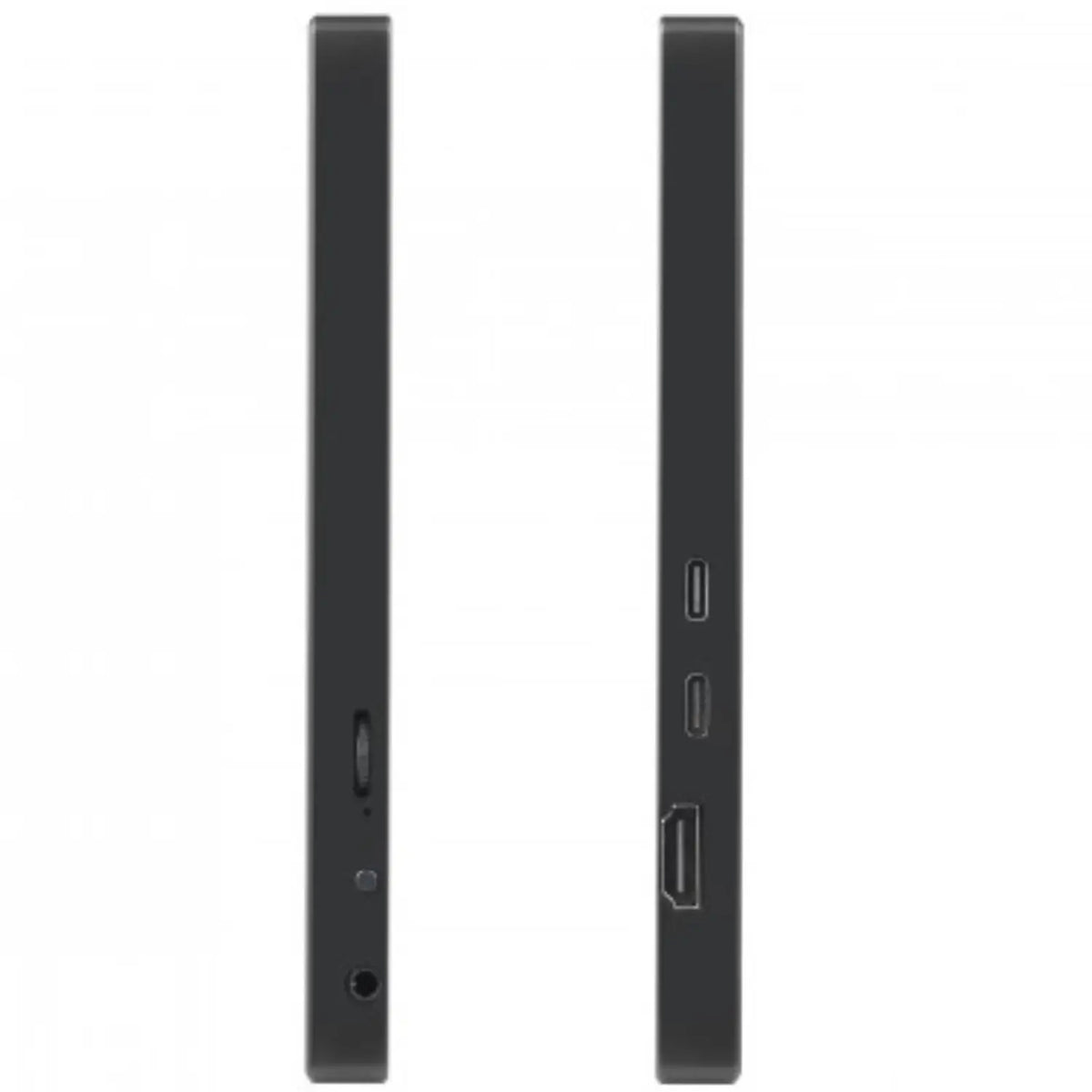

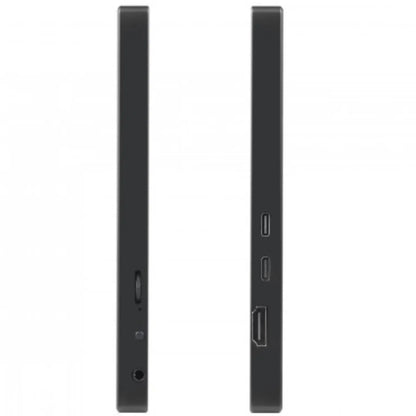

Supports HDMI/Type-C audio output, an onboard 3.5mm headphone jack, and a 4-PIN speaker jack.
