Description:

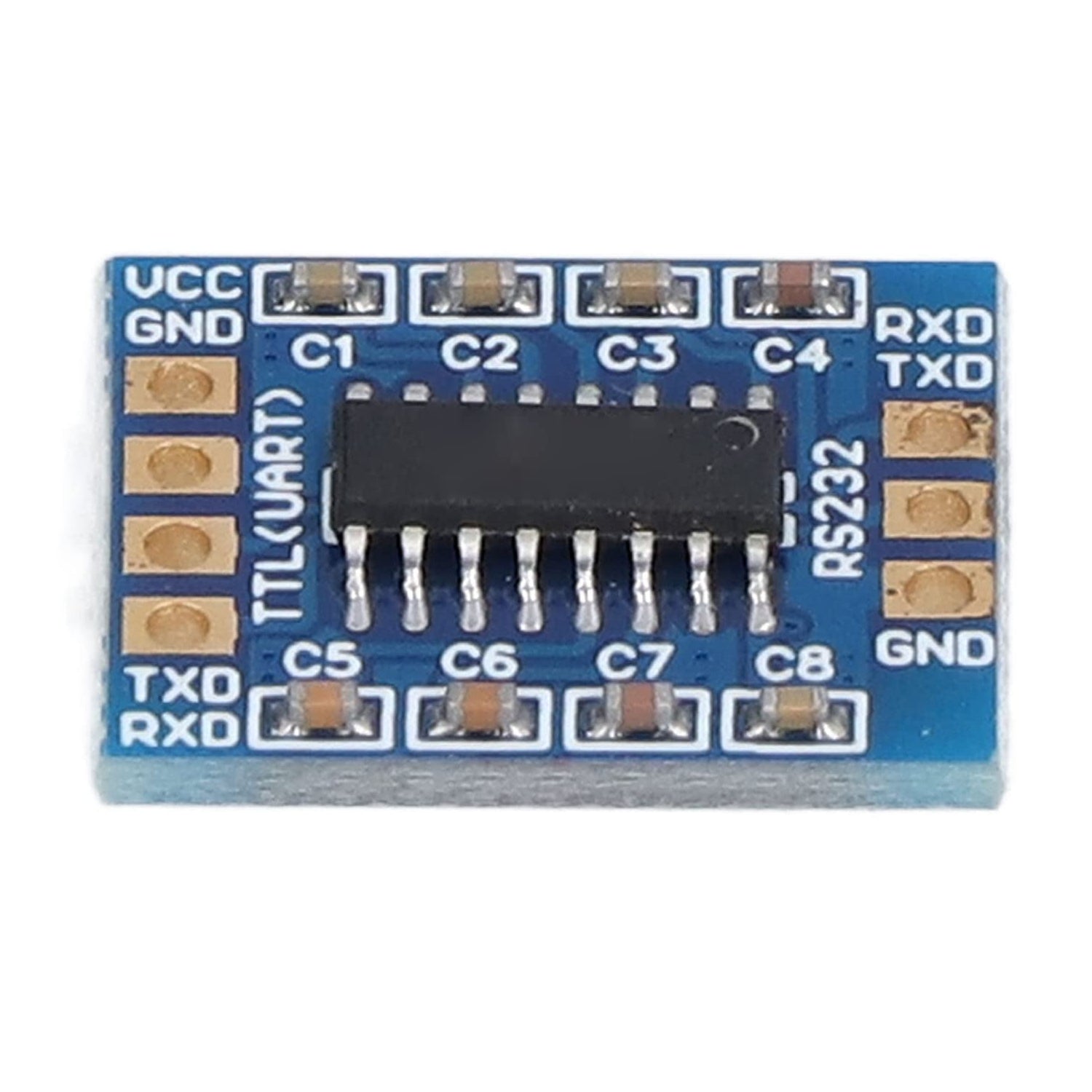

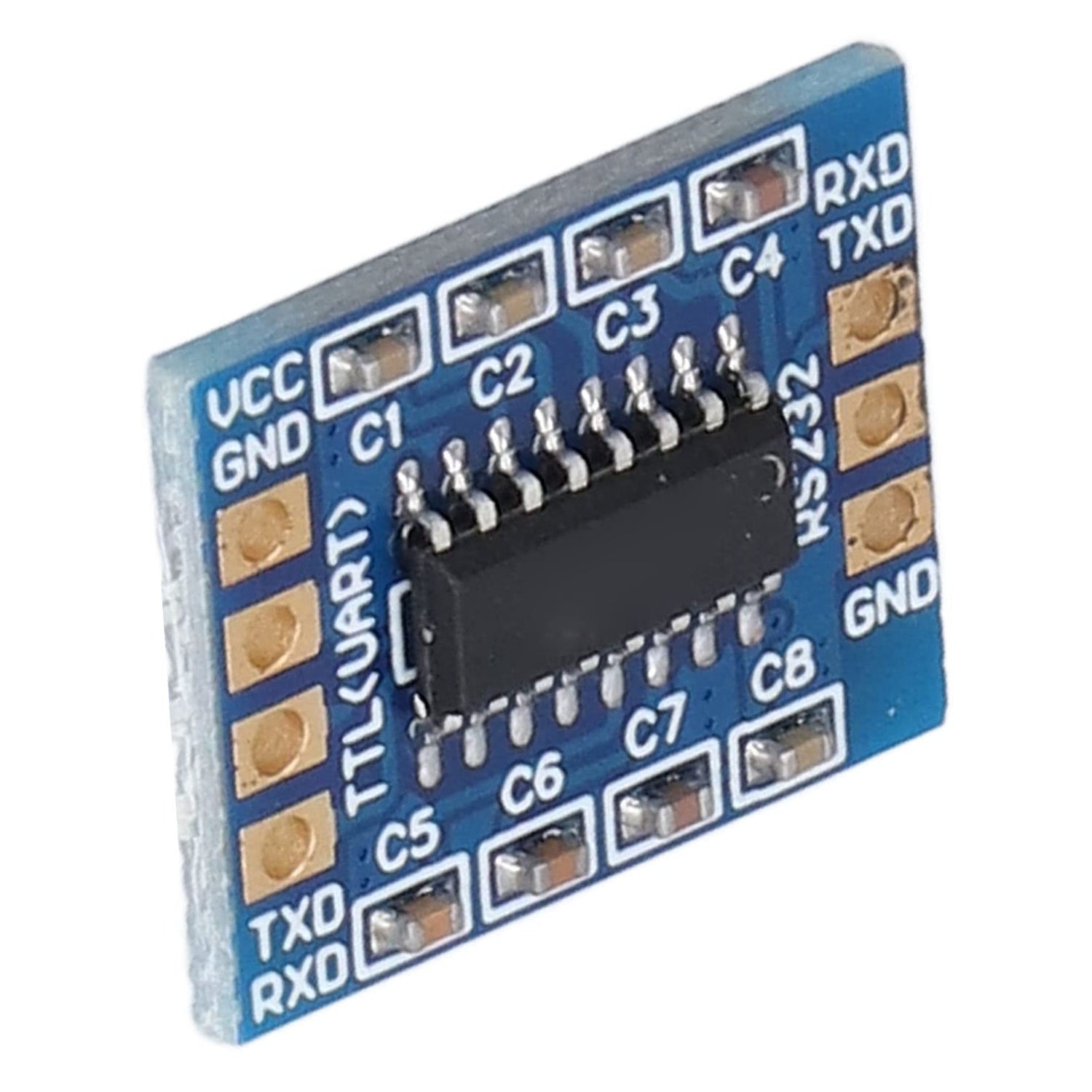

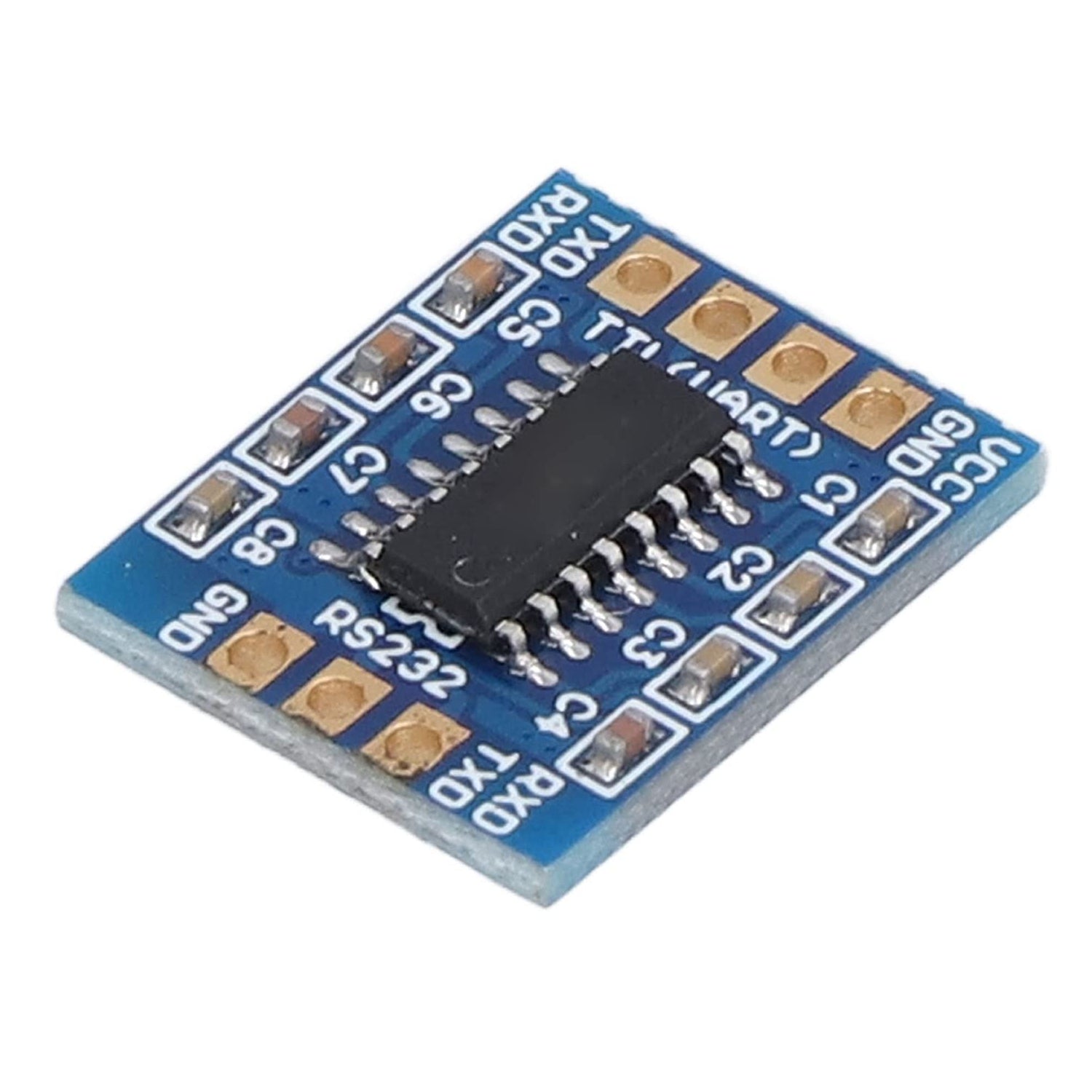

1 EXAR Chip SP3232 RS232 to TTL Converter Module is made of finely crafted plastic material, wear-resistant and durable, and can be used for a long time. TTL to RS232 module is light in weight, small in size, and easy to carry and store, no matter where you go, it is convenient to carry and use.
Sink-Type RS232 to TTL Converter Module is Suitable for radio modification, mobile phone flashing, XBOX360 flashing, GPS, car testing, DVD flashing, hard disk repair, and set-top box upgrades.
Specifications:
- IC Chip: EXAR SP3232
- Connector Plating: Gold

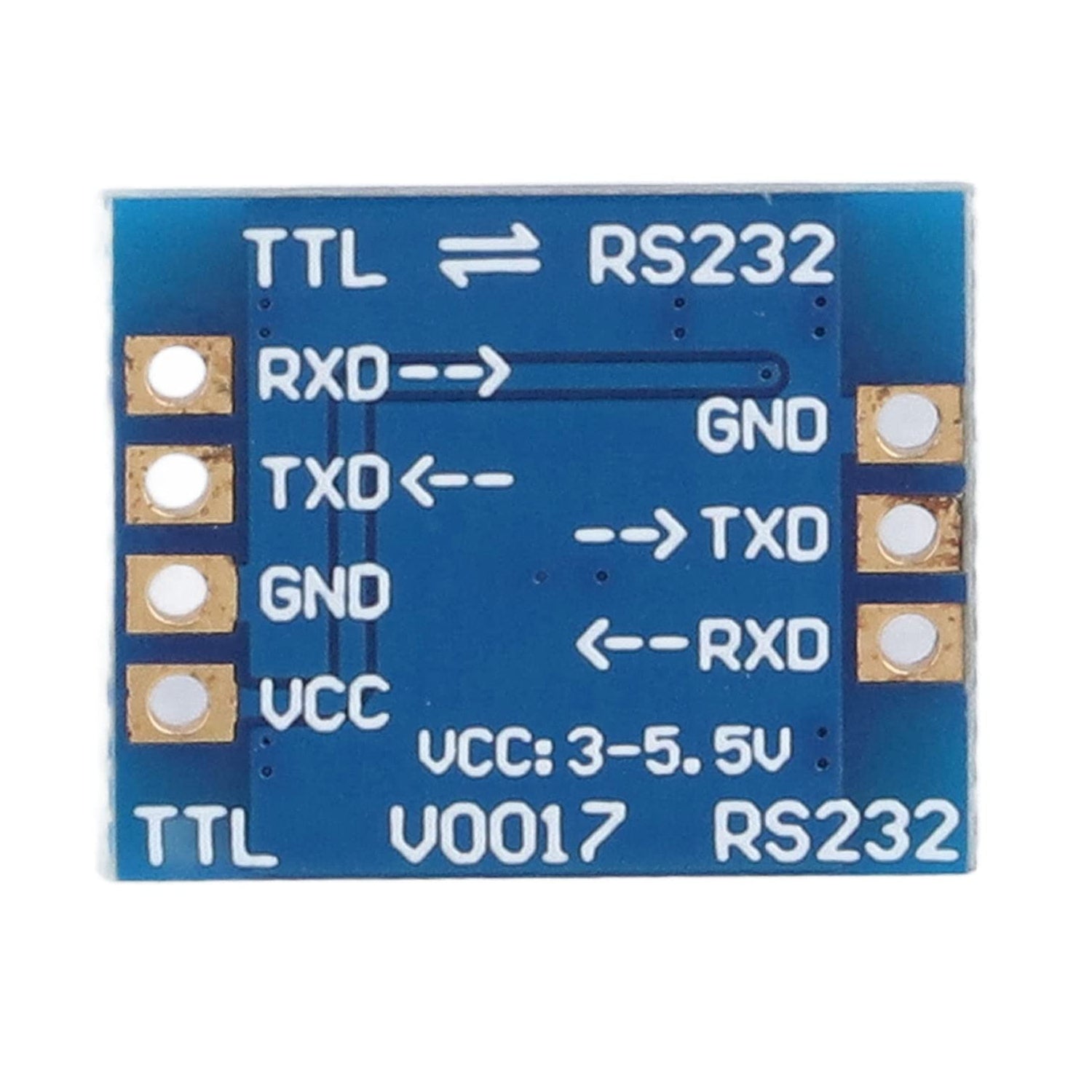

Pin Description:
Note: TTL and RS232 terminals should connect TXD with RXD and RXD with TXD for cross-matching and docking
- TTL (UART) side:
- VCC: Connect DC 3v-5.5v
- GND: connect to GND
- TXD: connect external device TTL terminal RXD
- RXD: connect to external device TTL terminal TXD
- RS232 port:
- RXD: connect to external device RS232 terminal TXD
- TXD: connect external device RS232 terminal RXD
- GND: connect to GND
Features:
- MCUs such as single-chip microcomputers and ARM communicate with the computer through the computer's serial port (COM port).
-
TTL to RS232 module can be used to expand the serial port of the device, which is the best choice for your device.
-
RS232 serial port module is made of finely crafted plastic material, wear-resistant and durable, and can be used for a long time.
Package Included:
1 x 1 EXAR Chip SP3232 RS232 To TTL Converter Module Sink Type RS232 To TTL Converter Module High-Speed Serial Port Module With Gold-Plated Pins For Reliable Serial Communication
