Description:
The 1-Channel Relay module into an integrated smart device through the existing 2.4G Wi-Fi network, you can use the TUYA / Smart Life APP to remotely control the opening/closing of electrical devices from anywhere.
This wifi switch module can be used with Alexa / Google Assistant / IFTTT, you can use voice control to turn household appliances on/off.
In the jog mode (instantaneous mode), if you press the button on the application (or the manual button on the development board), the switch will turn on and then automatically turn off after 1 second. In the self-locking mode, when you press the button on the APP (or the manual button on the panel) once, the relay will open. When the button is pressed again, the relay will turn off.
Only supports a 2.4G WiFi network connection, not the Mesh WiFi system and 5G WiFi network! Download the TUYA / Smart Life APP and register an account. Then, follow the instructions to complete the WiFi configuration. (If you plan to install it in a place where the WiFi signal is weak, you may need a wifi extender).
Specifications:
- Contact Type: Normally Open
- Coil voltage: 5 Volts
- Operation Mode: Automatic
- Maximum Switching Voltage: 32 Volts
- Mobile App: Tuya / Smart Life On Android/IOS
- Board Consumption: <1W

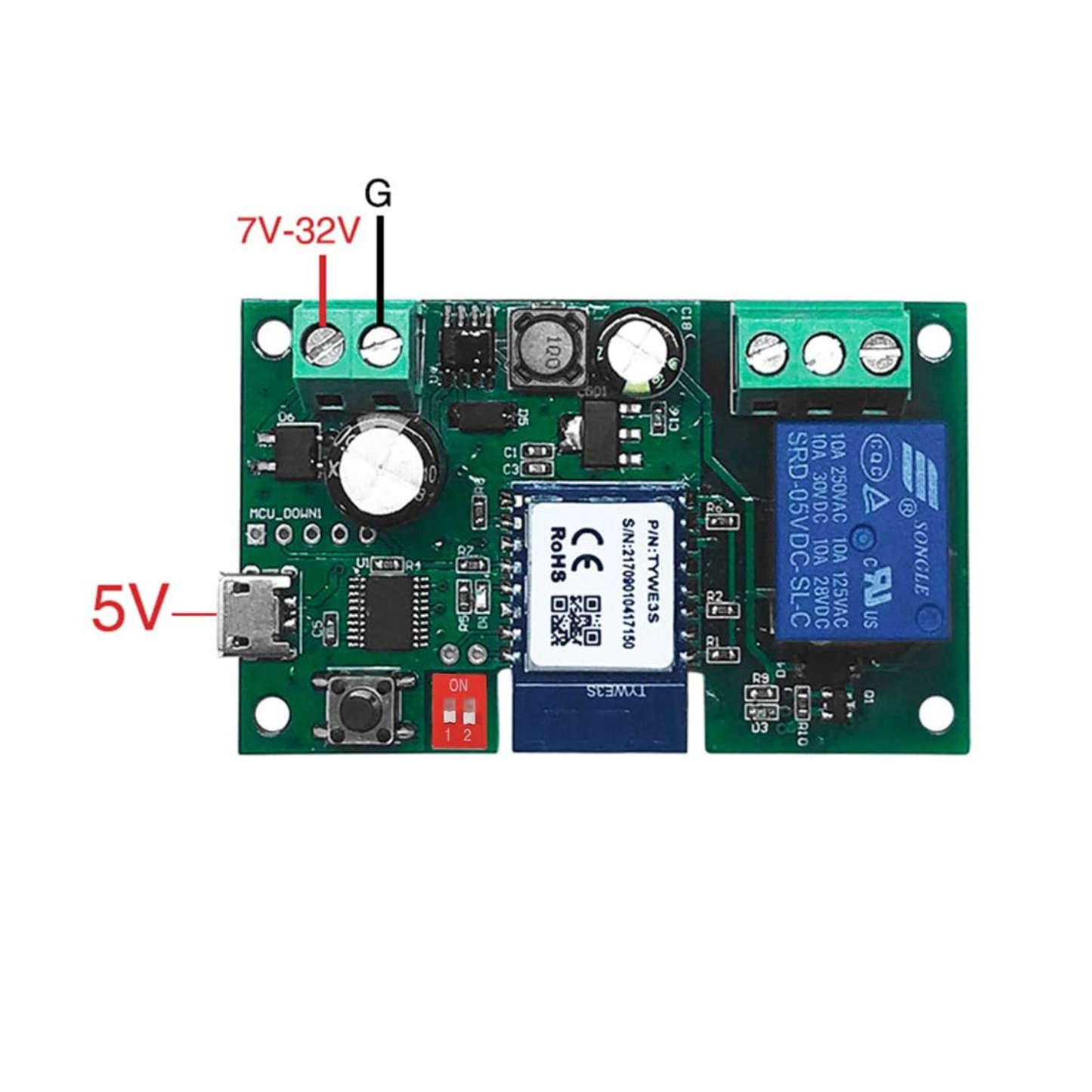

- Operating Voltage: 5V/7-32V DC/AC
Features:
- Supports WiFi network Supports numerous WiFi smart switches on one smartphone.
- Supports tracking device status provided to the Tuya/Smart life.
- Supports remotely turning on or off connected appliances, for example, light, electric kettle, electric rice cooker, electric
curtain, etc. - Supports max 8 enabled scheduled/countdown/loop timers for each device.
Package included:
1 x 1-Channel WiFi Smart Switch Relay Module
