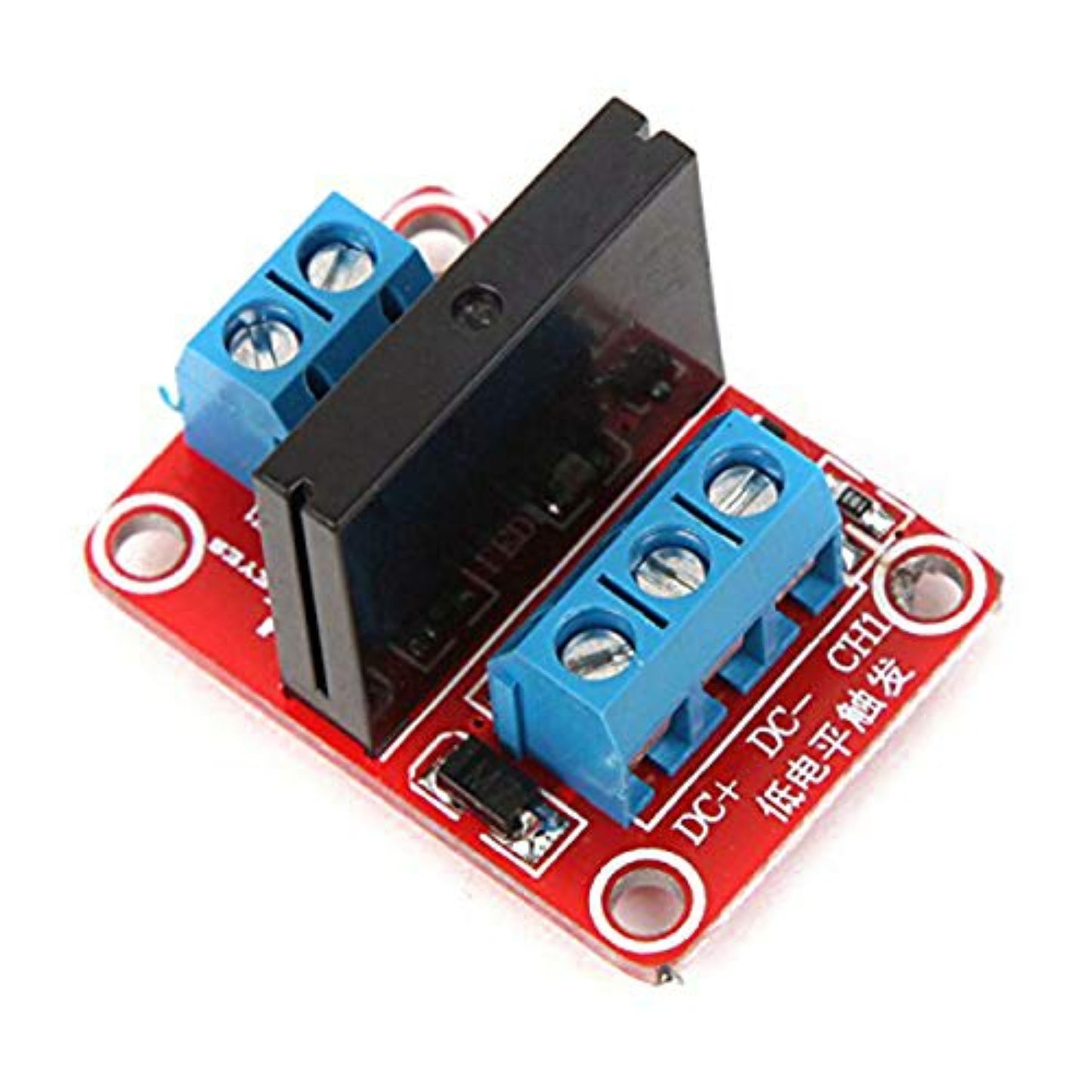

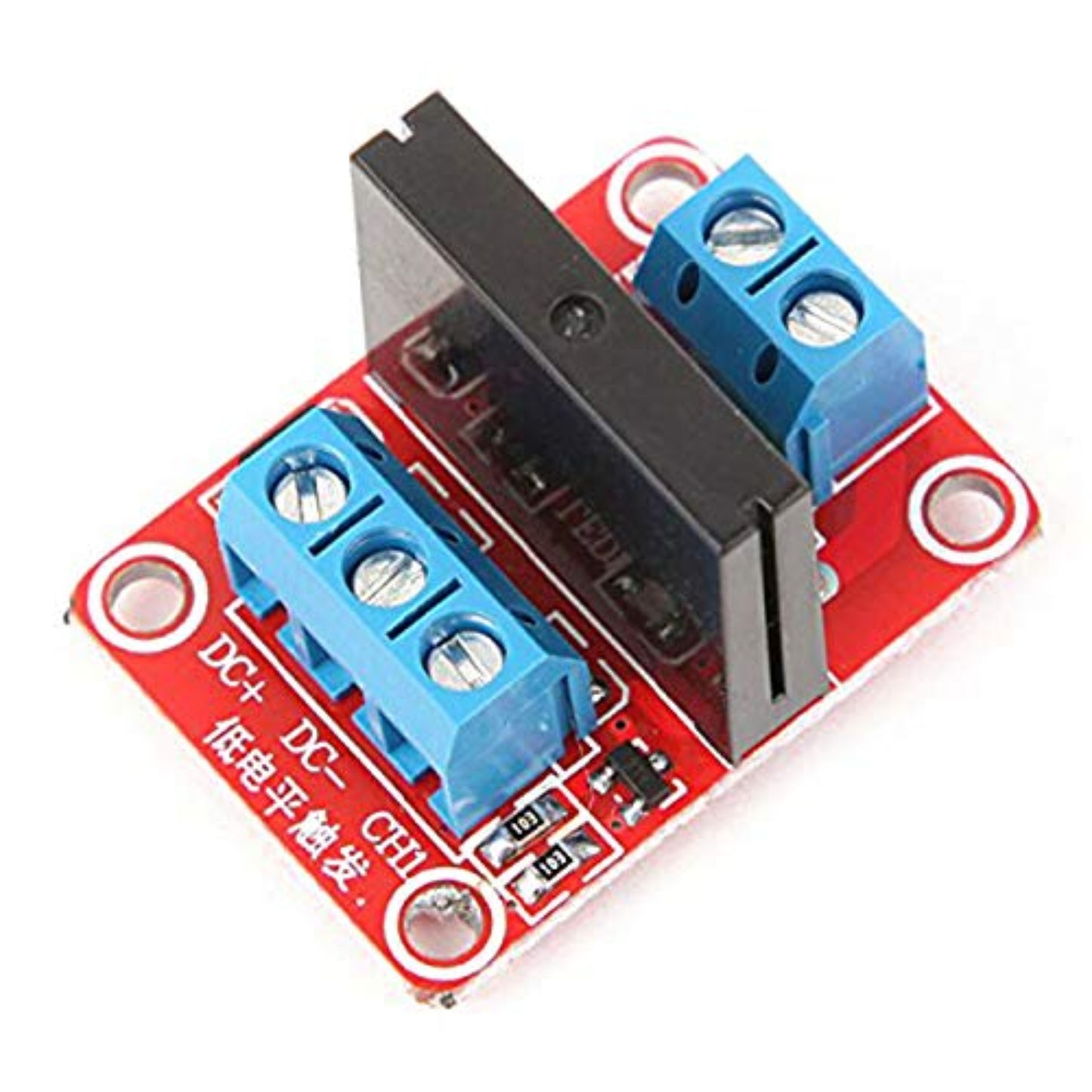

1 x 5V 1 Channel SSR Solid State Relay Module
Description:
A solid-state relay works the same as a standard (mechanical) relay. However, a solid-state relay can be switched on and off much more often because it does not experience mechanical wear.
Specifications:
| Model Type |
Relay Module |
|---|---|
| No. of Channels: |
1 |
| Operating Voltage (VDC) |
5 |
| Part No. |

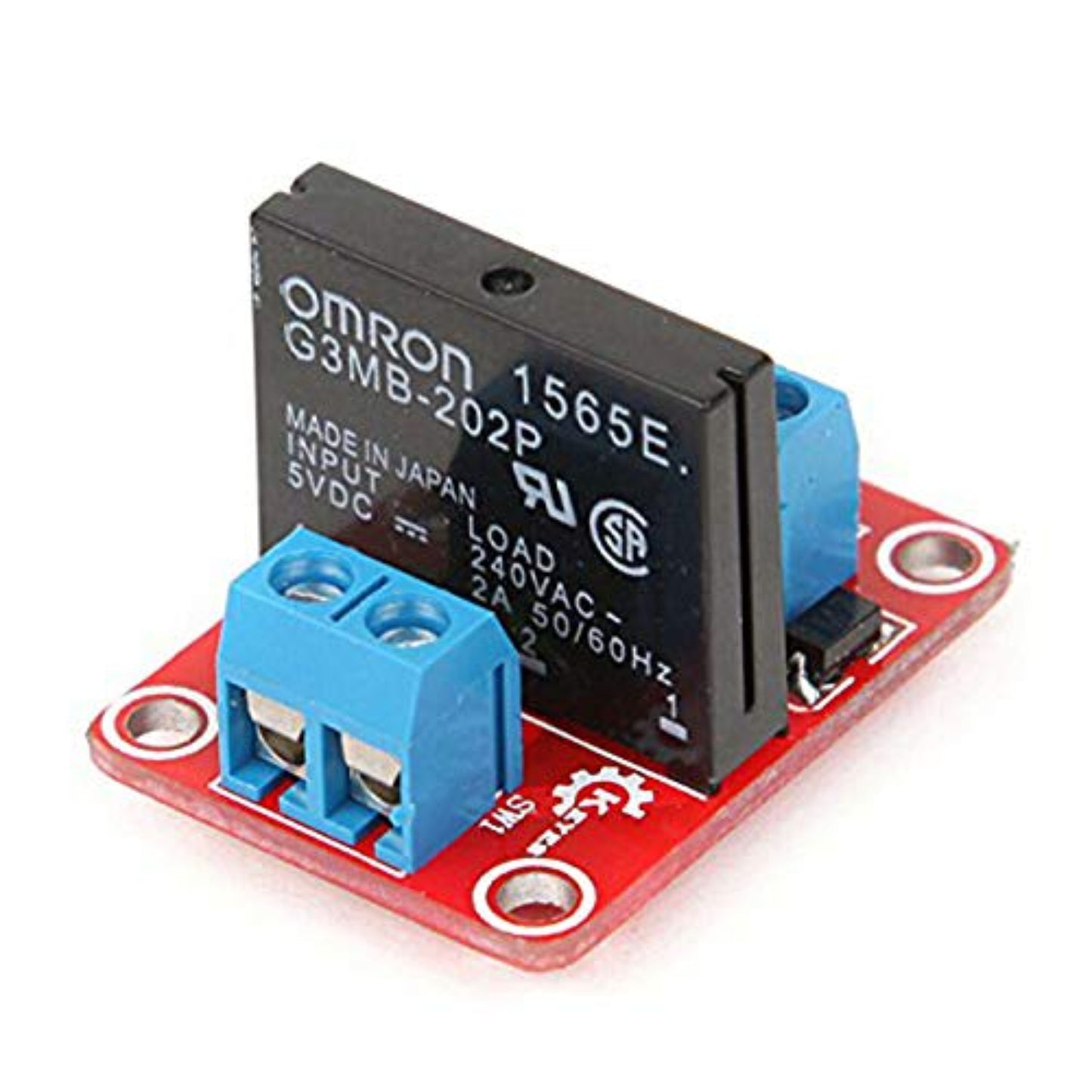

G3MB-202P |
| Trigger Voltage (VDC) |
5 |
| Trigger Current (mA) |
2 |
| Working Current (mA) |
12.5 |
| Switching Voltage (VAC) |
240@2A |
Features:
- Has been assembled, and the electrical test passed.
- It can be controlled directly by a Microcontroller
- Input control signal voltage:
- 0-2.5V status low level, relay OFF
- 3-5V status high level, relay ON
Pin Description:
- DC+: connect power positive
- DC-: connect power negative

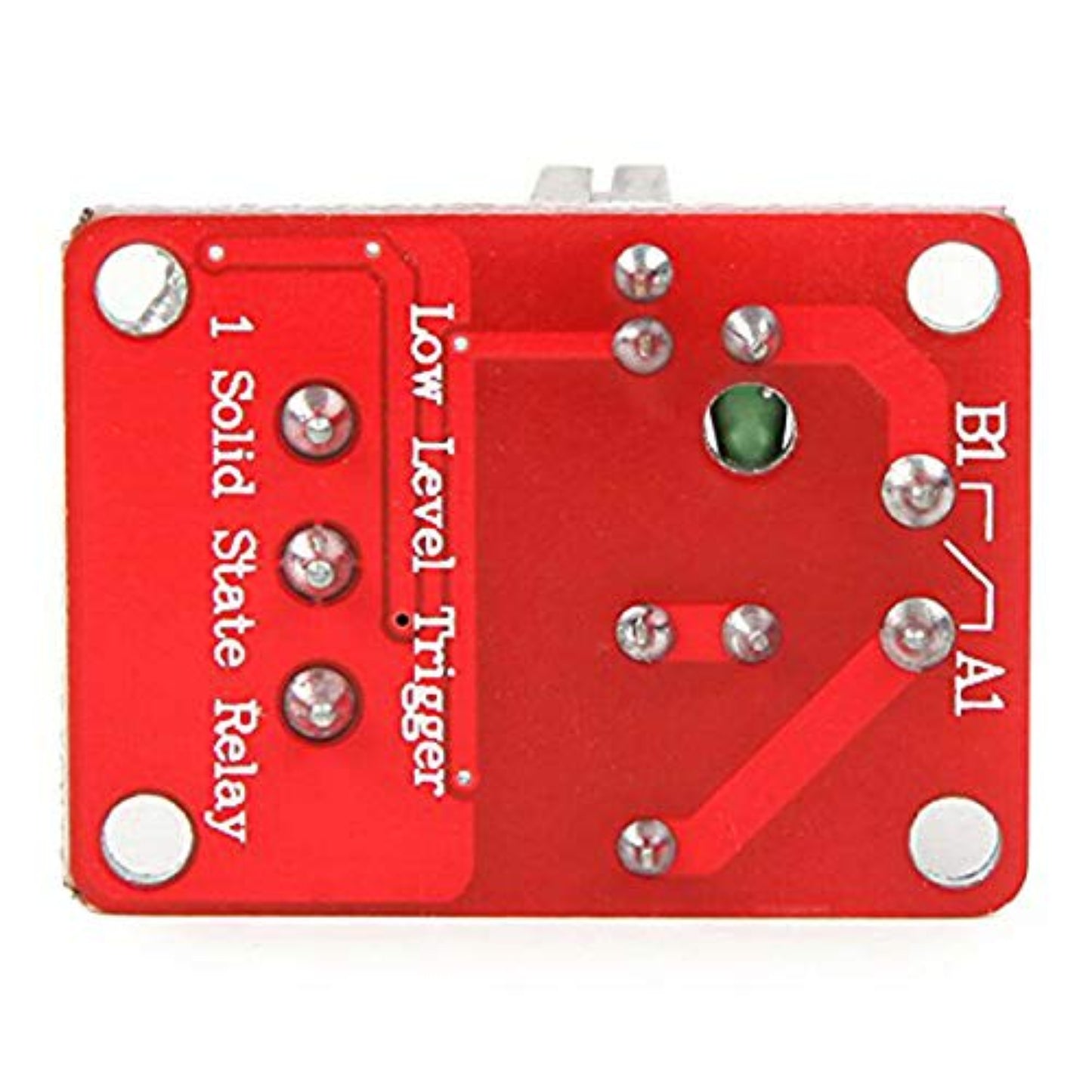

- CH1: relay module signal trigger point (Effective low-level trigger)
