Description:

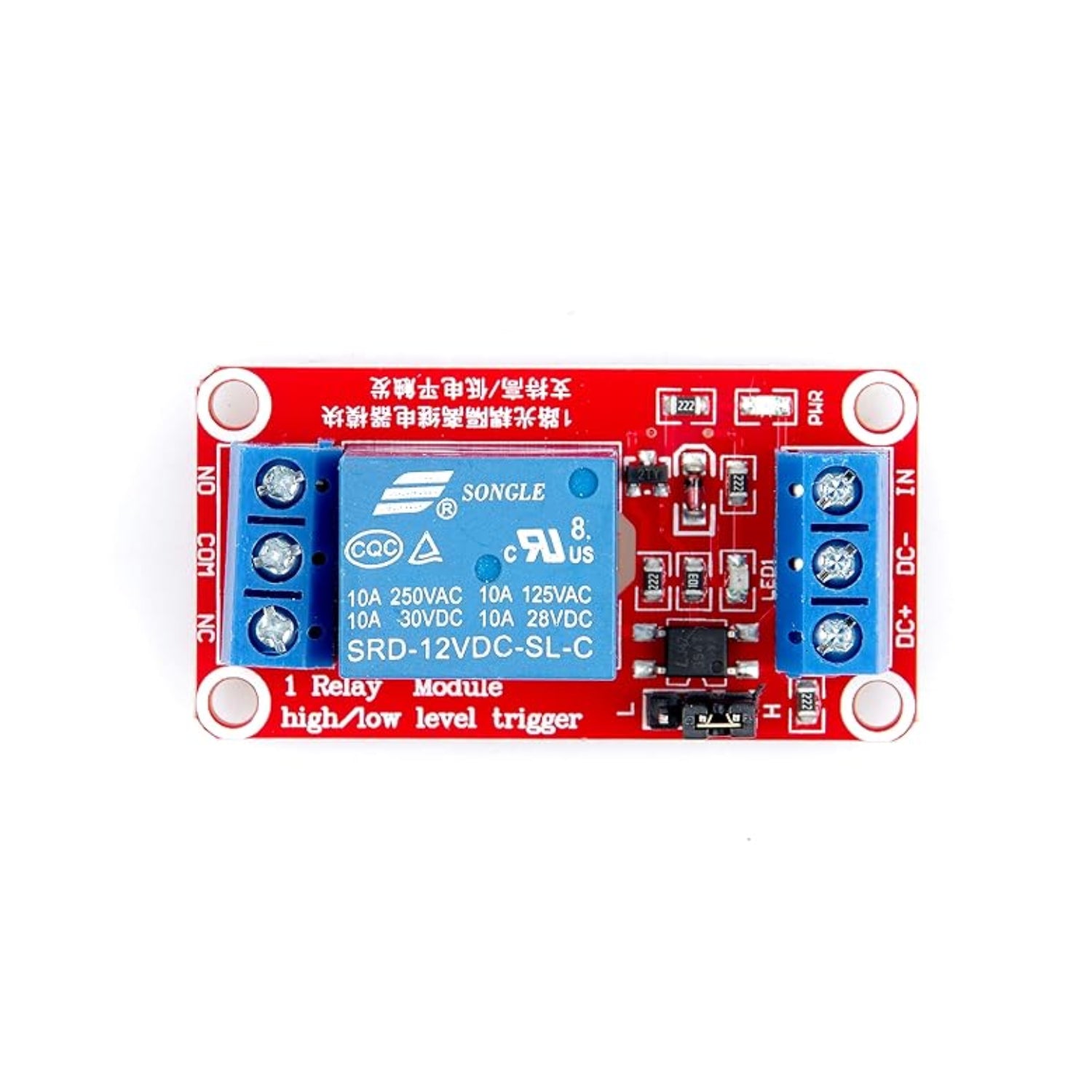

12V 1 Channel Relay Module has strong driving ability and stable performance. There are four mounting bolt holes, hole 3.1mm, spacing 44.5mm 27.5mm. The module can be set to high or low to trigger Fault-tolerant design. if the control line is disconnected the relay will not work. The High/Low Level Trigger Relay is suitable for Arduino, ARM, AVR, CNC machine tools, PS4, etc.
Specifications:
- Model: 1 Channel Relay Module
- Coil Voltage: 12V DC
- Current Rating: 10Amp
- Colour: Red
Features:
- single channel relay is designed to prevent relay movement in case of a control line break.
- Opto-isolation between input and output.
- High or low-level trigger selection via jumper.
- Strong drive capability and stable performance.
- Screw terminals for easy connection.
Package Included:
1 x 1 Channel 12V Relay Module With Adjustable High And Low Level Trigger For Versatile Control Applications
