Description:

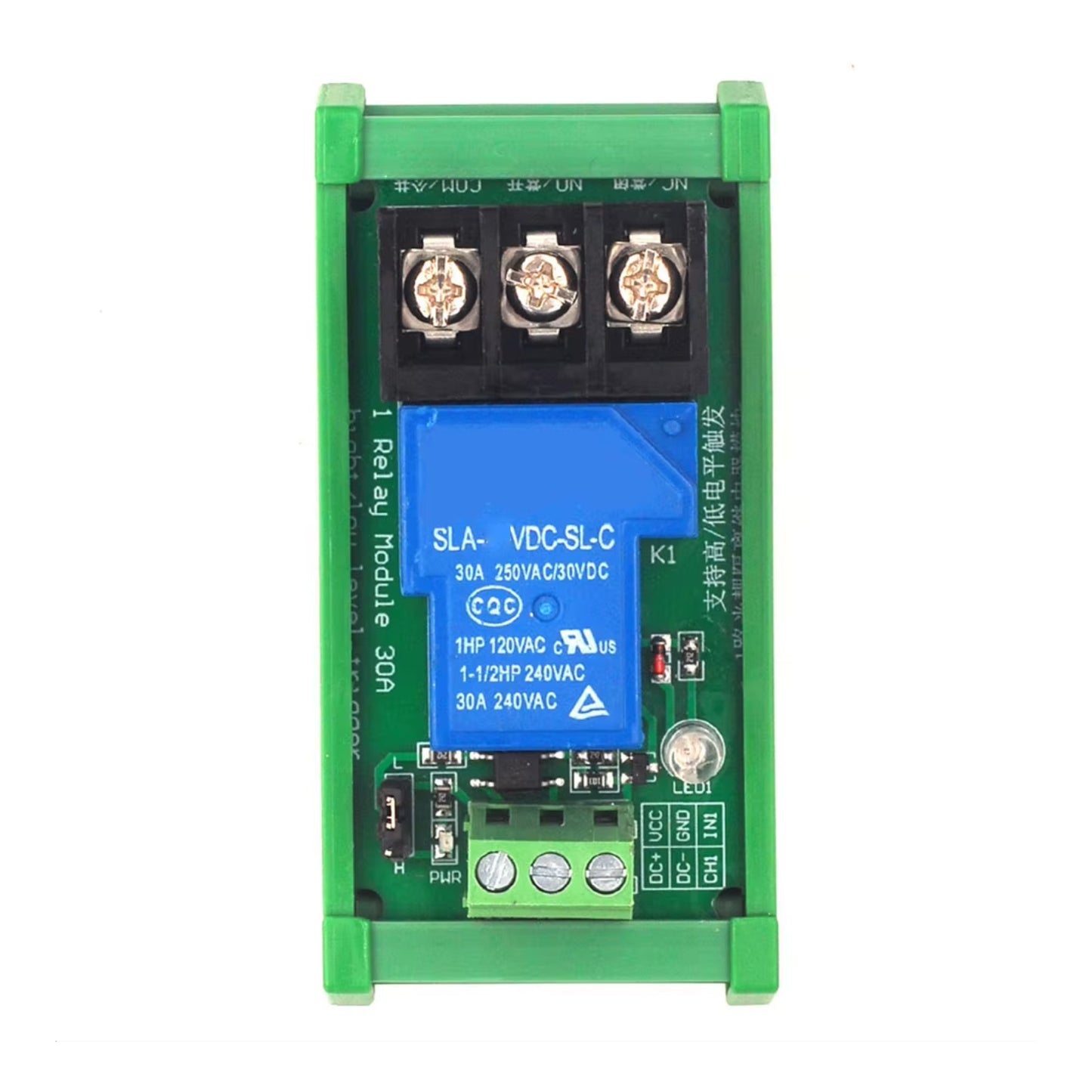

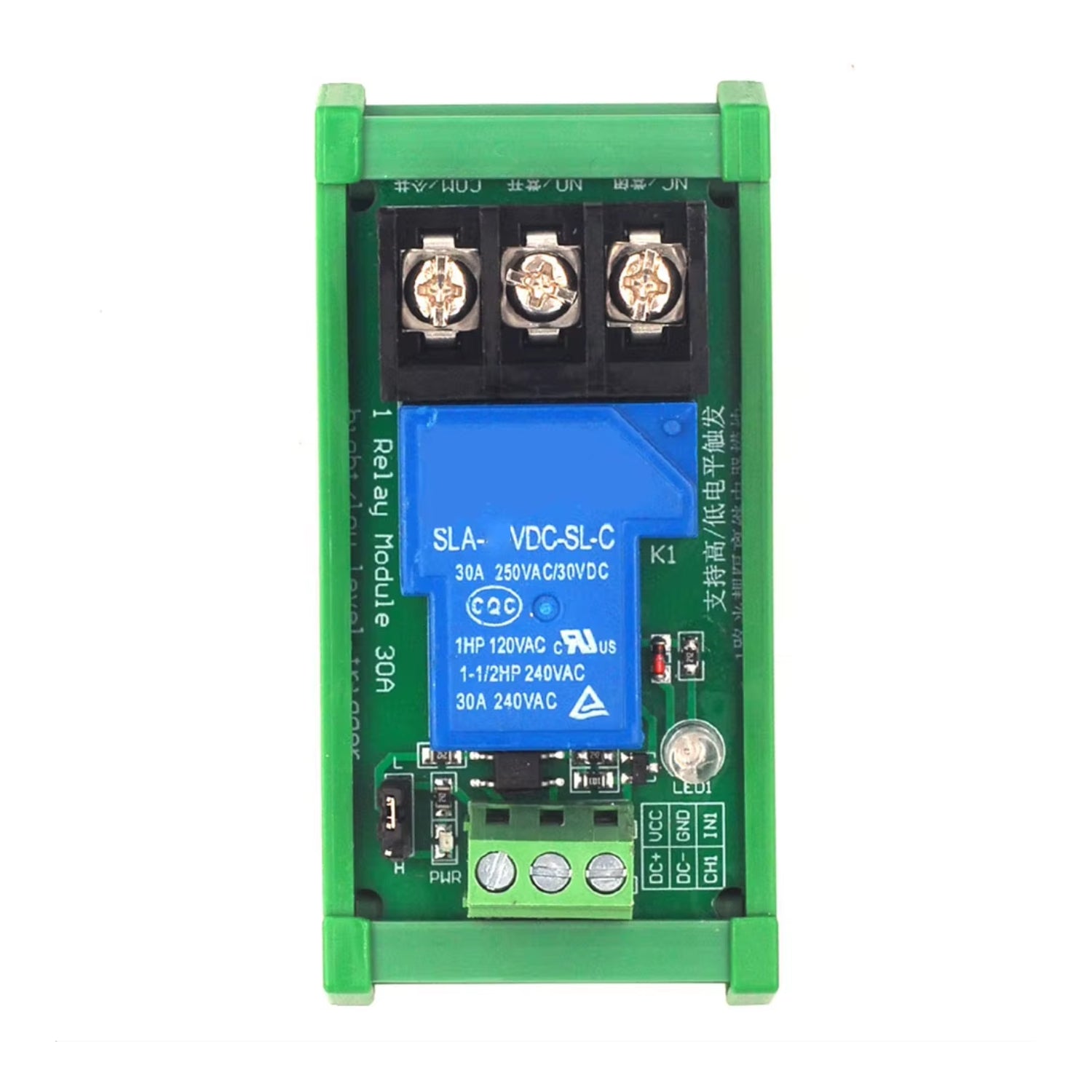

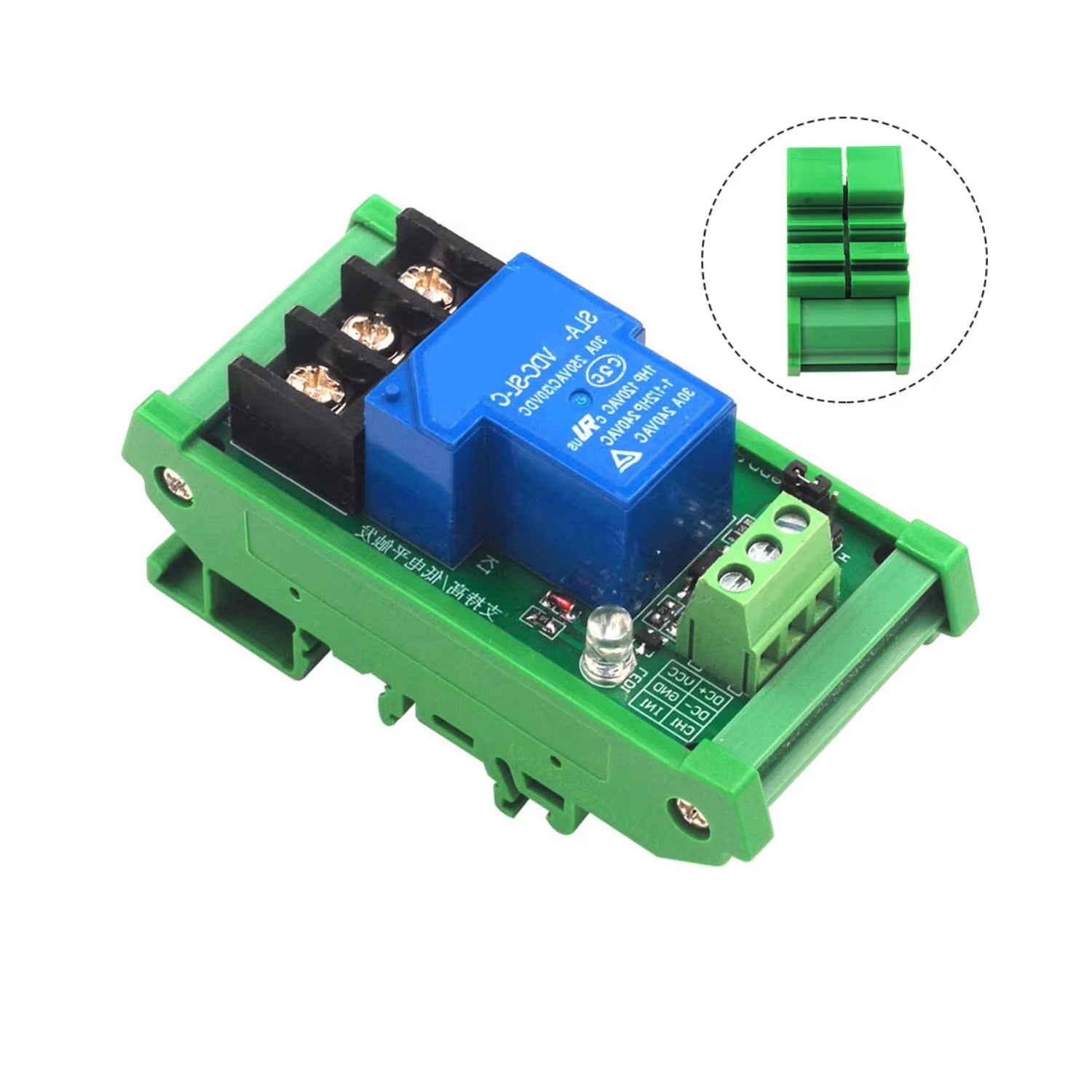

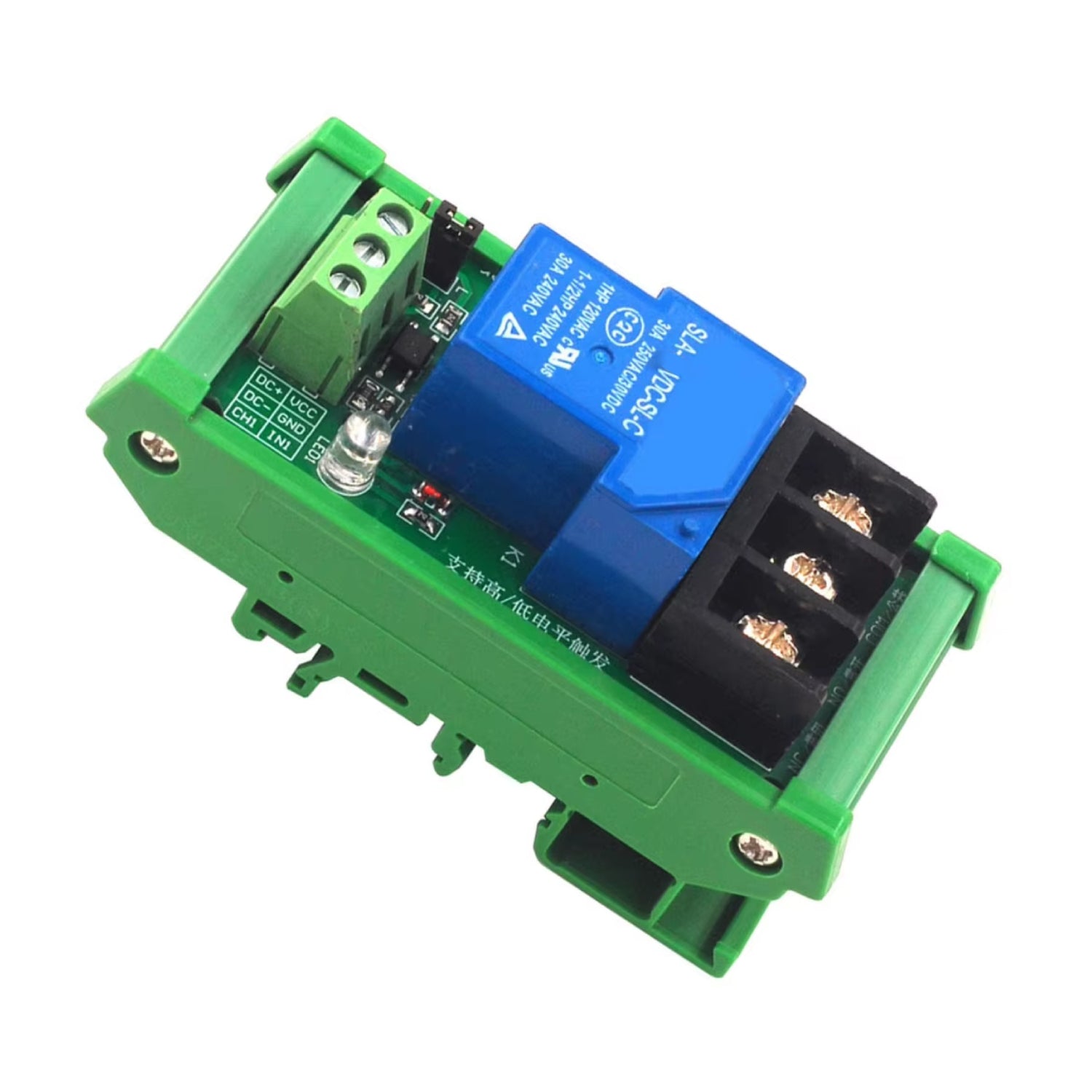

This 1-channel 24V 30A relay control board module with optocoupler modules is compliant with international safety standards, control, and load areas isolation trenches it has a single relay a genuine. The inputs of 1 Channel 24V 30A Relay Module are isolated to protect any delicate control circuitry.
Specifications:
| No. of Channels: |
1 |
|---|---|
| Operating Voltage (VDC) |
12 |
| Switching Voltage (VAC) |
250@30A |
| Switching Voltage (VDC) |
30@30A |
Features:
- Pull-down circuit for the avoidance of malfunction
- One normally closed contact and one normally open contact
- Control indicator lamp
- Triode drive, increasing relay coil
- High-impedance controller pin
- Power supply indicator lamp
- With 4 fixed screw holes, a hole diameter of 3.1mm, convenient installation, and fixation
Note:
- On the high-level and low-level-triggered mode, If You do not understand Please Check the Below Points.
- High-level trigger refers to the signal voltage between input and trigger, and can be understood as a signal input with VCC cathode short-circuit triggered away;
- Low-level trigger refers to the signal voltage between the input terminal and Earth OV trigger, which can be understood as a signal input terminal and the GND negative electrode short circuit triggered is a way 1-channel relay module connection.
Package Included:

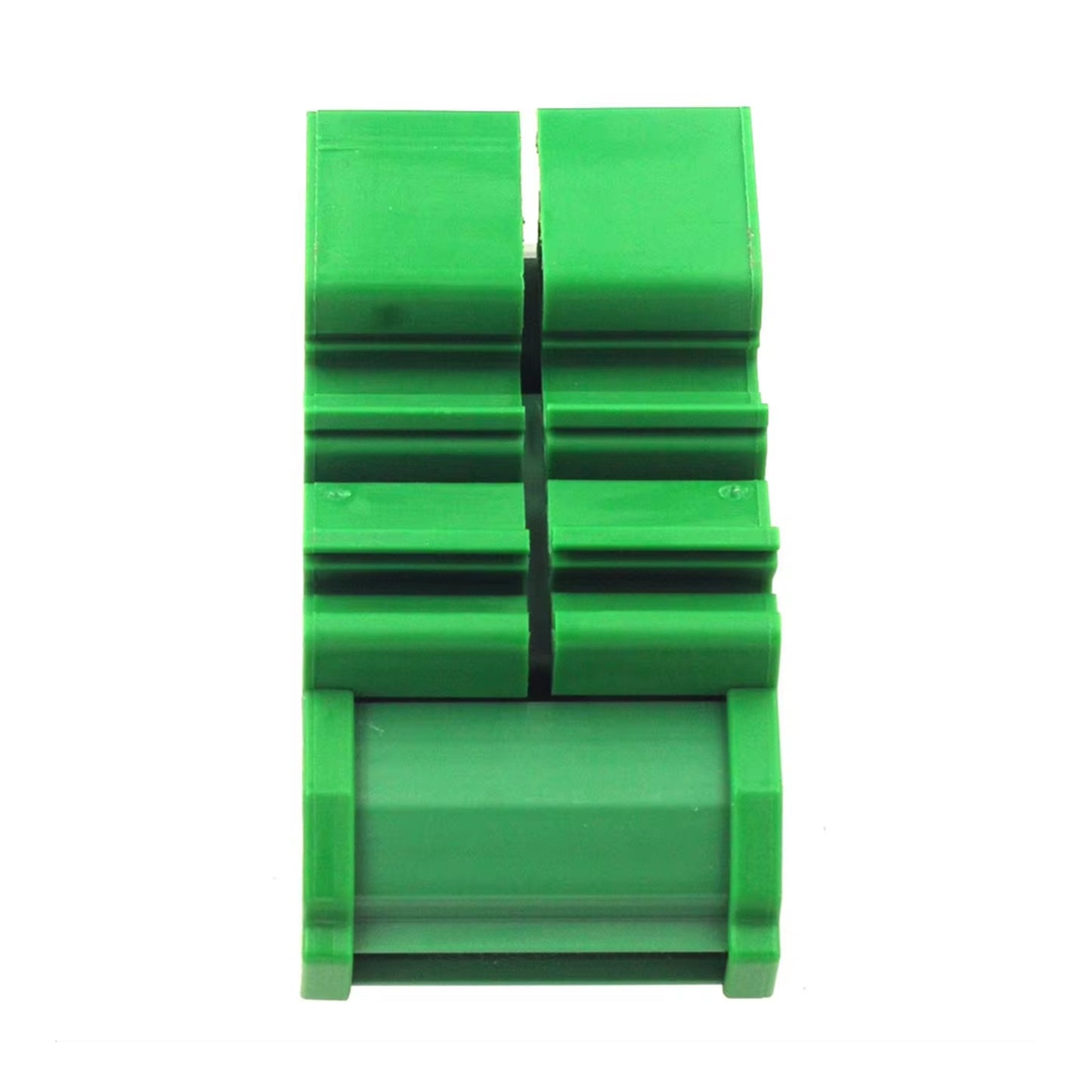

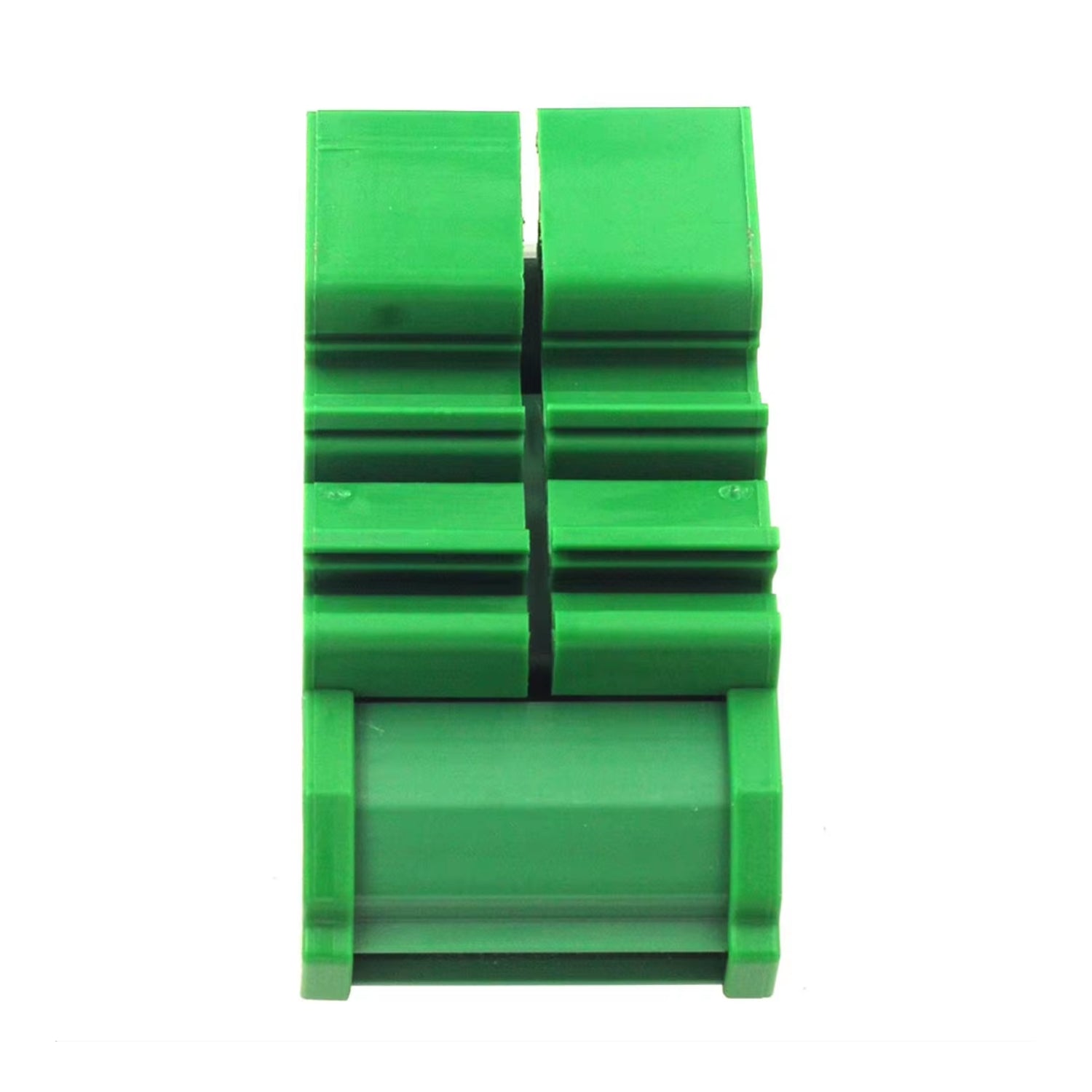

1 x 1 Channel 12V 30A Relay Module With Optocoupler And Guide Rail
