1.8 Inch SPI 128x160 TFT LCD Display Module With PCB for ARDUINO - RS3082

1.8 Inch SPI 128x160 TFT LCD Display Module With PCB for ARDUINO - RS3082

SKU:RS3082

48 in stock

Regular price Rs. 325.00
Regular price Sale price Rs. 325.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Driver IC : ST7735
  • Backlight : White
  • Input Voltage (V) : 3.3 to 5
  • Pixel Resolution : 128 X 160
  • Interface Type : SPI

Description :

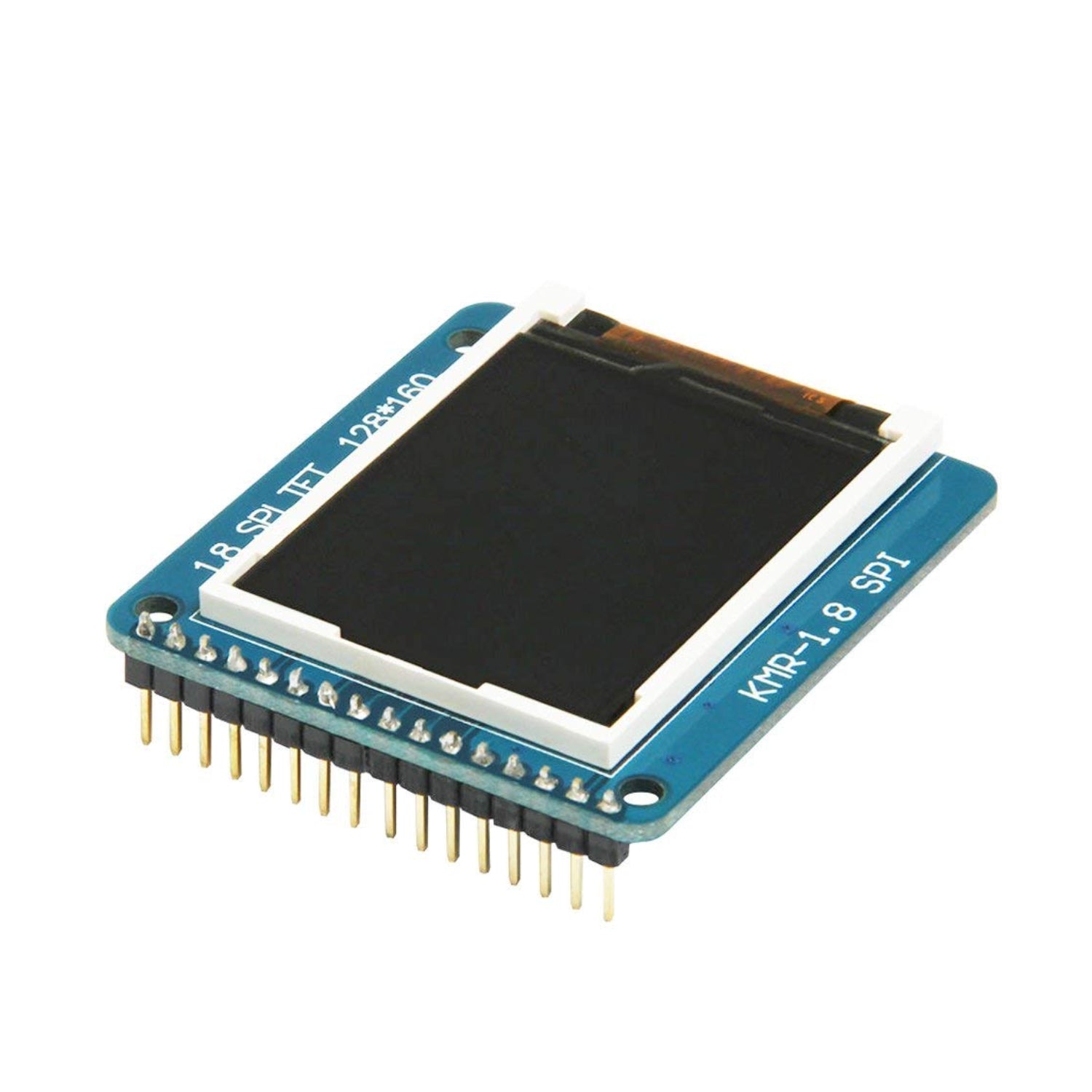

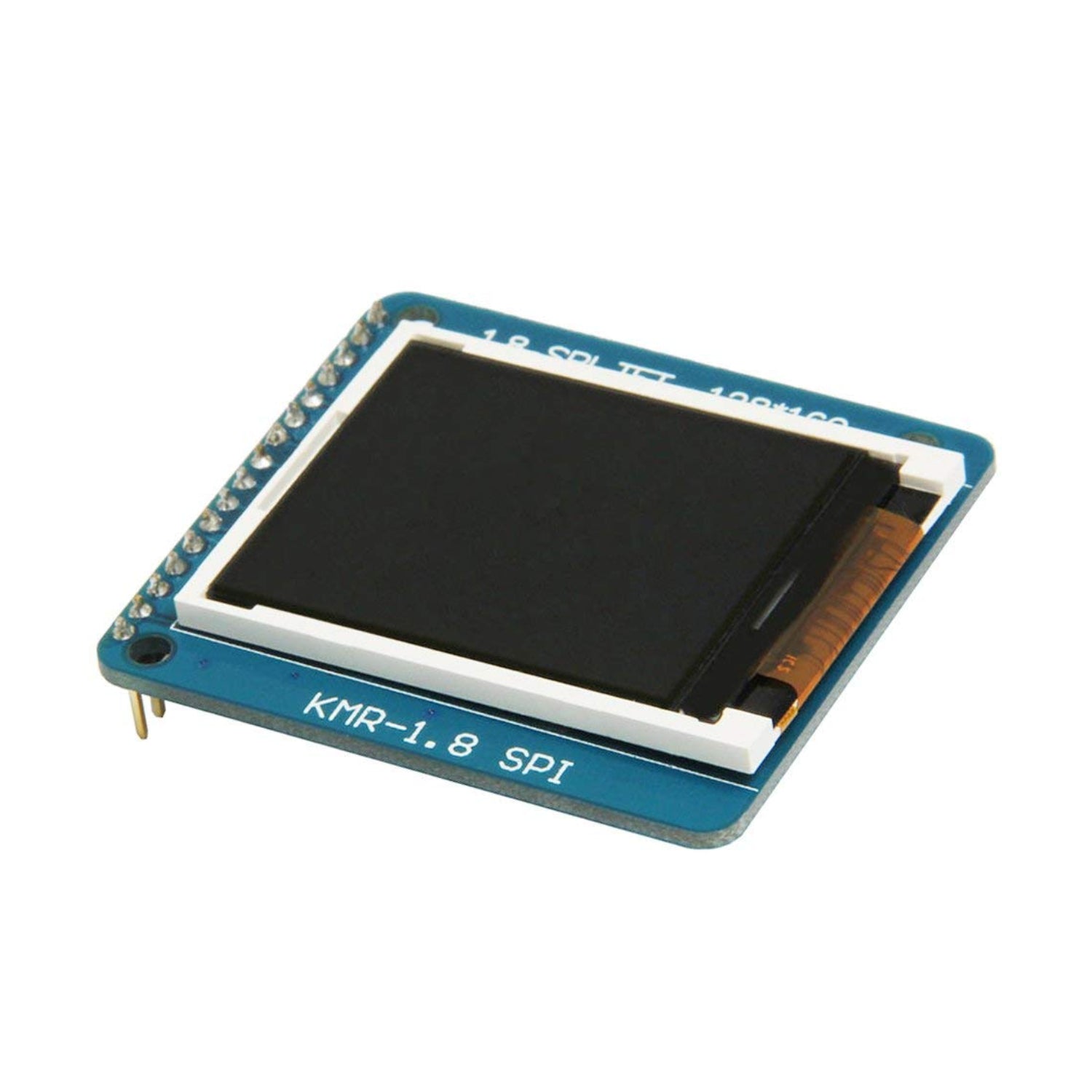

This lovely little display breakout is the best way to add a small, colorful and bright display to any project. Since the display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!
The 1.8 display has 128160 color pixels. Unlike the low cost Nokia 6110 and similar LCD displays, which are CSTN type and thus have poor color and slow refresh, this display is a true TFT! The TFT driver (ST7735R) can display full 18-bit color (262,144 shades!).

And the 1.8 Inch SPI 128160 TFT LCD Display Module will always come with the same driver chip so there are no worries that your code will not work from one to the other.

The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic.

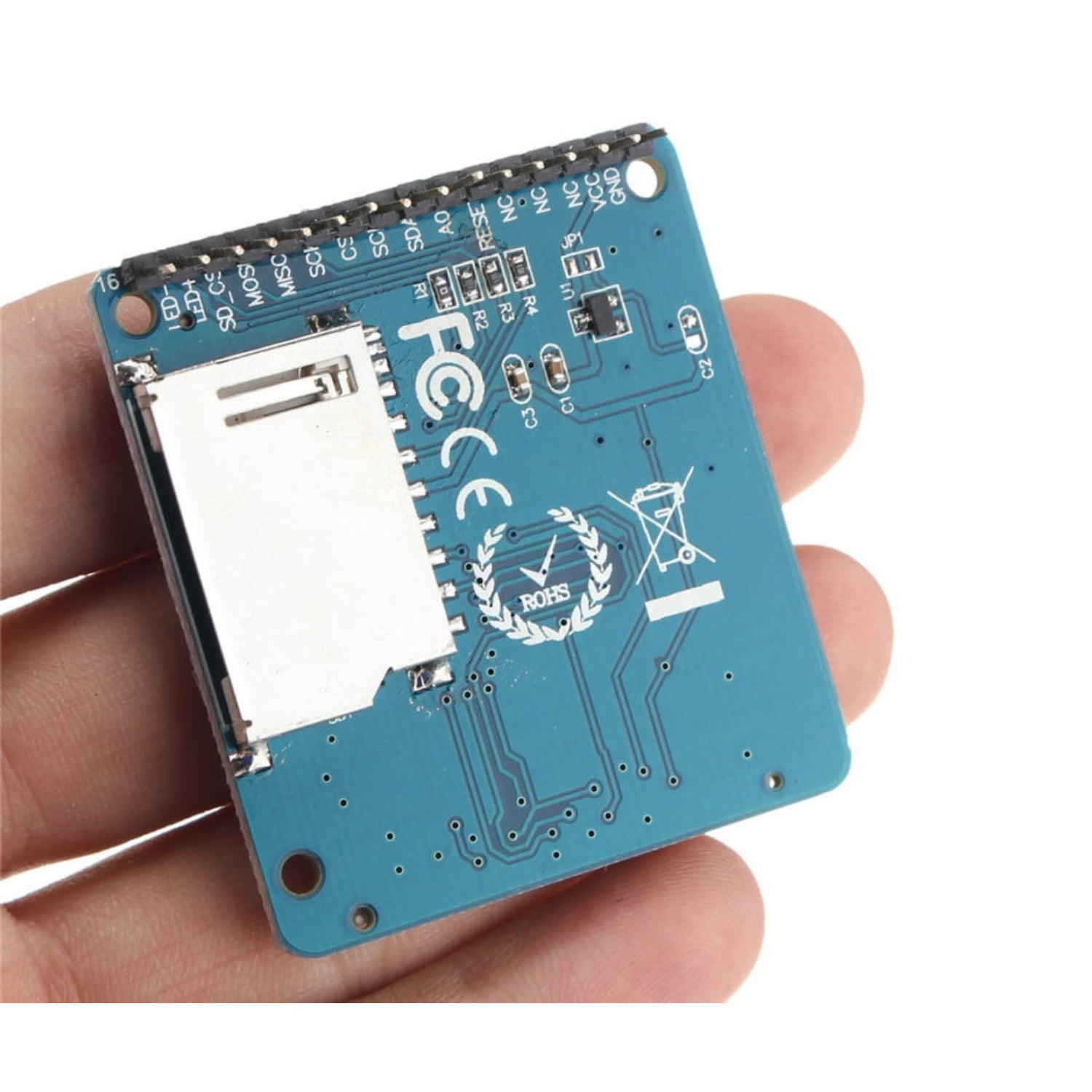

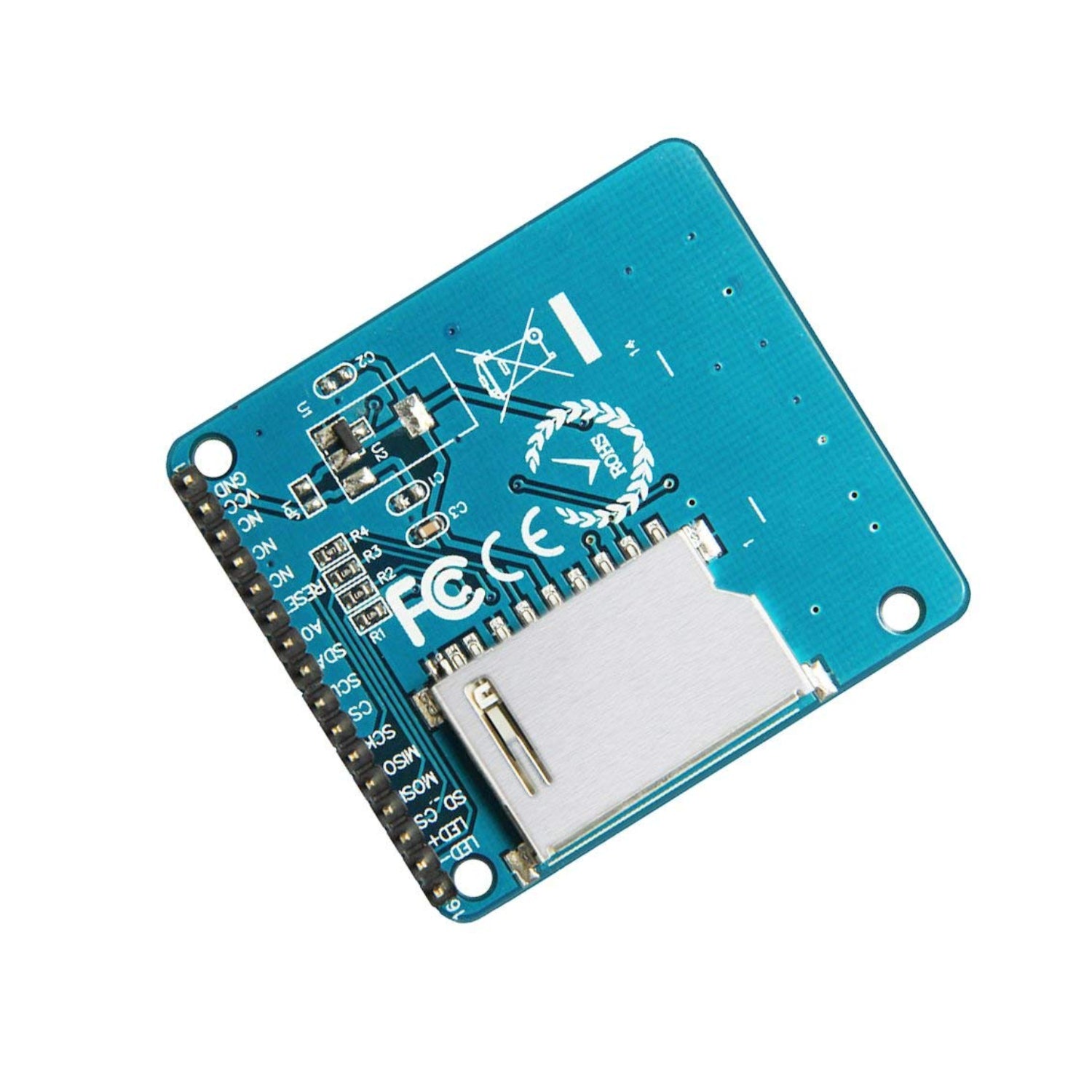

It features a micro SD card holder so you can easily load full color bitmaps from a FAT16/FAT32 formatted micro SD card.

Features :

  • Compatible with the 3.3/5V operation voltage level.
  • It comes with an SD card socket.
  • Features Backlight Control Circuit
  • SPI Serial bus-only require 4 IO least
  • Compatible with QD-UTFT library for Arduino

Additional information

  • Driver IC : ST7735
  • Backlight : White
  • Input Voltage (V) : 3.3 to 5
  • Pixel Resolution : 128 X 160
  • Interface Type : SPI

Package Include:

1 x 1.8-inch SPI 128*160 TFT LCD Display Module.
