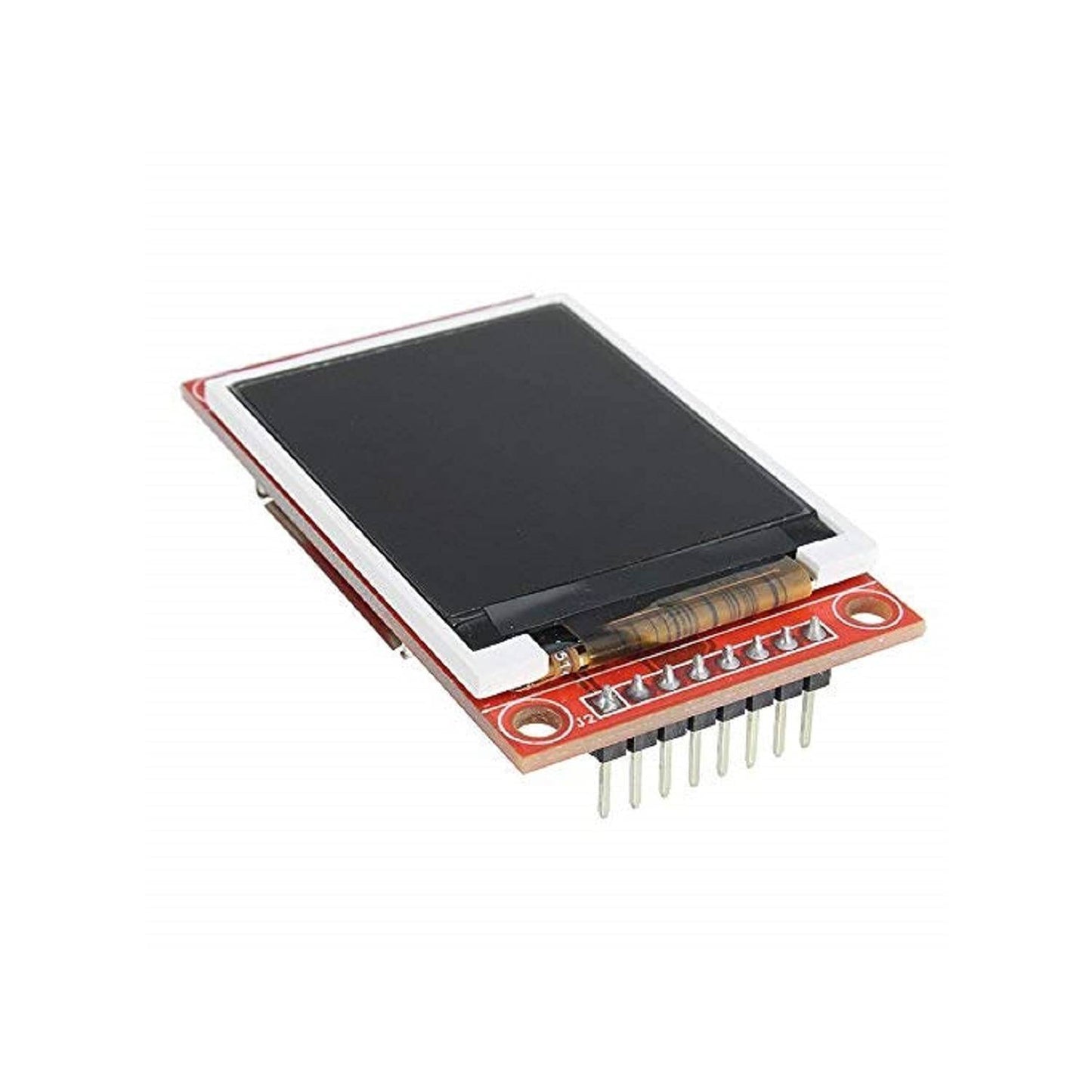

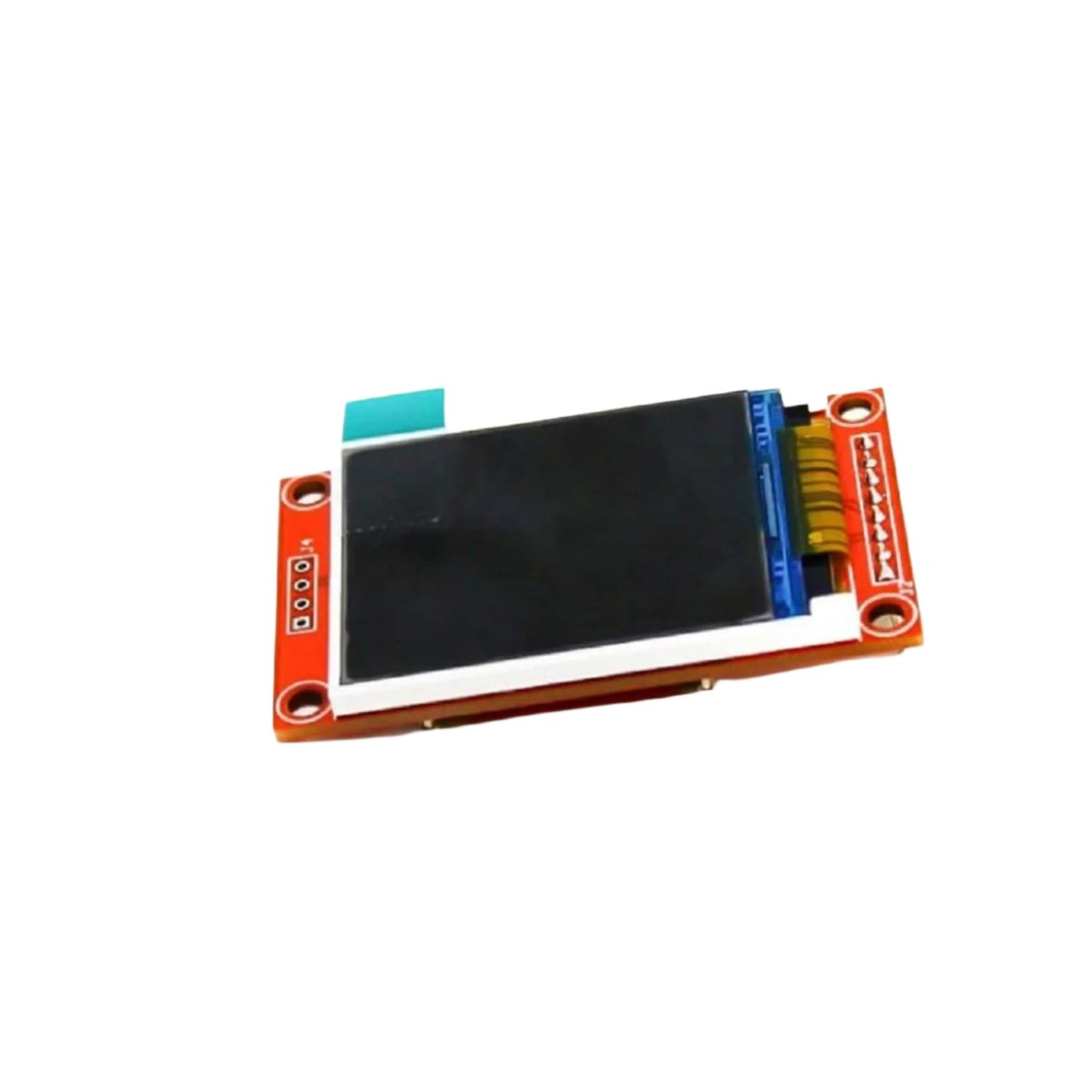

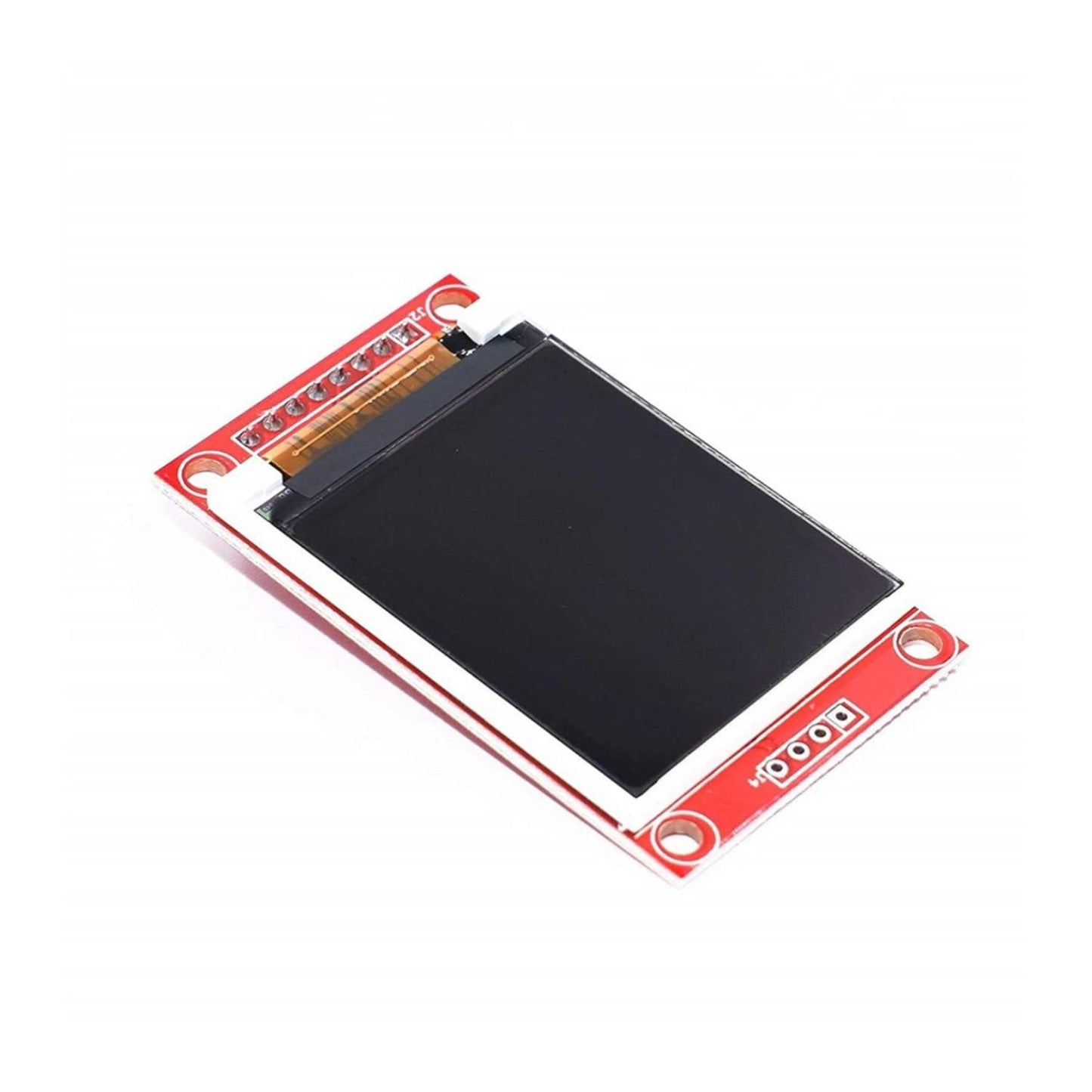

1.8 inch LCD Display Module ST7735 Driver TFT LCD Display 128x160 LCD Display 4 IO LCD Display Arduino Compatible LCD Microcontroller Compatible LCD - NA014

1.8 inch LCD Display Module ST7735 Driver TFT LCD Display 128x160 LCD Display 4 IO LCD Display Arduino Compatible LCD Microcontroller Compatible LCD - NA014

SKU:NA014

Low stock: 5 left

Regular price Rs. 365.00
Regular price Sale price Rs. 365.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The 1.8-inch TFT LCD Module display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer. It can be used with every kind of microcontroller. The 1.8-inch display has 128×160 color pixels.

This lovely little display breakout is the best way to add a small, colorful, and bright display to any project. Since the 1.8-inch TFT LCD Module display uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!


Specifications:

  • Item Type: Display
  • Input Voltage (V) 3.3 to 5
  • Pixel Resolution 128 x 160
  • Display Size (inch) 1.8
  • Driver IC ST7735
  • Interface Type SPI

Features:

  • 1.8-inch serial SPI color display module
  • Support analog SPI and hardware SPI
  • The LCD has a wide viewing angle, the contrast is also very suitable.
  • Good quality display.

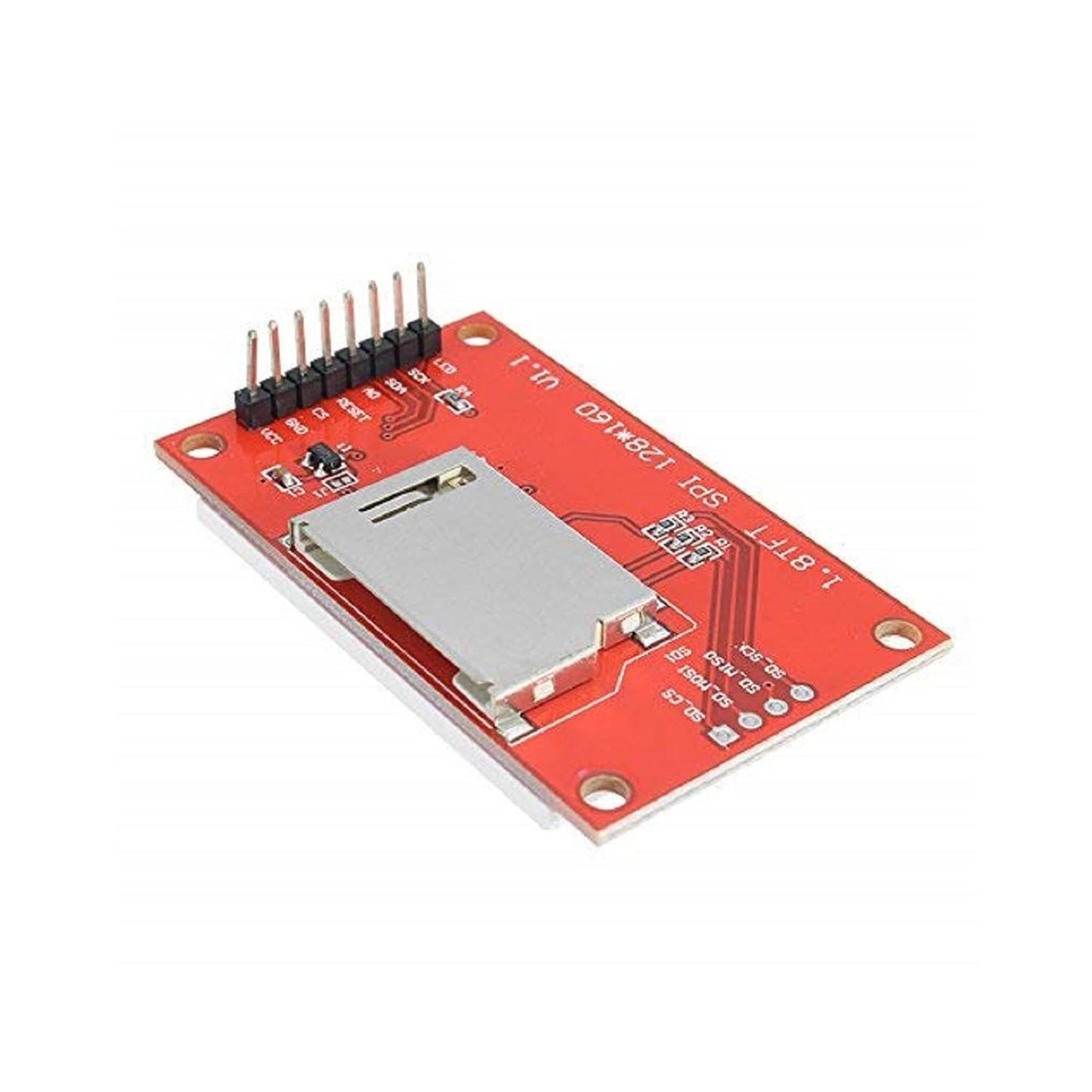

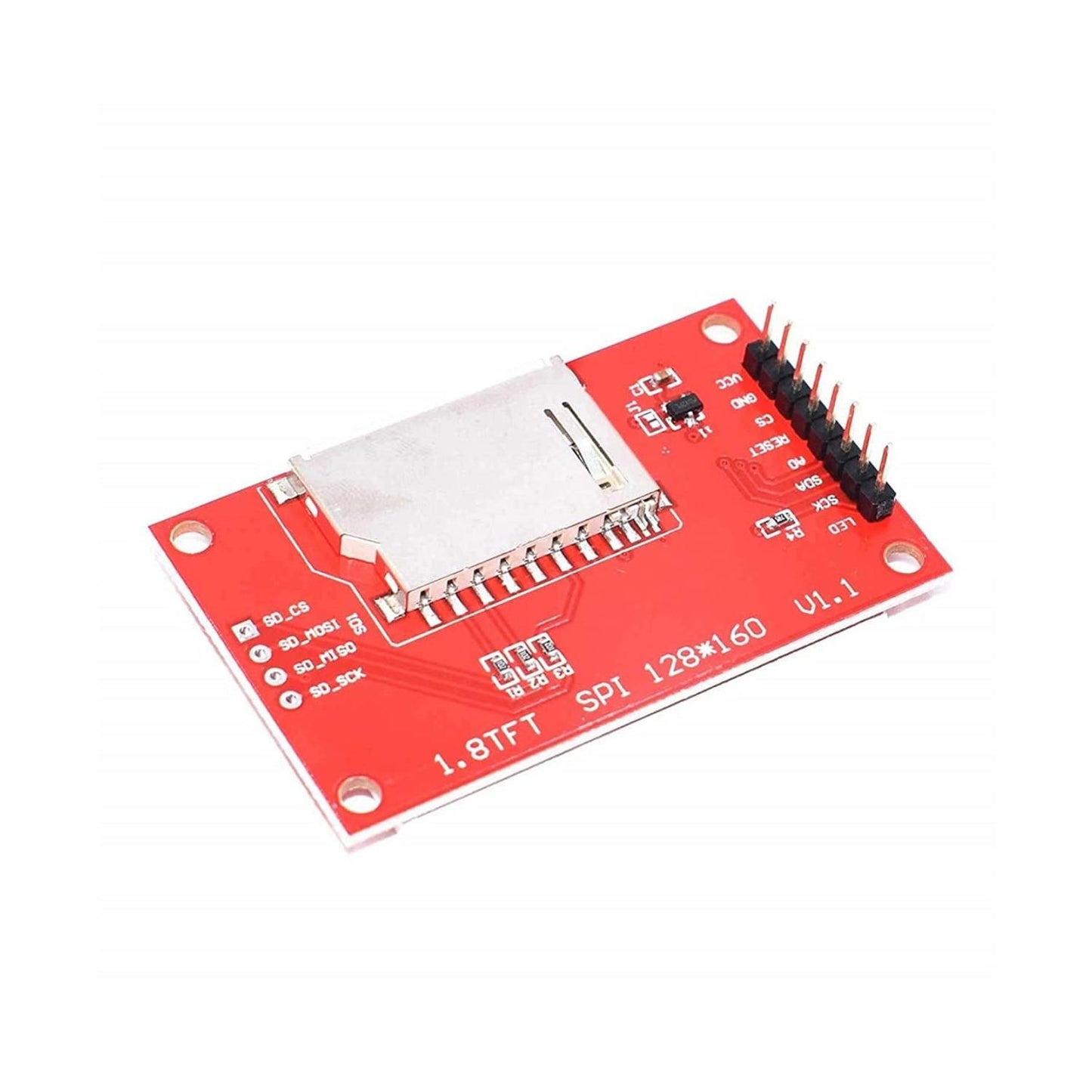

IO interface:

  • RESET: Directly to the microcontroller IO
  • CS: Directly to the microcontroller IO
  • A0: IO control registers select
  • SDA: IO control data transmission
  • SCL: IO control SPI bus
  • BL: High-Level 3.3V backlight on

Package Included:

1 x 1.8 inch LCD Display Module ST7735 Driver TFT LCD Display 128x160 LCD Display 4 IO LCD Display Arduino Compatible LCD Microcontroller Compatible LCD
