- Working Voltage: 3.3V
- Communication Interface: 3-wire SPI, 4-wire SPI
- Dimensions: 48mm x 33mm x 1.05mm
- Display Size: 27.6mm x 27.6mm
Description:

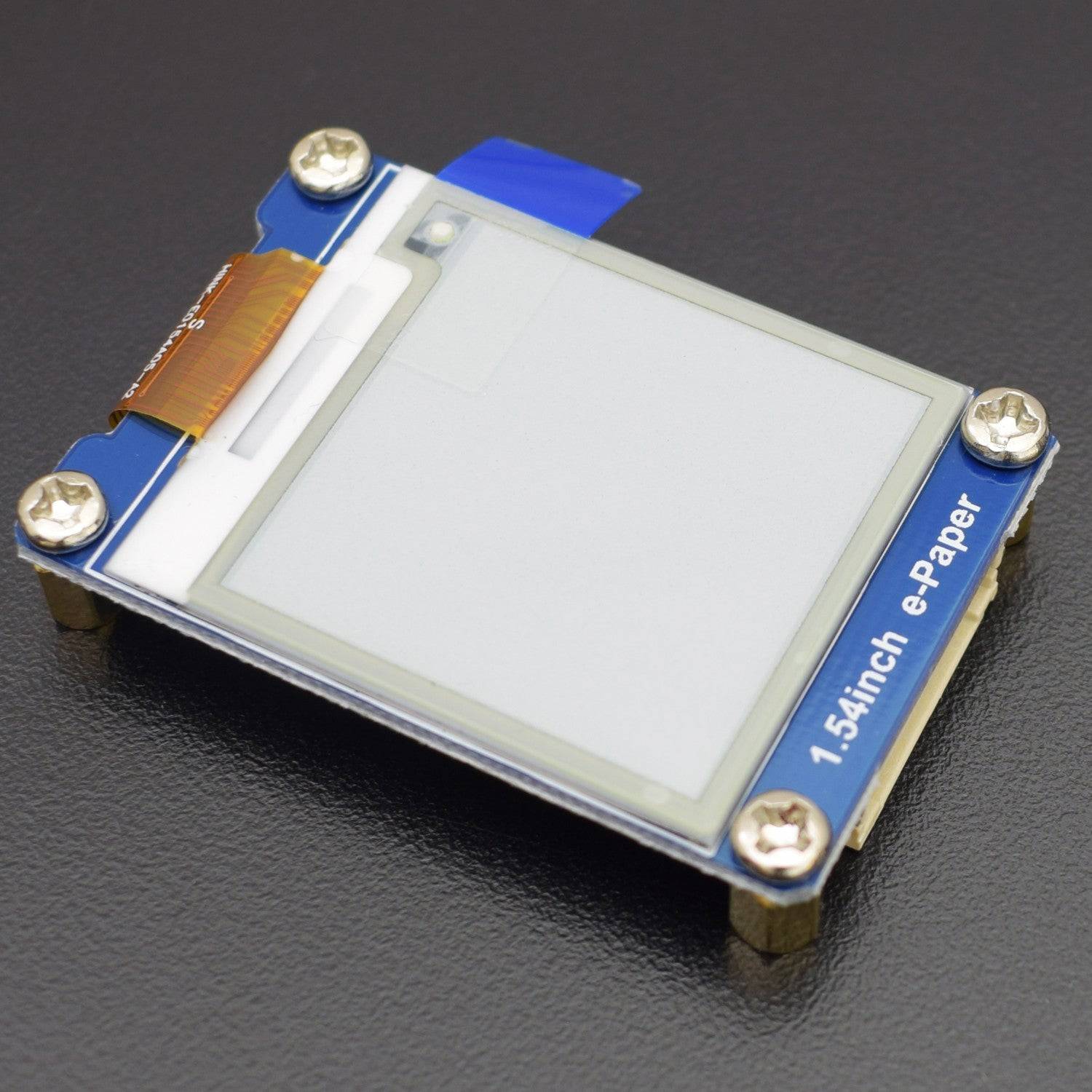

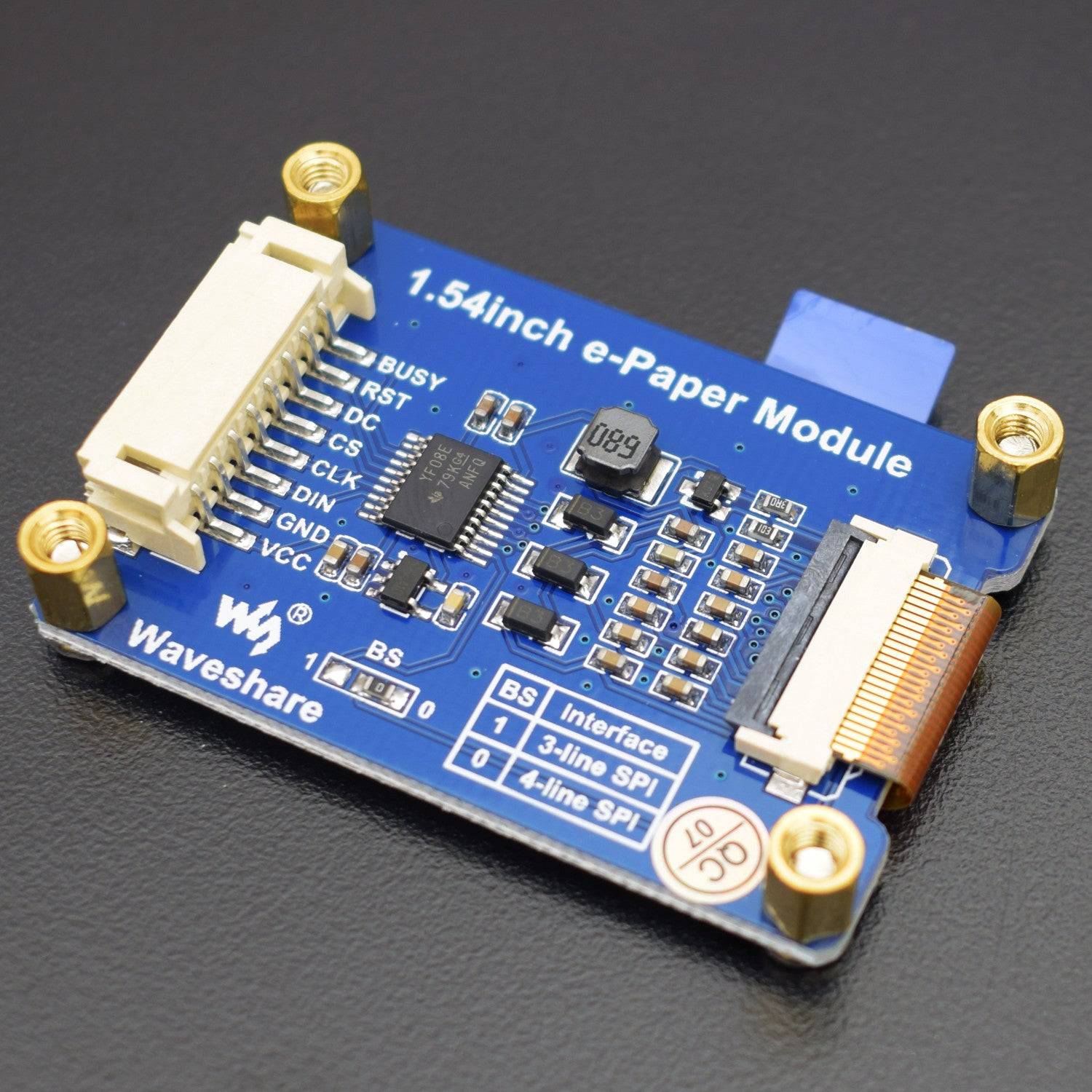

This is an E-Ink display module, 1.54inch, 200x200 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. No backlight, keeps displaying last content for a long time even when power down. On-board voltage translator, compatible with 3.3V/5V MCUs; SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Specification:
- Working Voltage: 3.3V
- Communication Interface: 3-wire SPI, 4-wire SPI
- Dimensions: 48mm x 33mm x 1.05mm
- Display Size: 27.6mm x 27.6mm
- Dot distance: 0.138 x 0.138
- Resolution: 200 x 200
- Display Color: Black and white
- Gray Level: 2
- Refresh Power Consumption: 26.4mW (type)
- Standby Power Consumption: <0.017mW
- Viewing Angle: >170°
Features:
- No backlight required, power off can keep the last screen display for a long time
- Very low power consumption, basically only consumes power when refreshing

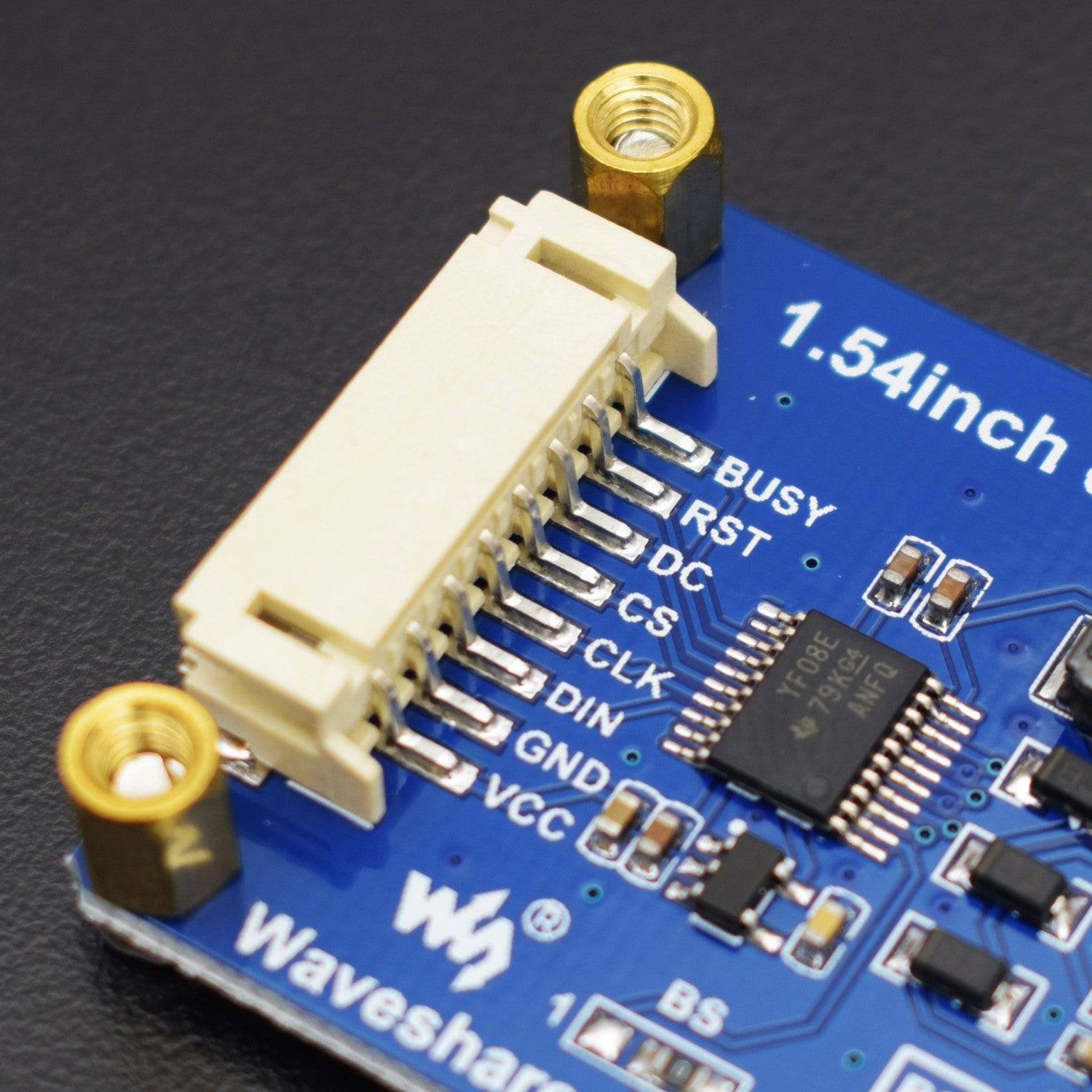

- SPI control interface, can access Raspberry / Arduino / Nucleo and other main control boards
Package Included:

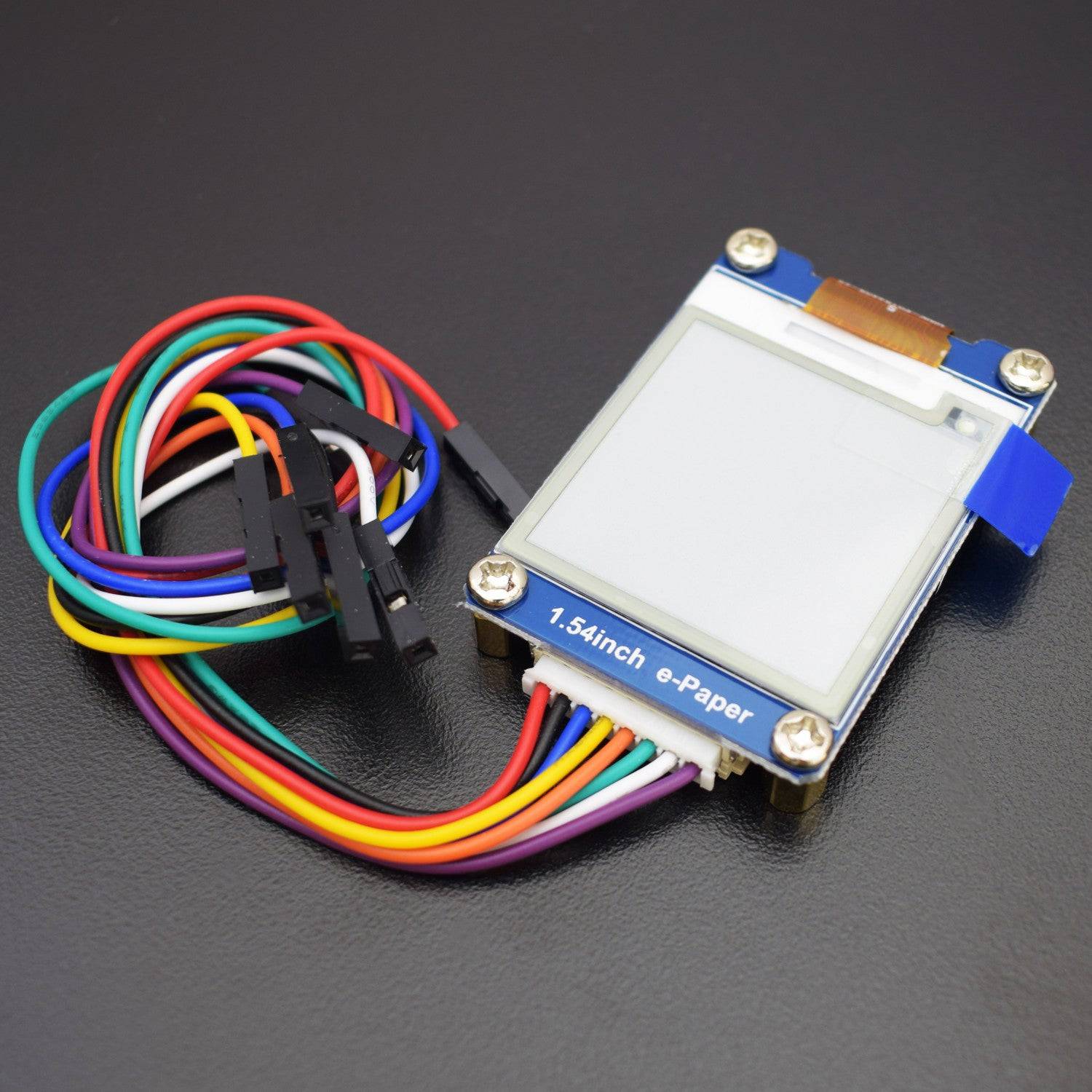

- 1 x 1.54 inch E-Paper Module

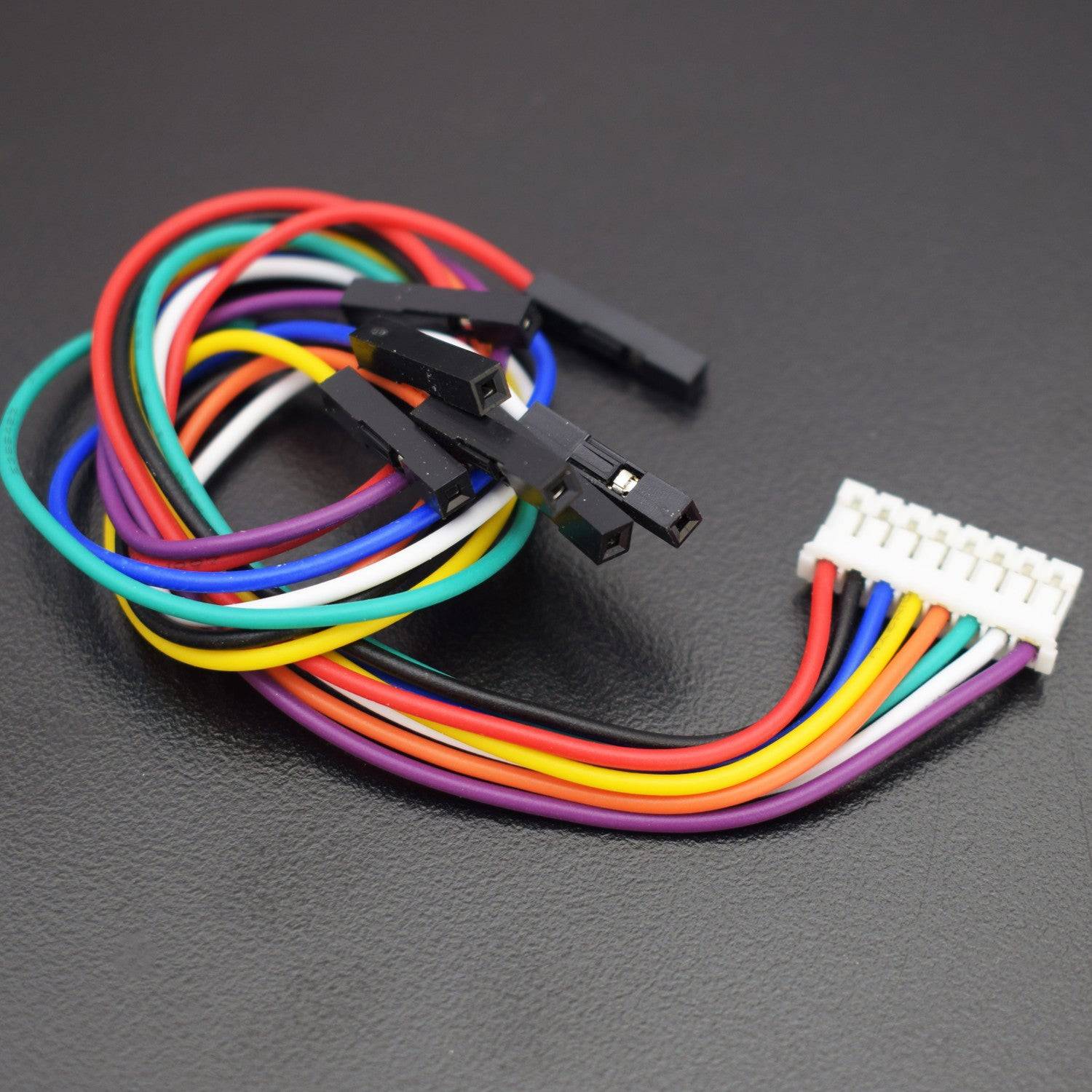

- 1 x Cable
