- Flow Range: 5-300L/min
- Sensor: Hall effect
- Maximum Current: 15 mA(DC 5V)
- Working Voltage Range: DC 5-18 V
Description:

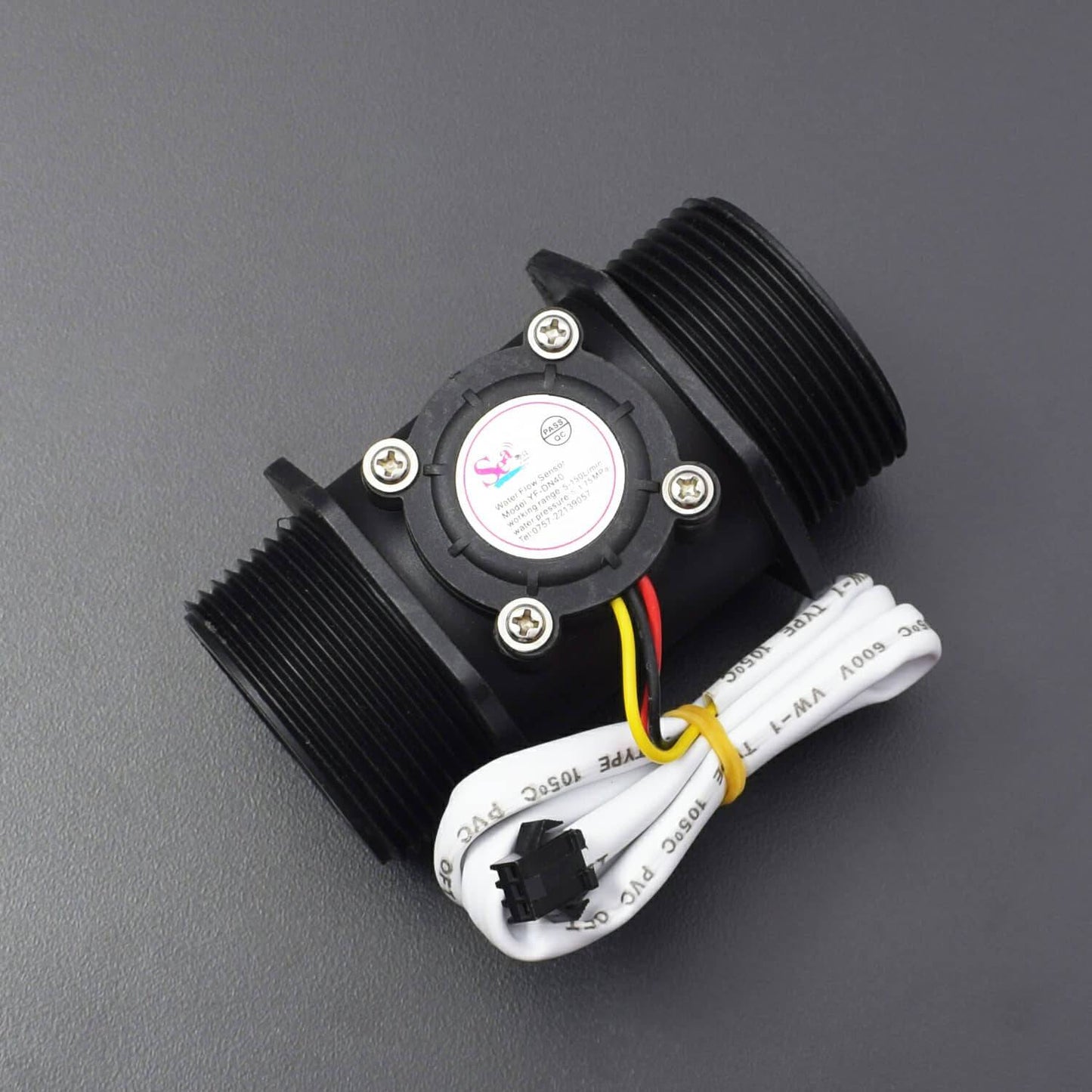

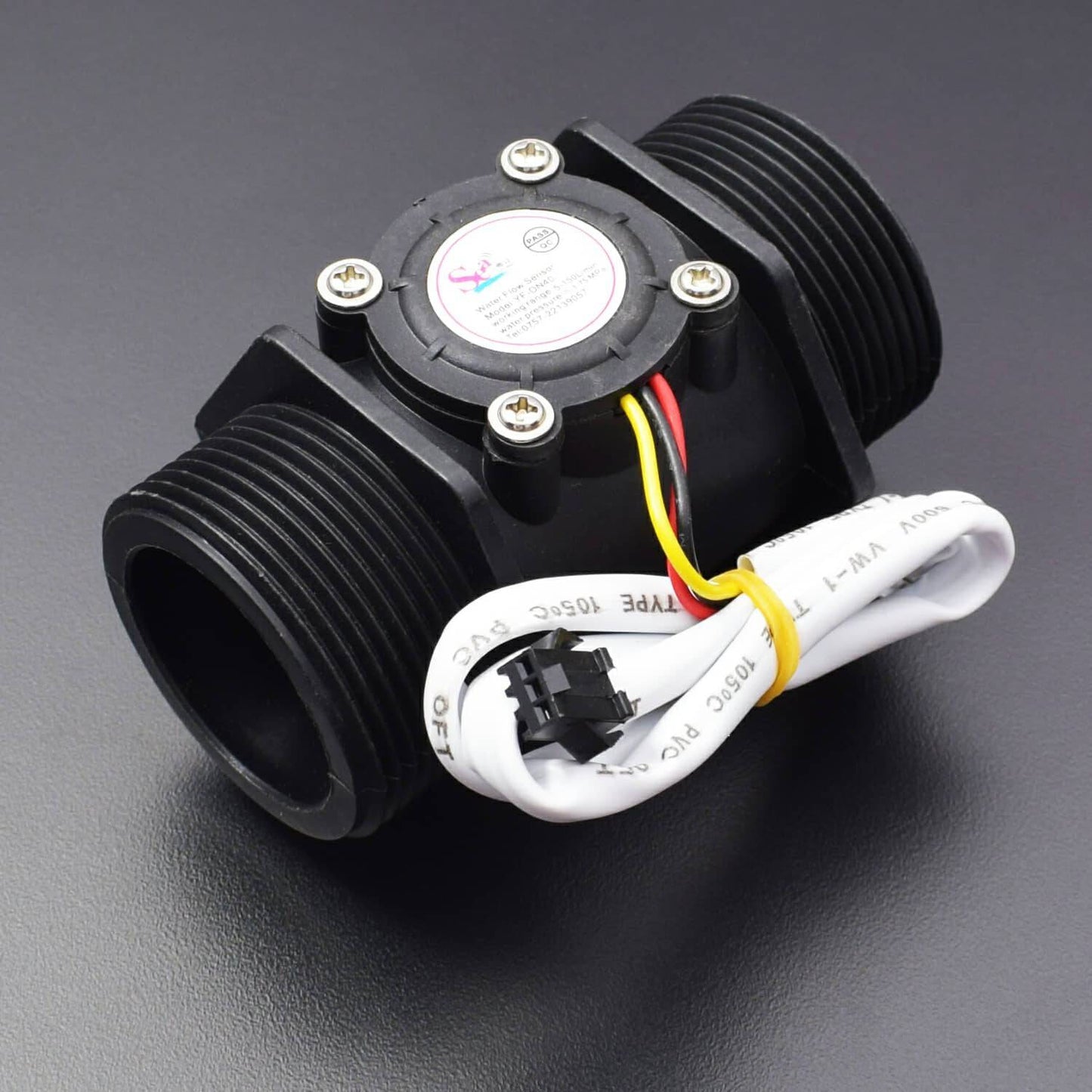

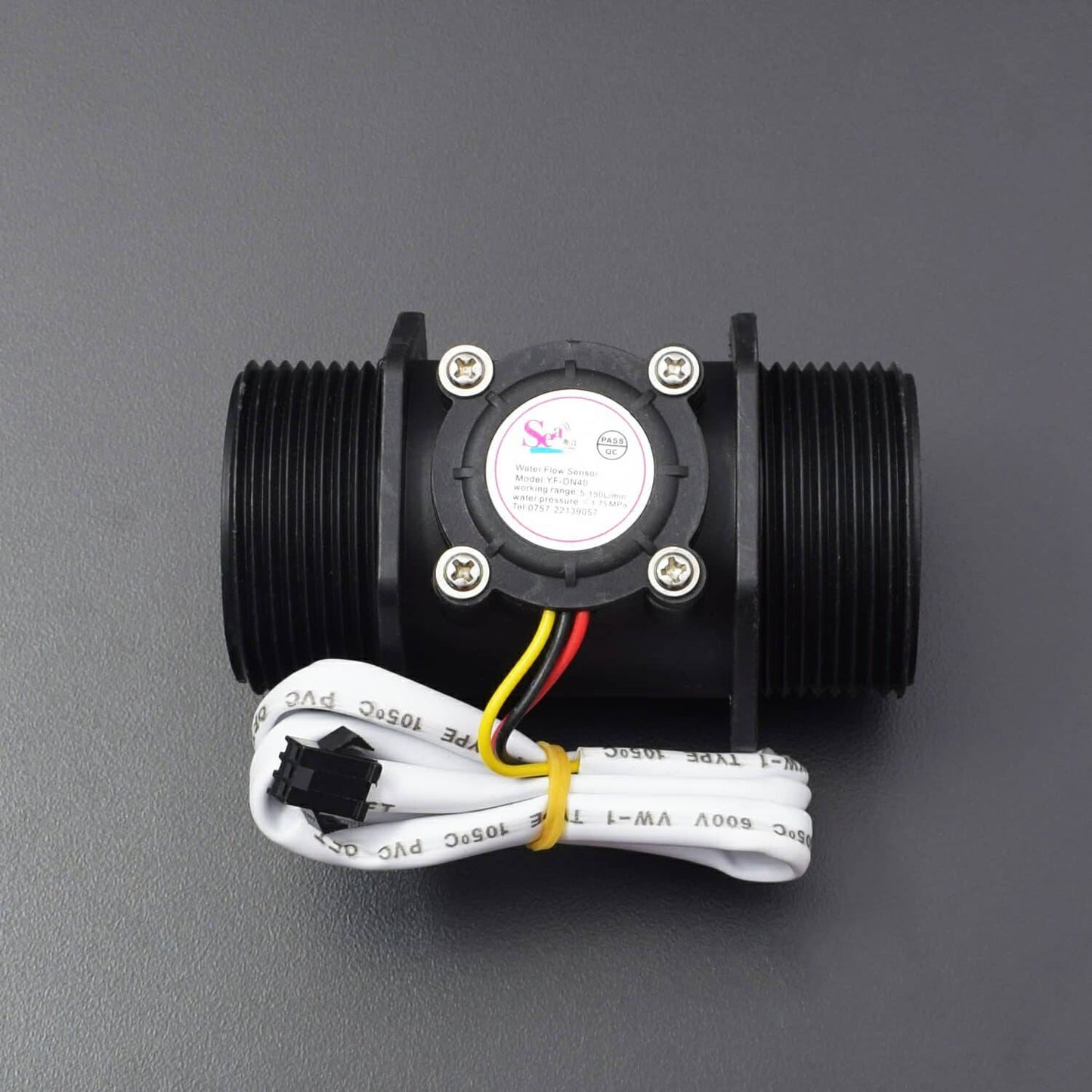

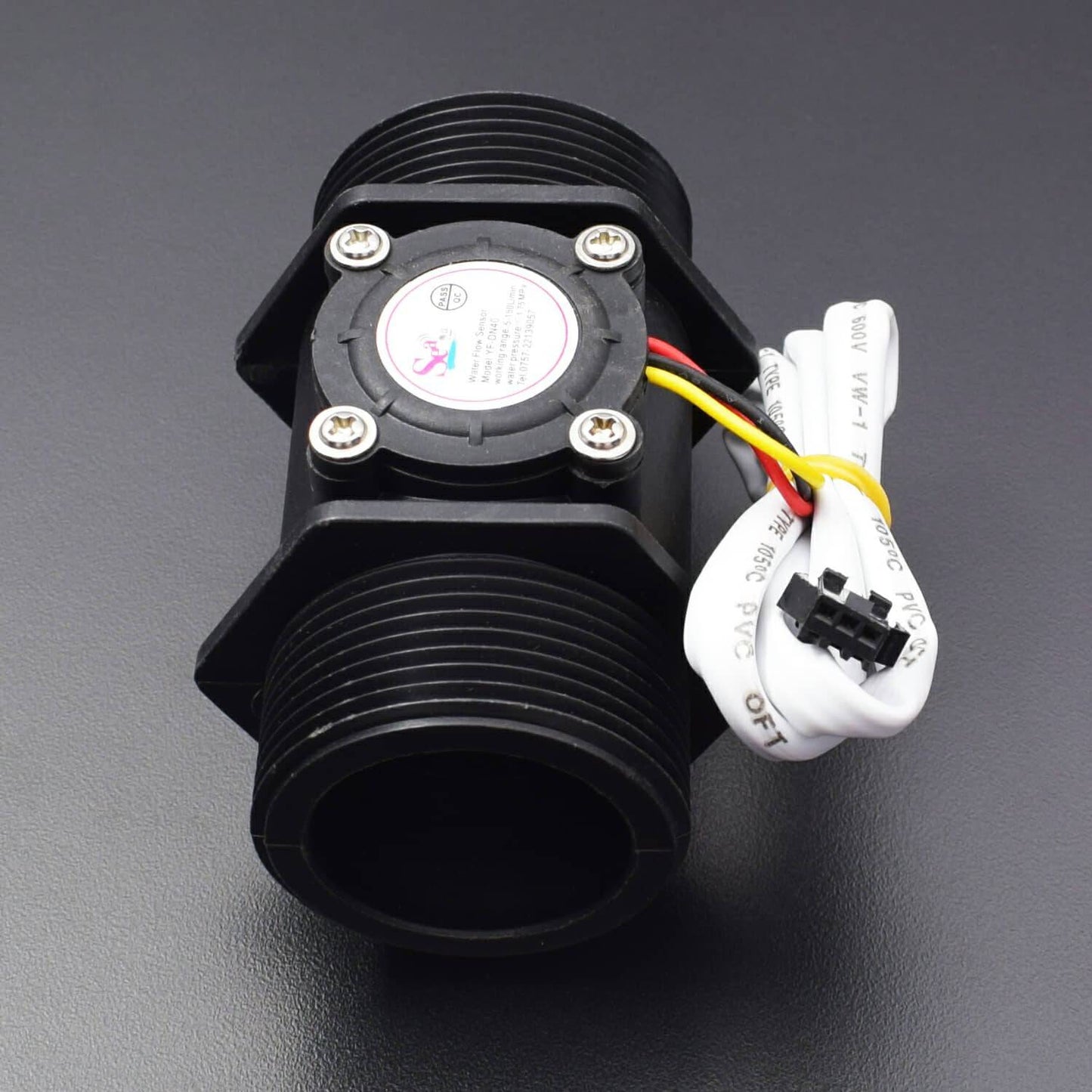

This is a 1.5" DN40 2~200L/min water Plastic Hall Turbine flow sensor. This Water Flow sensor includes a plastic body housing, a water rotor, and a hall-effect sensor, PCB electronics board. Its speed changes with different rates of flow. Then the magnetic rotor makes a reaction to the Hall sensor, the hall-effect sensor outputs the corresponding pulse signal.The flow sensor is suitable to detect the flow in a water dispenser or coffee machine.
Specification:
- Flow Range: 5-300L/min
- Sensor: Hall effect
- Maximum Current: 15 mA(DC 5V)
- Working Voltage Range: DC 5-18 V
- Load Capacity: ≤10 mA(DC 5V)
- Operating Temp: ≤80,Operating humidity:35%90%RH
- Allow Compression: Water pressure 1.75 Mpa below
- Insulation Resistance: >100M OHM
- Storage Temperature: -25+80
- Storage Humidity: 25%-95%RH
- Output Waveform: Square Wave, output pulse signal.
Features:
- Very easy to Install.
- Product with high sealing performance.
- High-quality Hall effect sensor.
- RoHS compliant.
Package Included:
1 x 1.5" DN40 2~200L/min water Plastic Hall Turbine flow sensor
