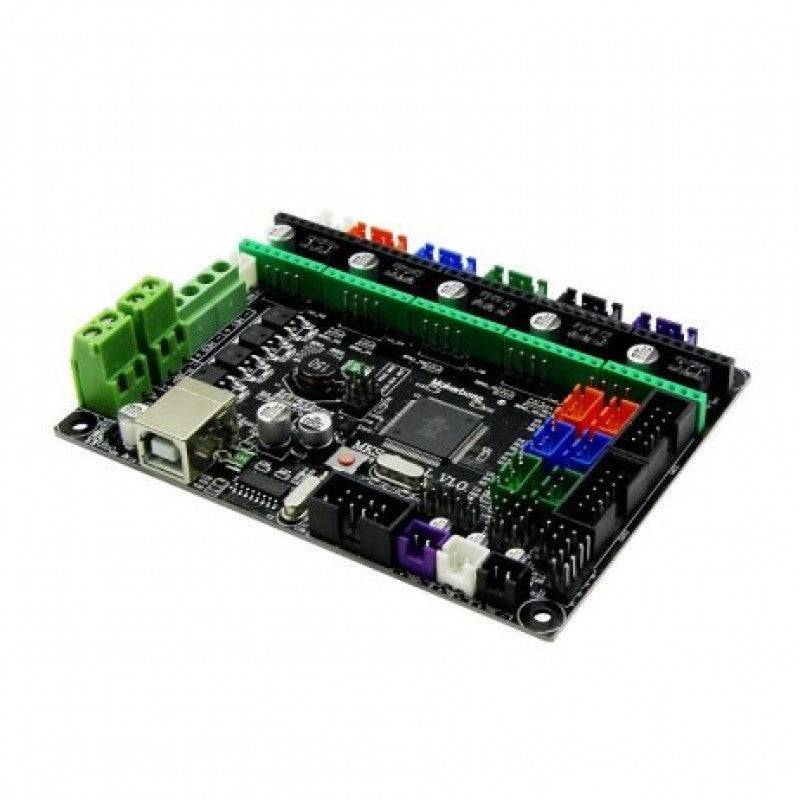

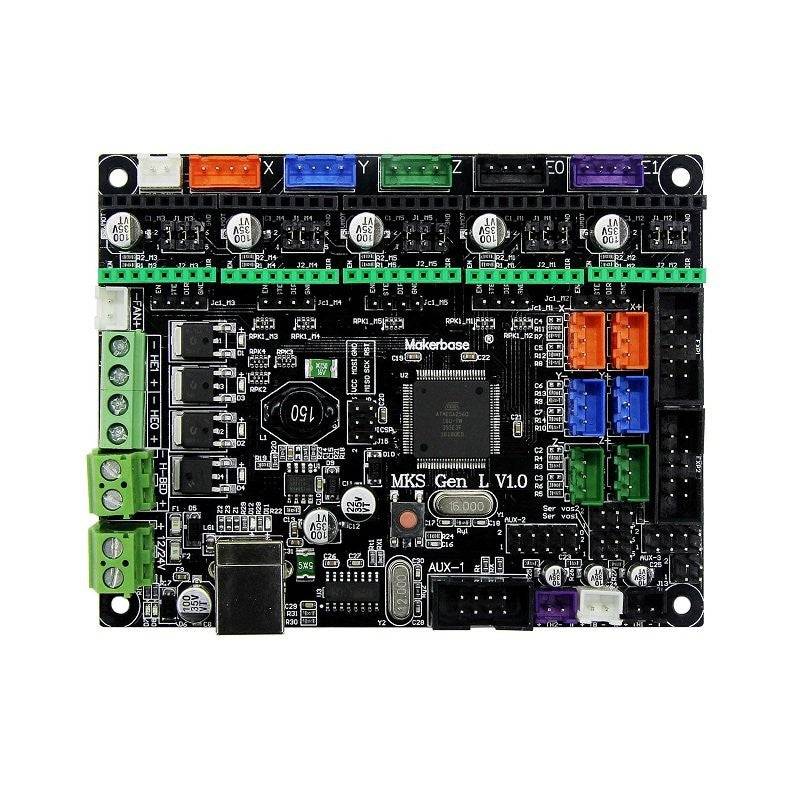

1.4 MKS Gen L V1.0 Mega2560 R3 RAMPS 3D Printer Controller Board - RS3135

1.4 MKS Gen L V1.0 Mega2560 R3 RAMPS 3D Printer Controller Board - RS3135

SKU:RS3135

Low stock: 8 left

Regular price Rs. 1,724.00
Regular price Sale price Rs. 1,724.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

The integrated mainboard driver MKS-GEN L V1.0 for 3D printer has been developed by Makerbase to optimize existing problems on the open-source controller board such as Ramps 1.4. This product offers more flexible options for users.

MKS BASE-L is a feature-rich all-in-one electronics solution for Reprap and other CNC devices. it features an onboard ATmega2560. Its five motor outputs are powered by A4982 stepper drivers. the board can use the same firmware like Ramps1.4. MKS BASE-L is designed to be flexible in user power source availability, enabling any power supply from 12 V-24 V.

MKS BASE-L is suitable for 3D printer manufacturers on batch production and is used as the main control board. Compared to the Ramps1.4, it adds E1 heating output.

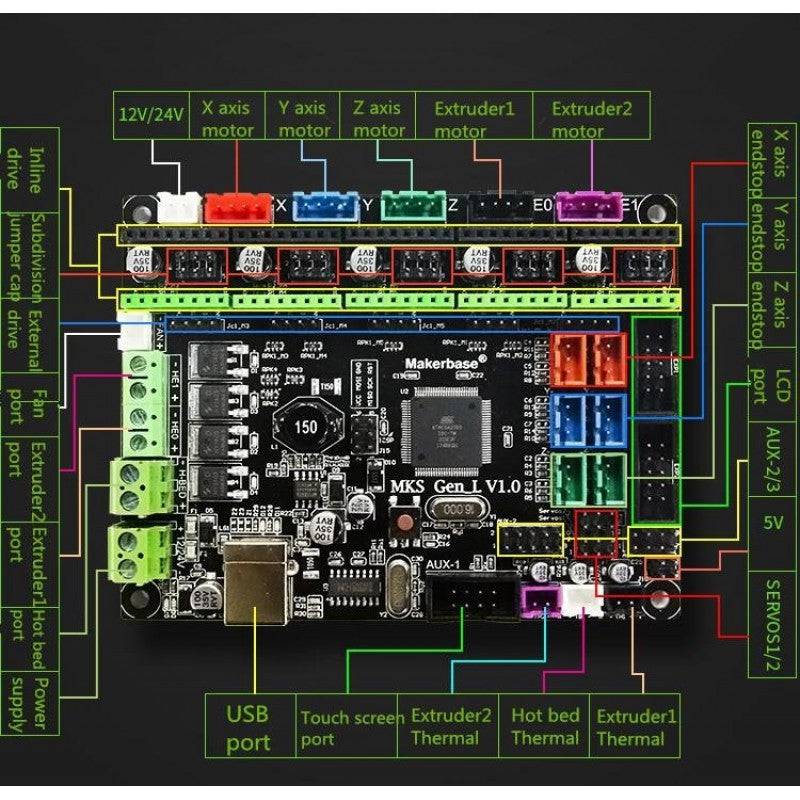

Features:

  • 2560 and Ramps 1.4 are integrated into the board
  • Support 12V-24V power input
  • Arduino MEGA compatible Atmega2560 and FT232 processors compatible with all RAMPS class firmware
  • Easy DISPLAY + SD-CARD connector, RepRapDiscount SmartController compatible pin header on board
  • Easy connect MKS TFT to AUX-1
  • 3x temperature ADC connectors for thermistors
  • Up 5 motor driver with A4982
  • 4x PWM enable mosfet outputs voltage selector switch for MainPower. (Bed, Extruder0, Extruder1, Fans)
  • 4 layers PCB, optimize heat dissipation

Package Included:

  • 1 x 1.4 MKS Gen L V1.0- Mega2560 R3 RAMPS 3D Printer Controller Board
  • 1 x USB interfacing cable (0.5Meter)
