Description:

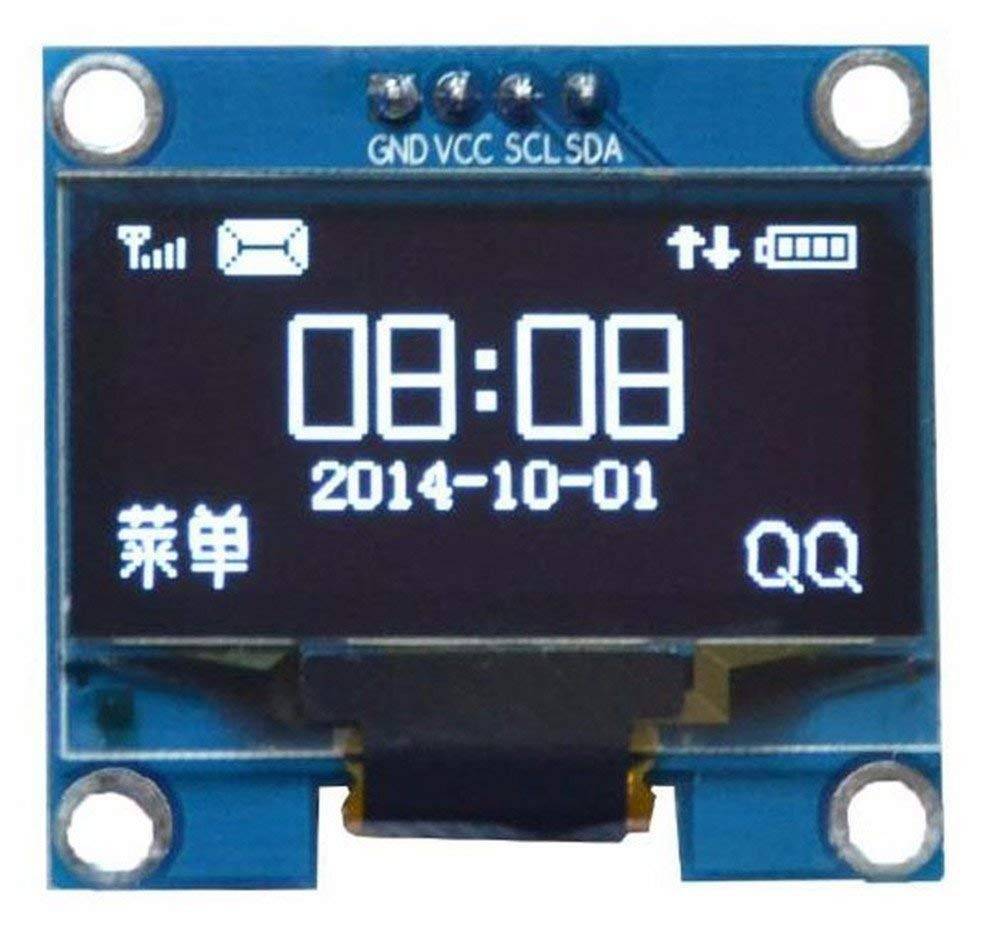

This 1.3 I2C OLED Display is an OLED monochrome 128x64 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. Compared to LCD, OLED screens are way more competitive and have a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3.3V-5V microcontroller, such as Arduino.
Specifications:
- Size: 1.3 inch
- Resolution: 128*64
- Controlling Chip: SSH1106
- Display Area: 29.42*14.7mm
- Driving Voltage: 3.3-5V
- Operating Temperature: -40~70 celsius
- Interface Type: IIC
- Light Color: White
Pin Description:
- GND: Power ground
- VCC: Power positive
- SCL: Clock wire
- SDA: Data wire
Package Included:
1 x 1.3" White 128x64 OLED LCD 4-Pin Display Module I2C IIC Serial Interface for Arduino
