1.3 Inch 128x64 OLED Display Screen Module with SPI Serial Interface V2 - RS3543

1.3 Inch 128x64 OLED Display Screen Module with SPI Serial Interface V2 - RS3543

RS3543

24 in stock

Rs. 355.00
Rs. 355.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

OLEDs are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCDs and LEDs.

The most attractive thing about using OLED displays is that they do not need a backlight like conventional LCD/LED screens. The organic material itself has a property known as Electroluminescence (EL), which causes the material to glow when stimulated by a current or an electric field. Best energy-saving displays ever!!!

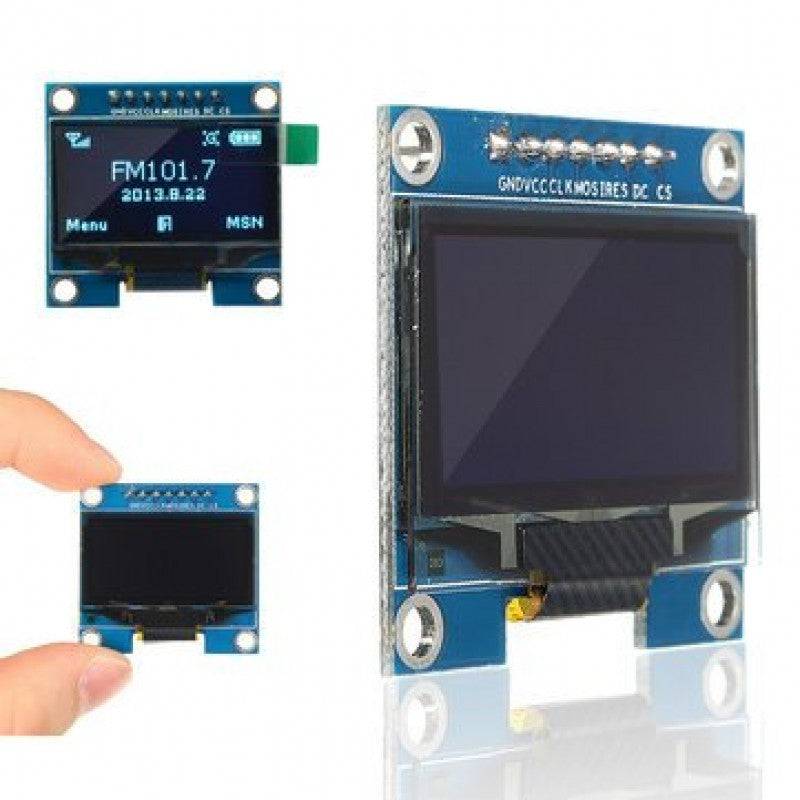

This 1.3 Inch 128x64 OLED Display Screen Module offers 128x64 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colours.

This OLED Display Module is very compact and will add a great ever-user interface experience to your ARDUIN0 project. The connection of this display with ARDUIN0 is made through the SPI interface.

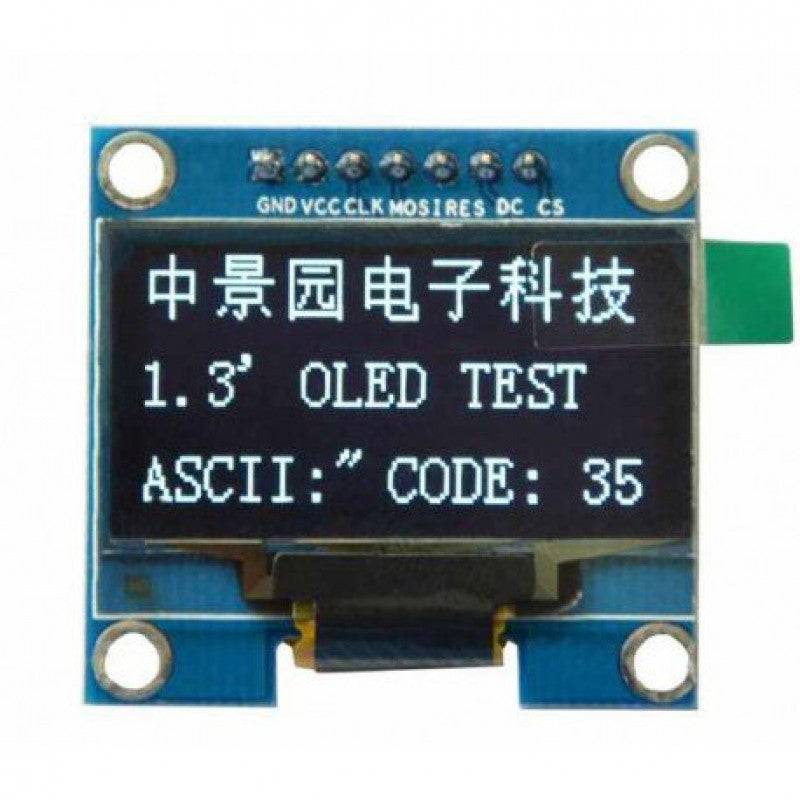

The 1.3 Inch 128x64 OLED Display Screen Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offer a very wide viewing angle of about greater than 160.

Specification:

  • Driver IC: SSD1306
  • Pixel Resolution: 128 x 64

    This OLED display screen module features a 1.3 inch size and 128x64 resolution, providing a clear and high-quality display. With its SPI serial interface V2, it allows for easy communication and integration into various devices. Upgrade your project with this efficient and reliable display module.

  • Operating Voltage (VDC): 3.3 ~ 5
  • Operating Temperature(°C): -30 to 60
  • Character Color: Blue
  • Background Color: Black

Features:

  • No need for the backlight
  • The display is self-illuminating
  • Power requirement is low
  • They are offering the large viewing angle
  • Full Compatible with ARDUIN0
  • The ultra-low power consumption of around 0.08w at full screen lit.

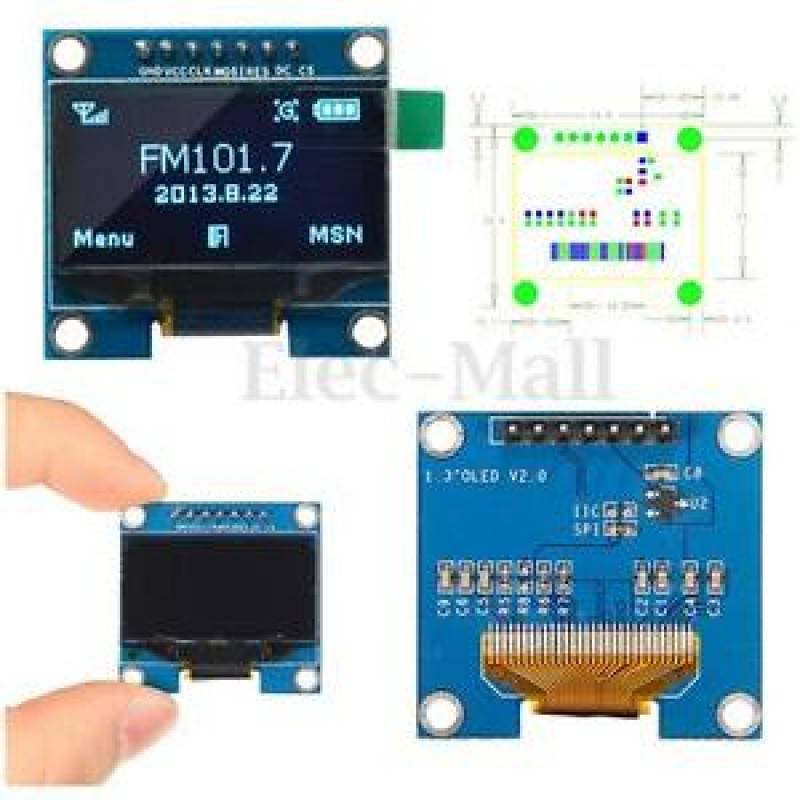

Pin Description:

OLED Display Module to ARDUIN0

  • GND: GND
  • VDD:3.3V (VCC)
  • MOSI: D11 (don't change)
  • SCK: D13 (don't change)
  • D/C: D8 (can be any digital pin)
  • RST: D9 (can be any digital pin)
  • CS: D10 (can be any digital pin)

Package Included:

1 x 1.3 Inch 12864 OLED Display Screen Module with SPI Serial Interface V2
