Description:
This 1/3" CMOS 1500TVL FPV Camera can be used as both PAL and NTSC. The toggle switch is provided on the camera by which you can enjoy the operation of PAL or NTSC mode. This camera is very compact and easy to use.
This 1/3" CMOS 1500TVL FPV Camera is tailored for FPV, dedicated to FPV HD aerial camera. 1/3" CMOS 1500TVL FPV Camera creates a delicate clear image, micro ultralight design, and high-definition colour.
Specifications:
- Model: MINI B19 Orange
- Image Sensor: 1/3'' CMOS
- Horizotal Resoulution: 1500TVL
- Signal System: PAL/NTSC (OSD Internal adjustable)
- Lens: 2.1mm
- Auto Gain Control(AGC): LOW/MIDDLE/HIGH
- S/N Ratio: more than 60Db(AGC OFF)
- Backlight compensation(BLC): YES
- WDR: D-WDR
- Power: DC 5V-30V
- Electronic Shutter Speed: PAL
- DNR: 3DNR
- Min Illumination: 0.001Lux/1.2F
Features:
- Illumination, the effect is a good, quality-assured, ultra-small size, very suitable for FPV.
- Color fidelity, low illumination, micropower consumption.

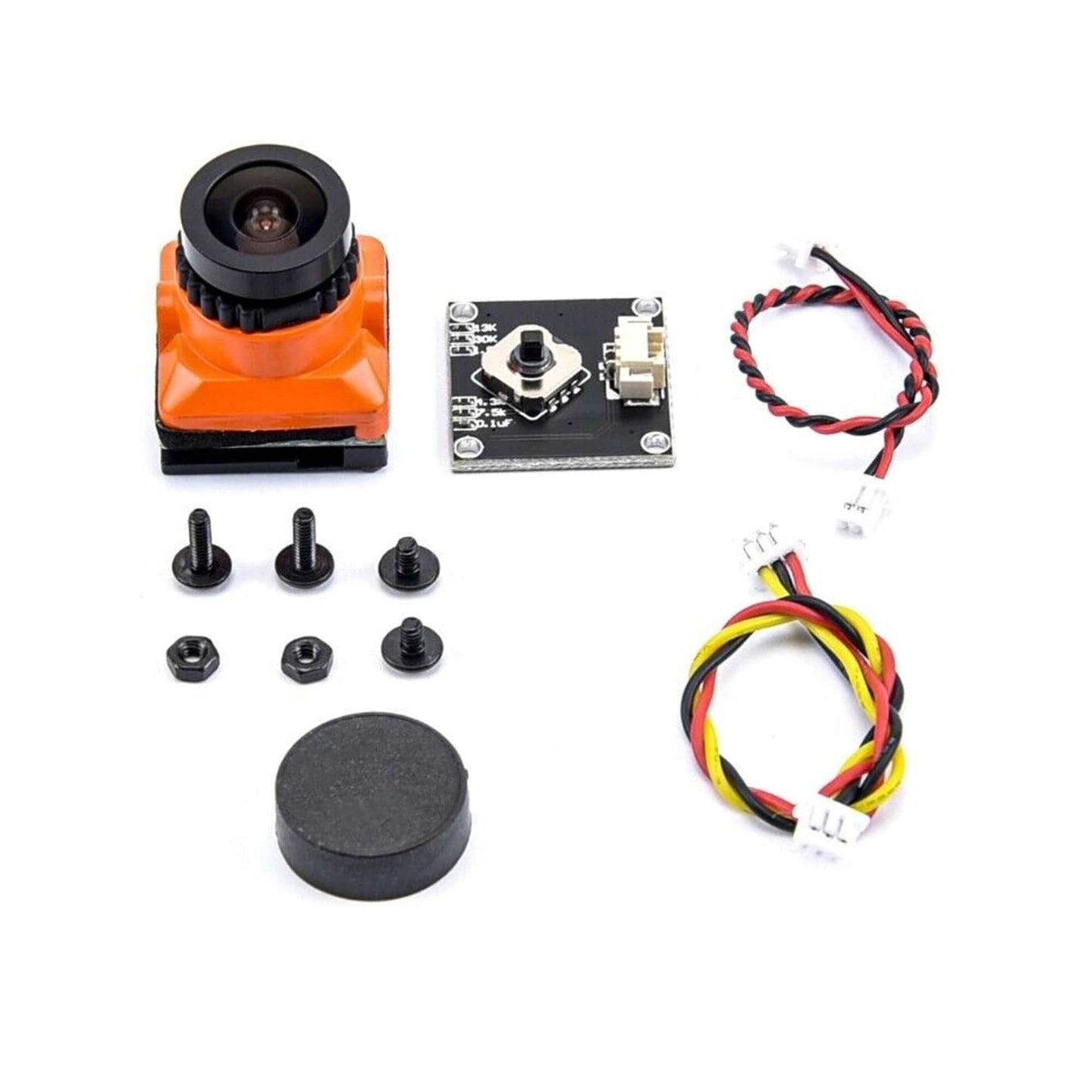

Package Included:
- 1 x 1/3" CMOS 1500TVL FPV Camera
- 1 x OSD Board
- 1 x 2Pin Cable
- 1 x 3Pin Cable
- 1 x Product Manual
- 1 x Set of screws
