0.56" Digital Voltmeter Ammeter DC 100V 10A Amp Voltage Current Meter Tester – Blue-Red Dual LED Display - RS2606

0.56" Digital Voltmeter Ammeter DC 100V 10A Amp Voltage Current Meter Tester – Blue-Red Dual LED Display - RS2606

RS2606

890 in stock

Rs. 299.00
Rs. 299.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

"Monitor your voltage and current with precision and style!"

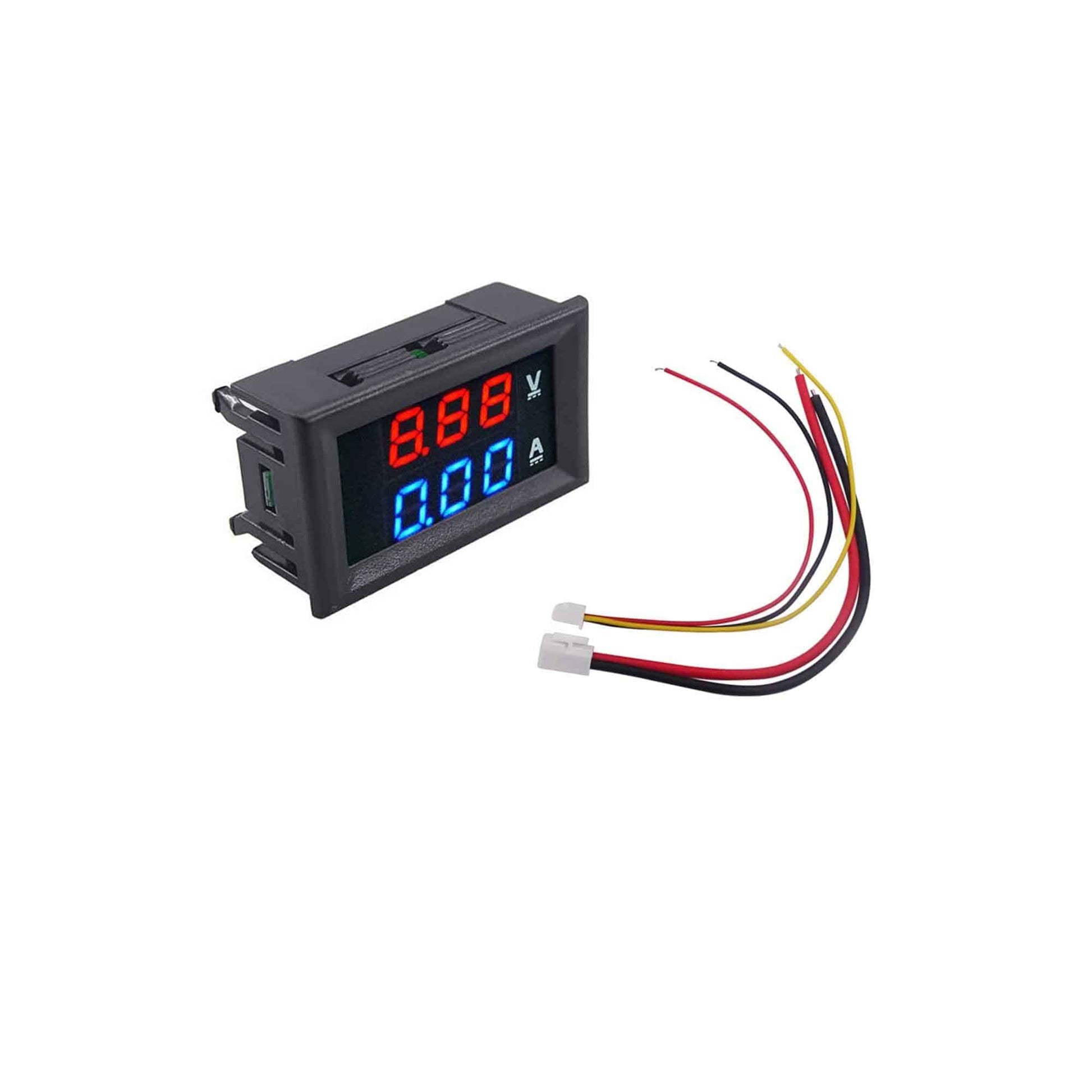

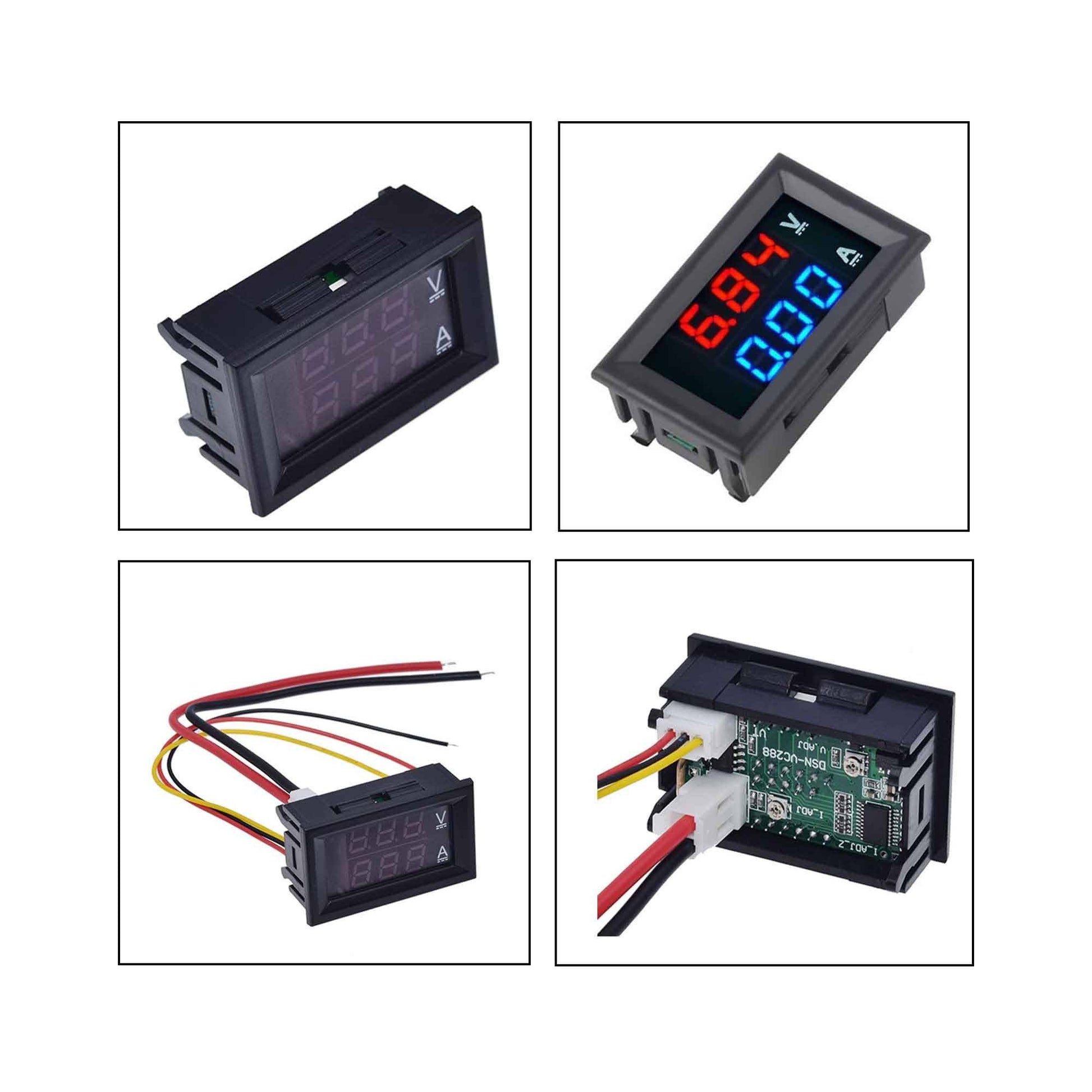

This compact 0.56" digital volt-ammeter is designed for real-time monitoring of voltage and current in your DC circuits. Featuring a dual LED display—red for voltage and blue for current—it provides clear and simultaneous readings. Ideal for DIY electronics, battery-powered projects, and power supply testing.

Specifications:

  • Input Voltage: 4.5V to 30V DC
  • Input Current: 20mA
  • Display Color: Red (Voltage), Blue (Current)
  • Measuring Voltage Range: 0V to 100V DC
  • Measuring Current Range: 0A to 10A
  • Measurement Accuracy: 1%
  • Minimum Voltage Resolution - 0.1V
  • Minimum Current Resolution - 0.01A
  • Working Temperature: -10℃ to 65℃

Features:

  • Dual LED Display: Red and blue LEDs allow simultaneous voltage and current readings, enhancing user experience.
  • High Accuracy: Voltage measurements are accurate within ±0.1%, ensuring reliable data.
  • Compact Design: The 0.56" 3-bit display is ideal for space-constrained applications.
  • Wide Voltage Range: Accommodates a variety of DC voltage levels up to 100V.
  • Easy Integration: Comes with pre-soldered leads for quick and hassle-free installation.

Applications:

  • DIY Electronics: Perfect for hobbyists building custom circuits.
  • Battery-Powered Projects: Monitor battery voltage and current draw.
  • Power Supply Testing: Ensure your power supplies are delivering the correct output.
  • Solar Systems: Track voltage and current in solar power setups.
  • Automotive Projects: Monitor voltage and current in vehicle electronics.

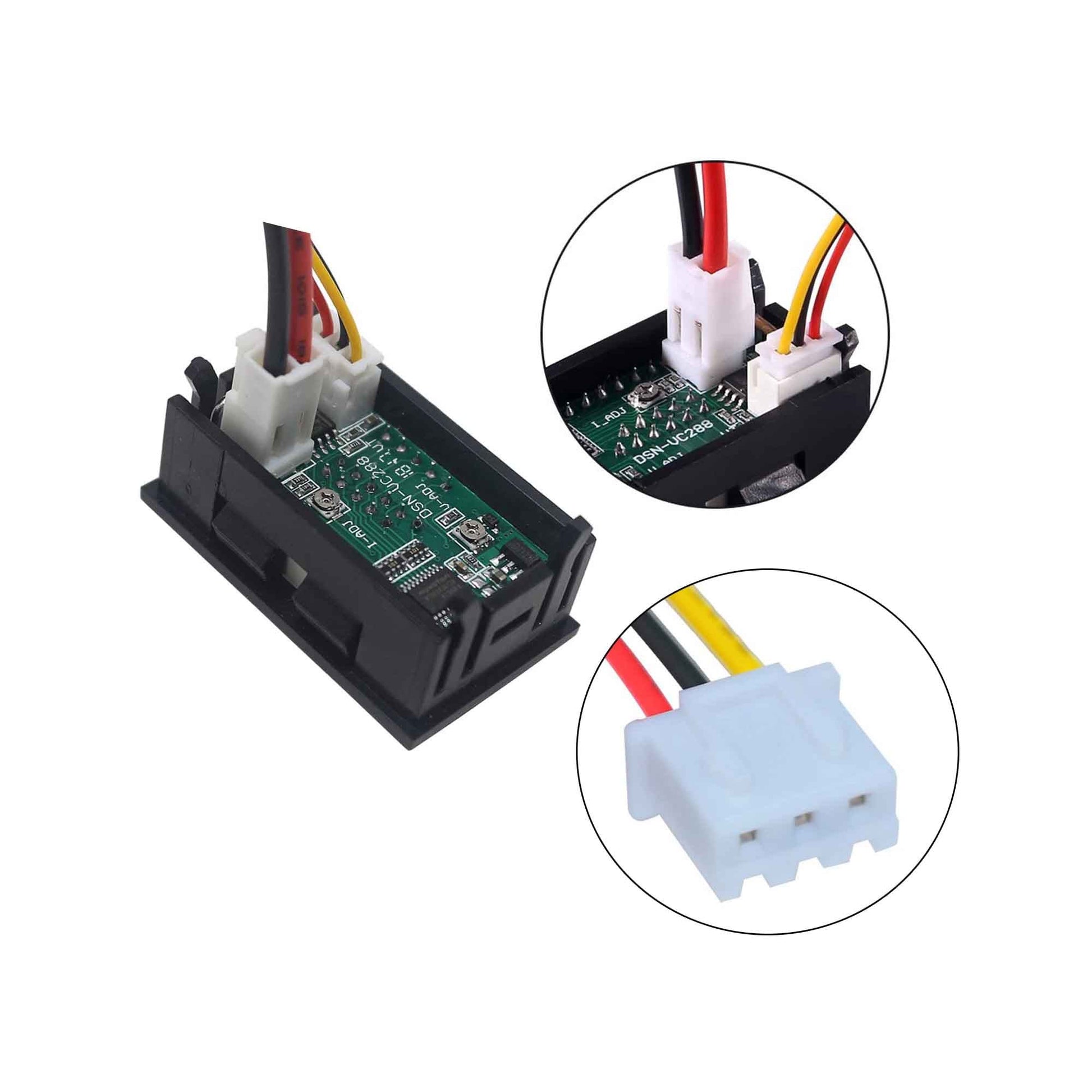

Wiring:

  • Black Line (thin): vacant or buck circuit (module) Negative
  • Red Line (thin): power supply Positive
  • Black Line (thick): COM, a common measuring
  • Red Line (thick): PW+, measuring terminal voltage input positive
  • Yellow Line (thick): IN+, current input Positive

Package Included:

  • 1 x Digital Voltmeter & Ammeter Module
  • 1 x Two wire thin connector
  • 1 x Three-wire thick connector
