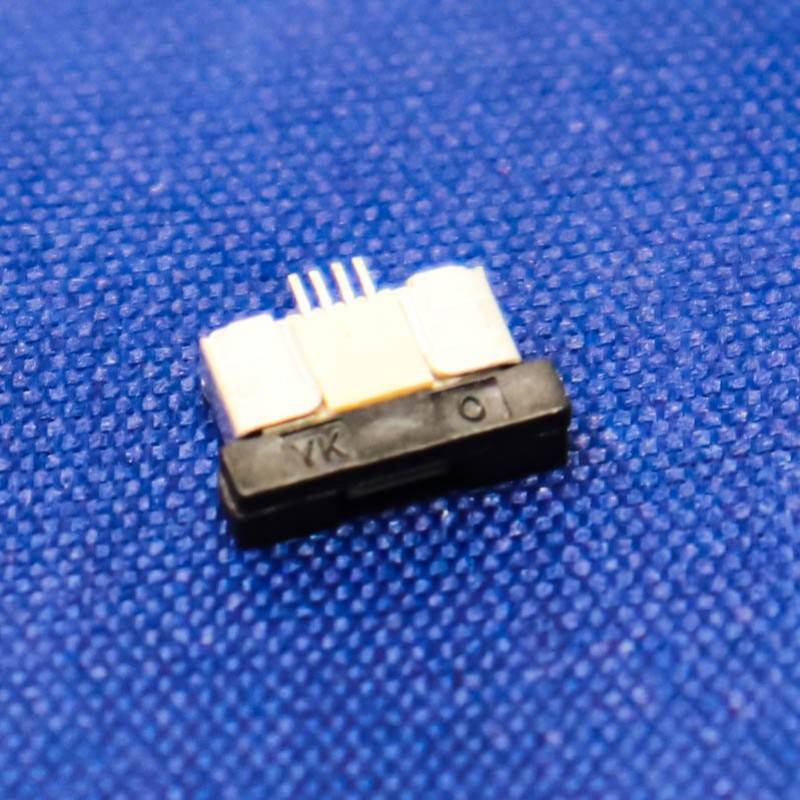

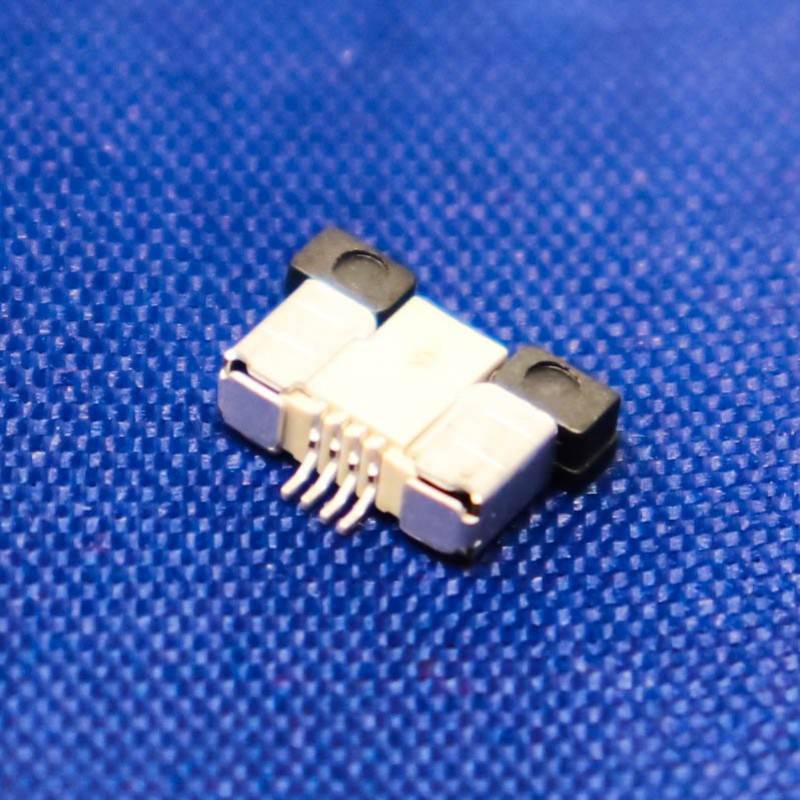

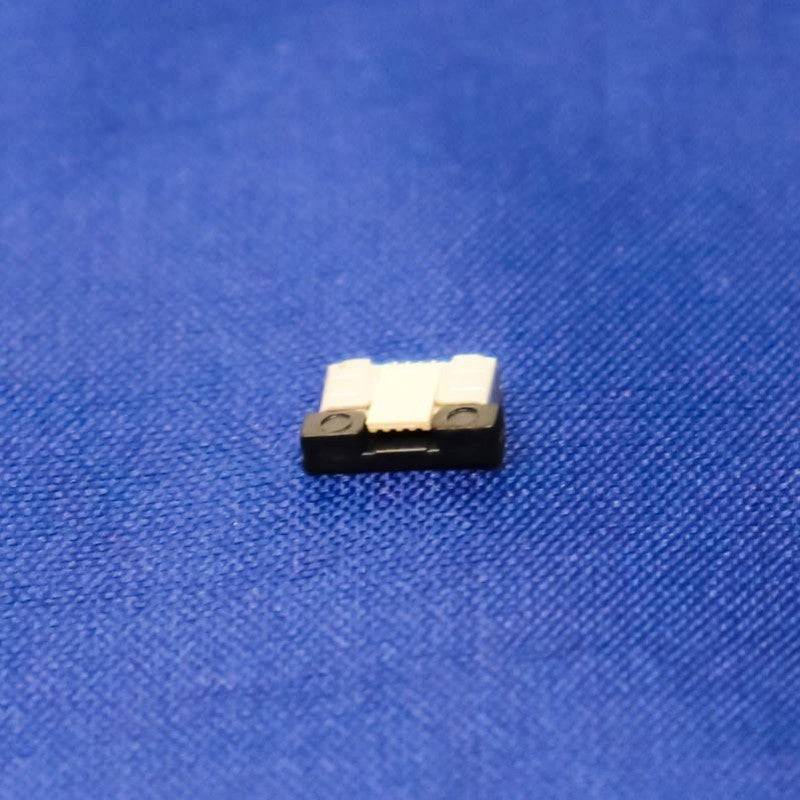

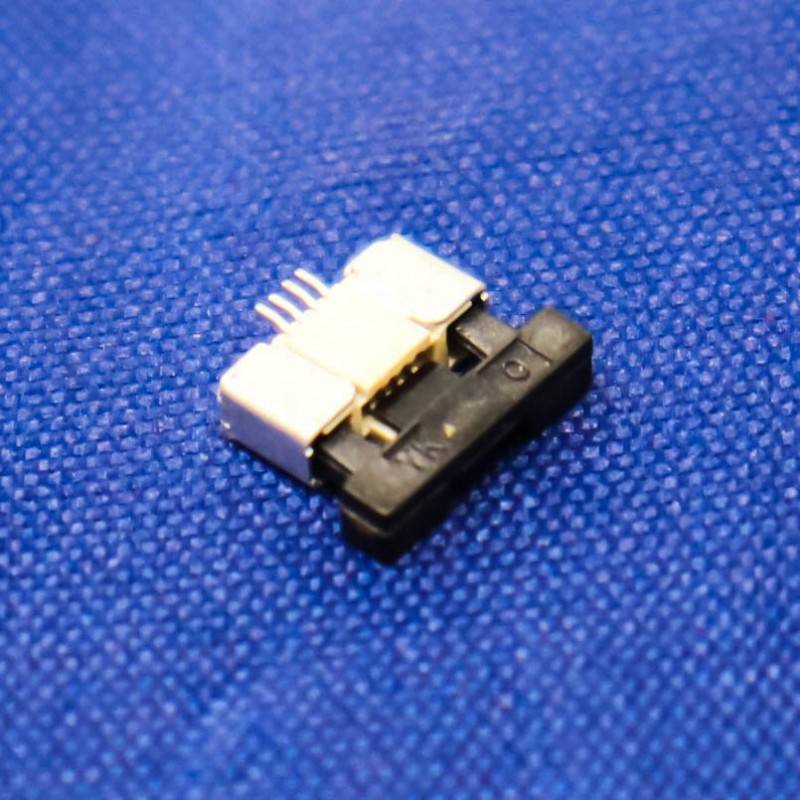

0.5mm Pitch 4 Pin FPCFFC SMT Drawer Connector - RS3346

0.5mm Pitch 4 Pin FPCFFC SMT Drawer Connector - RS3346

RS3346

51 in stock

Rs. 45.00
Rs. 45.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

    Description:

    This high-performance 0.5mm pitch, 4-pin FPC/FFC connector is engineered for reliable, high-density board-to-flex connections. Featuring a Drawer-Style (Slider) locking mechanism, this surface-mount (SMT) connector ensures secure cable retention and superior signal integrity in space-constrained electronic designs.

    Ideal for compact consumer electronics, medical devices, and industrial control systems, this connector provides a robust interface for Flexible Printed Circuits (FPC) and Flat Flexible Cables (FFC).

    Specifications:

    • Connector Type: FFCFPC
    • Voltage(V): 50
    • Operating Current (A): 0.5
    • No. of Pins: 4
    • Pin Spacing (mm): 0.5
    • Mounting Type: SMD/SMT
    • Material: Metal and plastic
    • Contact Material: Phosphor Bronze
    • Insulation Material: Nylon 46 UL94-V0
    • Color: Beige, Black
    • Contact Resistance: 20M (Max)
    • Insulation Resistance (M): 800
    • Working Temperature Range (°C): -25 to 85

    Features:

    • High corrosion resistance.
    • Easy to use.
    • Strengthened Drawer-lock actuator.

    Package Included:

    1 x 0.5mm Pitch 4 Pin FPCFFC SMT Drawer Connector
