Description:

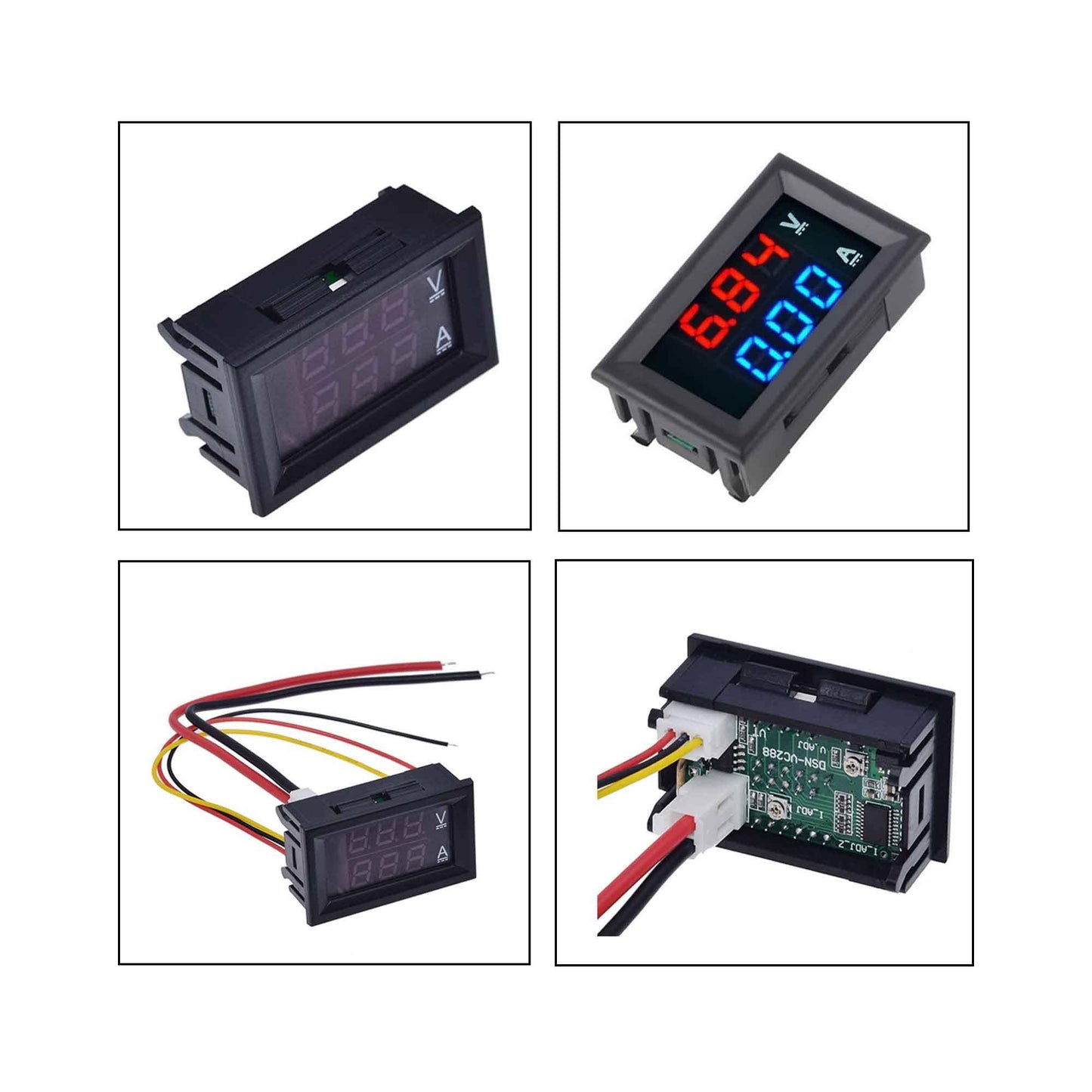

0.56" Digital Voltmeter Ammeter is a dual digital Volt and Amp meter device that can measure current from 0 to 100A and voltage from 0 to 100V. 0.56" Digital Voltmeter Ammeter is a 0.56-inch device with 5 wires divided into 2 sets. Black and red are for the power supply and 3 wires to measure the voltage and current. 0.56" Digital Voltmeter Ammeter can be supplied anywhere from 6 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3-wire harness is used for a ground that connects directly to the battery or supply ground of the load.
Specifications:
- Input Voltage: 4.5V to 30V DC
- Input Current: 20mA
- Display Color: Red (Voltage), Blue (Current)
- Measuring Voltage Range: 0V to 100V DC
- Measuring Current Range: 0A to 10A
- Measurement Accuracy: 1%
- Minimum Voltage Resolution - 0.1V
- Minimum Current Resolution - 0.01A
- Working Temperature: -10℃ to 65℃
Features:
- 0.56" Digital Voltmeter Ammeter combines two functions in one- Current (A), Voltage (V)
- 0.56" Digital Voltmeter Ammeter is miniature, accurate, and more cost-effective.

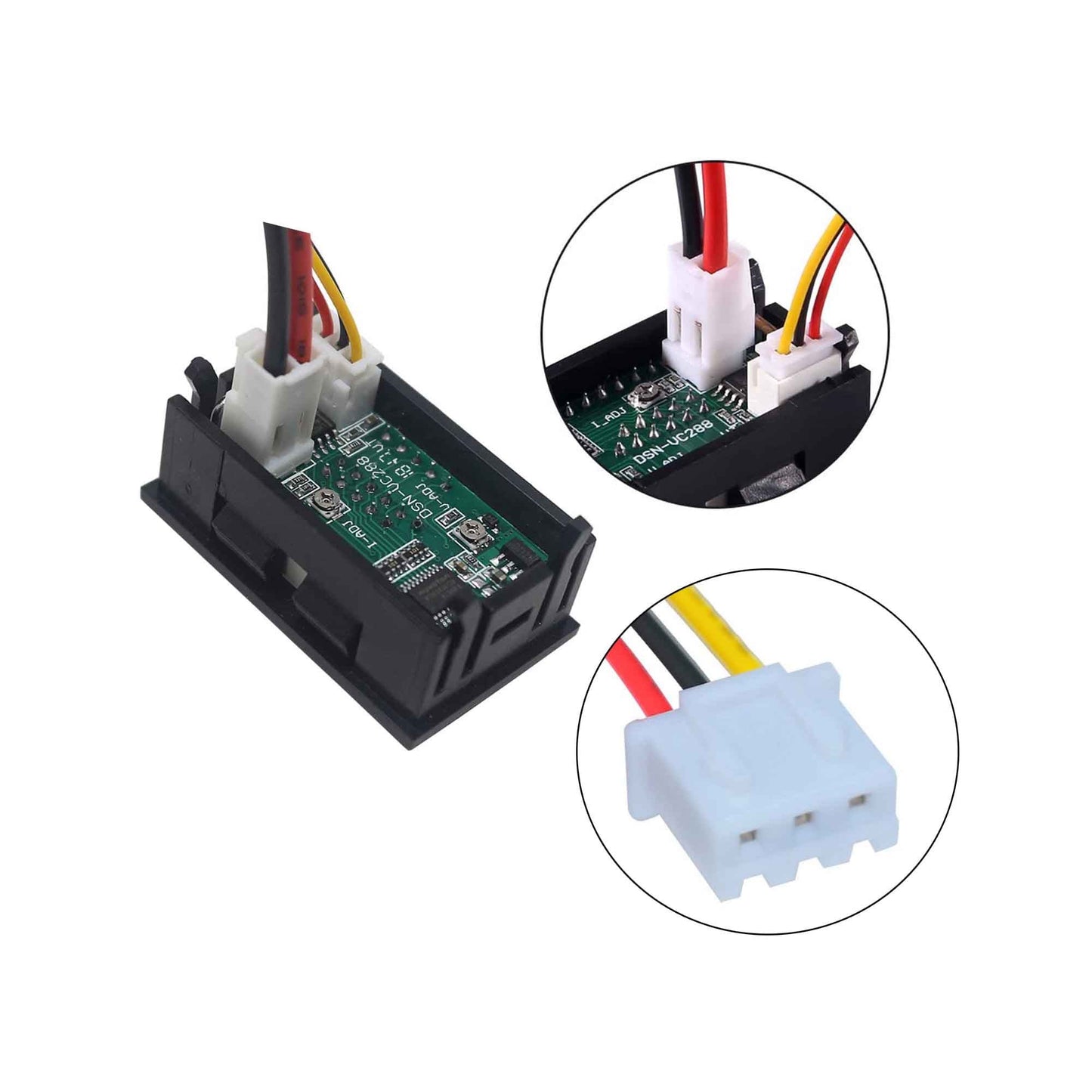

Wiring:
- Black Line (thin): vacant or buck circuit (module) Negative
- Red Line (thin): power supply Positive
- Black Line (thick): COM, a common measuring
- Red Line (thick): PW+, measuring terminal voltage input positive
- Yellow Line (thick): IN+, current input Positive

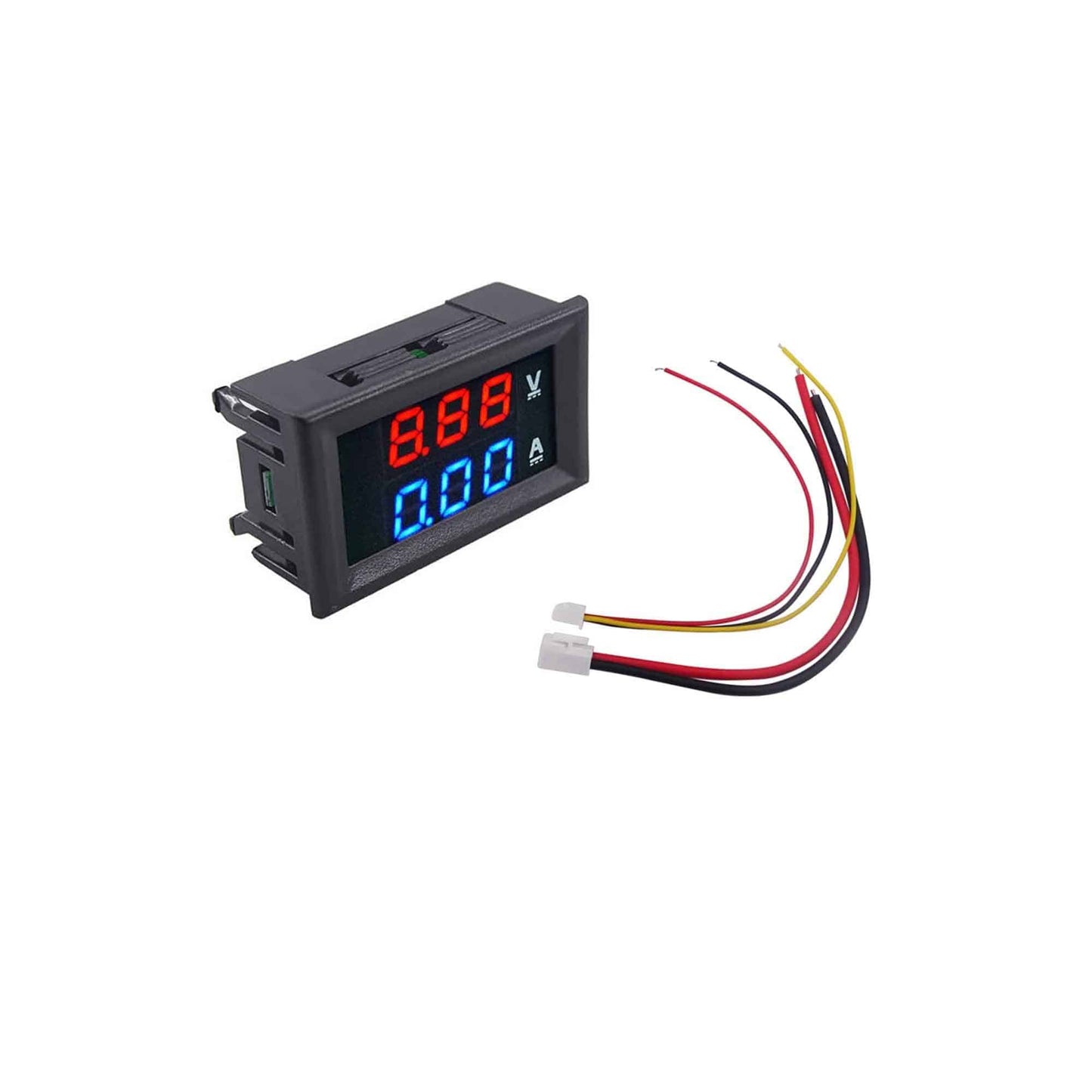

Package Included:
- 1 x Digital Voltmeter & Ammeter Module
- 1 x Two wire thin connector
- 1 x Three-wire thick connector
