Description:

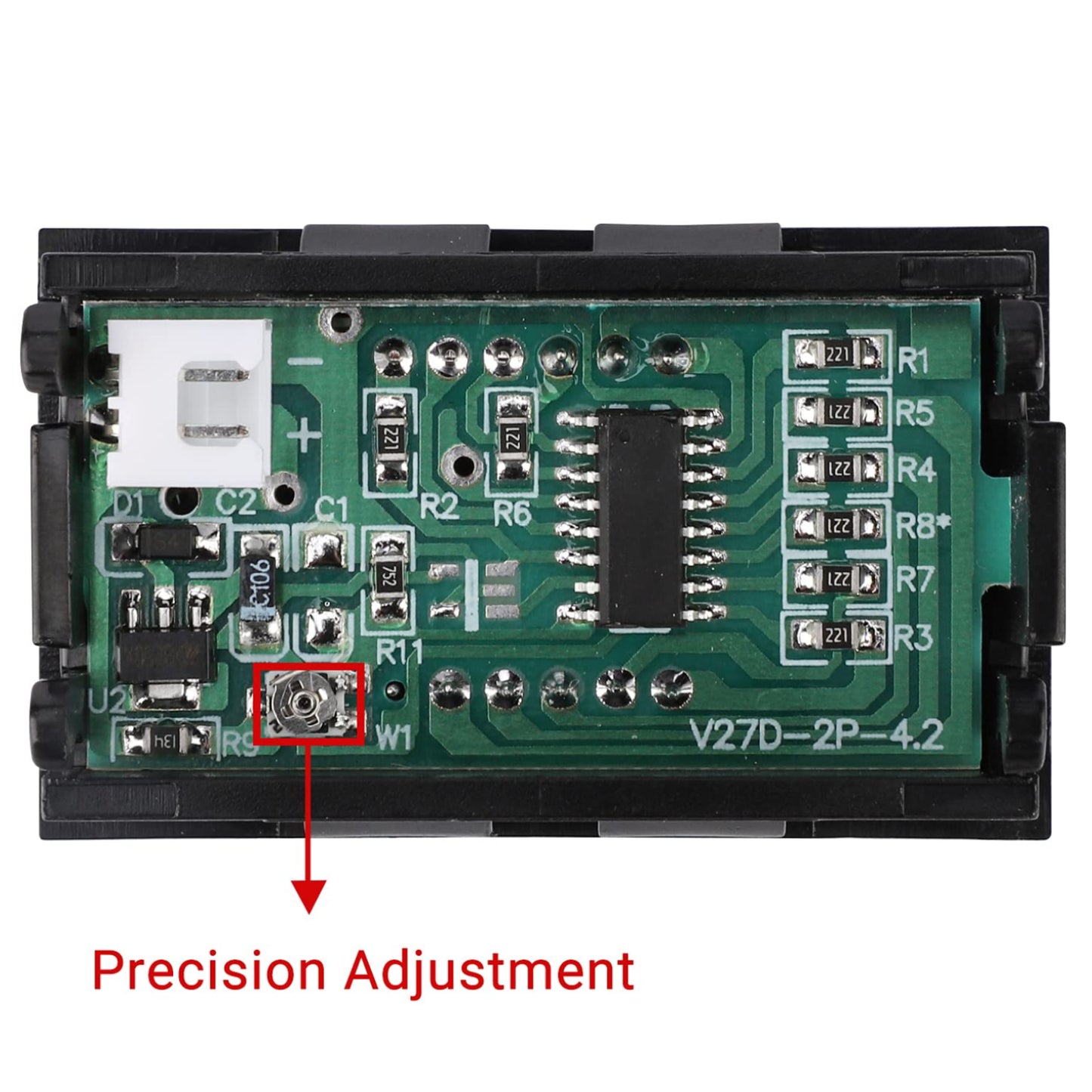

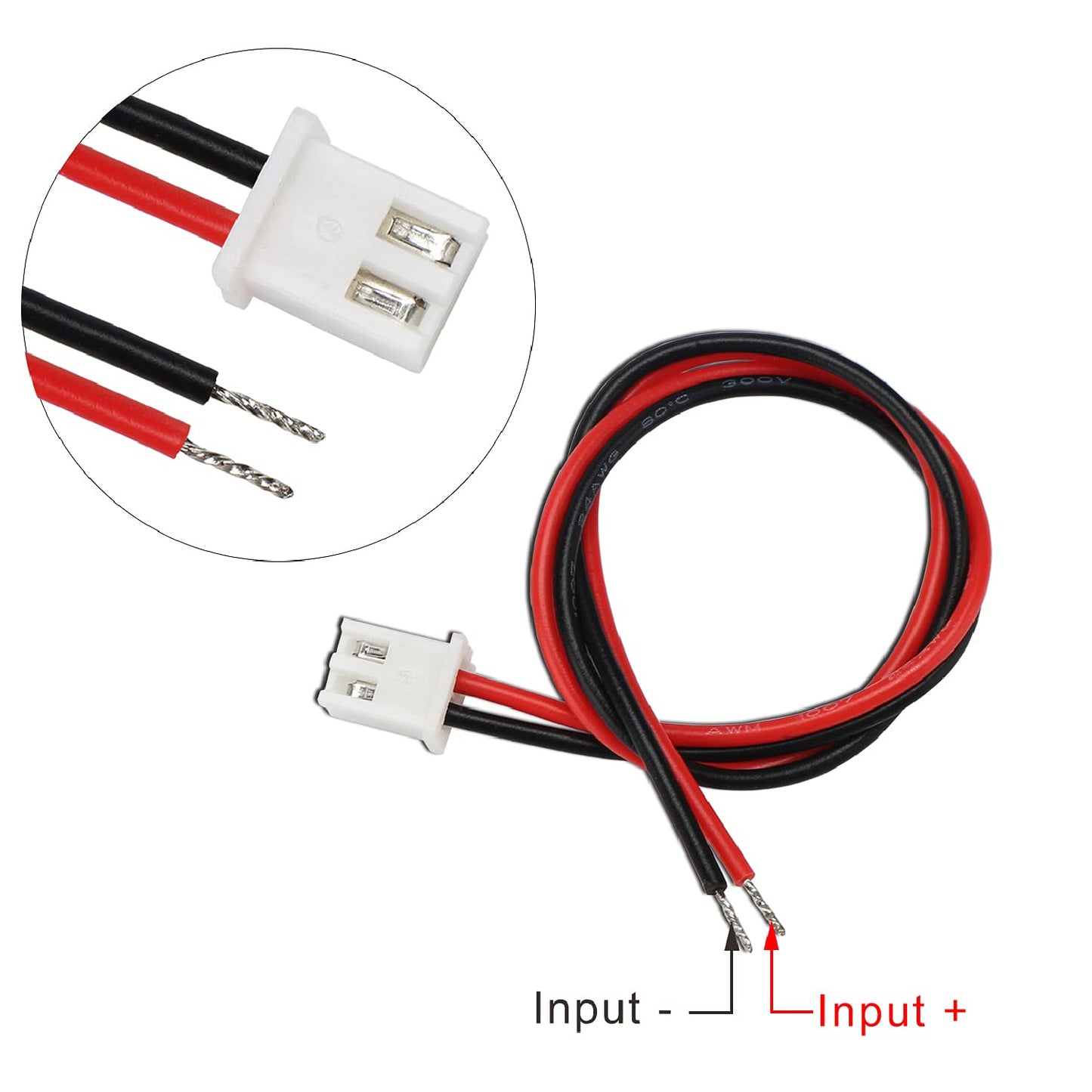

Car Motorcycle Voltmeter DROK digital voltmeter measuring range is DC 3-30V, its decimal point will automatically move, and it also has a tiny potentiometer to do finer adjustments. Portable 0.56" Voltmeter for Vehicles Easy to connect wires: the voltage r gauge only has two wires, the red connects to positive and the black connects to negative.

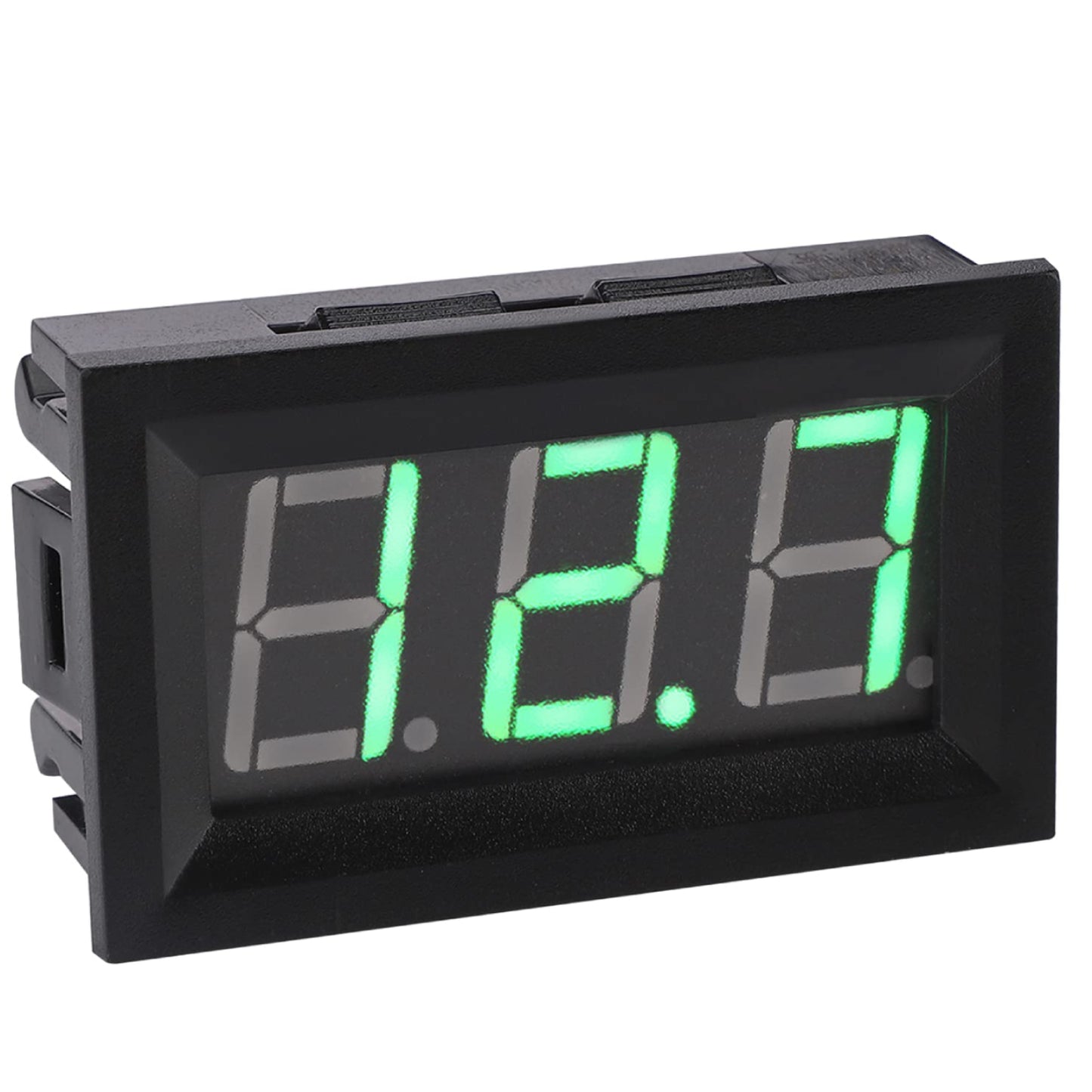

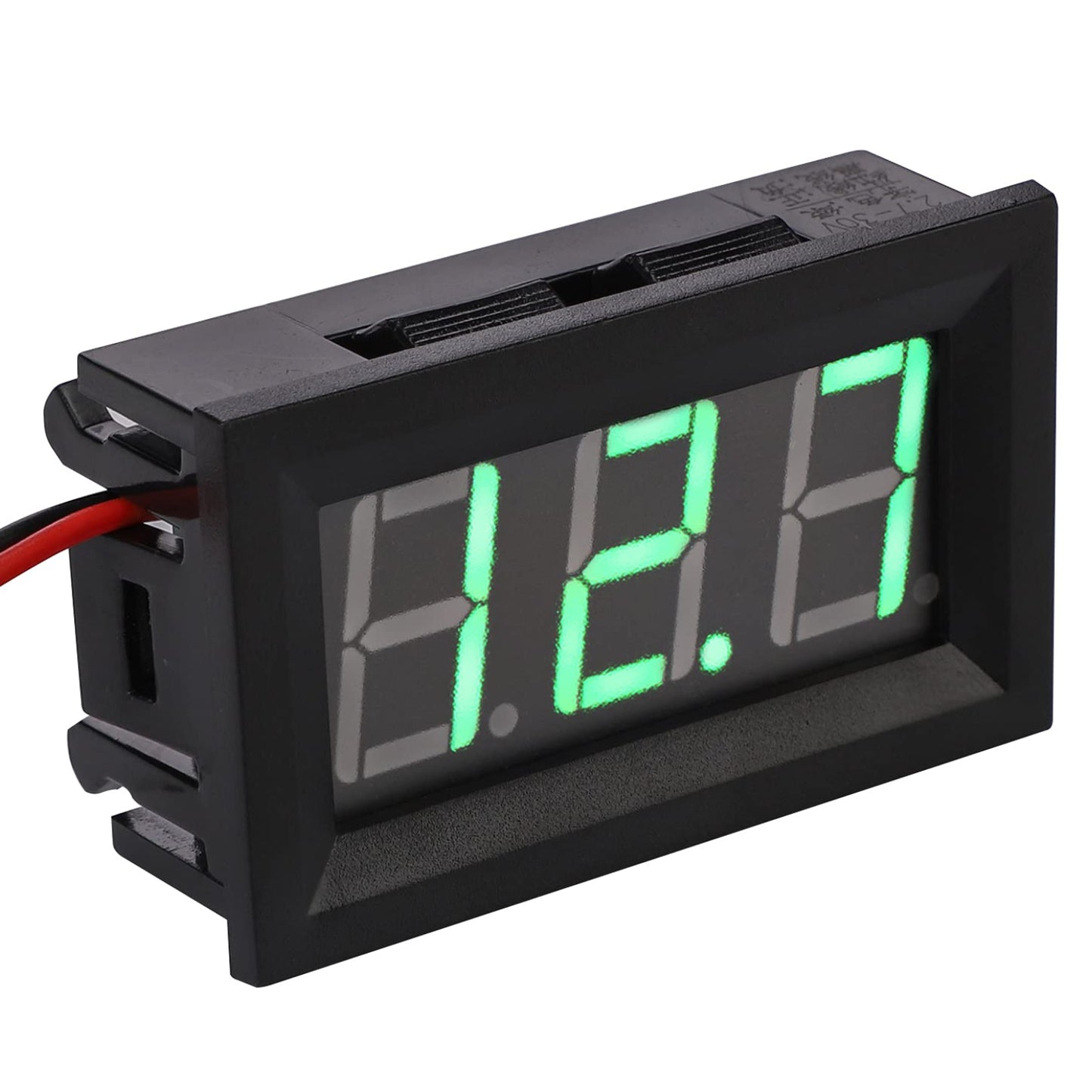

Green Digital Display Voltmeter our volt detector is designed with reversed connection protection, it will NOT be burnt even when connected reversely, but the screen displays nothing. The 0.56-inch digital Display Voltmeter monitoring meter is designed with a bright LED display, and it is well made, the strong plastic case prevents it from being easily damaged by outer force.
Digital Voltmeter for Vehicles is perfect for monitoring the condition of the battery, especially for solar projects, you can use it on your car, trailer, motor, etc. Please don't use this meter with a 24V battery because when the battery is fully charged, its voltage will be about 30V.
Specifications:
- Display: 2-wire
- LED Color: Green
- Accuracy: 0.1V
- Refresh Speed: Approx 300mS/time.
- Voltage Measuring Range: 0 to 200 VDC
- Average Current Consumption: Less than 20mA, generally 5-15mA
Features:
- High precision. and Low operating voltage.
- With reverse protection, then anti-burn.
- Ultra-high pressure 132V does not burn.
- With the reverse connection protection function, the line connection will not burn.
- The voltmeter is designed with an ABS plastic frame, which can be conveniently installed in rectangular holes of 1.5-3 mm thickness.
- The measuring precision of this voltmeter can be adjusted automatically. The resolution is 0.1V below 100V and 1V above 100V.
- his voltmeter has a wide range of 5-120V DCs, suitable for 12V, 24V, 36V, 48V, 60V, 72V, 80V, 96V motorcycles, electric vehicles, battery cars, and other voltage measurement purposes.

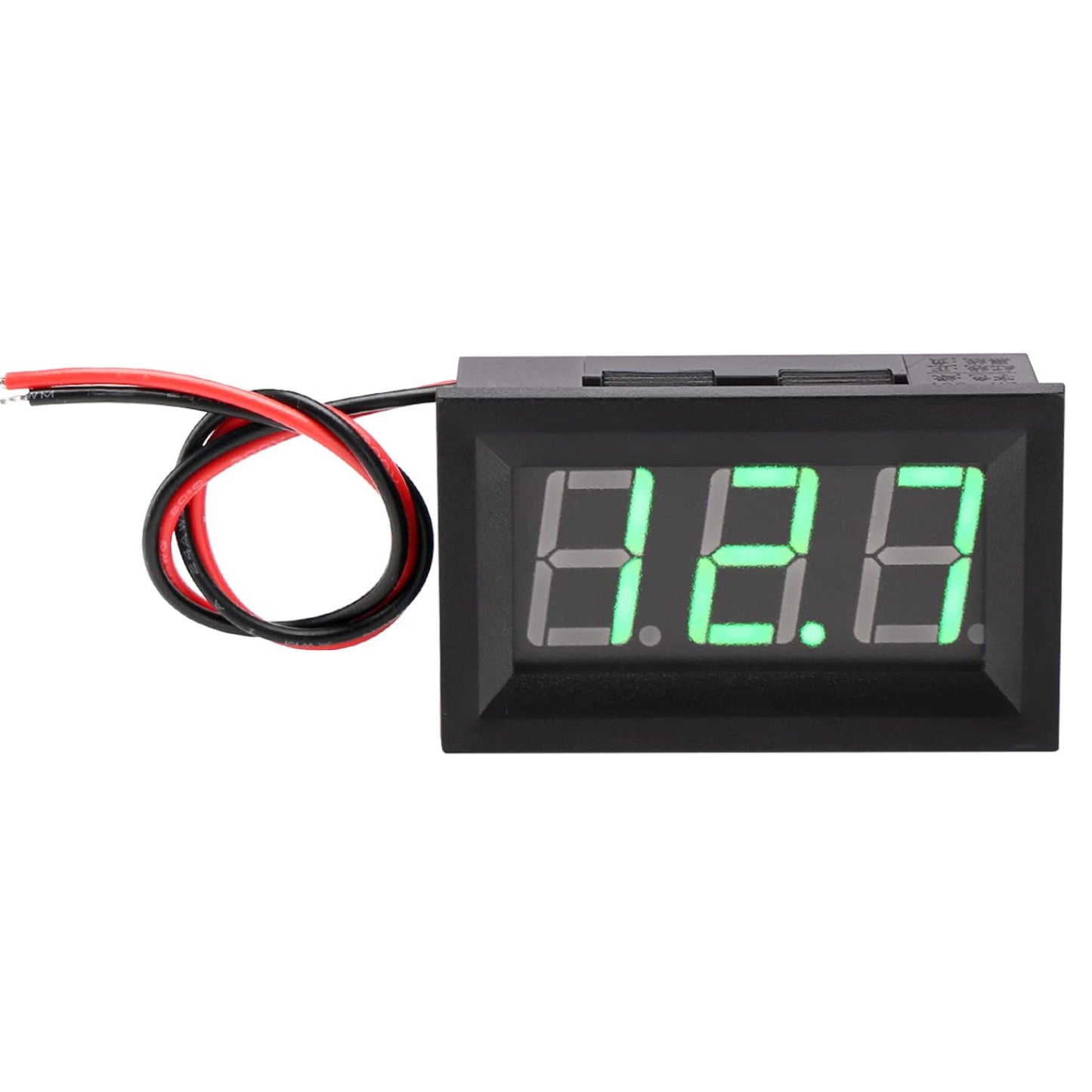

- Equipped with two wirings, direct measurement, and no auxiliary power supply. It can be easily connected to vehicles, battery cars, motorcycles,s, and other vehicle lines.
Notes:
- Product Image may vary in terms of color Wire and PCB or PCB layout as per the version update from the manufacturer
- Consider 1V voltage drop at voltmeter itself, as we observed it at while testing this Voltmeter.
Package Included:
1 x 0.56 Inch Digital Display Voltmeter Green Two-Wire 0.56 Inch DC5V-120V DC Digital Display Voltmeter For Car Bicycle Motorcycle
