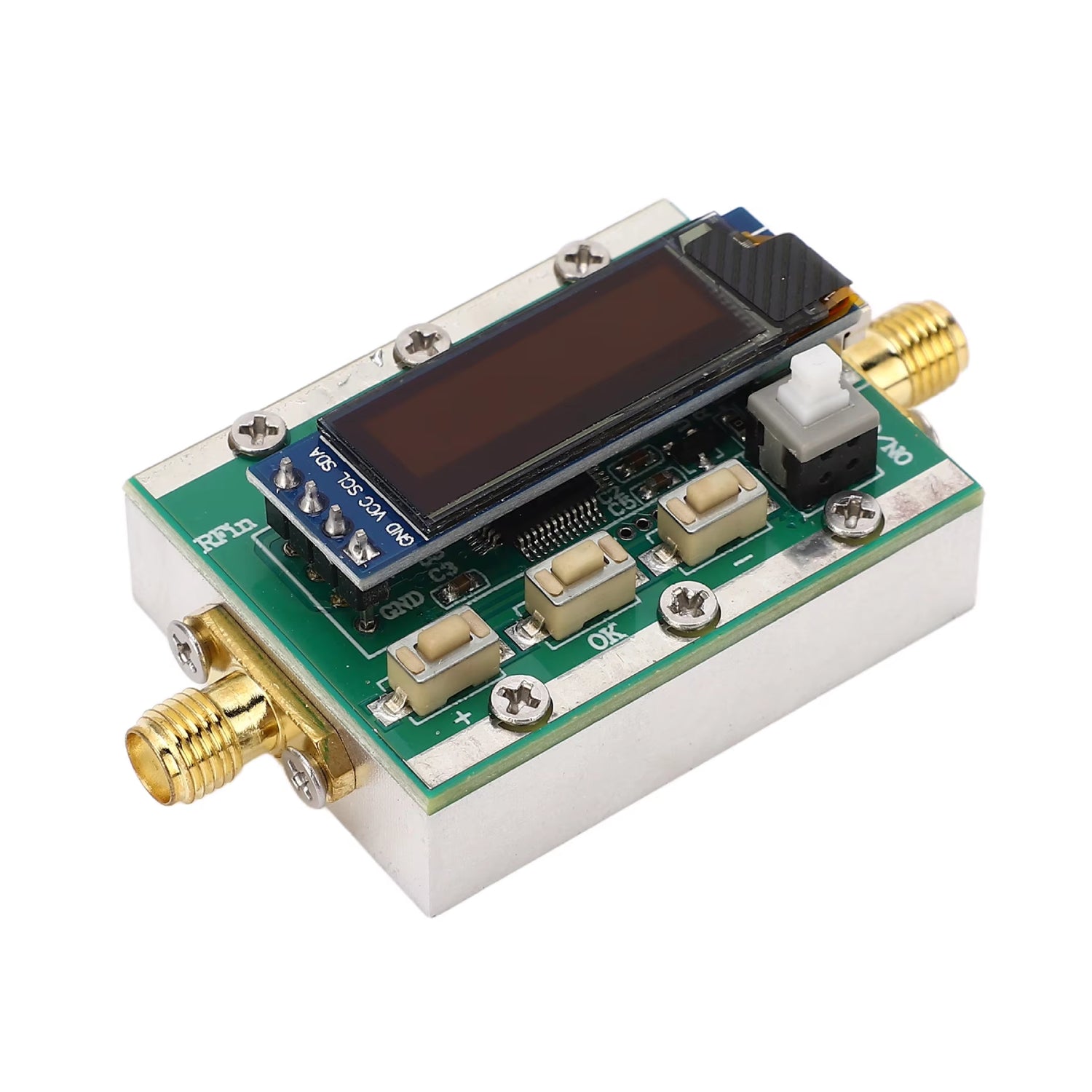

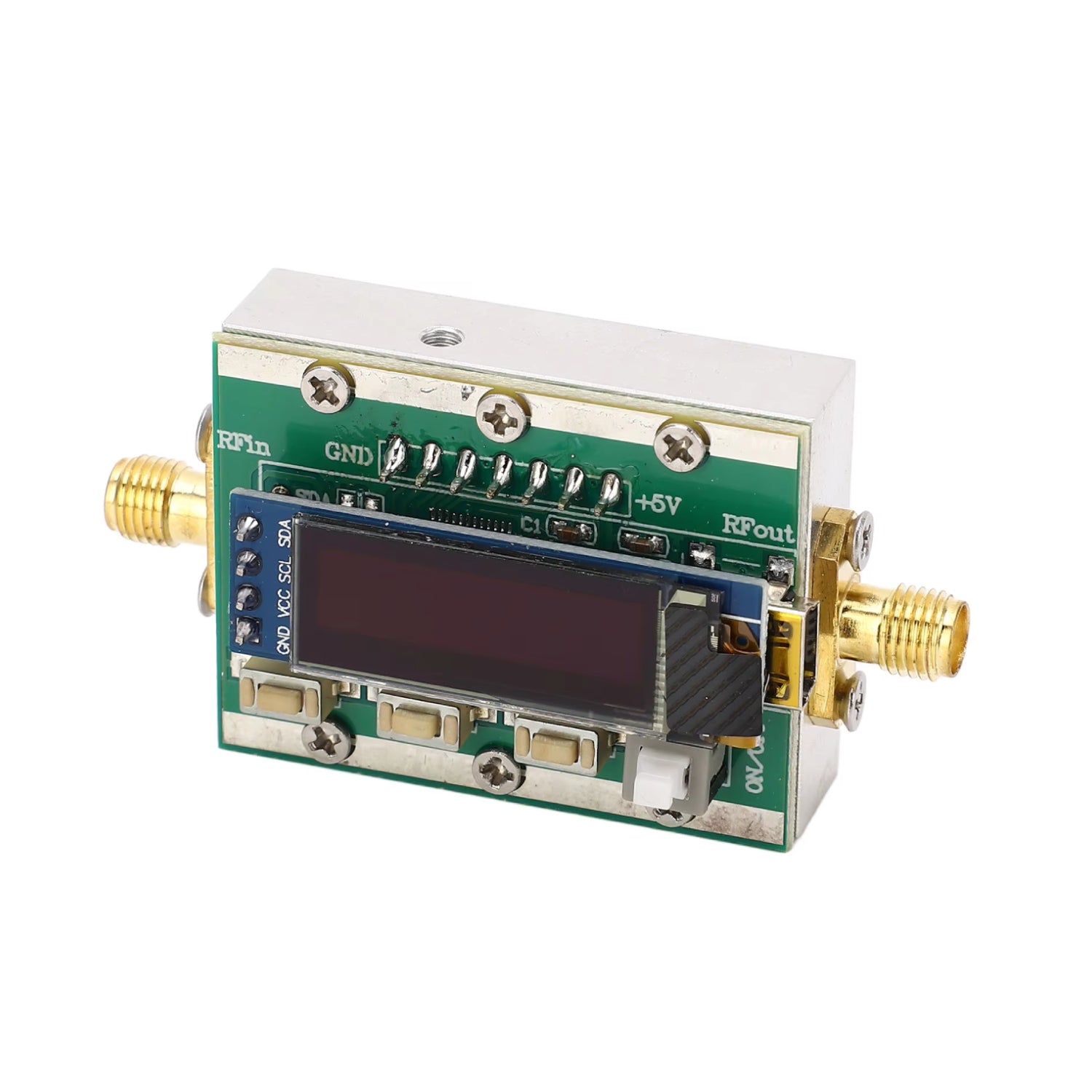

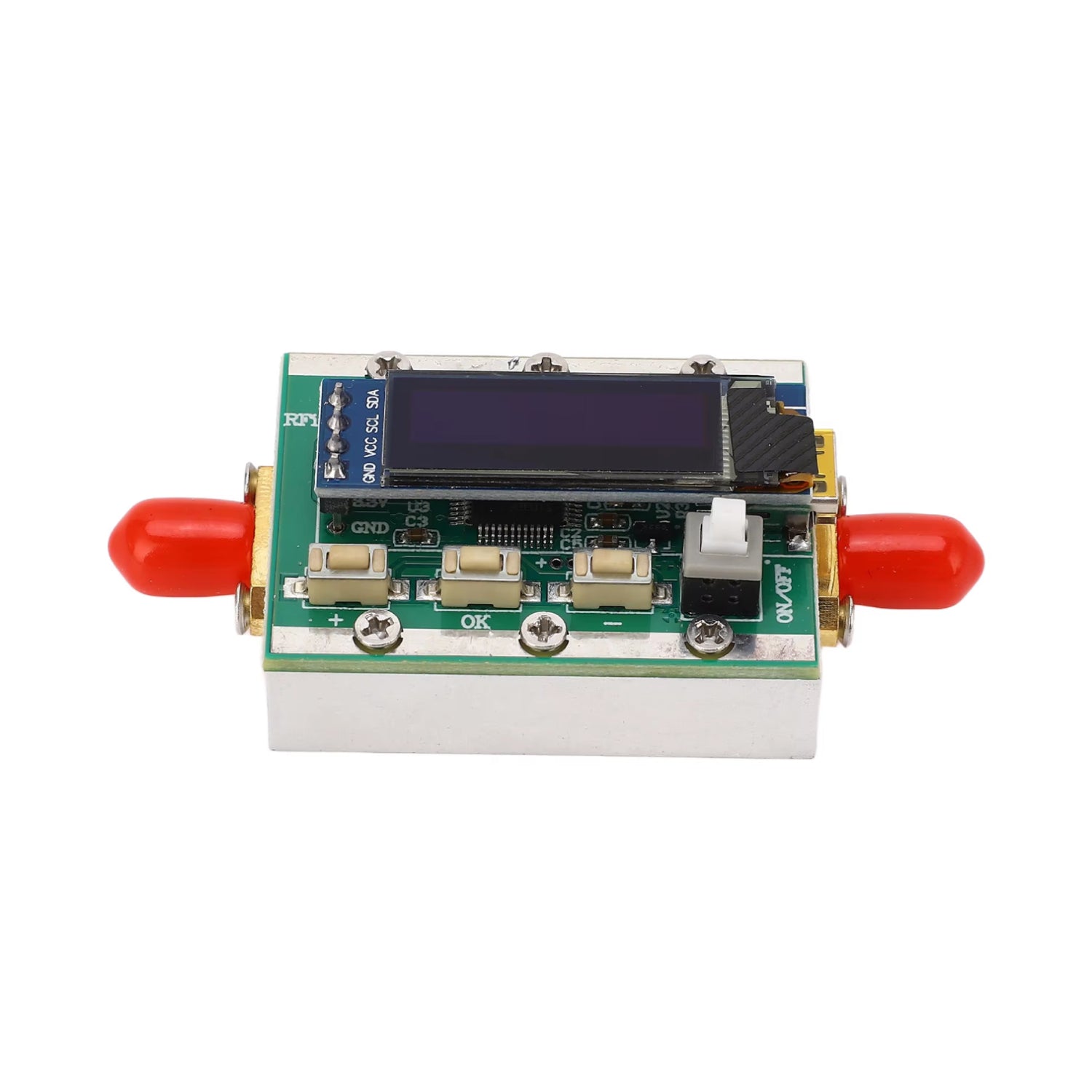

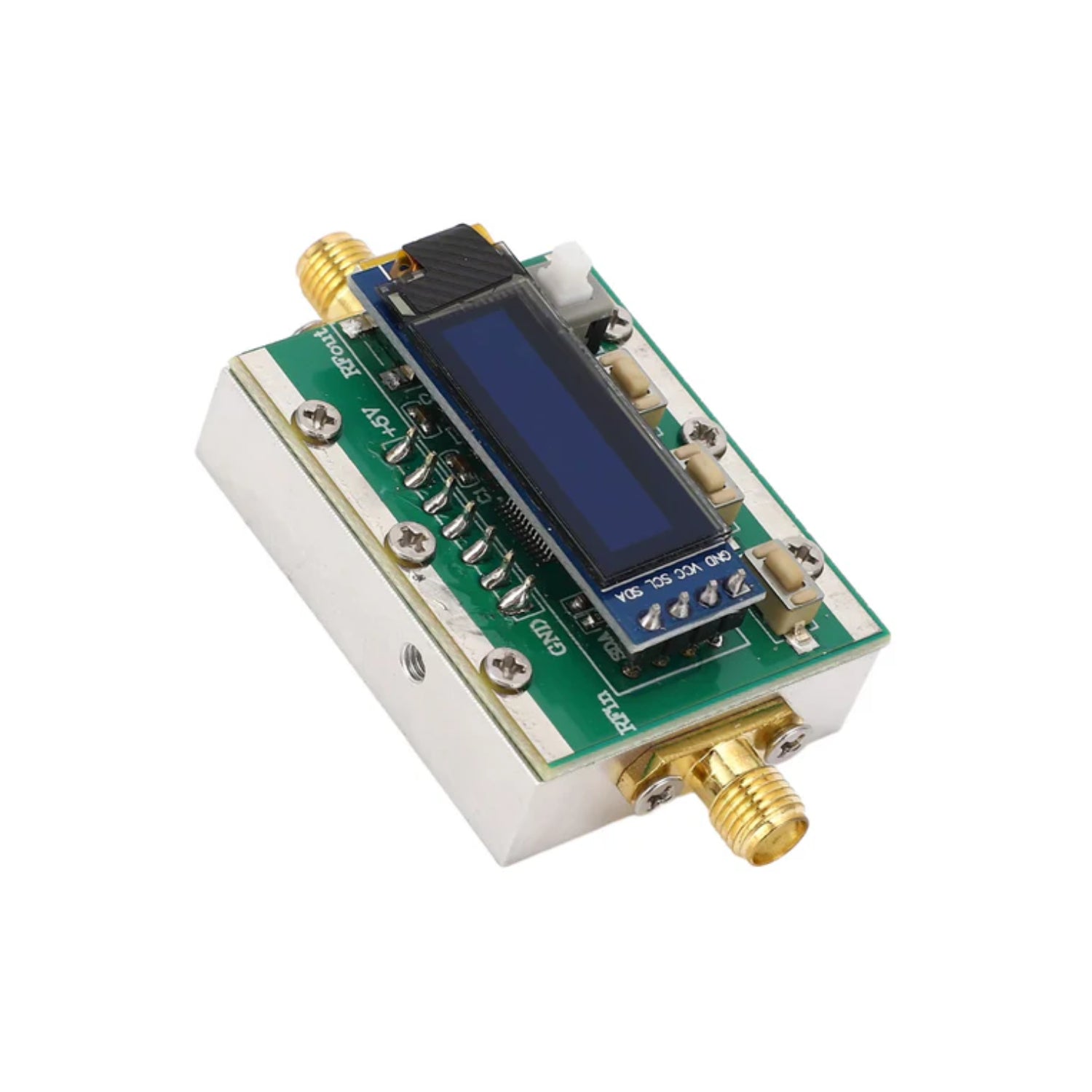

Description:
The 0-31 dB Programmable RF Attenuator is compatible with various instruments. Its universal RP SMA interface ensures seamless integration. The programmable attenuator has an attenuation range of 0 to 31dB and a step size of 1 dB.

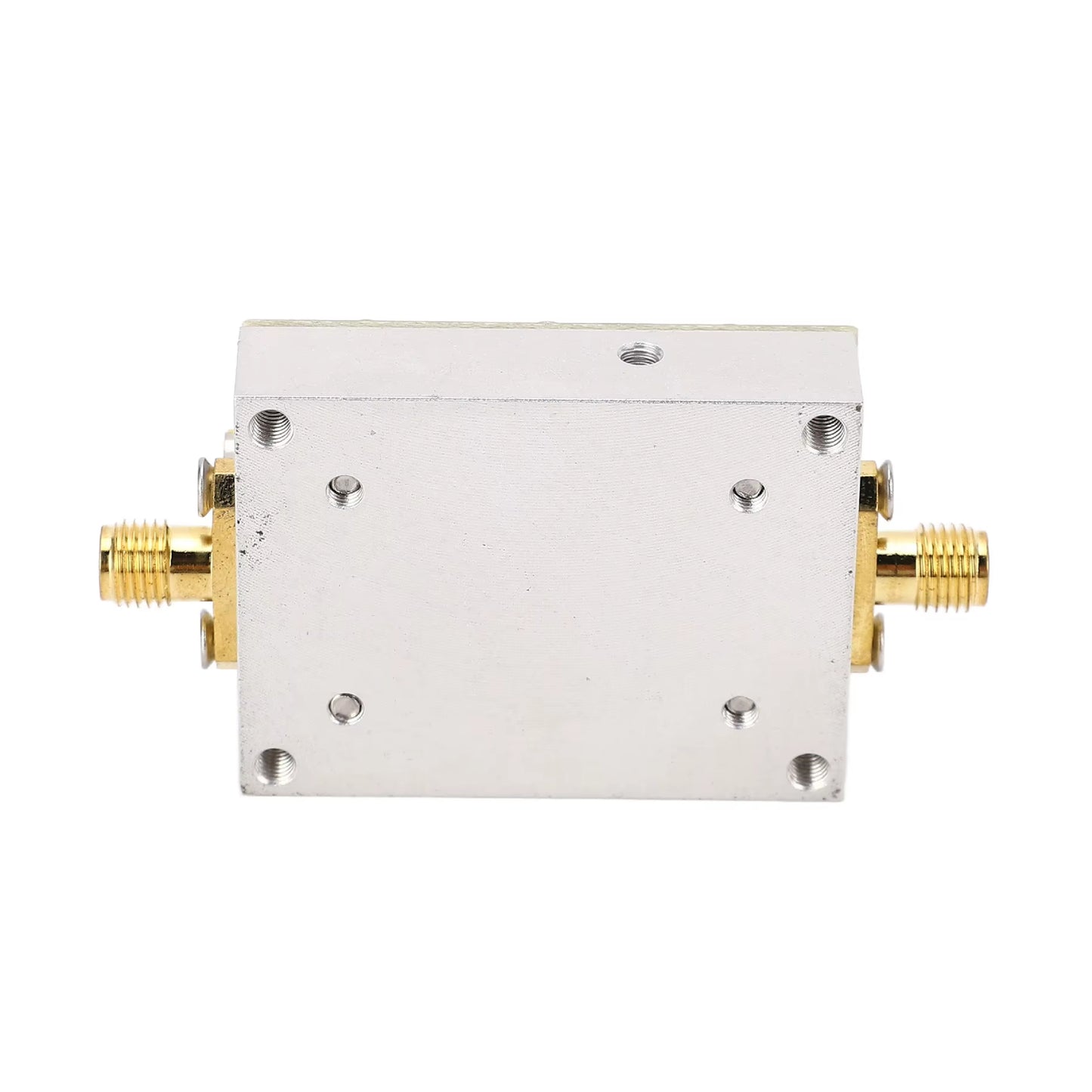

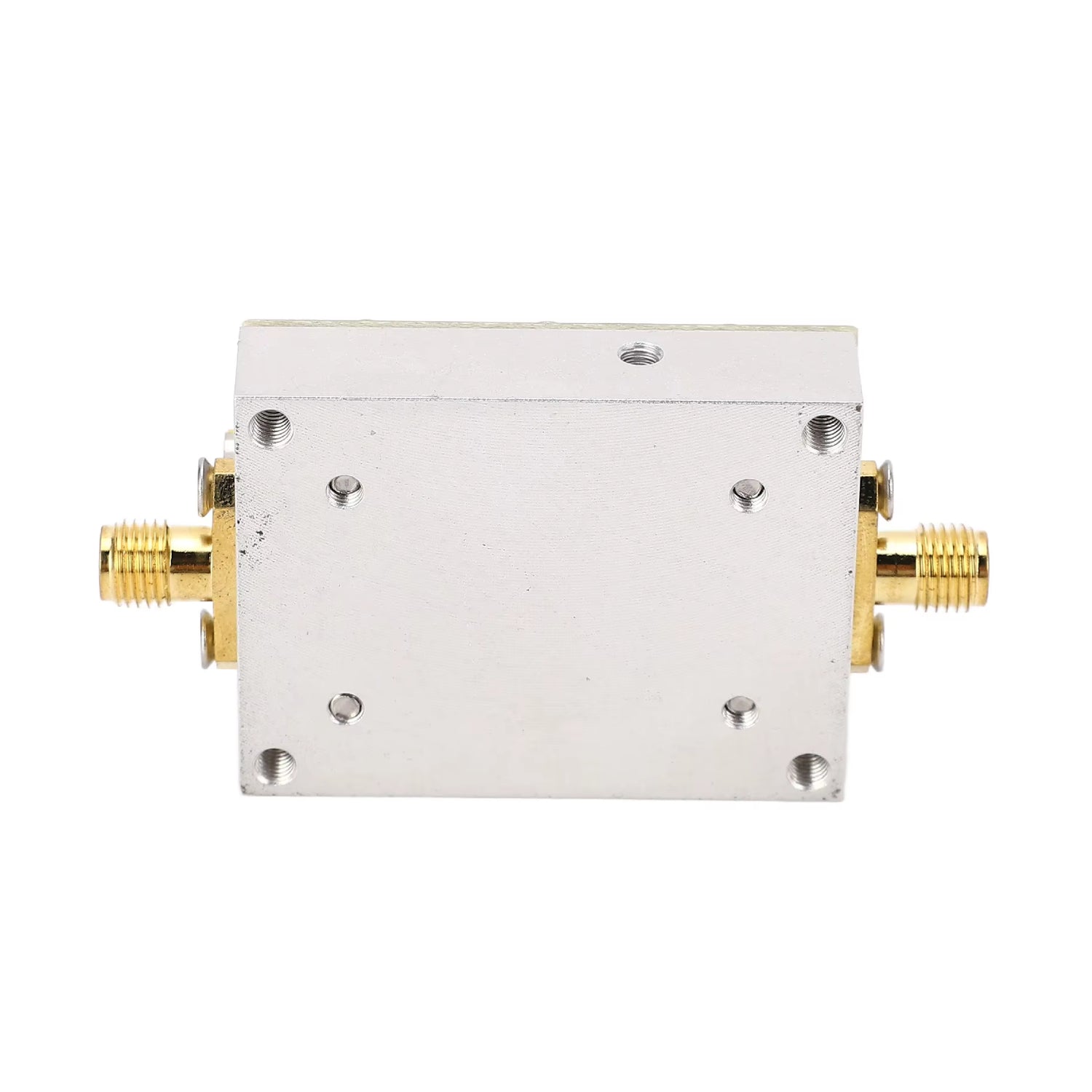

Programmable RF Attenuator can handle strong without compromising performance. The robust CNC shell and reliable PCB material ensure durability and stability. The mini USB 5V power supply adds convenience to its functionality.
Precision RF Attenuator Module is Made of excellent electronic components, it has good performance and a long service life, and it is an ideal replacement for old and damaged parts.
Specifications:
- Type: RF Programmable Attenuator
- Operating Frequency Range: 1 ~ 3800MHz
- Input Maximum Power: 20dBm
- Attenuation Range and Step: Attenuation range from 0~31dB, the step size is 1dB
- Insertion Loss: Less than 2.0dB
- Attenuation Control: Press the OK key, press + after the attenuation digit blinks, and - key to
- control actual addition or subtraction, press OK again to confirm
- Input Output Impedance: 50Ω
- Power Supply: MiniUSB 5V
-
Input Output Interface: RP SMA interface
Features:
-
The RF programmable attenuator has an attenuation range of 0 to 31dB and a step size of 1 dB.
- The maximum working frequency range of the RF attenuator is 1MHZ‑3800MHz and the maximum power of input is 20dBm.
- Variable RF attenuators use a universal RP SMA interface, suitable for a variety of instruments.
- The input and output impedance of the digital RF attenuator module is 50Ω, and the power supply adopts miniUSB 5V.
How to Use:
A wiring boot can be used.
Package Included:
1 x 0-31 dB Programmable RF Attenuator PC Controlled RF Attenuator Precision RF Attenuator Module CNC Case RF Attenuator With 1 dB Step Resolution and 1-3800 MHz Frequency Range
