Description:

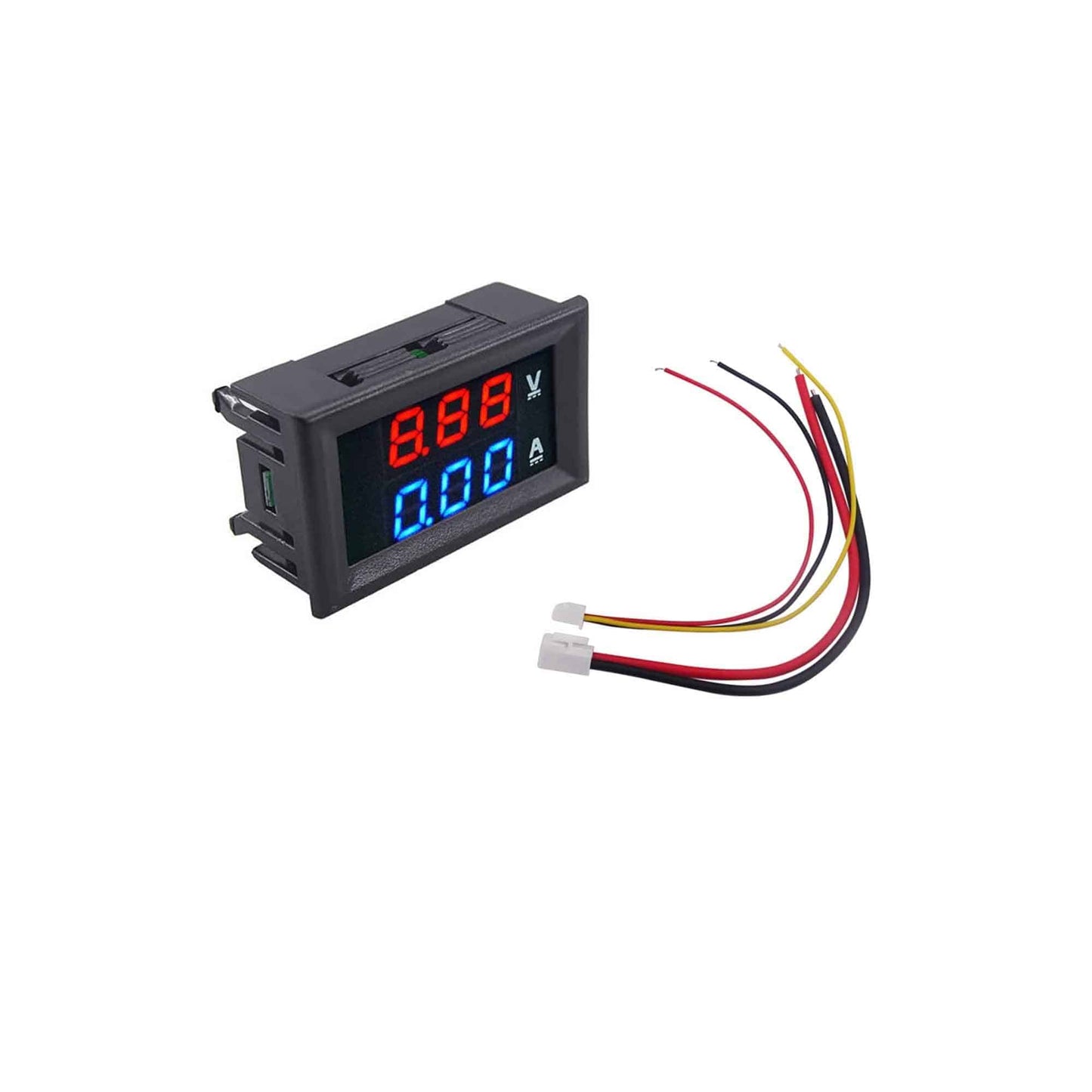

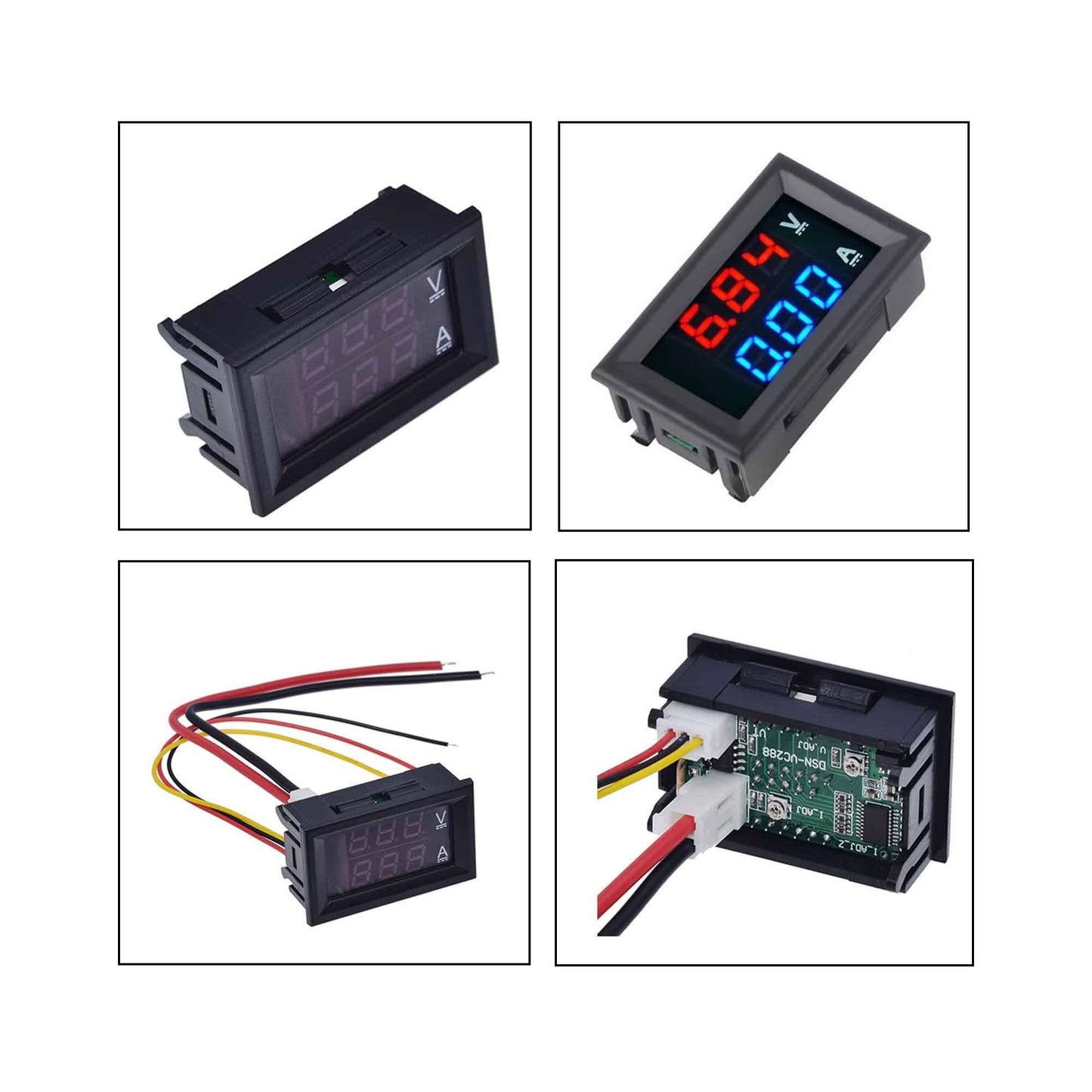

0.28” 100V 100A Voltmeter Ammeter displays Voltage and current simultaneously in different colours, red for Voltage and blue for current (the current is Measured in the negative rail). 0.28” 100V 100A Voltmeter Ammeter require external power supply, with reversed connection protection. The ground wire of the testing end and power supply terminal is the same wire quick refresh of about 500 MS/time. 0.28” 100V 100A Voltmeter Ammeter comes with a built-in shunt and has Voltage and current calibration potentiometers. Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products' voltage current measurements.
Specifications:
- Display Color: Red & Blue LED (dual display)
- Display: 0.28″ LED digital
- Operating Voltage: DC 4.5 ~ 30V
- Measure Voltage: DC 0 ~ 100V
- Minimum Resolution (V): 0.1V
- Refresh Rate: ≥500ms / ti
- Measure Accuracy: 1% (± 1 digit)
- Minimum Resolution (A): 0.01A
- Operating Current: <20mA
- Measure Current: 10A (direct measurement, built-in shunt)
- Operating Temperature: -10 to 65°C
- Operating Humidity: 10 to 80% (non-condensing)
- Mounting Cutout: 45.5mm x 26.5mm
Features:
- Rapid response recovery characteristics.
- It Has a long life and reliable stability.
- High precision, four digital displays.
Package Included:
1 x 0.28” 100V 100A Voltmeter Ammeter 0.28” Display for DC0-100V 100A Voltage and Current Test Digital Instrument, Digital Meter Panel Amplifier Red Blue 100A
