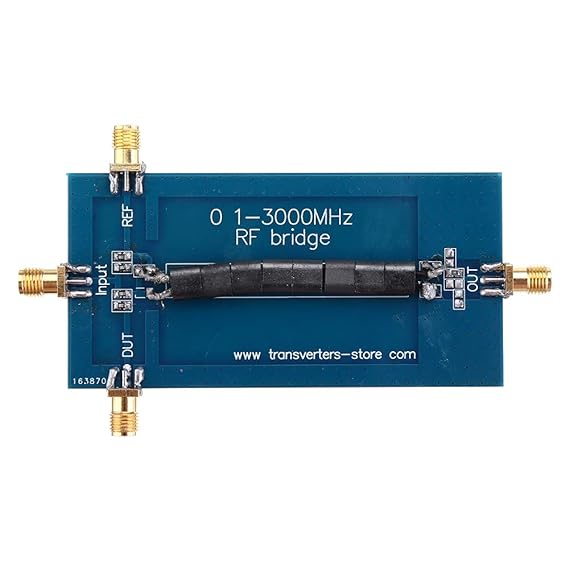

• RF SWR Bridge 0.1-3000MHz VHF VSWR Return Loss

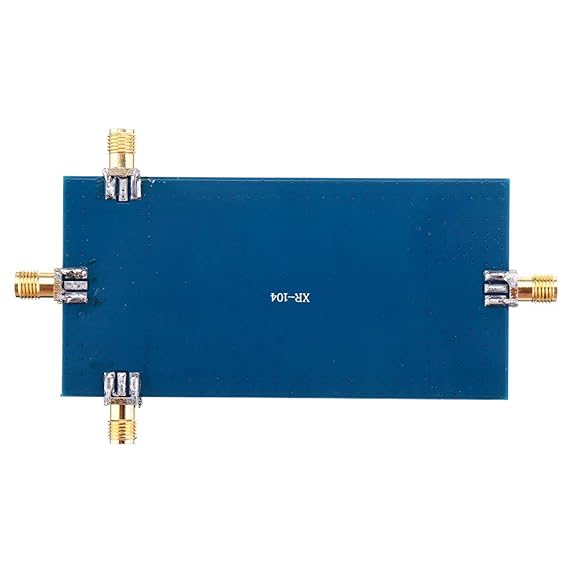

  • Reflection Bridge Antenna Analyzer

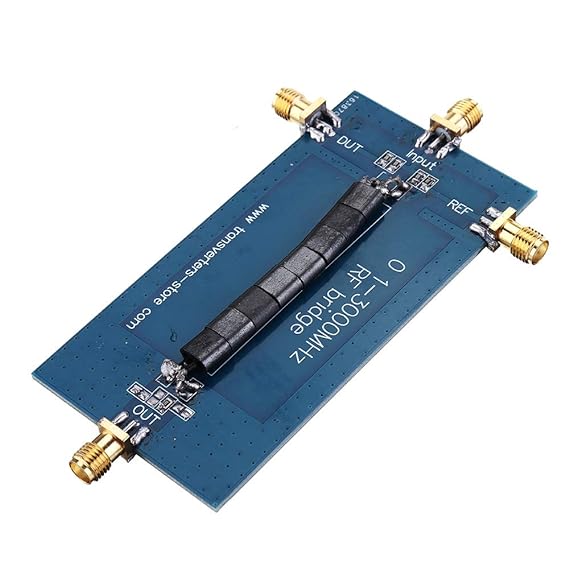

  • 0.1-3000MHz RF Reflection Bridge SWR Meter
1 3

Generic

0.1-3000MHz RF Reflection Bridge SWR Meter VSWR Antenna Analyzer Module - RS2773

0.1-3000MHz RF Reflection Bridge SWR Meter VSWR Antenna Analyzer Module - RS2773

RS2773

Low stock: 2 left

Rs. 2,199.00
Rs. 2,199.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The 0.1–3000MHz RF Reflection Bridge SWR Meter VSWR Antenna Analyzer Module is a high-performance RF testing tool designed for measuring SWR (Standing Wave Ratio), VSWR, return loss, and signal reflection across a wide frequency range from 0.1MHz to 3GHz. Ideal for RF engineers, ham radio enthusiasts, antenna designers, and communication system testing, this module provides accurate signal analysis for antenna tuning and impedance matching applications.

Built for wideband RF measurements, the reflection bridge helps evaluate antenna efficiency, transmission line performance, and RF circuit behavior. Its compact and durable design makes it suitable for laboratory testing, wireless communication projects, VHF/UHF applications, and DIY RF development.

Specifications:

  • Type: RF SWR Reflection Bridge
  • Working Frequency: 0.1-3000 MHz
  • Return Loss: more than 35 dB
  • Connectors: SMA

Features:

  • Easy to use.
  • Long service life.
  • sturdy and durable: Made of high-quality material, it is sturdy and durable.
  • stability: This product adopts aluminum material and has high strength, high stability, and durability; it is not easy to damage.
  • Can be used with HiQSDR or compatible SDR transceivers with N2ADR software and NWT series of USB RF analyzers.

Package Included:

1 x RF SWR Bridge 0.1-3000 MHz
