Description:

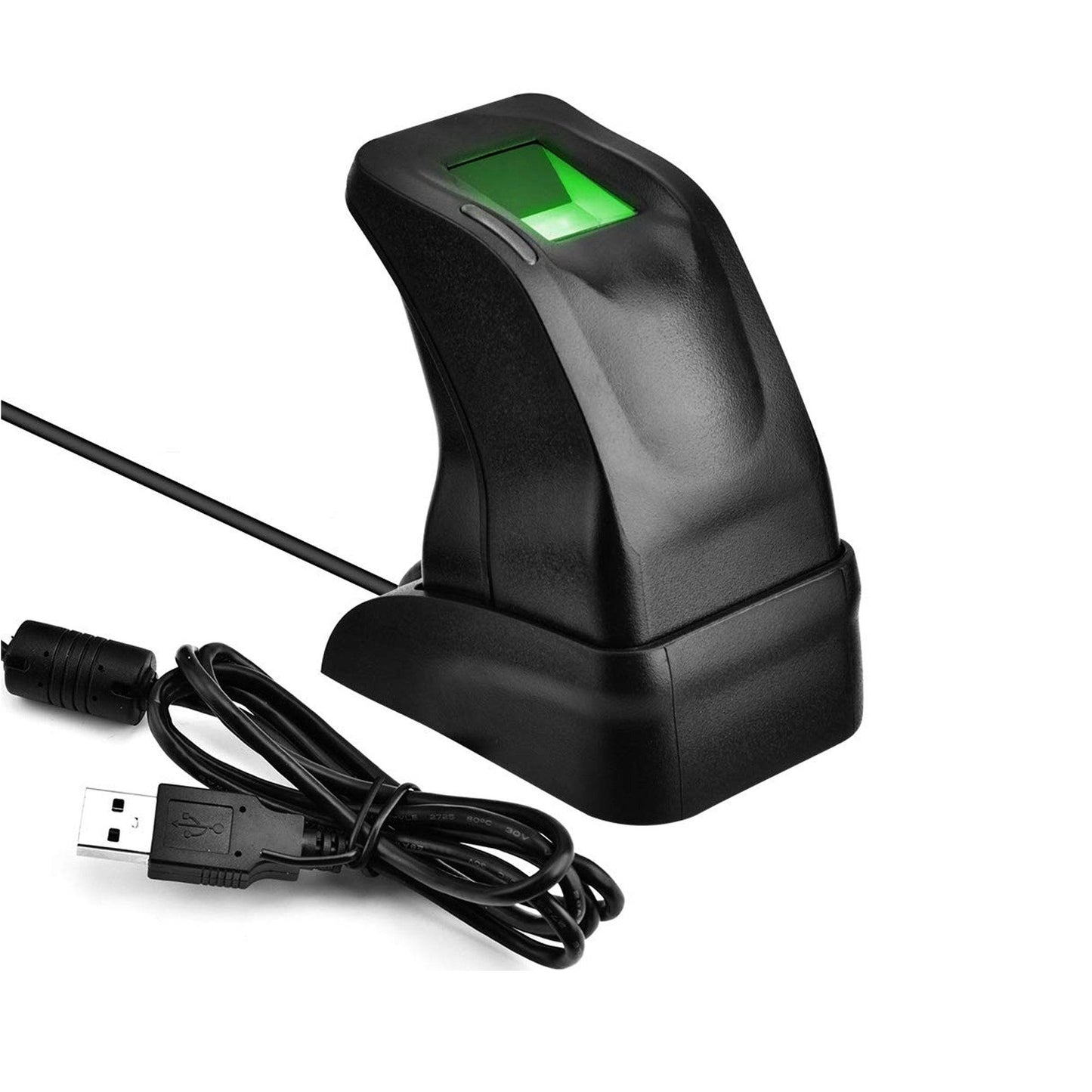

ZK4500 USB Fingerprint Reader is a stable and excellent fingerprint scanner. The device can capture fingerprint images and upload them to the PC by USB interface. ZK4500 USB Fingerprint Reader supports Windows 2000/XP/2003/Vista/7(32/64bit). This ZK4500 USB Fingerprint Reader is widely used in social insurance, public security, time attendance, fingerprint encryption, embedded systems and other fields of application.
Specifications:
| Model Name | ZK4500 |
| Material | Optical |
| CPU | 120MHz DSP |
| Flash | 16 KB |
| SoC | RTOS |
| Image Quality | 0.3 million pixels CMOS |
| Encrypted Fingerprint Data | NA |
| Sunlight Operation | White filed, General Sunlight |
| Water Splash | YES |
| Dry, Wet, or Rough Fingerprints | General Level |
| Power Consumption | 5V:200mA Scanning; 5V:90mA idle (waiting for finger) |
| Live Fingerprint Detection | NO |
| LED | Green |
| Product Certifications | FCC, CE |
| Power Voltage | 5V (USB) |
| Power Current | 200mA |
| Communication | USB 2.0 / USB1.1 / USB1.0 |
| Interface Socket | USB Type A |
| Image Resolution | 500 dpi |
| Effective Collecting Area | 13.24 * 15.7 mm |
| Collecting Area | 15.4*18 mm |
| Image Size | 280*360 pixel |
| Dimension | 65.5 * 48 * 79.8mm (L*W*H) |
| Image Format | BMP |
| Template | ZKFinger V10.0 |
| Template Size | <2KB, (ZKFinger V10.0);1568 B (ISO 19794-2) |
| Gray Level | 256 |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h. |
Features:
- High-performance, maintenance-free optical fingerprint sensor.
- ZK4500 USB Fingerprint Reader is accessible for any finger.
- LED indicates the status of the device.
- ZK4500 USB Fingerprint Reader has a high-speed USB interface.
Package Included:
1 x ZKTeco ZK4500 USB Fingerprint Reader, Fingerprint Scanner Fingerprint Collection Portable for Computer PC Home Office
