Description:

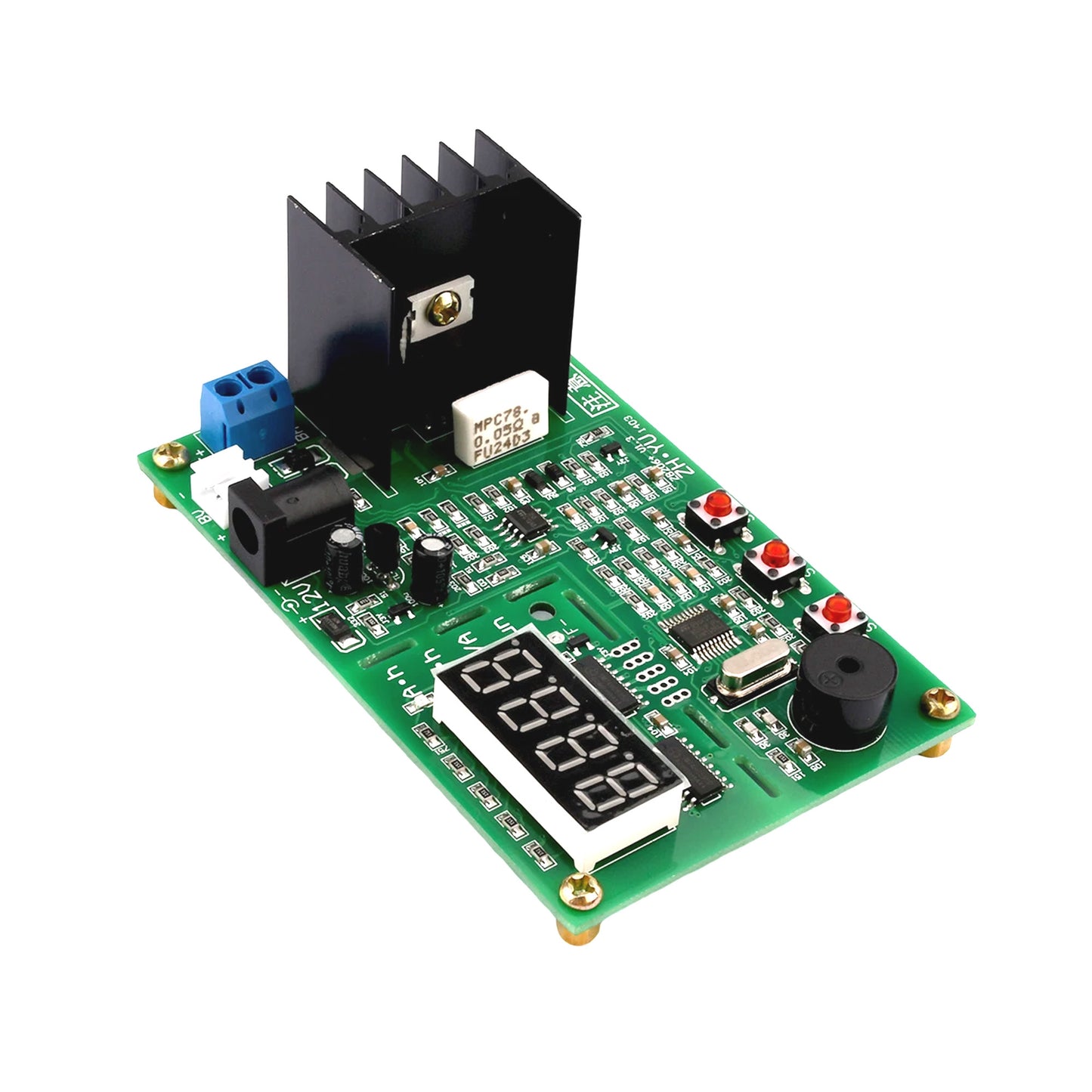

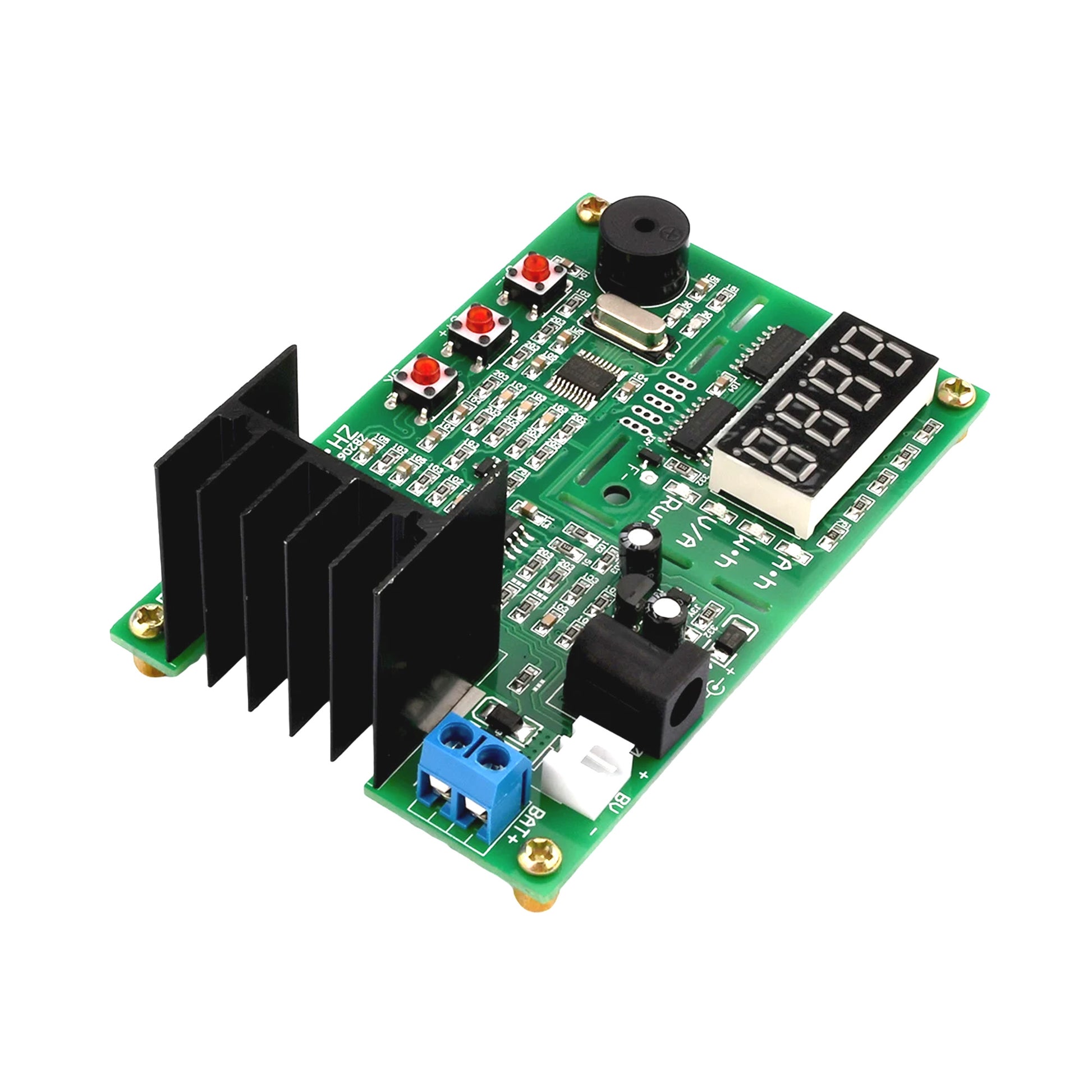

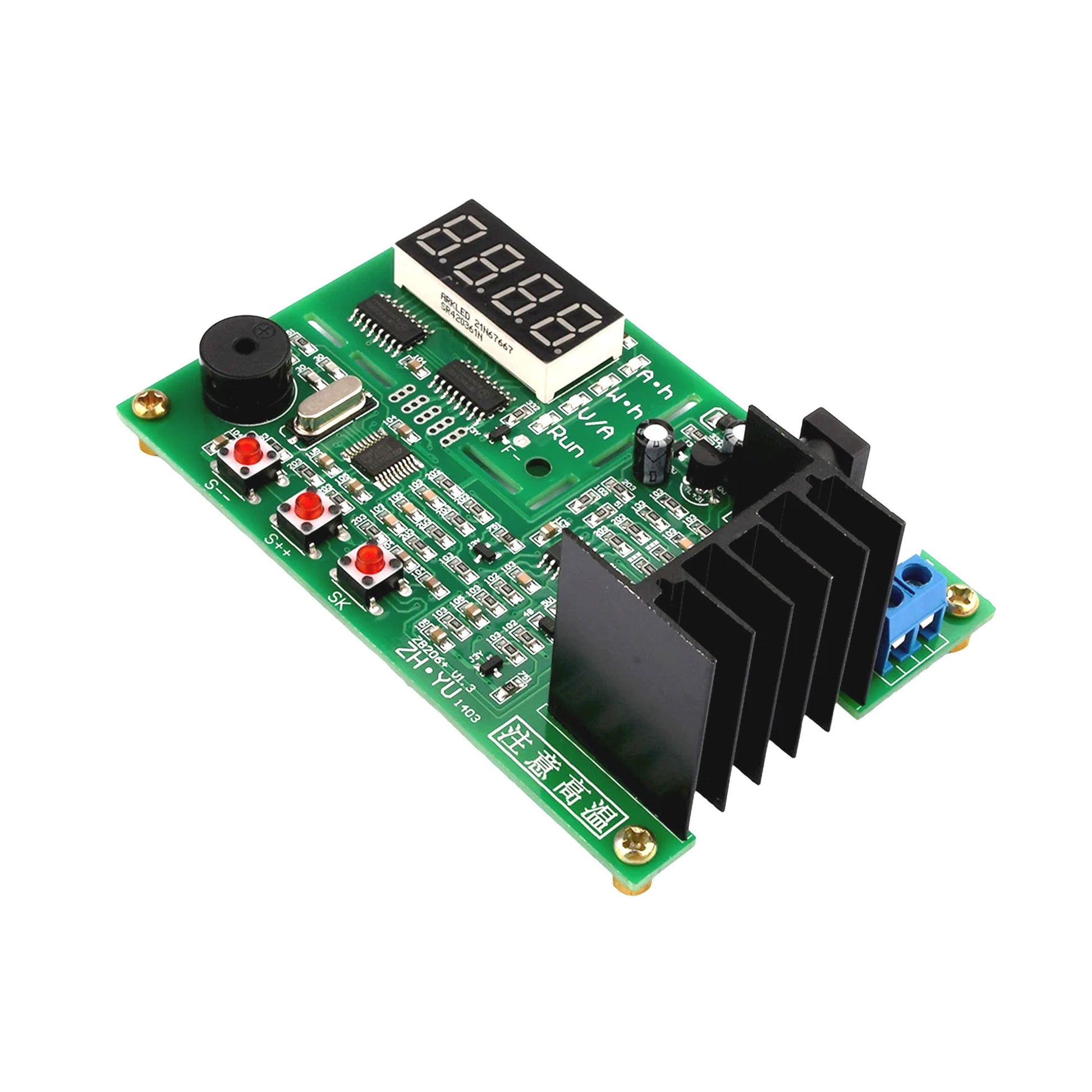

This is ZB206 V1.3 Battery Capacity Tester Internal Resistance Test 18650 Lithium Battery Tester - 5V. Integrated with advanced computing functions, you can directly obtain battery energy (Wh) and battery discharge platform voltage (V) without the need for a computer.
The product comes with multiple protection functions: battery reverse connection, overpower, overvoltage, abnormal power supply voltage, etc. All parameters are automatically saved and designed with automatic memory function for power outages, which is not afraid of power outage during the process.
Specifications:
- Power voltage: 12V Standard version DC12V (DC11-14V)/MICRO USB version DC3.5-5.5V
- Working current: 12V standard version, not exceeding 35mA/MICRO USB, approximately 70mA
- Battery input voltage: not exceeding 8.5V
- Discharge current error: less than 1%+2MA
- Voltage measurement error: less than 1% -3D
- Overall measurement result error (not exceeding): 0.1-0.2A 2.5%, 0.3-0.5A 1.6%, 0.6-1.0A 1.2%, 1.1A-2.6A 1%
- Ah statistical range: 80.00Ah
Features:
- Integrated with advanced computing functions, you can directly obtain battery energy (Wh) and battery discharge platform voltage (V) without the need for a computer
- The product comes with multiple protection functions: battery reverse connection, overpower, overvoltage, abnormal power supply voltage, etc
- The testing current is 0.1-2.6A, and every 0.1A is adjusted arbitrarily for one gear. The smooth current is a high-cost MOS thermal dissipation scheme, which is combined with an independent MOS linear area monitoring circuit to ensure absolute accuracy of the entire process current
- With an advanced function setting menu, it can be expanded and modified in multiple ways
- All parameters are automatically saved and designed with an automatic memory function for power outages, which is not afraid of power outage during the process
How to use:

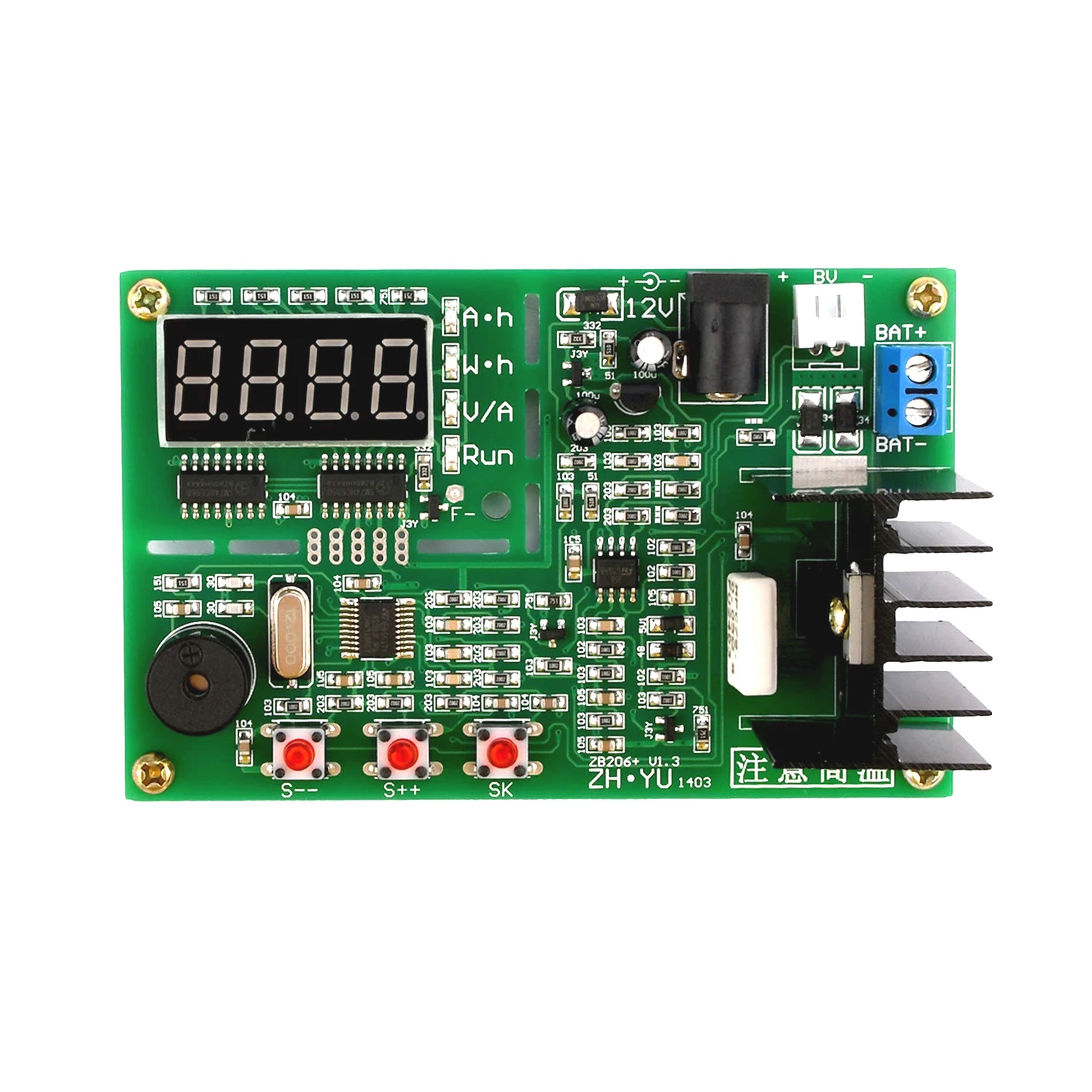

- Connect the positive and negative poles of the fully charged tested battery (power bank) to the blue terminals BAT+and BAT -, with the connection wires as short and thick as possible! Apply a DC 12V working voltage to the tester (the micro USB version uses a 5V power supply), and the tester will display the discharge current when turned on.
- Press the S - or S++button to change the set current within the range of 0.1 to 2.6A. When the current is appropriate, press the SK button to start the test (if there is a fault code Err *, please refer to the following content). The tester can intelligently select the battery type and set the termination voltage. After the test starts, the "RUN" indicator light will light up, and the digital display value will rotate from capacity Ah, energy Wh, voltage V, and current A. After the test is completed, the digital tube stays at the Ah value
Package Included:
1 x ZB206 V1.3 Battery Capacity Tester Internal Resistance Test 18650 Lithium Battery Tester - 5V
